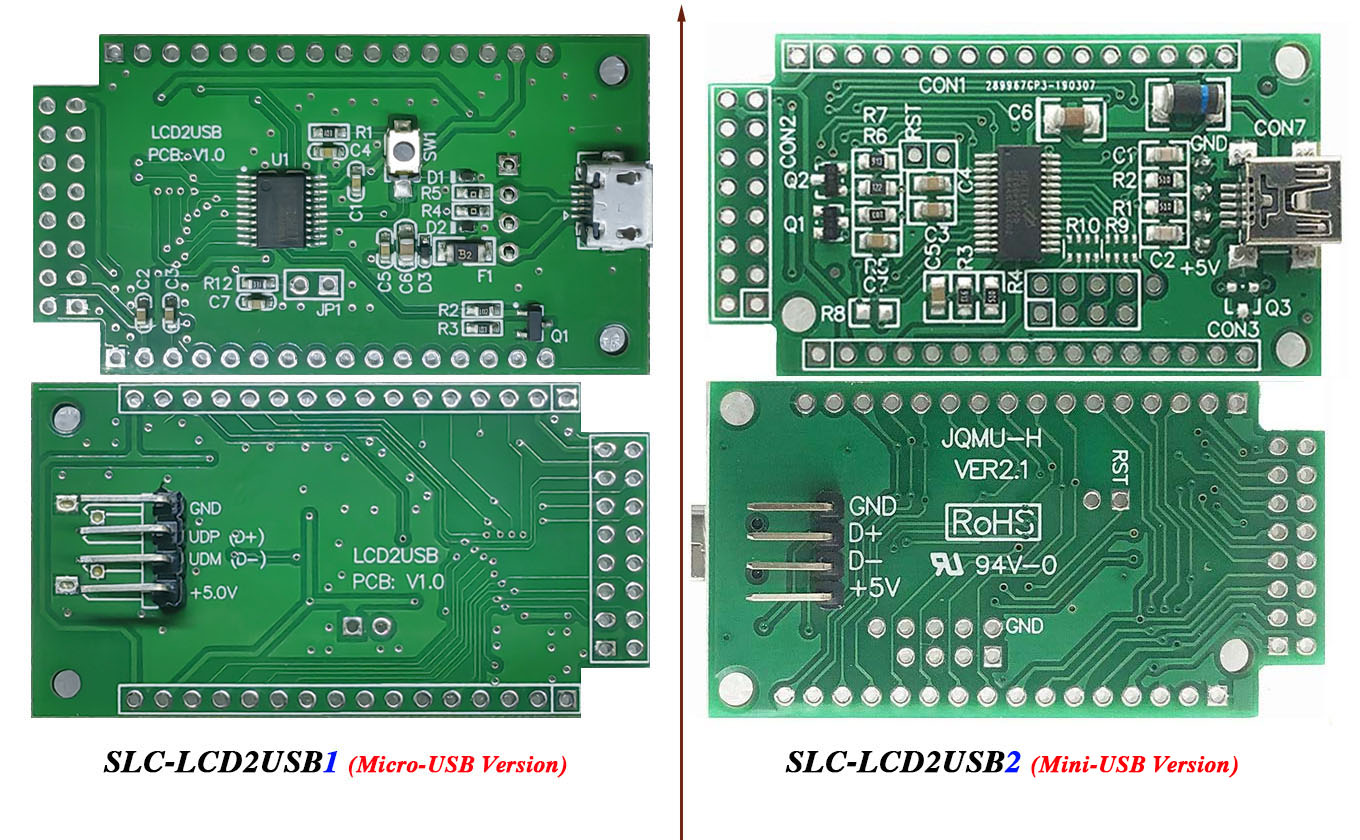

LCD2USB module, USB interface, HTPC computer information display panel, supports hot swapping!
- Supports 32/64bit Windows (LCD Smartie, AIDA64)
- Supports Linux, Raspberry Pi B/B+
- Supports LCD4Linux and lcdporc software
- Support secondary development
It can be used to display various PC information, such as time, support multiple fonts and modes, display time system, IP address CPU frequency, memory capacity, hard disk capacity, CPU memory and hard disk usage and idle display, status bar display effect, etc., and view real-time network traffic and speed at any time In addition, users may adjust the contrast ratio of LCD display and backlight brightness
Audio information: supports multiple information of WINAMP player music, including time progress, compression format, waveform effects, etc
By installing other software, the fan speed and CPU temperature can also be displayed, and the display information effect function can be set. Multiple groups of display content can be set, and by setting the rotating display content, the switching time between each group of content, transition effect, dwell, etc. can be controlled. Other operations can also be controlled through commands.
Support Display Series:
0802 / 1601 / 1602 / 1604 / 2002 / 2004 /4002 / 4004, with 4P/2.54 Dupont and Mini USB Port.
- Specification
Gross Weight | 0.0240Kg |
Manufacturer | Surenoo |
Continuity Supply | More than 10 years |
Part No. | LCD2USB Module |
Display Support | All Stanard Character LCD Display |
Interface | 1X16P/2.54; 2X8P/2.54 6800 4-Bit Parallel, USB Interface |
Voltage(Type) | 5.0V in default |
Software | LCD Smartie; AIDA64 |
Operating Temperature
|
-20℃~70℃
|
Storage Temperature
|
-30℃~80℃
|

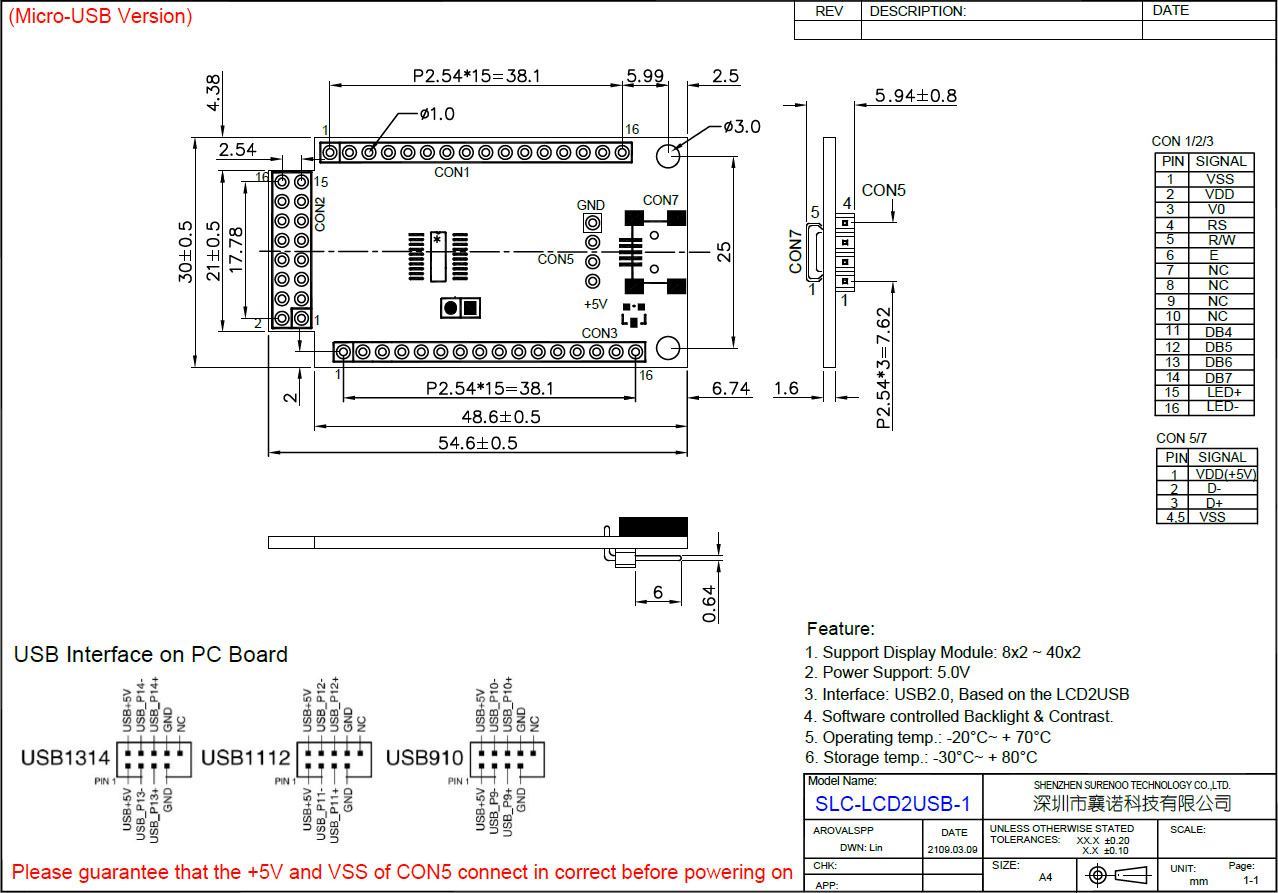

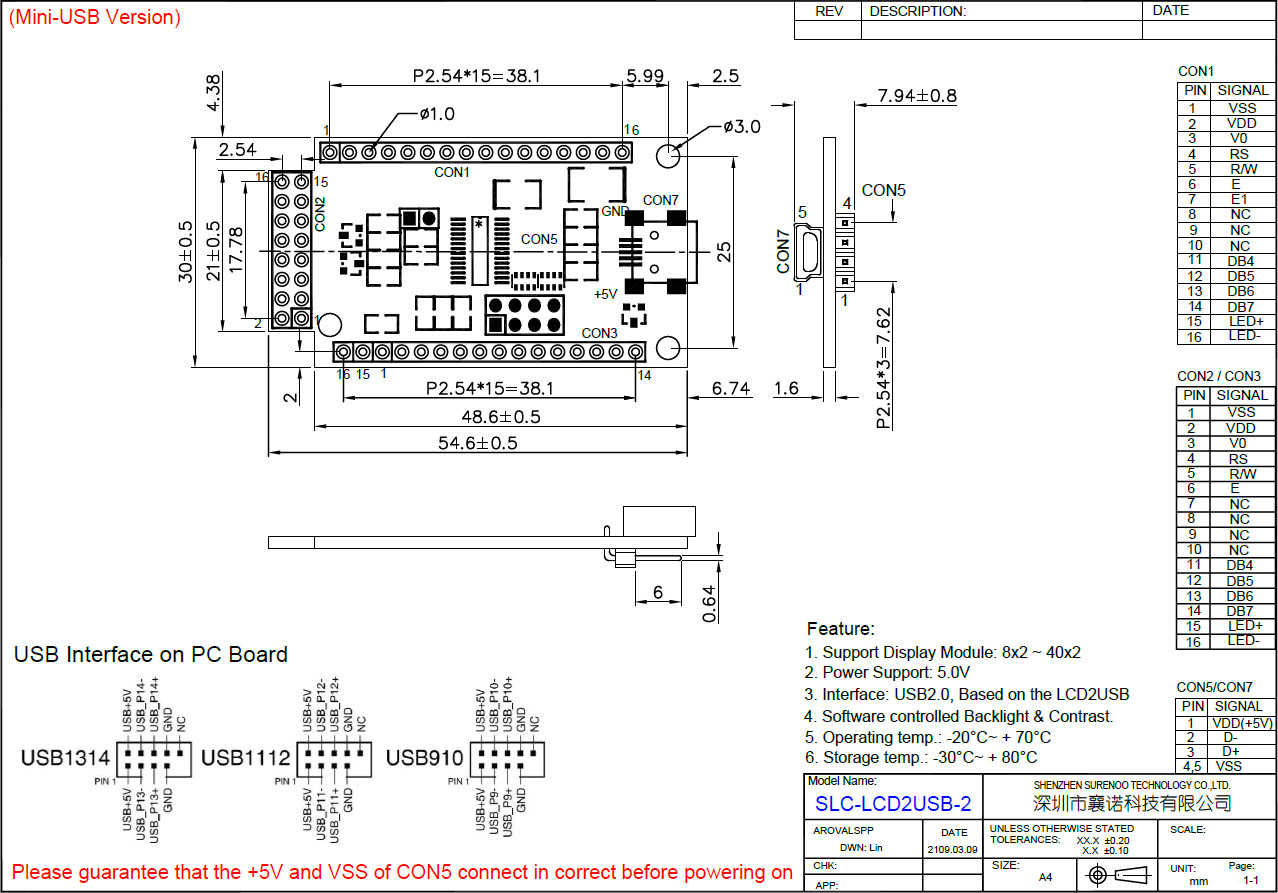

- Outline Drawing

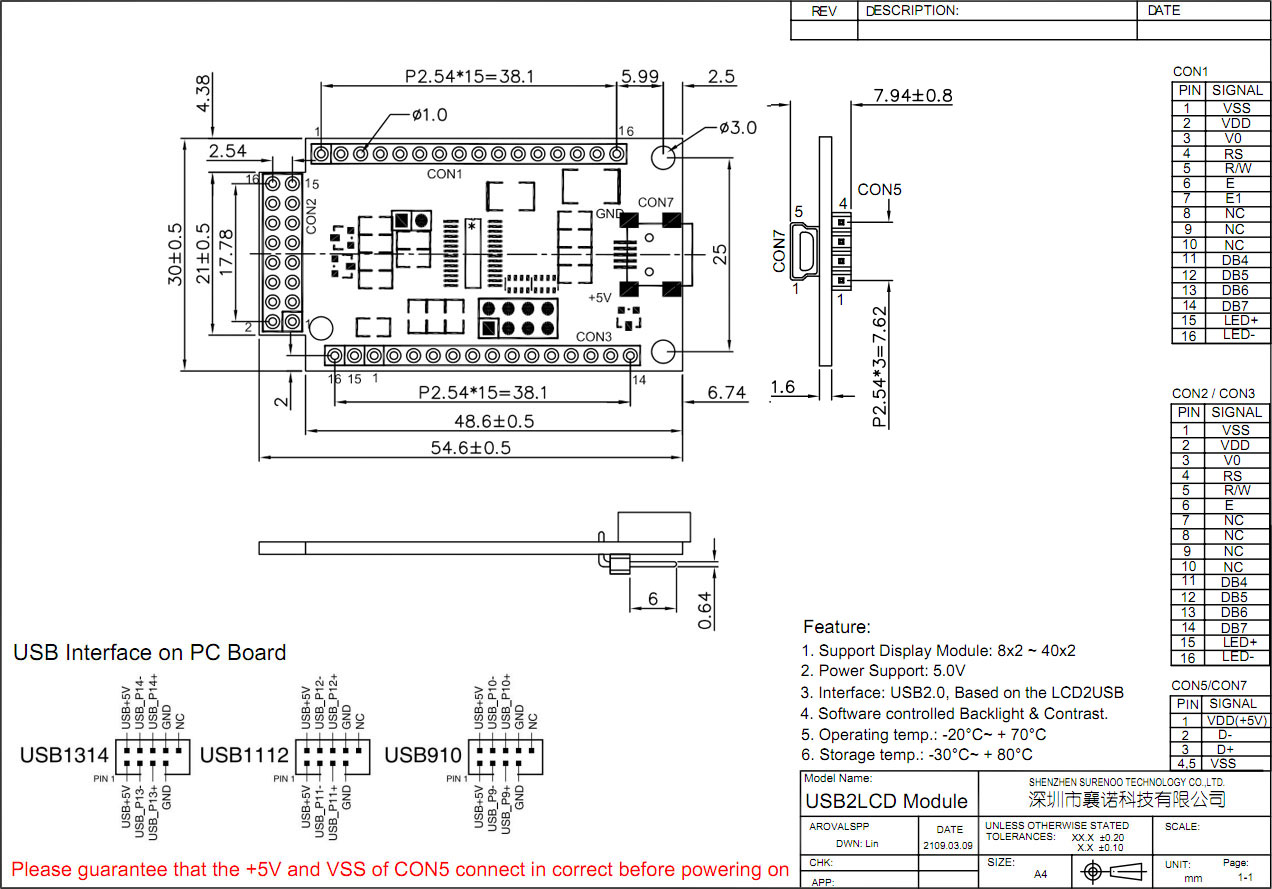

![](https://cdn.staticsyy.com/uploads/82585/cart/resources/20240430/cd726a7f22874307101867a0ceb6d8be.jpg)
- Interface
Pin No. | Pin Name | Pin Name |
Description |
CON1 | CON2 / CON3 | ||
1 | VSS | VSS | Ground 0V |
2 | VDD | VDD | Logic Power Supply |
3 | V0 | V0 | Operating voltage for LCD |
4 | RS | RS | Data / Instruction Register Select (H: Data Signal, L: Instruction Signal) |
5 | R/W | R/W | Read / Write (H: Read Mode, L: Write Mode) |
6 | E | E | Enable Signal |
7 | E1 | NC | Enable Signal / No Connect |
8-10 | NC | NC | No Connect |
11-14 | DB4-DB7 | DB4-DB7 | Data Bit 4 |
15 | LED_A | LED_A | Backlight Anode |
16 | LED_K | LED_K | Backlight Cathode |
CON5/7 | |||
1 | VDD | Logic Power Supply (5.0V) | |
2 | D- | Data Transfer - | |
3 | D+ | Data Transfer + | |
4, 5 | VSS | Ground 0V |
- Documents
No. | Item | File Name | File Type | ICON | Date | Description | Mark |
1 | LCD2USB Module | USB2LCD Module |
![]() |
2012-11-28 | USB2LCD Module can work on all standard LCD interface, suitablefor LCD Smrtie or AIDA64 |
