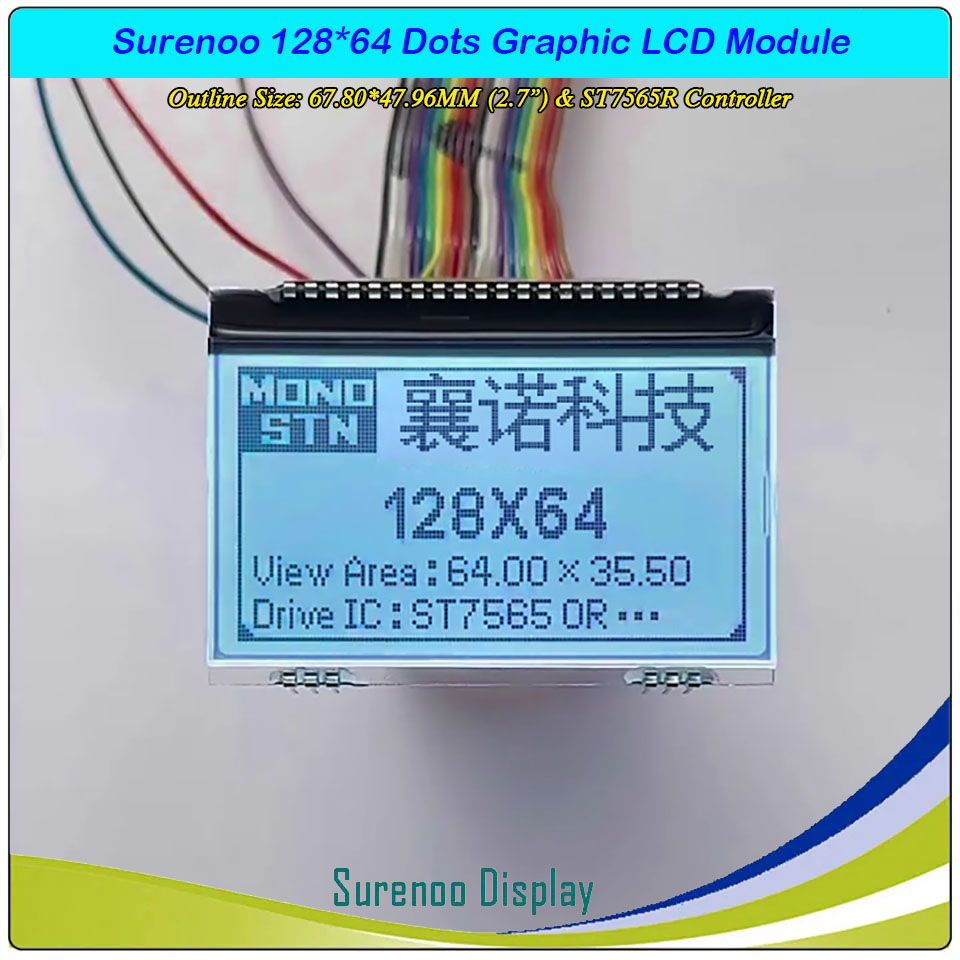

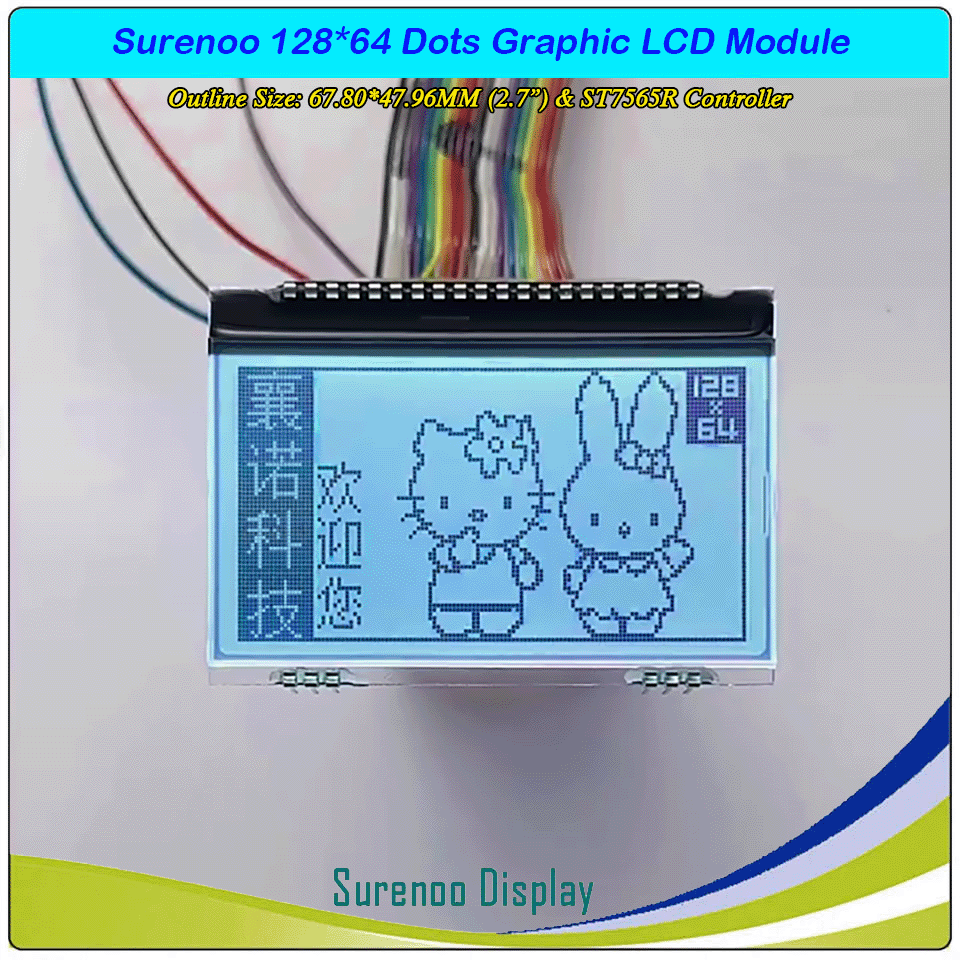

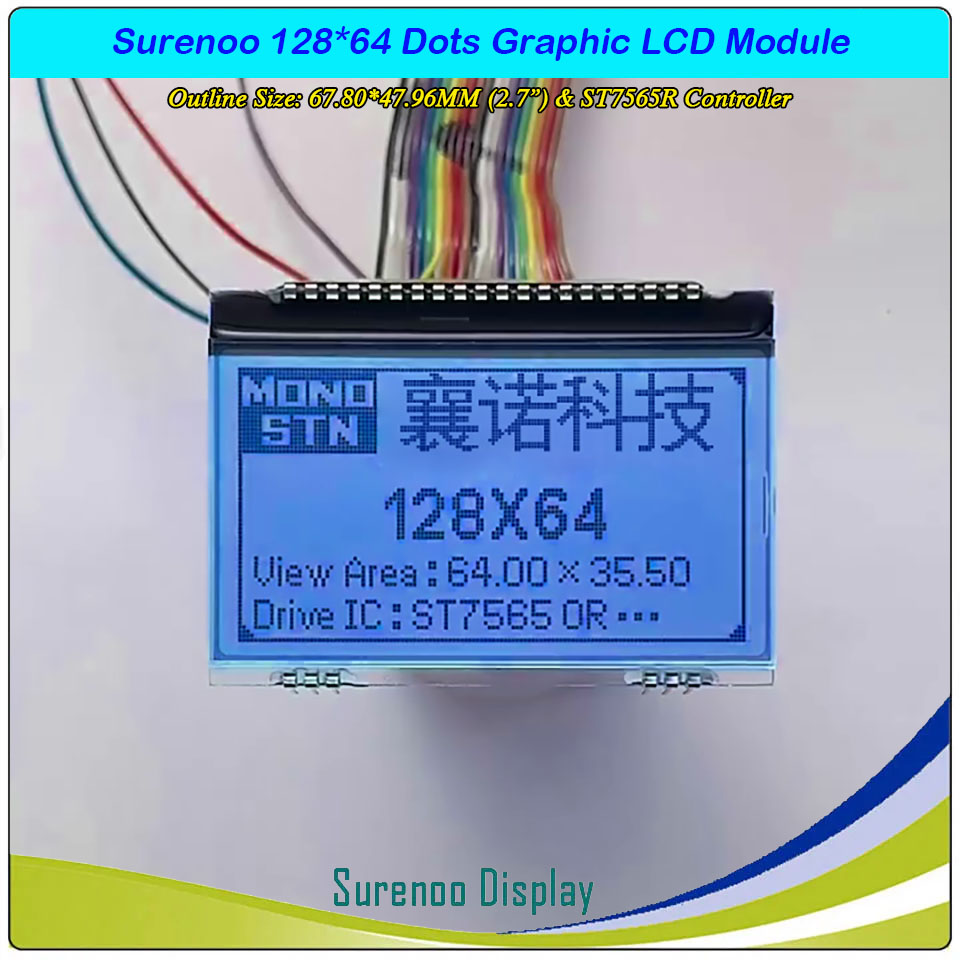

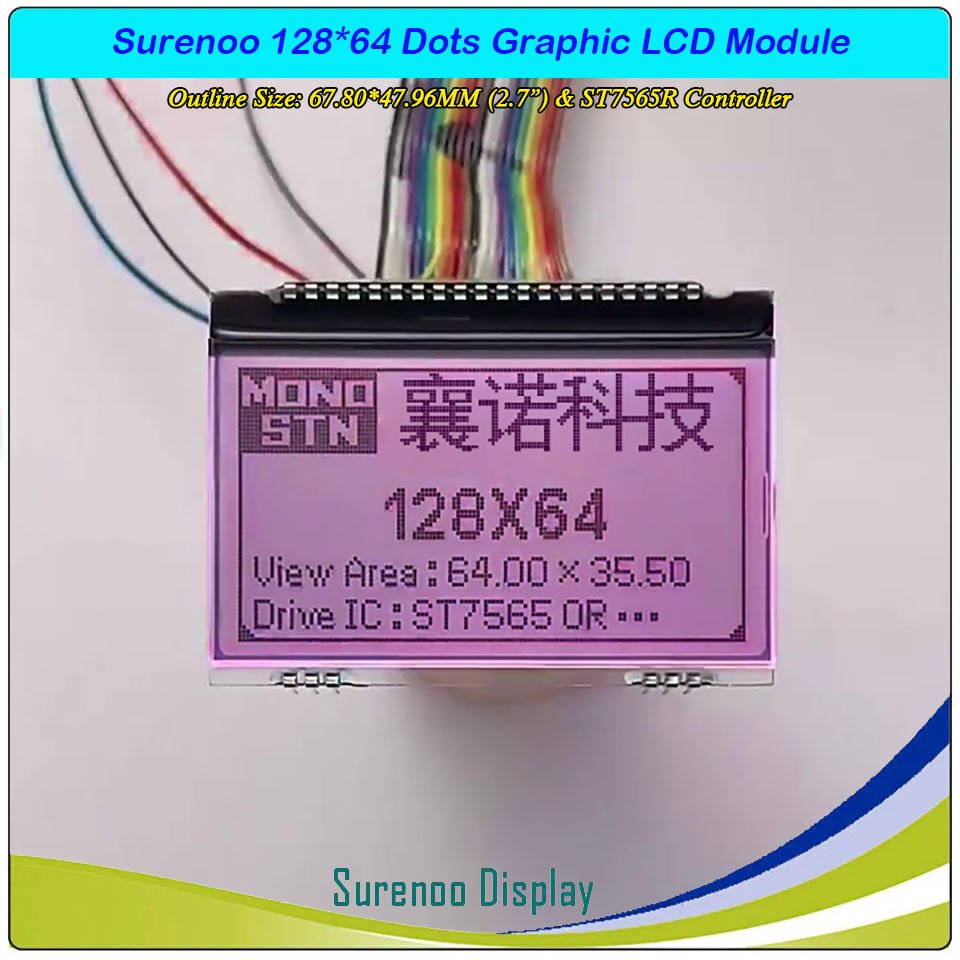

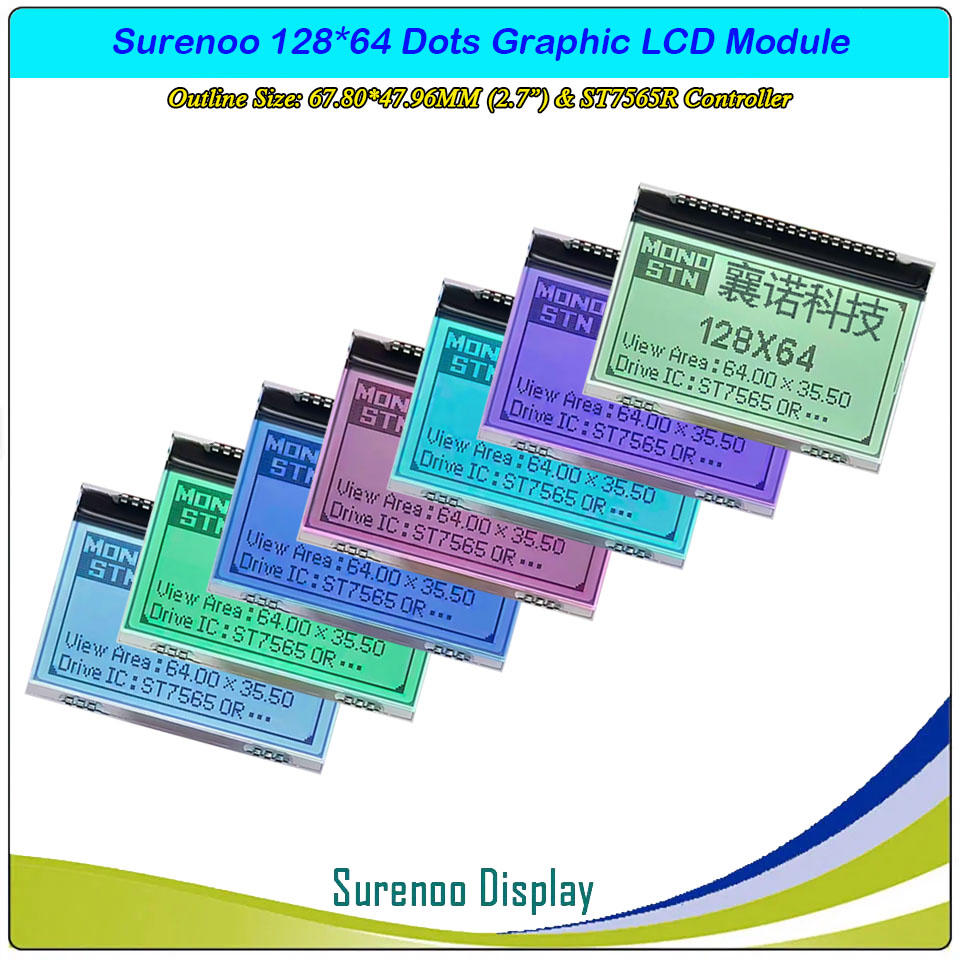

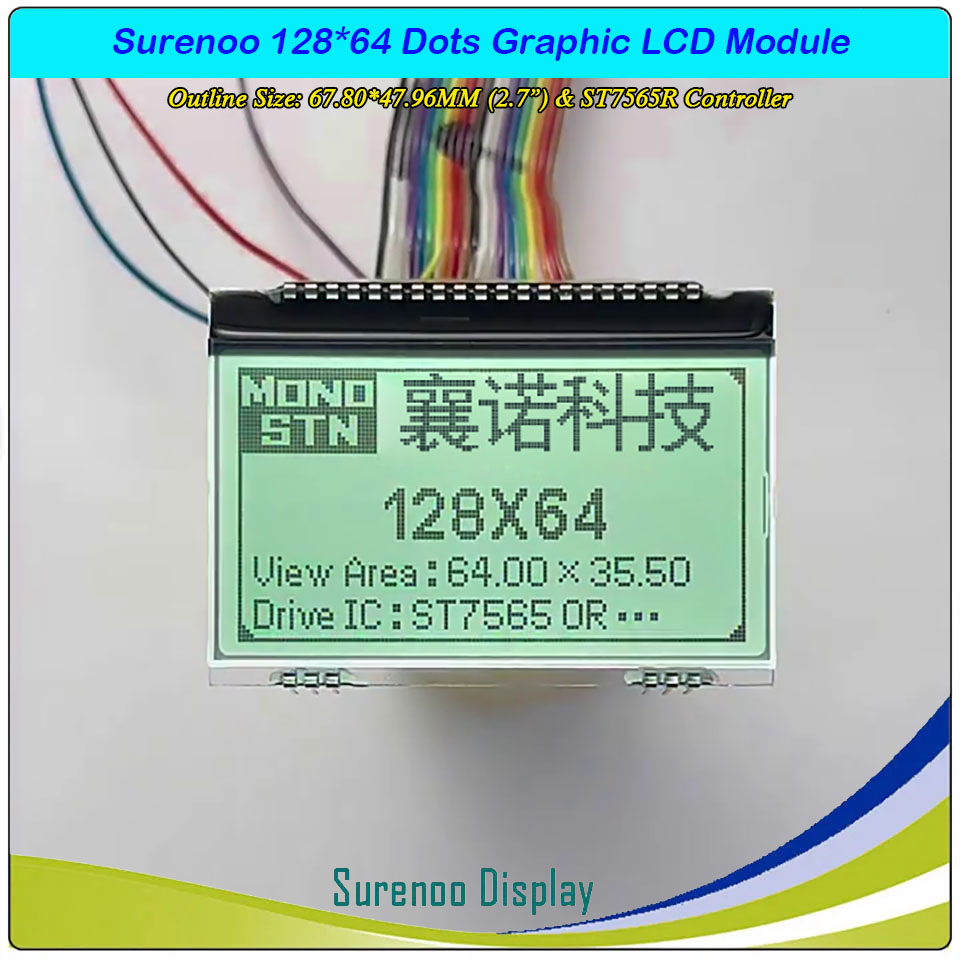

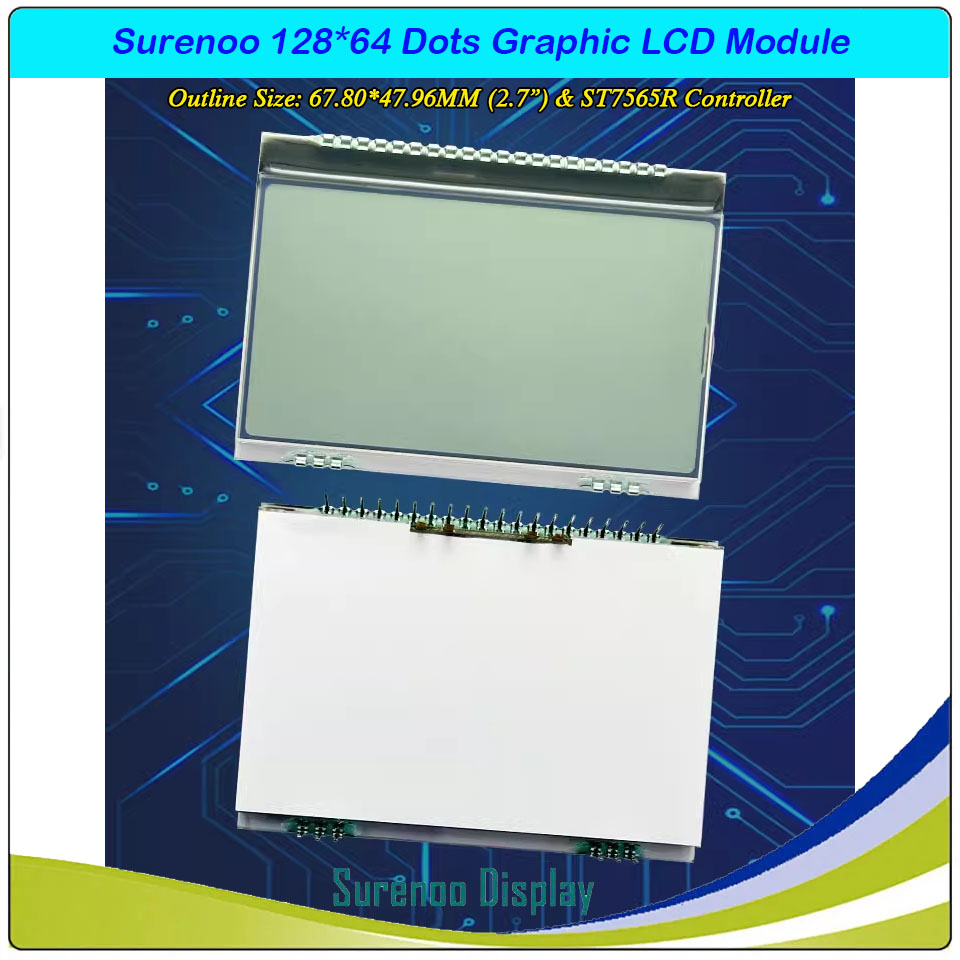

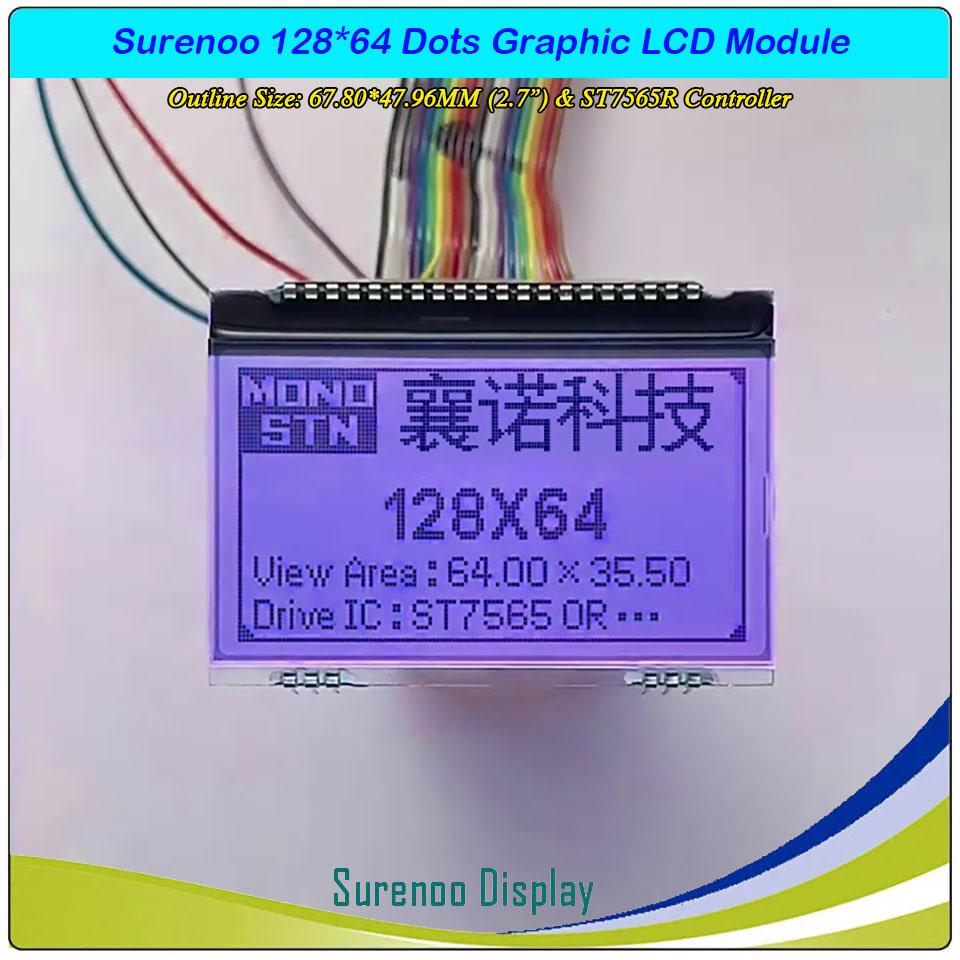

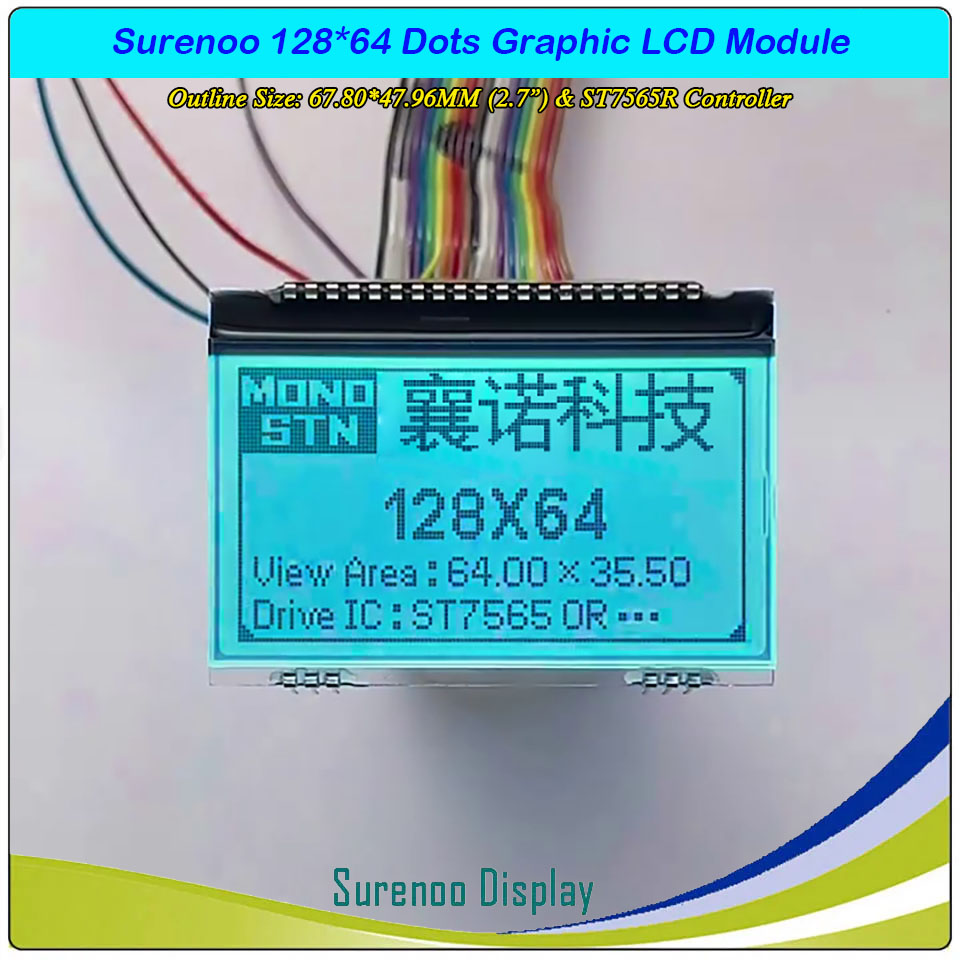

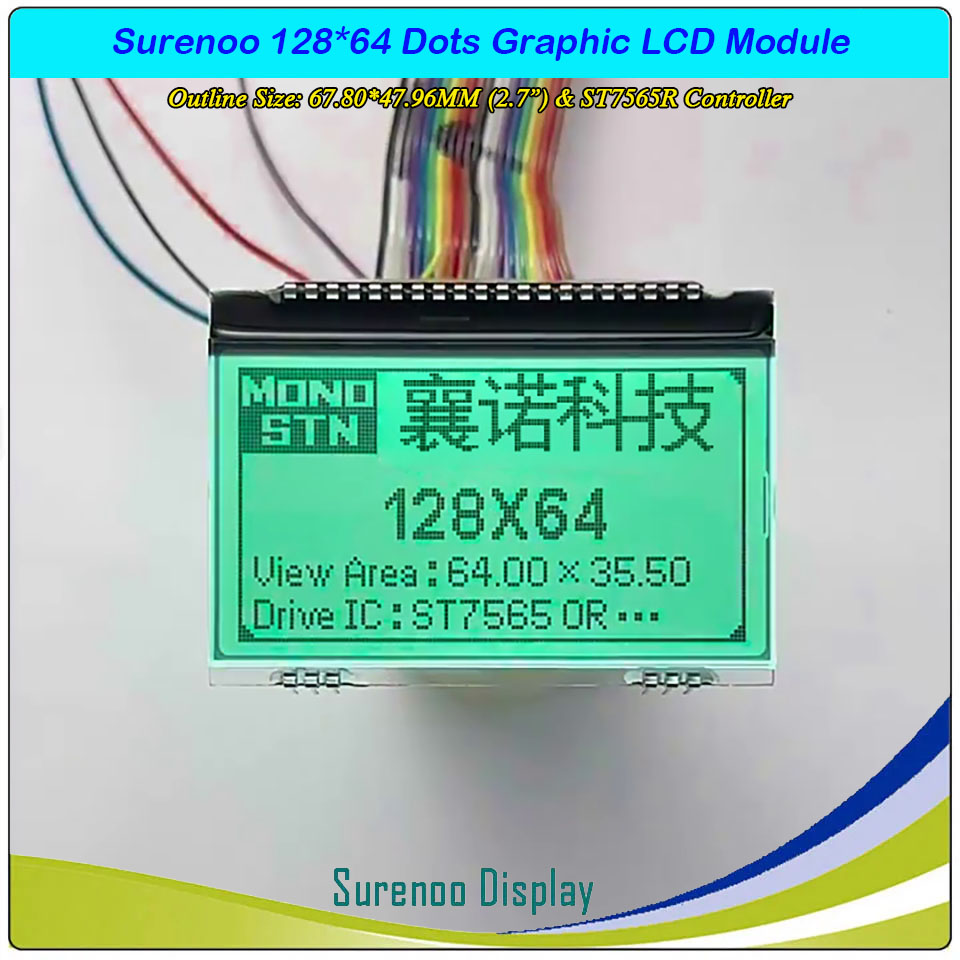

Model No.: SLG12864R (2.7" COG)
Display Format: 128*64 Dots
Outline Size: 67.80X47.96MM
Controller: ST7565R or Equal
5 sold
Quantity
OUT OF STOCK
Detail
Customer Reviews
  • Important Note
This is Customized 12864 COG SPI Display with RGB Backlight, need pay $800 deposit to get 5PCS free Sample, and the MOQ for next order is 2000PCS, the deposit will be deducted from the payment of 2000PCS orders directly!
  • Overview


SLG12864R is a 128*64 COG Monochrome Graphic LCD Module, ST7565R Controller standard 26P/2.54 12864 COG Graphic LCD Module.

SLG12864R supprot Serial SPI interface, wide operating temperature range, rohs compliant. 3.3V power supply in default.

It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
  • Specification
Gross Weight  0.060Kg
Manufacturer Surenoo
Display Type Graphic LCD Module
Continuity Supply More than 10 years
Part No. SLG12864R (2.7")
Display Format 128*64 Dots
Interface Serial SPI
IC or Equivalent ST7565R or Equal
Voltage 3.3V in default
Connection 1X20P/2.54 Stitch Pin
Outline Dimension 67.80(W)x47.96(H)x6.10(T)mm
Visual Area 64.005x35.50mm
Active Area 60.785x32.945mm
Display Type FSTN Positive
Backlight Type (LED) RGB LED Backlight
IC Package COG
Viewing Direction 6:00 O'Clock
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
  • Outline Drawing

  • Interface
Pin No. Symbol Description
1-6 NC No Connection
7-11 V0-V4 Please check the following image01.
12 VSS
13 CAP2N
 DC/DC Voltage Converter
Please check the following image02.
14 CAP2P
15 CAP1P
16 CAP1N
17 CAP3P
18 VOUT
19 VSS Ground
20 VDD2
 Power Supply  (3.3V)
21 VDD
 Power Supply  (3.3V)
22 SI Serial Data Input
23 SCK
 Serial Clock Input
24 A0 A0 = “H”: Display Data; A0 = “L”: Control Data.
25 RST Reset Signal, Active “L”.
26 CS1B Chip Select Signal, Active “L”.
G LEDK(G) Backlight Cathode Green Pin
R LEDK(R) Backlight Cathode Red Pin
A LEDA Backlight Anode
B LEDK(B)  Backlight Cathode: Blue Pin

  • Documents
No. Item Document Name File Type ICON Date Description Mark
1 Datasheet 128X64 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 12864 Graphic LCD Module
2 Controller Controller IC ST7565R Datasheet PDF 2008-09-24 Graphic LCD Controller: ST7565R
