SLG12864J Outline=54.00X50.00MM 2.0" 12864 128X64 Surenoo COG Graphic LCD Module Display Screen Panel 6800 8080 8-Bit Parallel Serial SPI 3.3V ST7565R Controller STN Blue Negative FSTN Positive White LED Backlight for MCU 8051 PIC AVR ARM Arduino
SLG12864J Outline=54.00X50.00MM 2.0" 12864 128X64 Surenoo COG Graphic LCD Module Display Screen Panel 6800 8080 8-Bit Parallel Serial SPI 3.3V ST7565R Controller STN Blue Negative FSTN Positive White LED Backlight for MCU 8051 PIC AVR ARM Arduino
Model No.: SLG12864J (2.0" COG)
Display Format: 128*64 Dots
Outline Size: 54.00X50.00MM
Controller: ST7565R or Equal
Display Format: 128*64 Dots
Outline Size: 54.00X50.00MM
Controller: ST7565R or Equal
82 sold
Quantity
Detail
Customer Reviews
- Overview

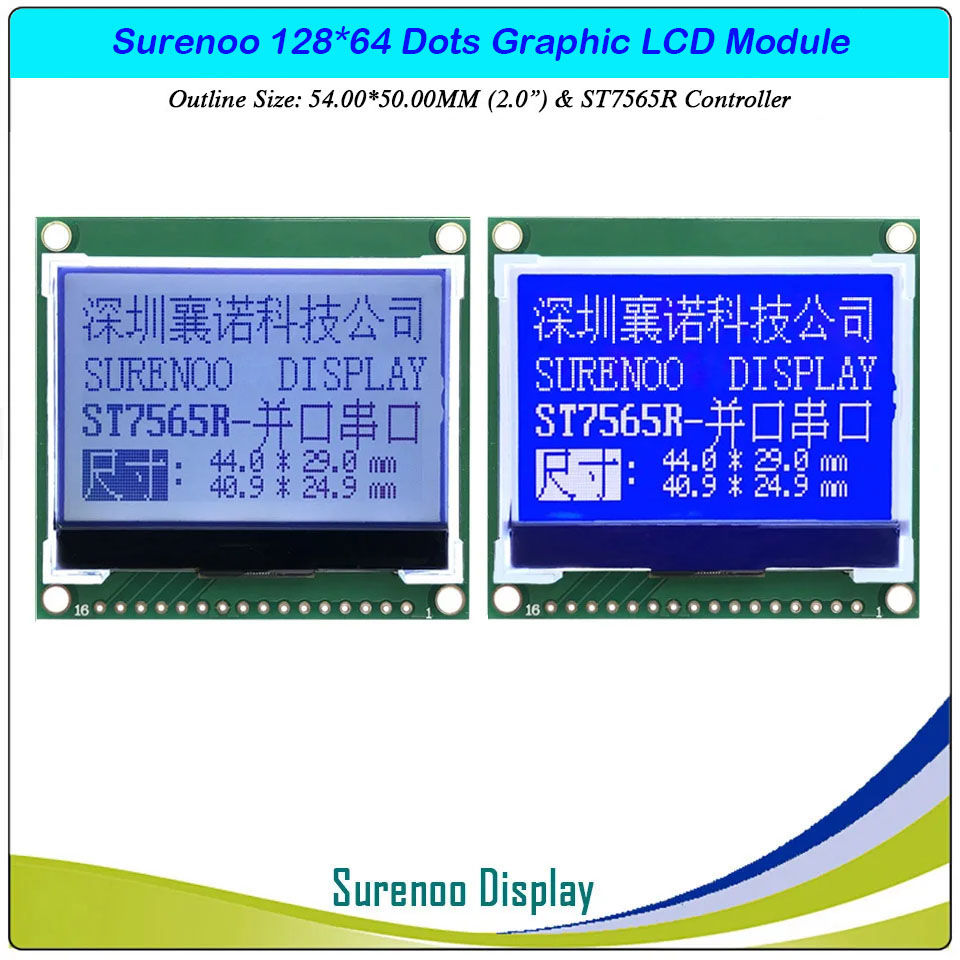

SLGM12864J is a 128*64 COG Monochrome Graphic LCD Module, ST7565R Controller standard 16P/2.54 Pin Hearder and 16P/1.0 Connector 12864 COG Graphic LCD Module.
SLGM12864J supprot 6800 8080 8-Bit Parallel Serial SPI interface, wide operating temperature range, rohs compliant. 3.3V power supply in default.
SLGM12864J supprot 6800 8080 8-Bit Parallel Serial SPI interface, wide operating temperature range, rohs compliant. 3.3V power supply in default.
It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
- Specification
| Gross Weight | 0.040Kg |
| Manufacturer | Surenoo |
| Display Type | Graphic LCD Module |
| Continuity Supply | More than 10 years |
| Part No. | SLG12864J (2.0") |
| Display Format | 128*64 Dots |
| Interface | 6800 8080 8-Bit Parallel or Serial SPI |
| IC or Equivalent | ST7565R or Equal |

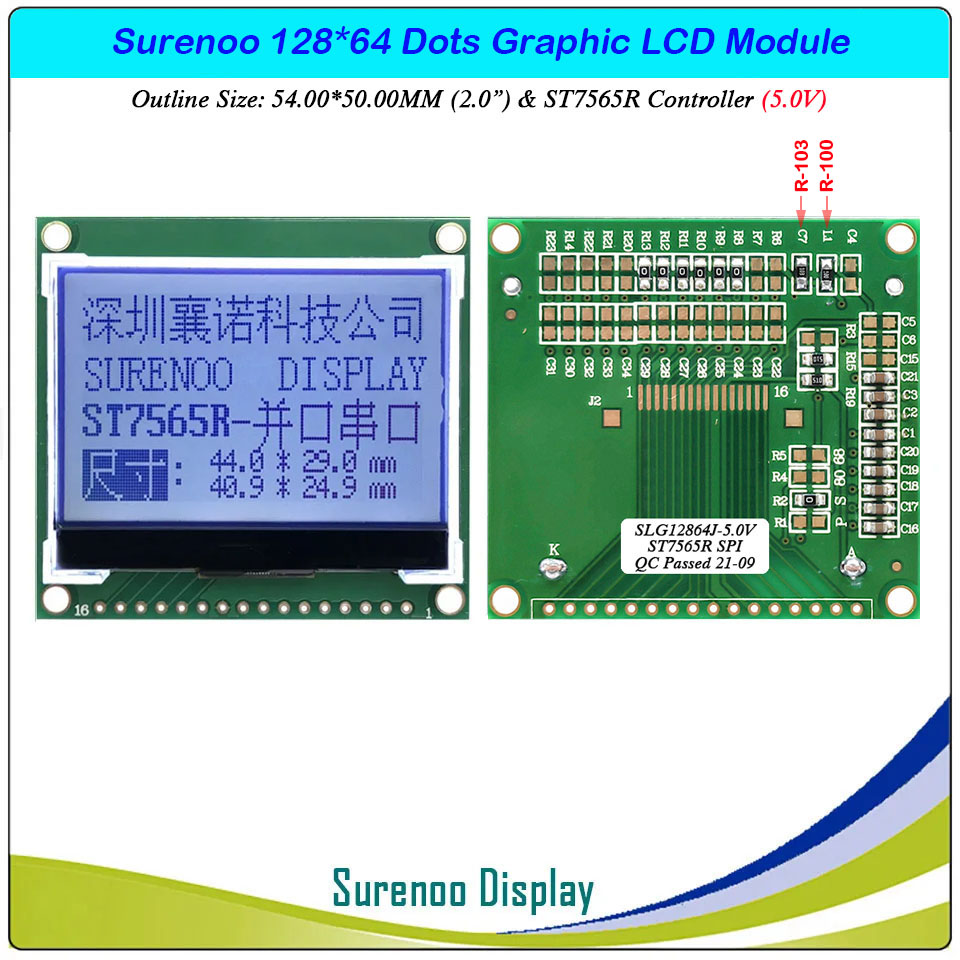

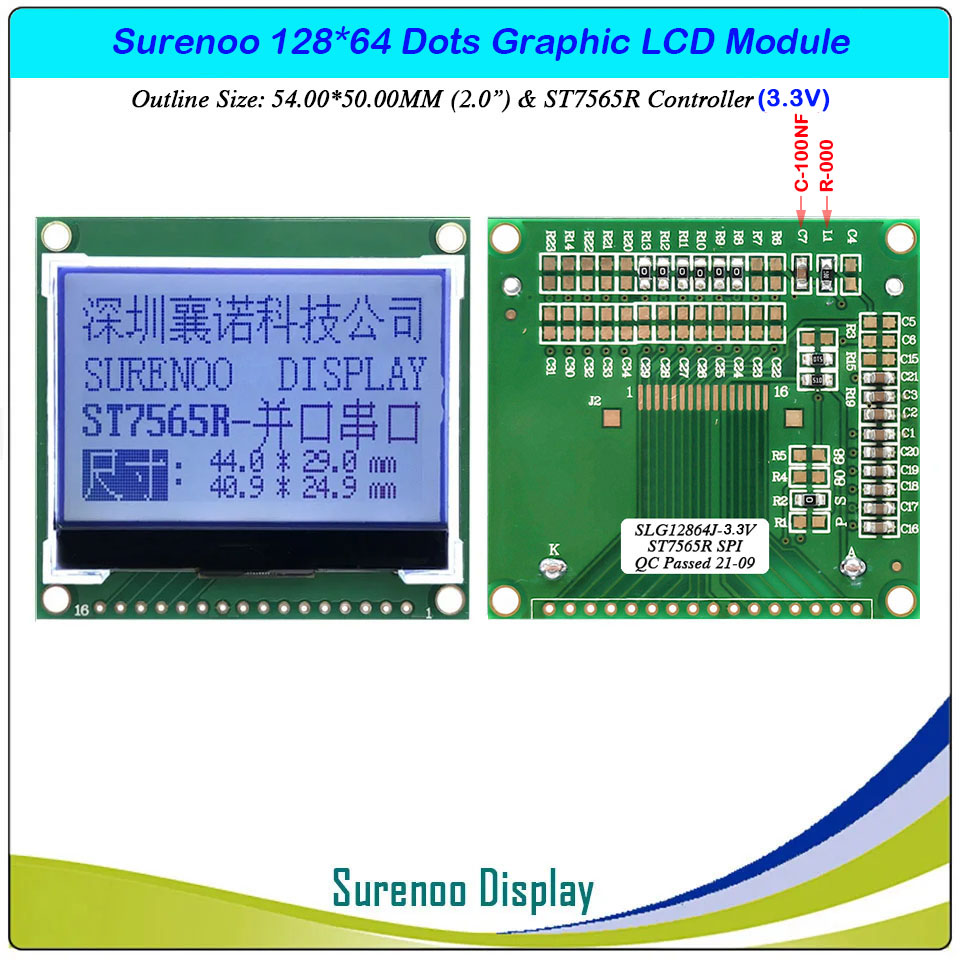

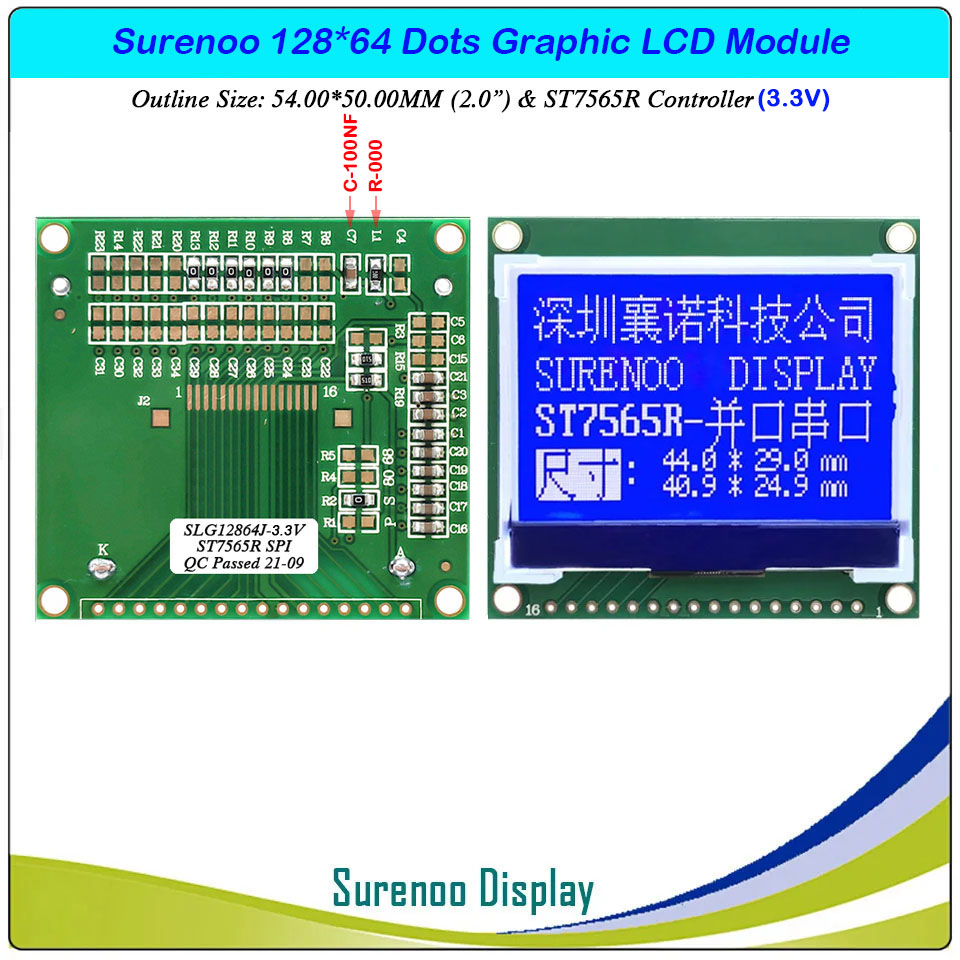

| Voltage | SLGM12864J: 3.3V/5.0V; SLGP12864J: 3.3V >> J1-3.3V: L1=000R/0805; C7=100NF/0805(16V, 5%) >> J1-5.0V: L1=100R/0805; C7=103R/0805 |
| Connection | SLGM12864J: 1X16P/2.54 Pin Header & 1X16P/1.0 Connector; SLGP12864J: 1X30P/0.8 FPC |
| Outline Dimension | SLGM12864J: 54.00(W)x50.00(H)x7.00(T)mm; SLGP12864K: 50.30(W)x39.30(H)x4.50(T)mm |
| Visual Area | 44.00x29.00mm |
| Active Area | 40.93x24.93mm |
| Display Type | STN Blue Negative, FSTN Positive |
| Backlight Type (LED) | White |
| IC Package | COG |
| Viewing Direction | 6:00 O'Clock |
|
Operating Temperature
|
-20℃~70℃
|
|
Storage Temperature
|
-30℃~80℃
|
- Outline Drawing

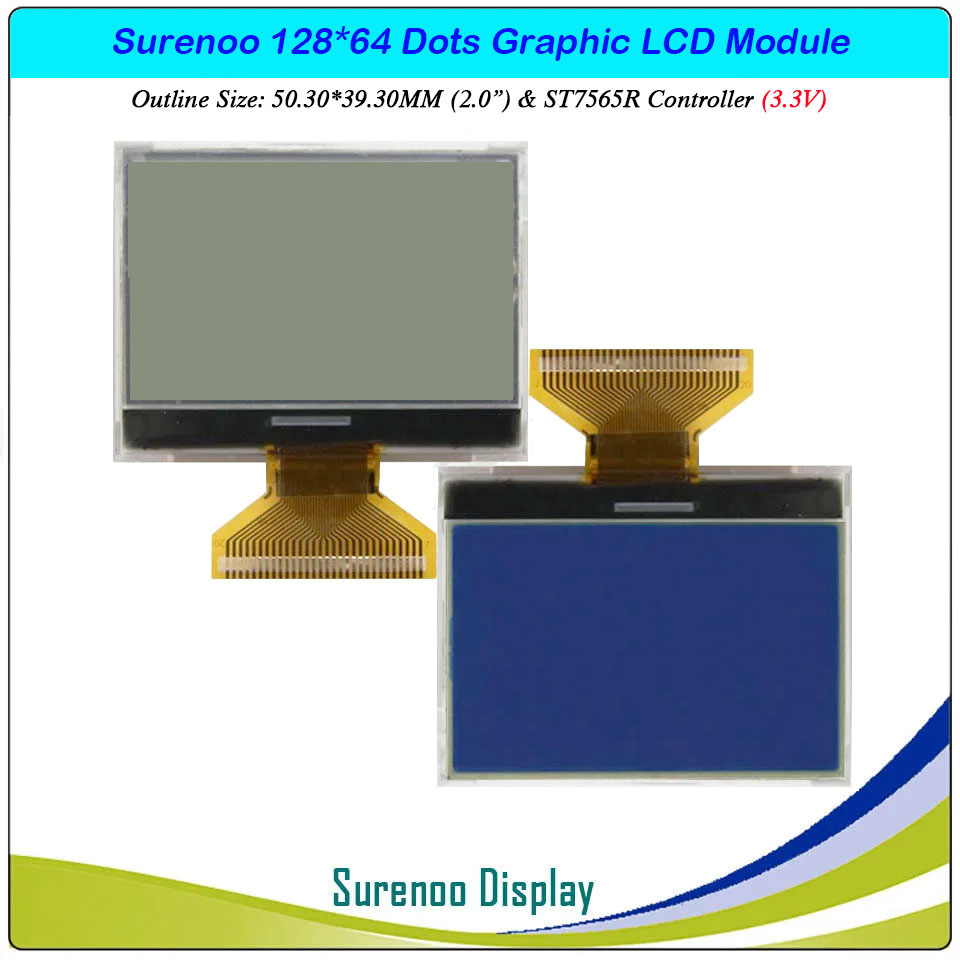

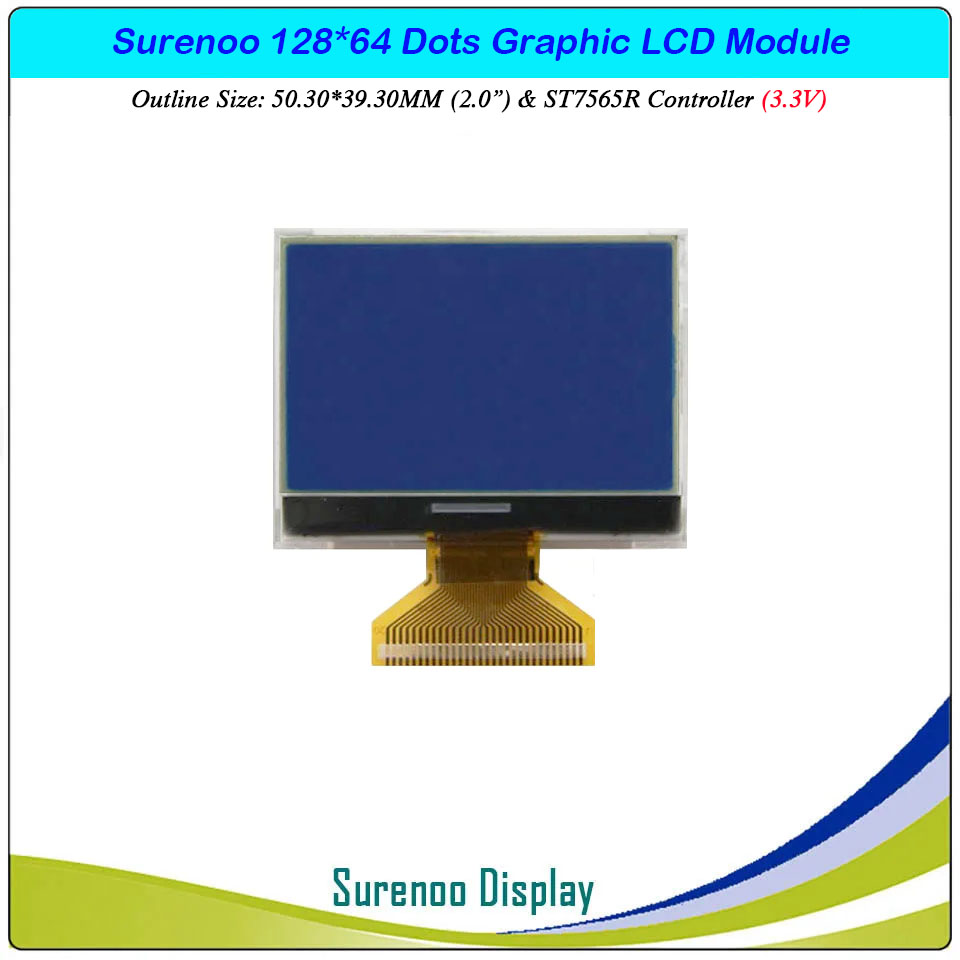

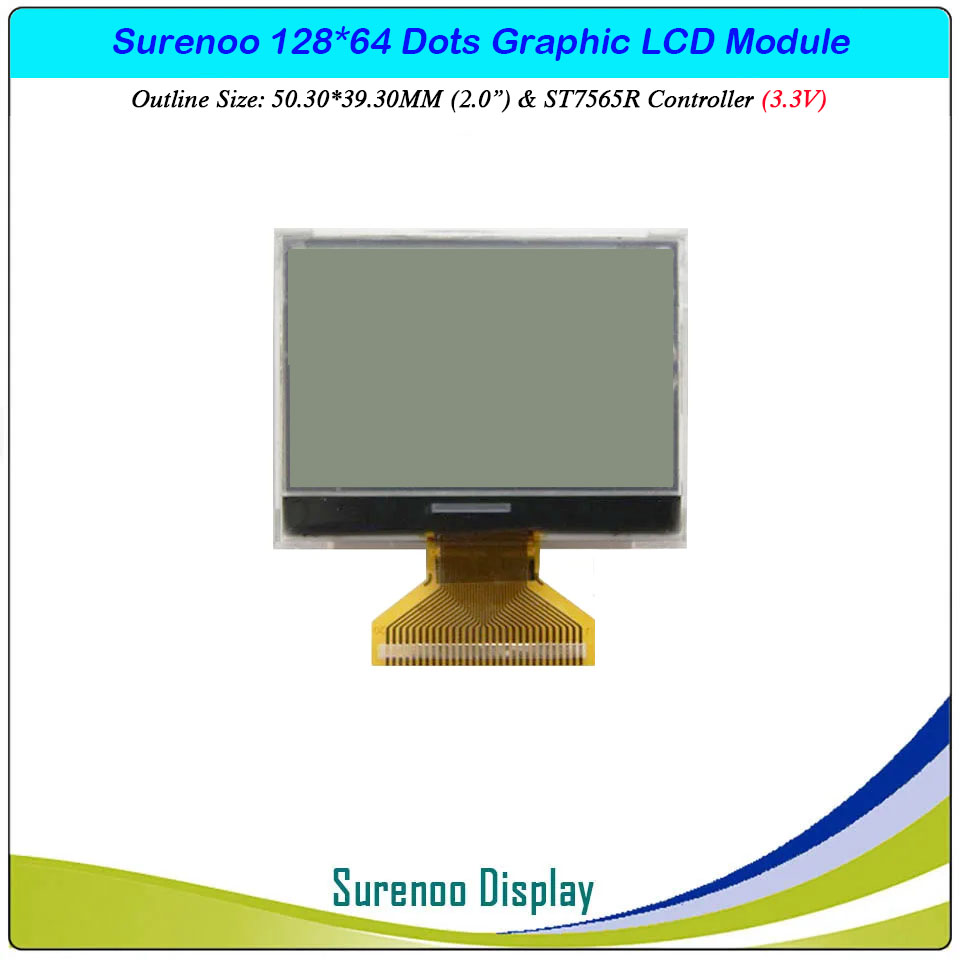

2. Model No.: SLGP12864J (Without PCB Adapter)
- Interface
| Pin No. | Symbol |
Value | Description |
| 1-8 | DB0-DB7 | I/O | Parallel: Data Bus Line between MPU and LCD. Serial: D6=SCLK, D7=SDA, Others=NC. If with Chinese Font Chip, D2-D5 are SPI Port of ROM Chip. |
| 9 | VDD | - | Power Supply for Logic (3.3V) |
| 10 | VSS | - | Ground |
| 11 | LEDA | - | Backlight Anode (3.3V) |
| 12 | CS | I | Chip select input pin. Interface access is enabled when CSB is “L”. |
| 13 | RST | I | Reset Singal, Active "L". |
| 14 | A0 (RS) | I | A0=“H”: Display data, A0=“L”: Command. |
| 15 | WR | I | Write Port |
| 16 | RD | I | Read Port |
2. Model No.: SLGP12864J (Without PCB Adapter)
| Pin No. | Symbol |
Value | Description |
| 1 | NC | - | No Connection |
| 2 | CSB | I | Enabled Port, Active "L". |
| 3 | RSTB |
I |
Hardware reset input pin. When RSTB is “L”, internal initialization is executed and the internal registers will be initialized. |
| 4 | A0 (RS) | I | A0=“H”: Display data, A0=“L”: Command. |
| 5 | RWR |
I | 6800: R/W=0 (Write), R/W=1 (Read) |
| 8080: Write Port, Active "L". | |||
| 6 | ERD | I | 6800: Enabled Port, Active "H". |
| 8080: Read Port, Active "L". | |||
| 7-12 | DB0-DB5 | I/O | Data Bus Line between MPU and LCD. |
| 13 | DB6/SCLK | I/O | Parallel: Data Bus Line/ Serial: Clock Input |
| 14 | DB7/SDA |
I/O |
Parallel: Data Bus Line/ Serial: Data Input |
| 15 | VDD | - | Power Supply for Logic (3.3V) |
| 16 | VSS | - | Ground |
| 17 | VOUT | Multiplier Voltage |
Image 01 (Please review it in the following of this sheet) |
| 18 | C3P | ||
| 19 | C1N | ||
| 20 | C1P | ||
| 21 | C2P | ||
| 22 | C2N |
||
| 23 | V4 | Biased Voltage |
Image 02 (Please review it in the following of this sheet) |
| 24 | V3 | ||
| 25 | V2 |
||
| 26 | V1 | ||
| 27 | V0 |
||
| 28 | C86 | 6800/8080 |
6800, Active "H" / 8080, Active "L" |
| 29 | PS | Parallel/Serial |
Parallel, Active "H" / Serial, Active "L" |
| 30 | NC | - | No Connection |
| A | LEDA |
- | Backlight Anode (MAX=3.0V, Current=3*15=45MA) |
| K | LEDK |
- | Backlight Cathode |
- Documents
| No. | Item | Document Name | File Type | ICON | Date | Description | Mark |
| 1 | Datasheet | 128X64 Graphic LCD Module Datasheet |  |
2013-03-17 | Standard 12864 Graphic LCD Module | ||
| 2 |
Controller |
Controller IC ST7565R Datasheet |
|
2008-09-24 | Graphic LCD Controller: ST7565R |
