SLG12864E Outline=54.00X50.00MM 2.0" 12864 128X64 Surenoo Graphic LCD Module Display Screen Panel 6800 4-bit 8-bit Parallel KS0108 AIP31108 Controller STN Blue Negative FSTN Positive White LED Backlight for MCU 8051 PIC AVR ARM
SLG12864E Outline=54.00X50.00MM 2.0" 12864 128X64 Surenoo Graphic LCD Module Display Screen Panel 6800 4-bit 8-bit Parallel KS0108 AIP31108 Controller STN Blue Negative FSTN Positive White LED Backlight for MCU 8051 PIC AVR ARM
Model No.: SLG12864E (2.0")
Display Format: 128*64 Dots
Outline: 54.00X50.00MM
Controller: KS0108, AIP31108 or Equal
Display Format: 128*64 Dots
Outline: 54.00X50.00MM
Controller: KS0108, AIP31108 or Equal
34 sold
Quantity
Detail
Customer Reviews
- Overview

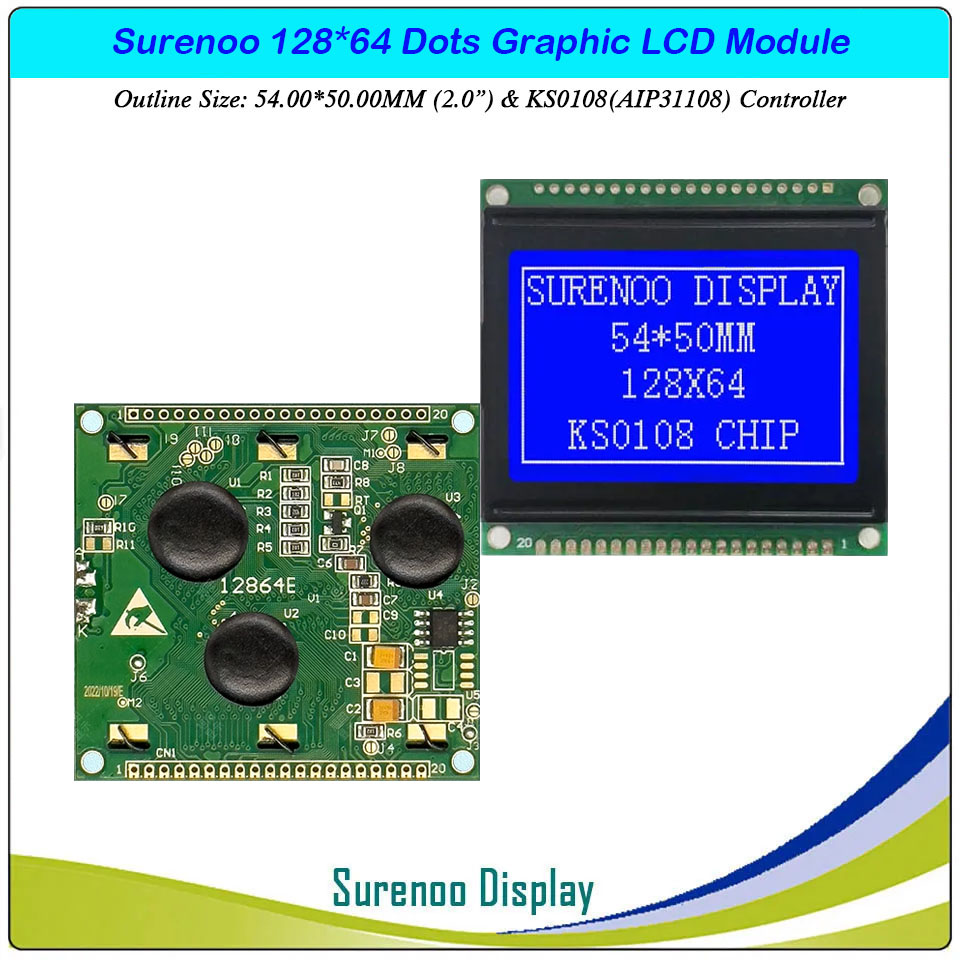

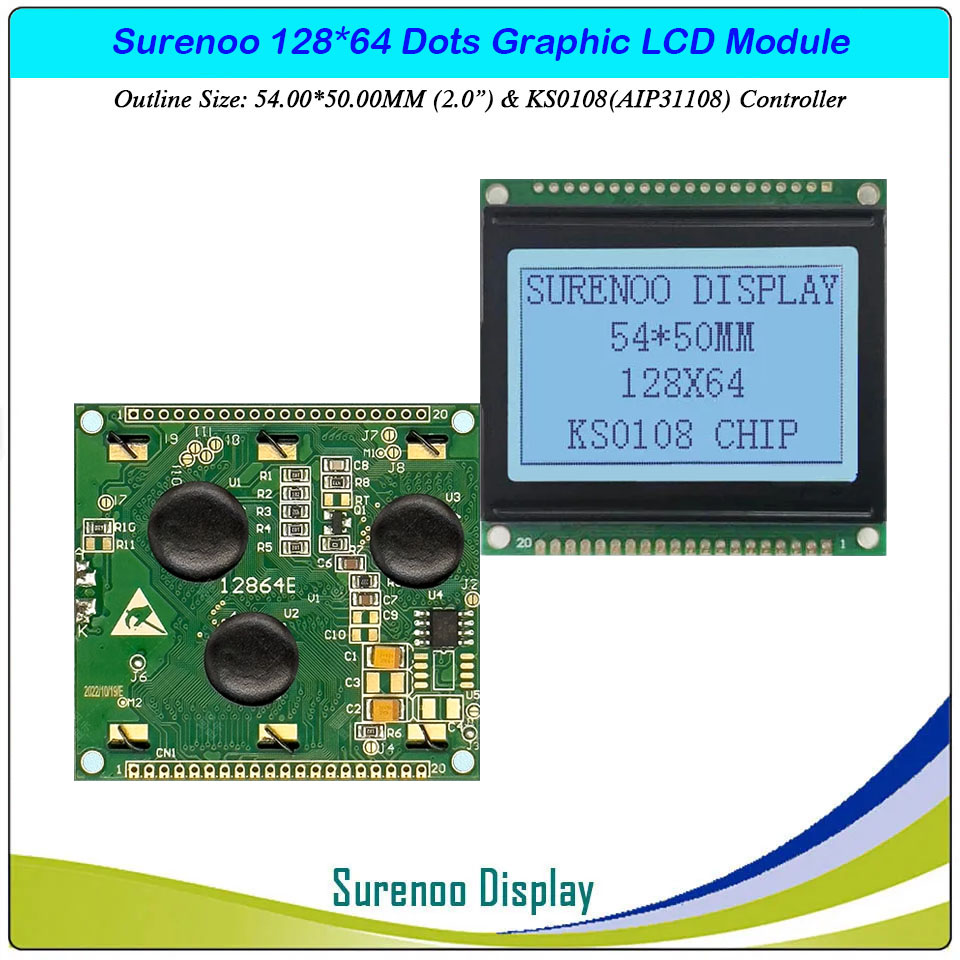

SLG12864E is a 2.0" 128*64 Monochrome Graphic LCD Module, KS0108/AIP31108 Controller standard 20P/2.54 12864 parallel Graphic LCD Module.
SLG12864E supprot 6800 4/8-Bit parallel interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.
SLG12864E supprot 6800 4/8-Bit parallel interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.
It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
- Specification
| Gross Weight | 0.060Kg |
| Manufacturer | Surenoo |
| Display Type | Graphic LCD Module |
| Continuity Supply | More than 10 years |
| Part No. | SLG12864E (2.0") |
| Display Format | 128*64 Dots |
| Interface | 6800 4/8-bit Parallel |
| IC or Equivalent | KS0108, AIP31108 or Equal |
| Voltage | 5.0V in default |
| Connection | 1X20P/2.0 Pin Header |
| Outline Dimension | 54.00(W)x50.00(H)x8.70(T)mm |
| Visual Area | 43.50x29.00mm |
| Active Area | 40.92x24.92mm |

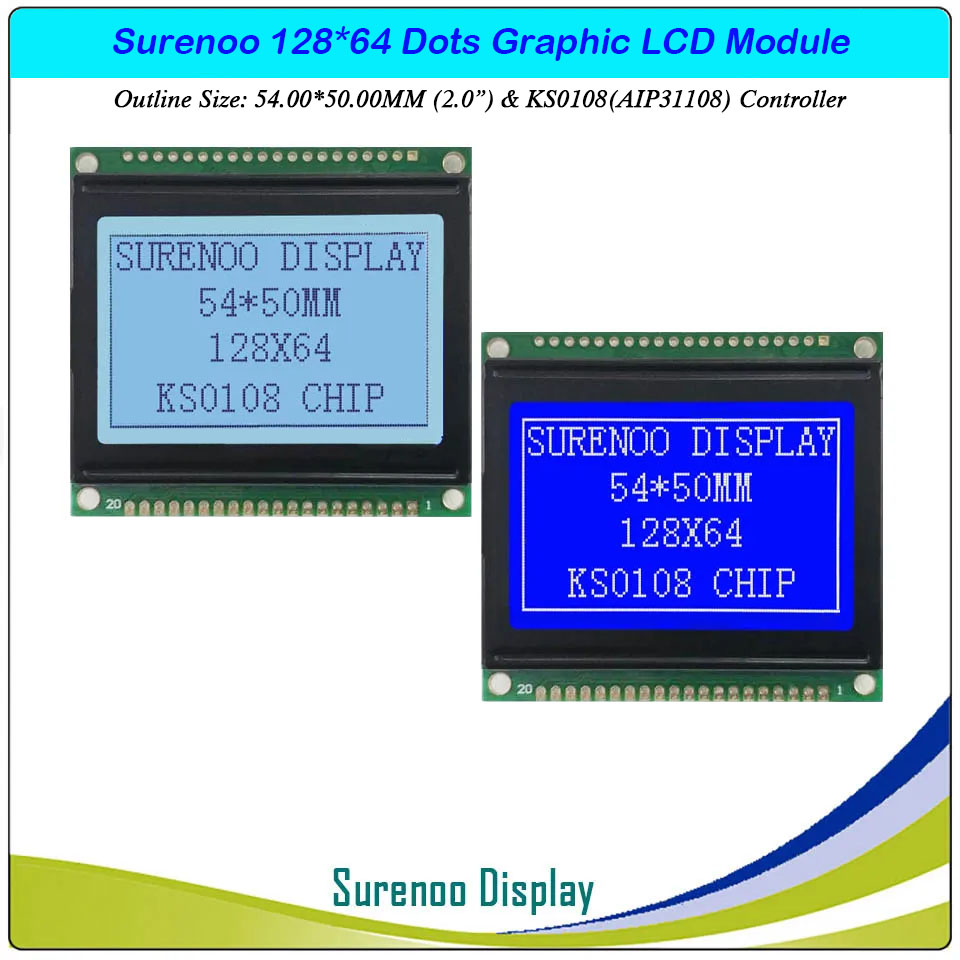

| Display Type | STN Blue Negative, FSTN Positive |
| Backlight Type (LED) | White |
| IC Package | COB |
| Viewing Direction | 6:00 O'Clock |
|
Operating Temperature
|
-20℃~70℃
|
|
Storage Temperature
|
-30℃~80℃
|
- Outline Drawing
- Interface
| Pin No. | Symbol | Description |
| 1 | VSS |
Ground |
| 2 | VDD | Logic Power Supply |
| 3 | V0 |
Operating Voltage for LCD |
| 4 | RS |
H: Data; L: Instruction Code |
| 5 | R/W |
H: Read; L: Write |
| 6 | E |
Enable Signal |
| 7-14 | DB0-DB7 | Data Bus Line |
| 15 | CS1 | Chip Selection Signal 1/2 |
| 16 | CS2 | Chip Selection Signal 2/2 |
| 17 | RST | Reset Signal, active "L" |
| 18 | VOUT | Output Voltage for LCD Driving |
| 19 | LED_A | Power Supply for Backlight |
| 20 | LED_K |
- Documents
| No. | Item | Document Name | File Type | ICON | Date | Description | Mark |
| 1 | Datasheet | 128X64 Graphic LCD Module Datasheet |  |
2013-03-17 | Standard 12864 Graphic LCD Module | ||
| 2 | Controller | Controller IC KS0108 Datasheet | |
2008-09-24 | Graphic LCD Controller: KS0108 or AIP31108 |
