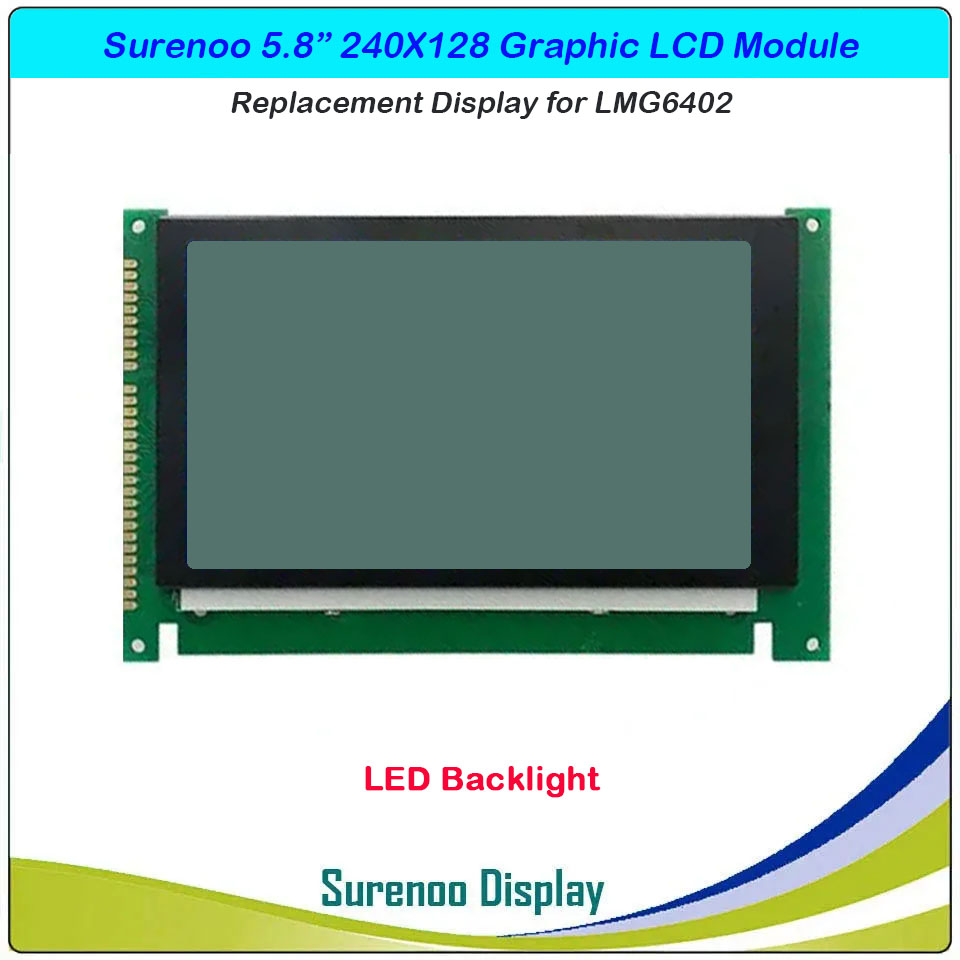

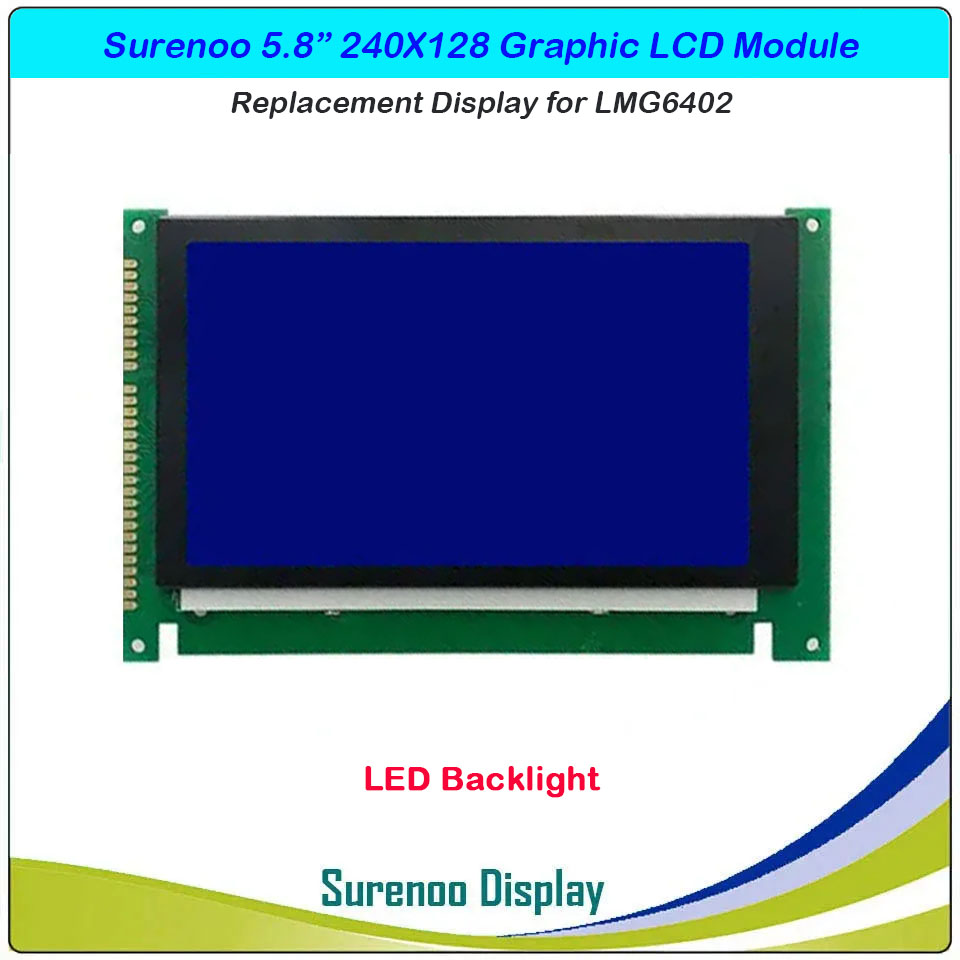

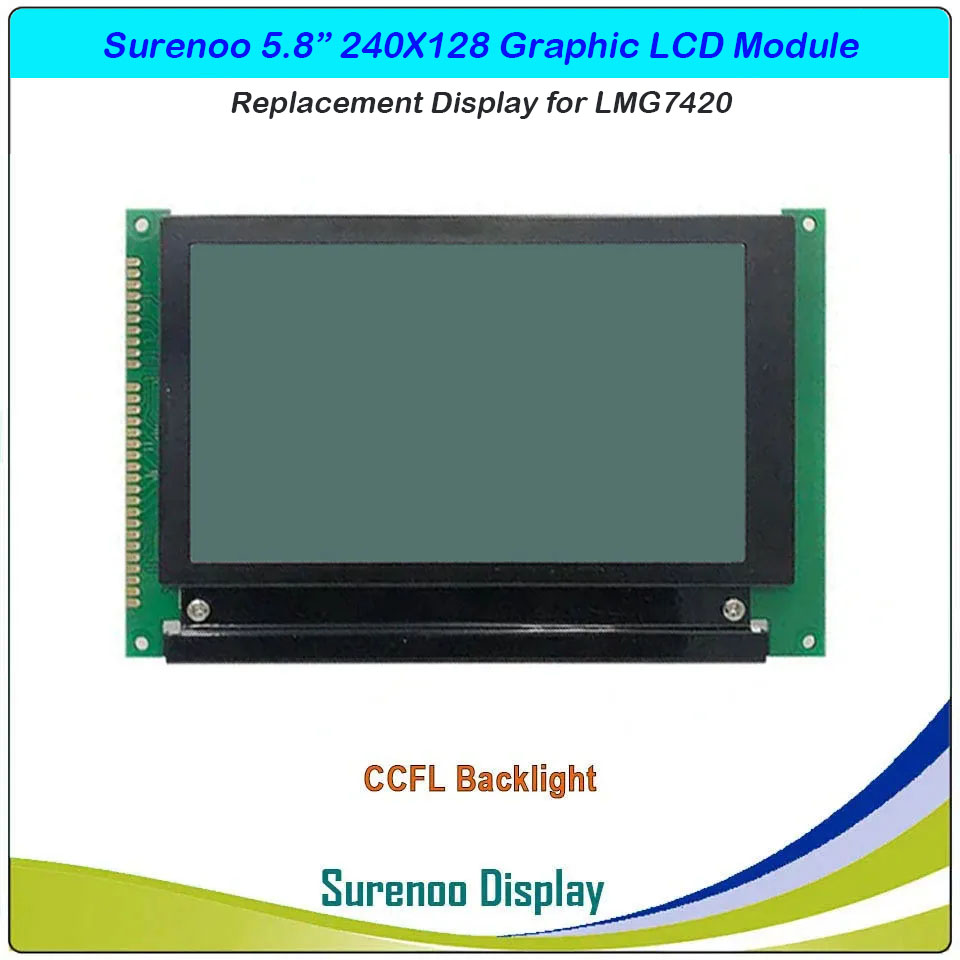

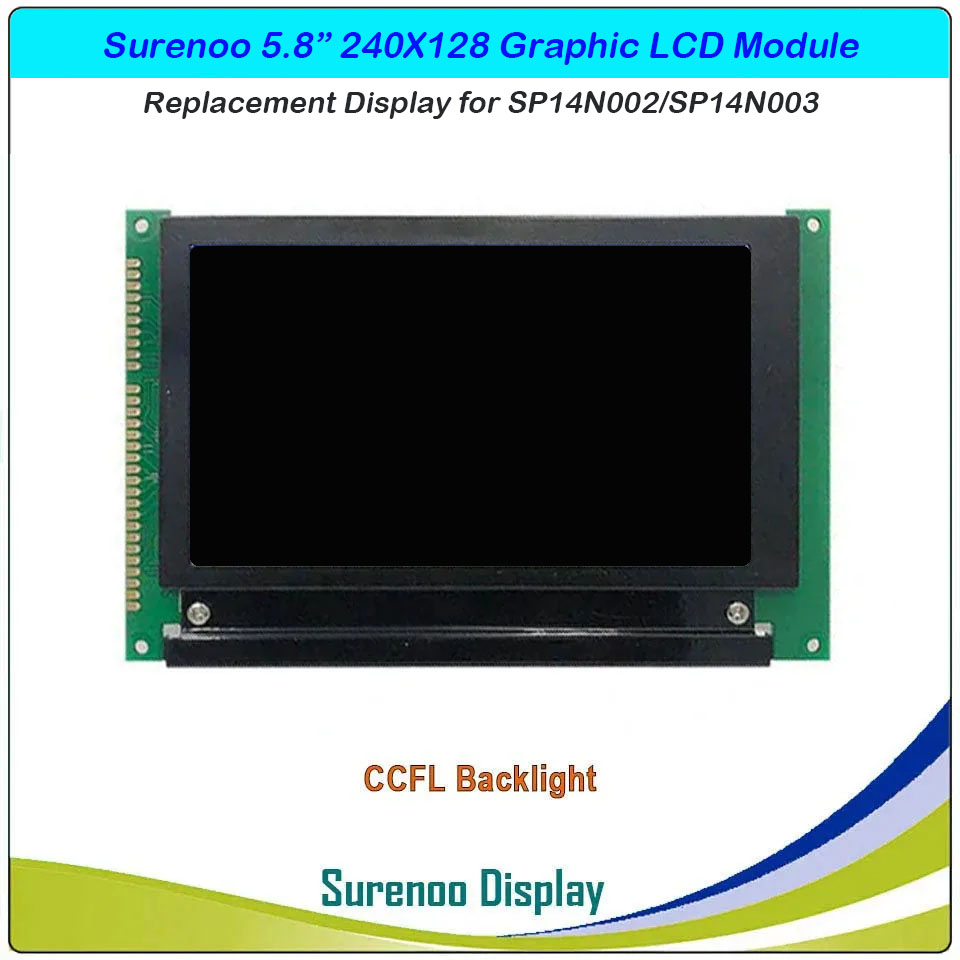

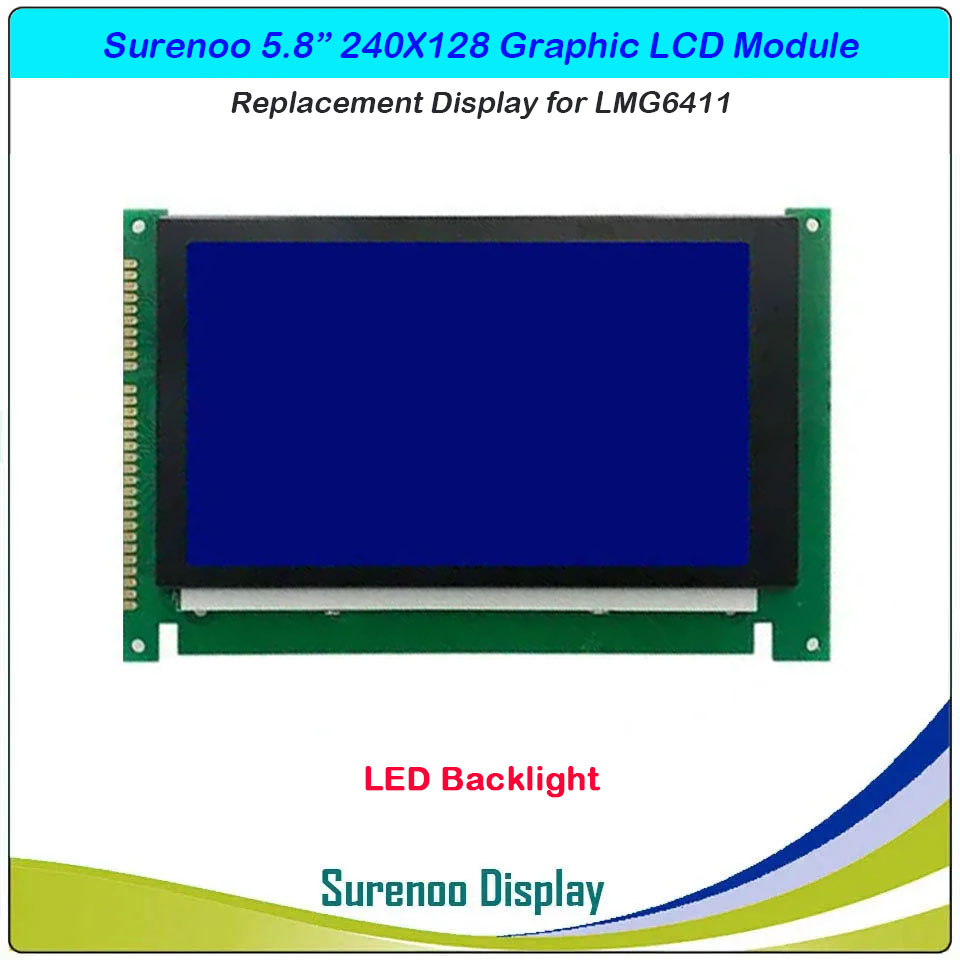

SLG240128H Outline=159.40x101.00MM Surenoo 5.8" inch 240128 240X128 240*128 Graphic LCD Module Display Screen Panel Replacement for HITACHI LMG7410 LMG7410PLBC LMG7420 LMG7420PLFC-X SP14N002 SP14N003 LMG6411 LMG6411PLGE LMG6402 LMG6402PLFR
Replacment for: LMG7420/LMG7410/SP14N002/SP14N003/LMG6411/LMG6402
Display Format: 240*128 Dots
PCB Size: 159.40x101.00MM
- Overview
- Specification
| Gross Weight | 0.240Kg |
| Manufacturer | Surenoo |
| Display Type | Graphic LCD Module |
| Continuity Supply | More than 10 years |
| Part No. | SLG240128H (LMG7420/LMG7410/SP14N002/SP14N003/LMG6402/LMG6411) (5.8") |
| Display Format | 240*128 Dots |
| Interface | Different Part No, Different Interface |
| IC or Equivalent | - |
| Voltage | 5.0V in default |
| Connection | 1X10P/2.54 & 1X20P/2.54 Pin Header |
| Outline Dimension | 159.40(W)x101.00(H)x11.00(T)mm |
| Visual Area | 124.00x70.00mm |
| Active Area | 119.97x63.97mm |
| Display Type | STN Blue Negative, FSTN Positive, D-FSTN Negative |
| Backlight Type | CCFL White / LED White |
| IC Package | COB |
| Viewing Direction | 6:00 O'Clock |
|
Operating Temperature
|
-20℃~70℃
|
|
Storage Temperature
|
-30℃~80℃
|
- Outline Drawing
- FAQ and Solution
2. If you have the following problem, please check the following solution.
3. How to select the color of your display?
Color issue Between White and Black Colors, Some Customer's Machine may build-in Negalive Code, it's very easy to confuse the color of this display, about how to select the color of the display, please check the following steps carefully.
>> Please Power Off the display;
>> If the display panel is Gray, please select the White one;
>> If the display panel is Black, please select the Black one;
>> lf you don't understand it, please send us more photos of your original display to confirm it from us.
