SLG240128F PCB=170.00X93.40MM 5.8" inch 240128 240X128 240*128 WinStar WG240128A TLX-1741-C3M NHD-240128WG-ATFH-VZ Surenoo Graphic LCD Module Display Screen Panel 8080 8-bit Parallel T6963C RA6963 Controller
SLG240128F PCB=170.00X93.40MM 5.8" inch 240128 240X128 240*128 WinStar WG240128A TLX-1741-C3M NHD-240128WG-ATFH-VZ Surenoo Graphic LCD Module Display Screen Panel 8080 8-bit Parallel T6963C RA6963 Controller
Model No.: SLG240128F_WG240128A
Display Format: 240*128 Dots
PCB Size: 170.00X93.40MM
Controller: RA6963 or Equal
Display Format: 240*128 Dots
PCB Size: 170.00X93.40MM
Controller: RA6963 or Equal
11 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
- Overview

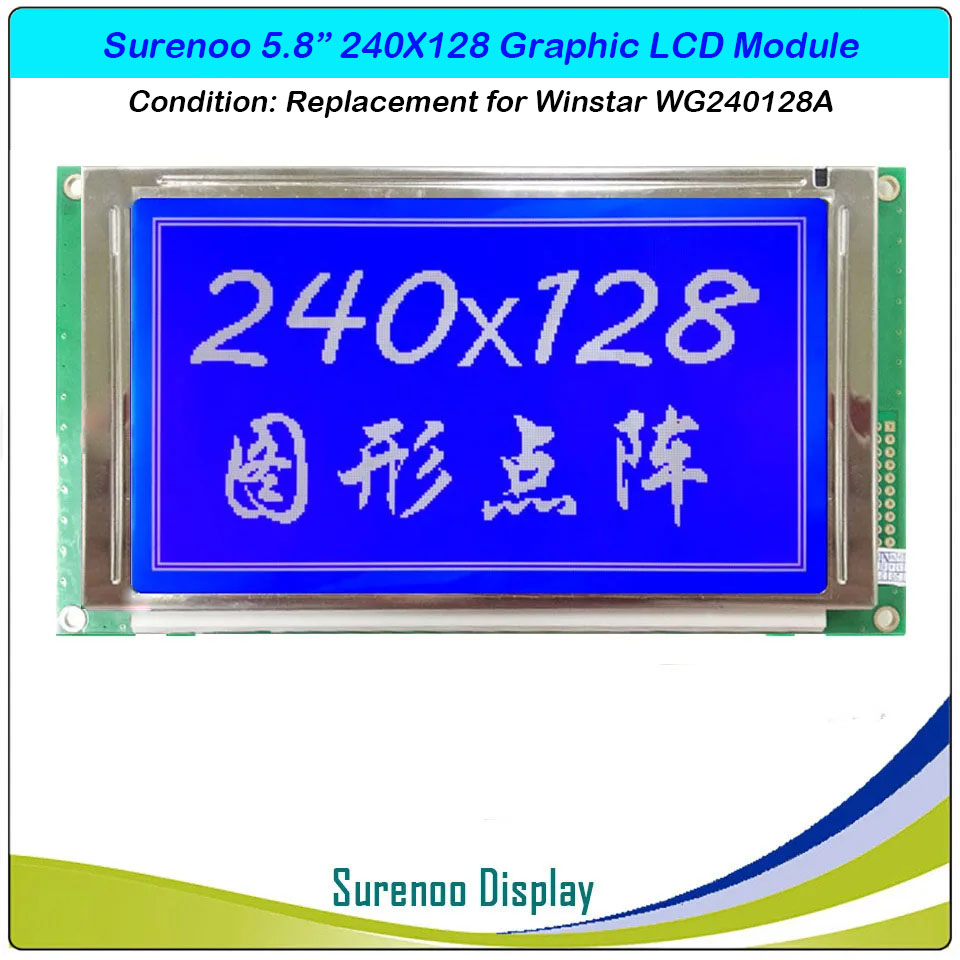

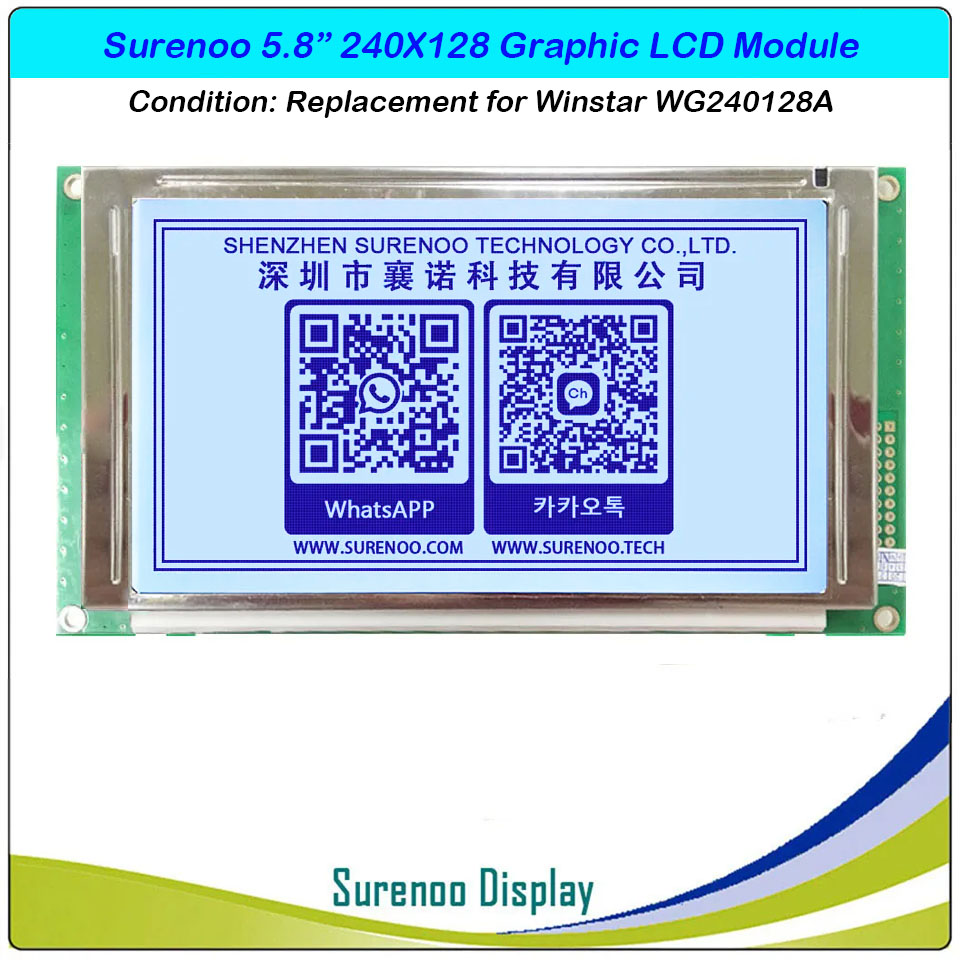

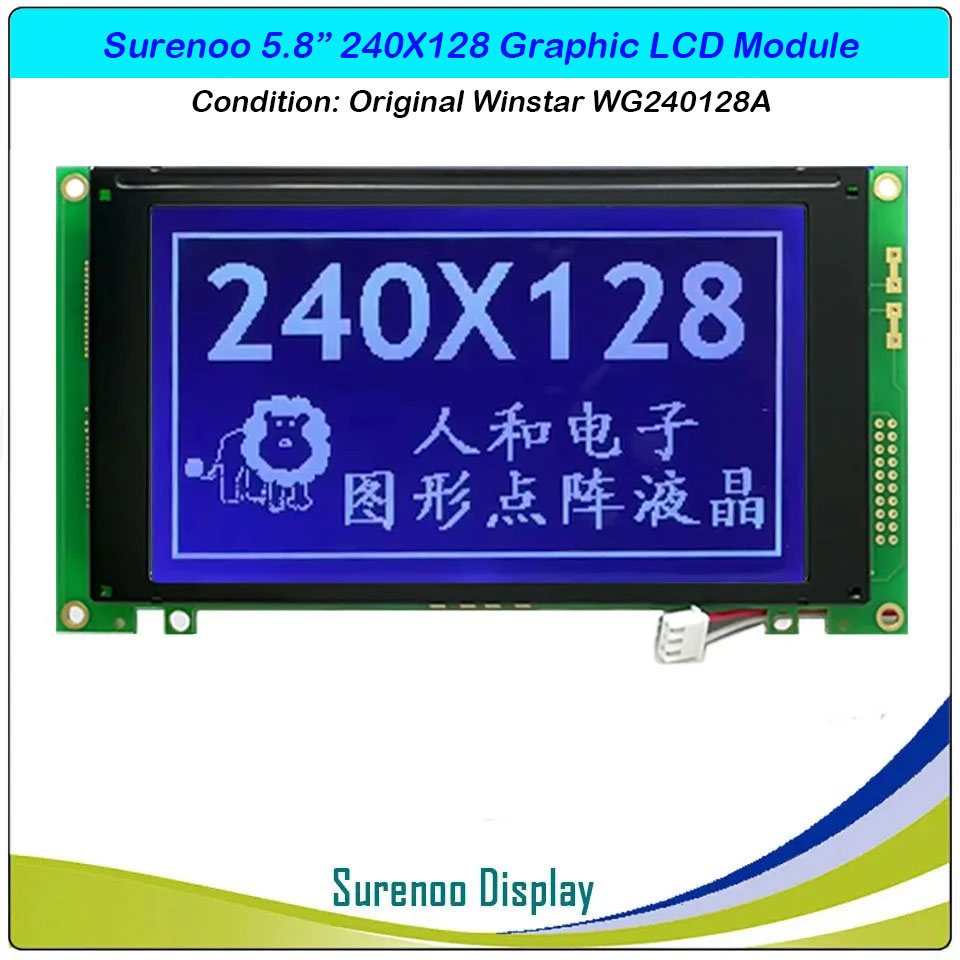

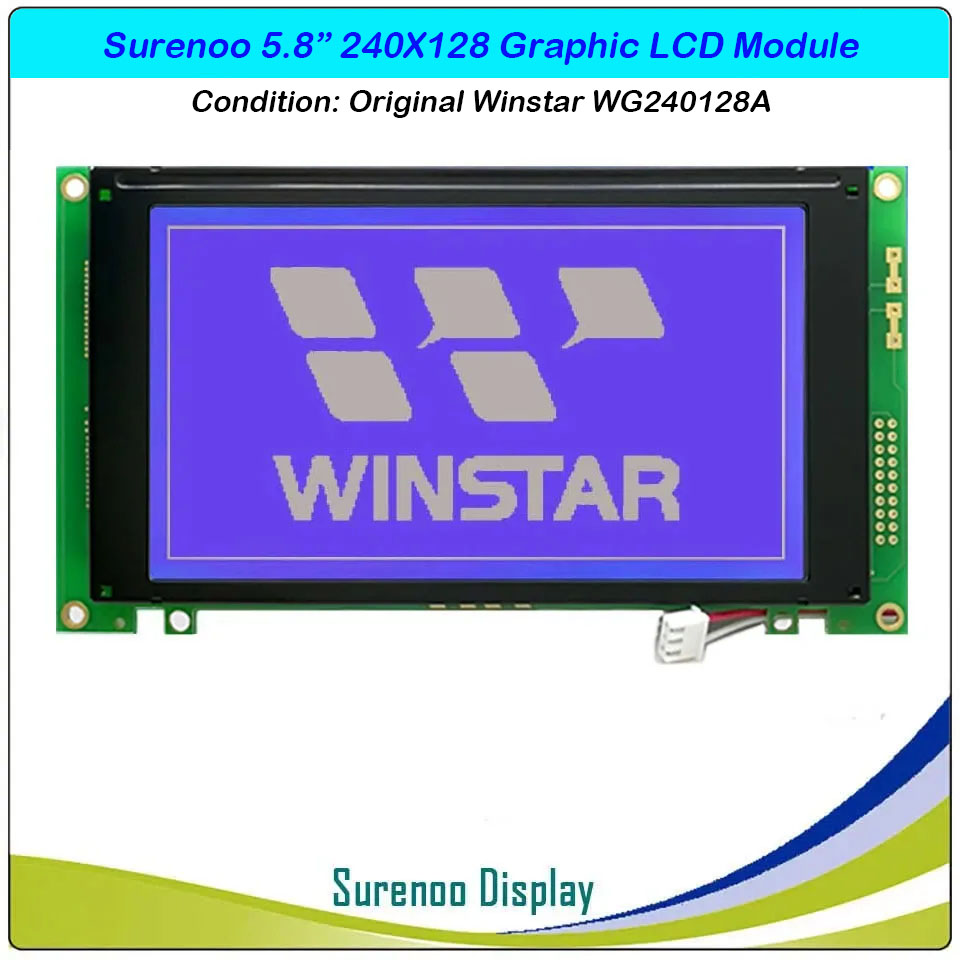

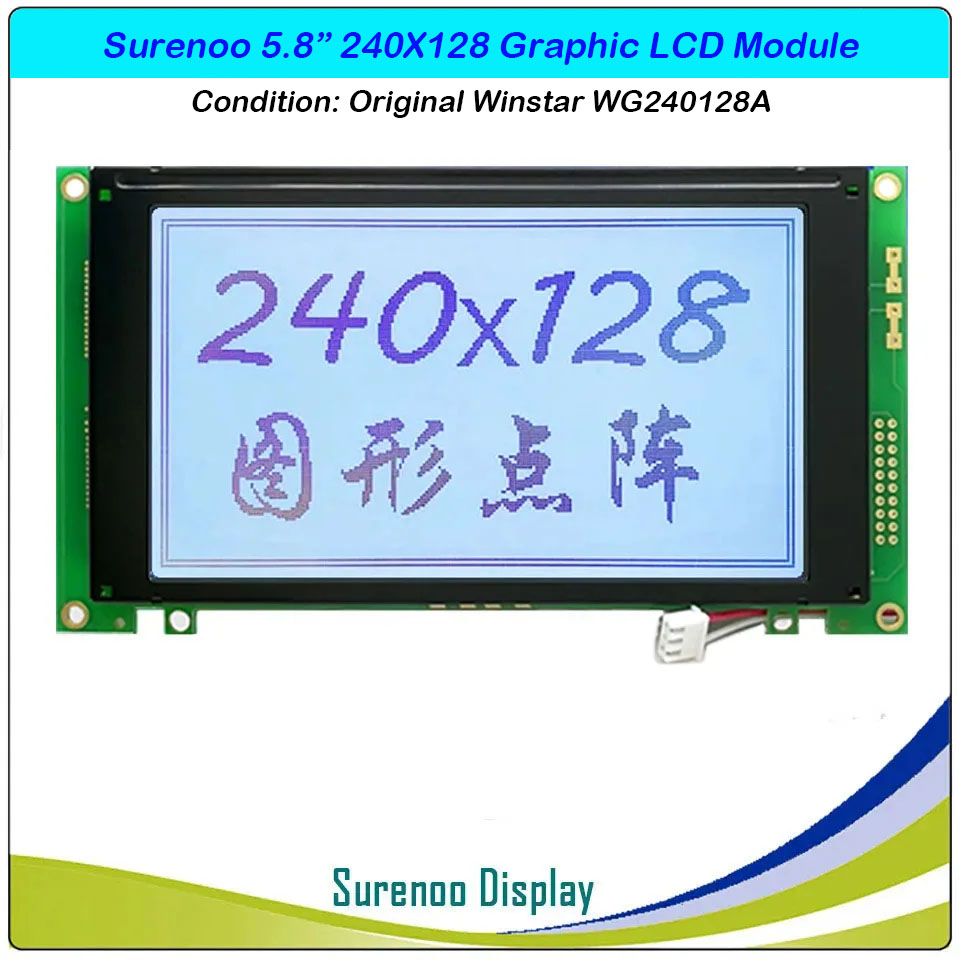

SLG240128F(WG240128A) is a 240*128 dots Monochrome Graphic LCD Module, T6963C/RA6963/UCi6963 Controller standard 2X10P/2.54 240*128 Parallel Graphic LCD Module, supprot 8080 8-Bit parallel interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.
It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
- Specification
| Gross Weight | 0.240Kg |
| Manufacturer | Surenoo |
| Display Type | Graphic LCD Module |
| Continuity Supply | More than 10 years |
| Part No. | SLG240128F_WG240128A (5.8") |
| Display Format | 240*128 Dots |
| Interface | 8080 8-bit Parallel |
| IC or Equivalent | RA6963 or Equal |
| Voltage | 5.0V in default |
| Connection | 2X10/2.54 Pin Header |
| Outline Dimension | 170.00(W)x93.40(H)x12.40(T)mm |
| Visual Area | 128.00x74.00mm |
| Active Area | 119.97x63.97mm |

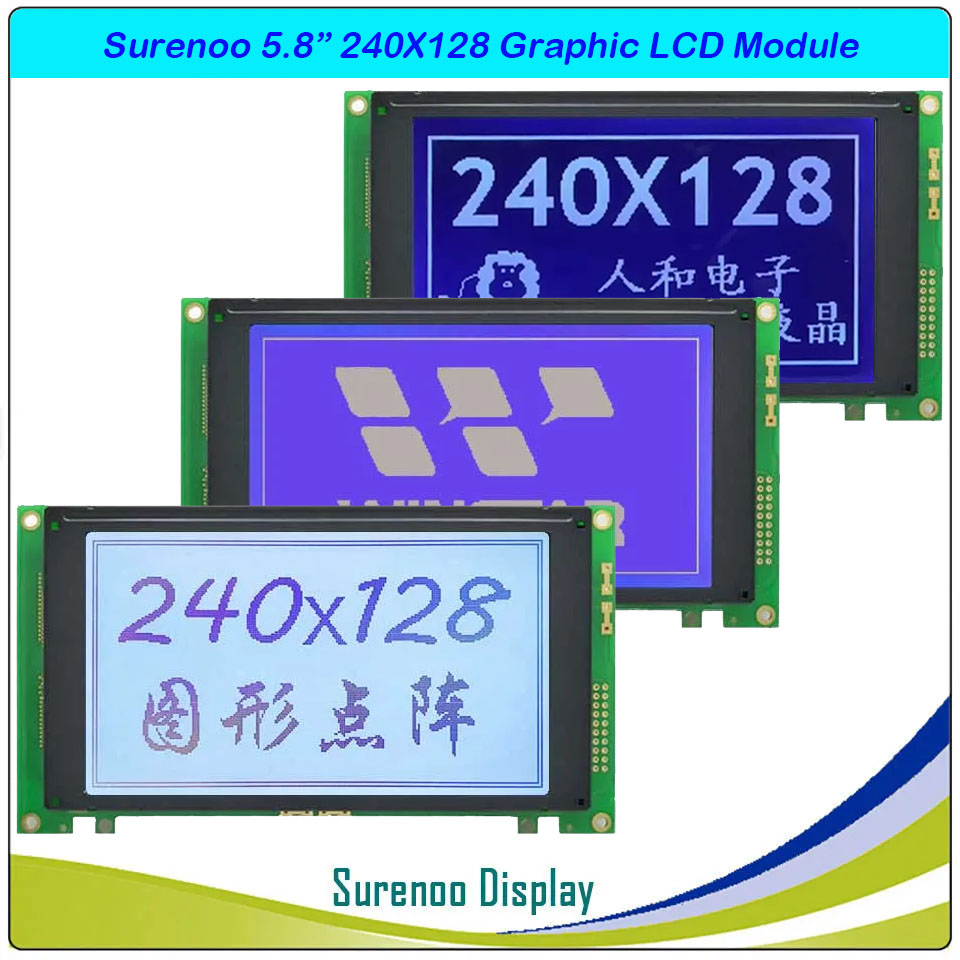

| Display Type | STN Blue Negative, FSTN Positive, D-FSTN Negative |
| Backlight Type (LED) | White |
| IC Package | COB |
| Viewing Direction | 6:00 O'Clock |
|
Operating Temperature
|
-20℃~70℃
|
|
Storage Temperature
|
-30℃~80℃
|
- Outline Drawing
- Interface
| Pin No. | Symbol | Level |
Description |
| 1 | FG | - | Frame Ground |
| 2 | VSS | 0V | Power Ground |
| 3 | VDD | 5.0V | Logic Power Supply |
| 4 | V0 | - | Operating voltage for LCD (LCD Contrast Adjust) |
| 5 | WR | L | Write Signal |
| 6 | RD | L | Read Signal |
| 7 | /CE |
L | Chip Enable Singal, Active-Low |
| 8 | C/D | H/L | L : Data Code H : Instruction Code |
| 9 | VEE | - | Negative Voltage for LCD Driving |
| 10 | RST | H/L |
Reset Signal, Active-Low |
| 11-18 | FSDB0-DB7 | H/L | Data Bus Line |
| 19 | FS | MD2 | Font Selection (H: 6X8 Dots, L: 8X8 Dots) |
| 20 | RV | H/L | H:Reverse L:Normal |
- Documents
| No. | Item | Document Name | File Type | ICON | Date | Description | Mark |
| 1 | Datasheet | 240X128 Graphic LCD Module Datasheet |  |
2013-03-17 | Standard 240128 Graphic LCD Module | ||
| 2 | Controller | Controller IC RA6963 Datasheet | |
2008-09-24 | Graphic LCD Controller: RA6963 |
