SLG240128G PCB=241.00X125.50MM 7.5" 240128 240*128 240X128 RA6963 T6963C UCi6963 TLX1301 TLX-1301V TLX-1301V-30 TLX-1301V-G6K Surenoo Graphic Matrix LCD Module Display Screen Monitor Panel with LED Backlight
SLG240128G PCB=241.00X125.50MM 7.5" 240128 240*128 240X128 RA6963 T6963C UCi6963 TLX1301 TLX-1301V TLX-1301V-30 TLX-1301V-G6K Surenoo Graphic Matrix LCD Module Display Screen Monitor Panel with LED Backlight
Model No.: SLG240128G (TLX-1301V)
Display Format: 240*128 Dots
PCB Size: 241.00X125.50MM (7.5")
Controller: RA6963 or Equal
Display Format: 240*128 Dots
PCB Size: 241.00X125.50MM (7.5")
Controller: RA6963 or Equal
8 sold
Quantity
Detail
Customer Reviews
- Overview

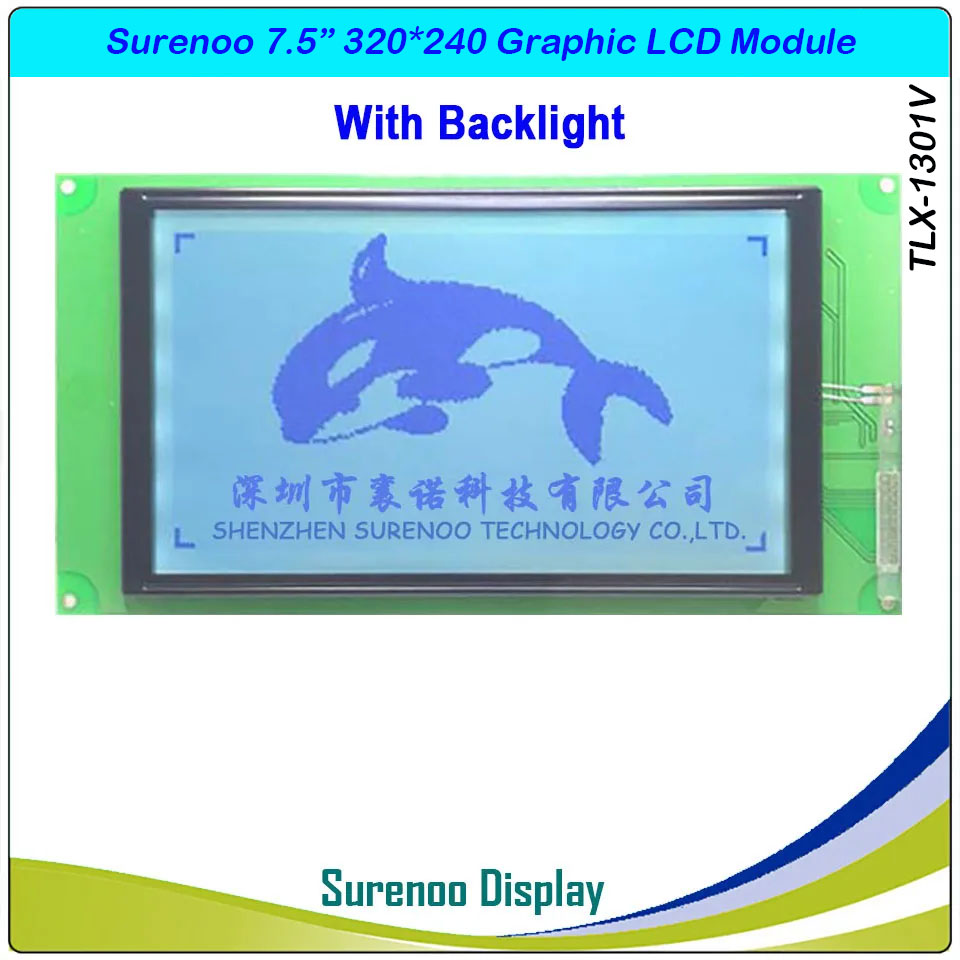

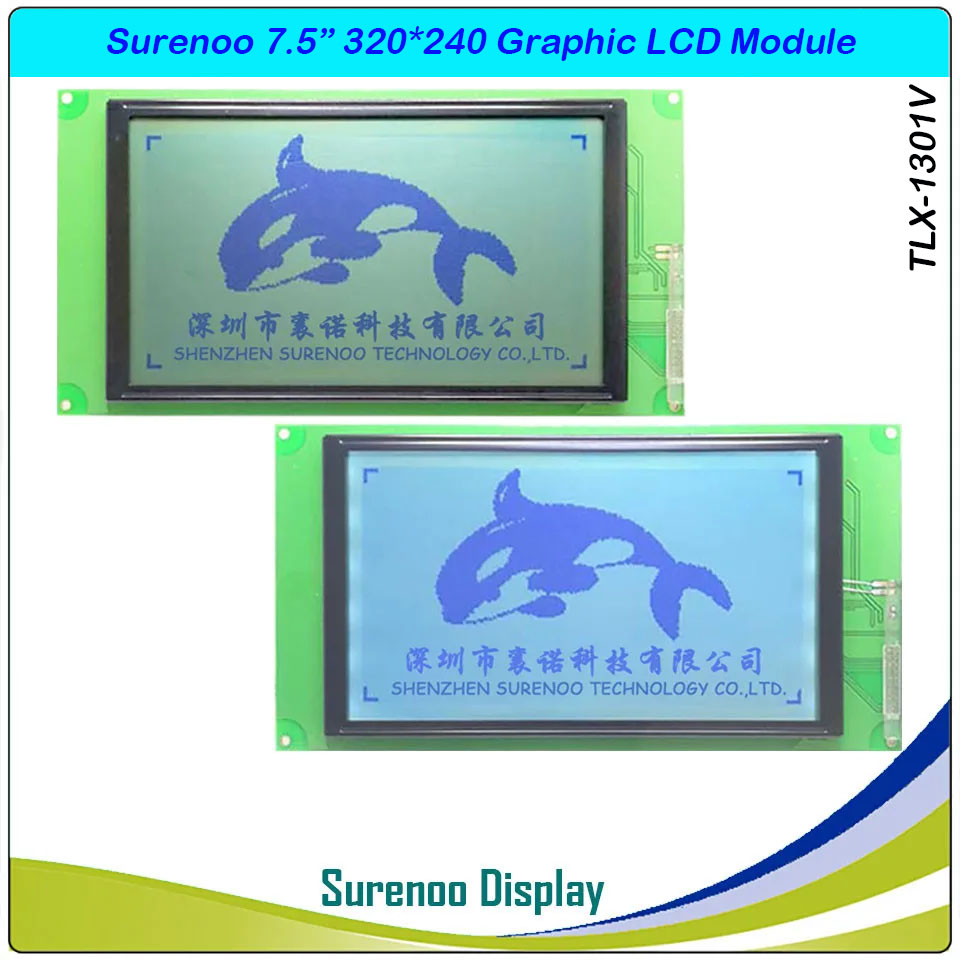

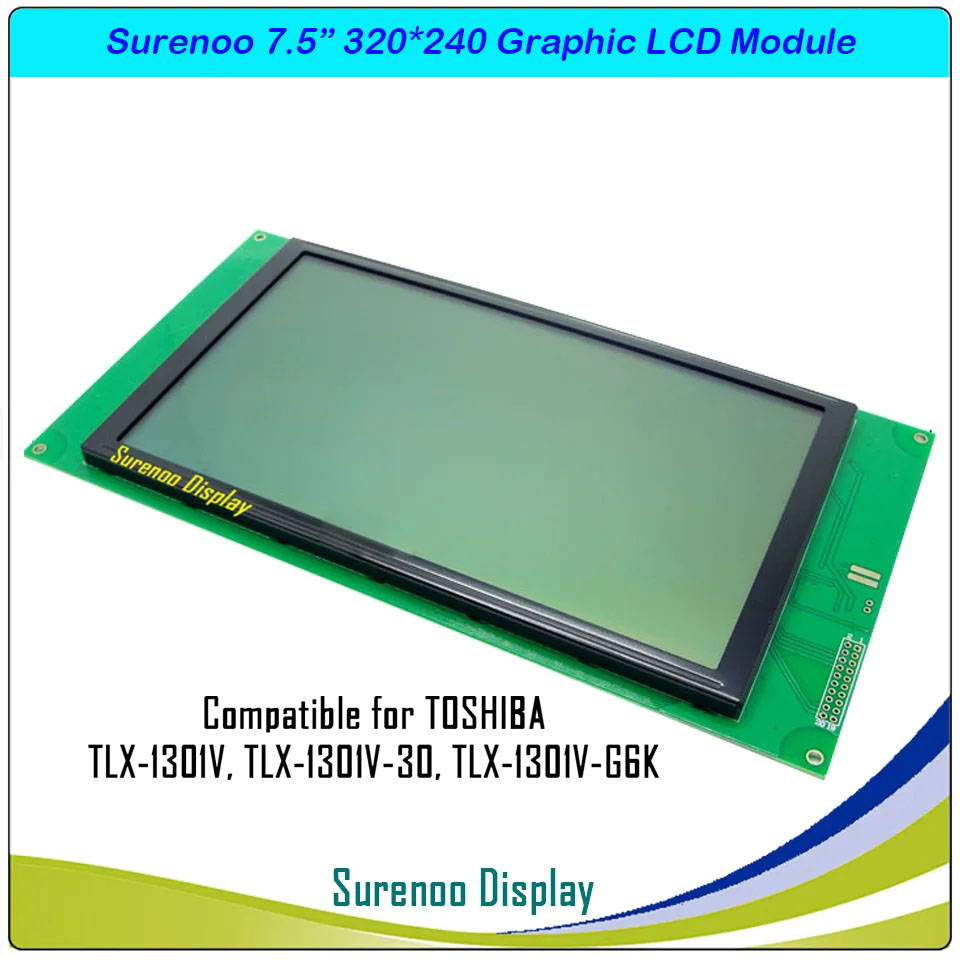

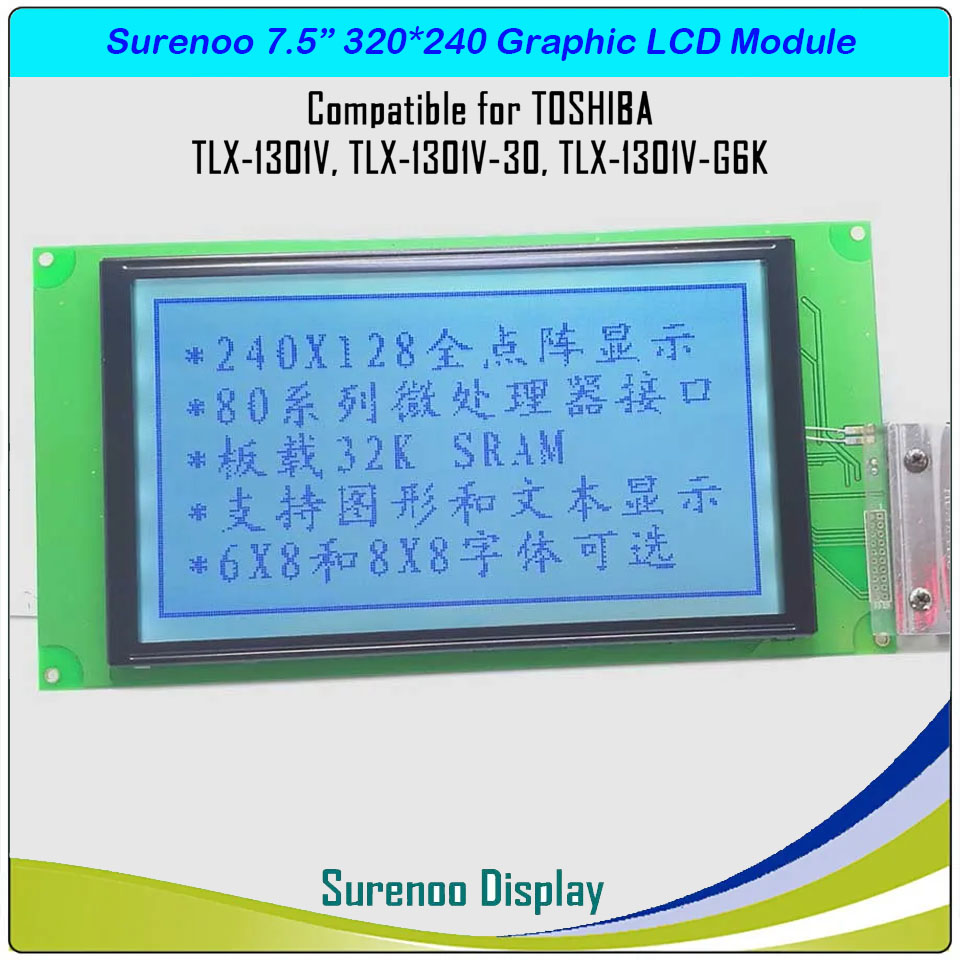

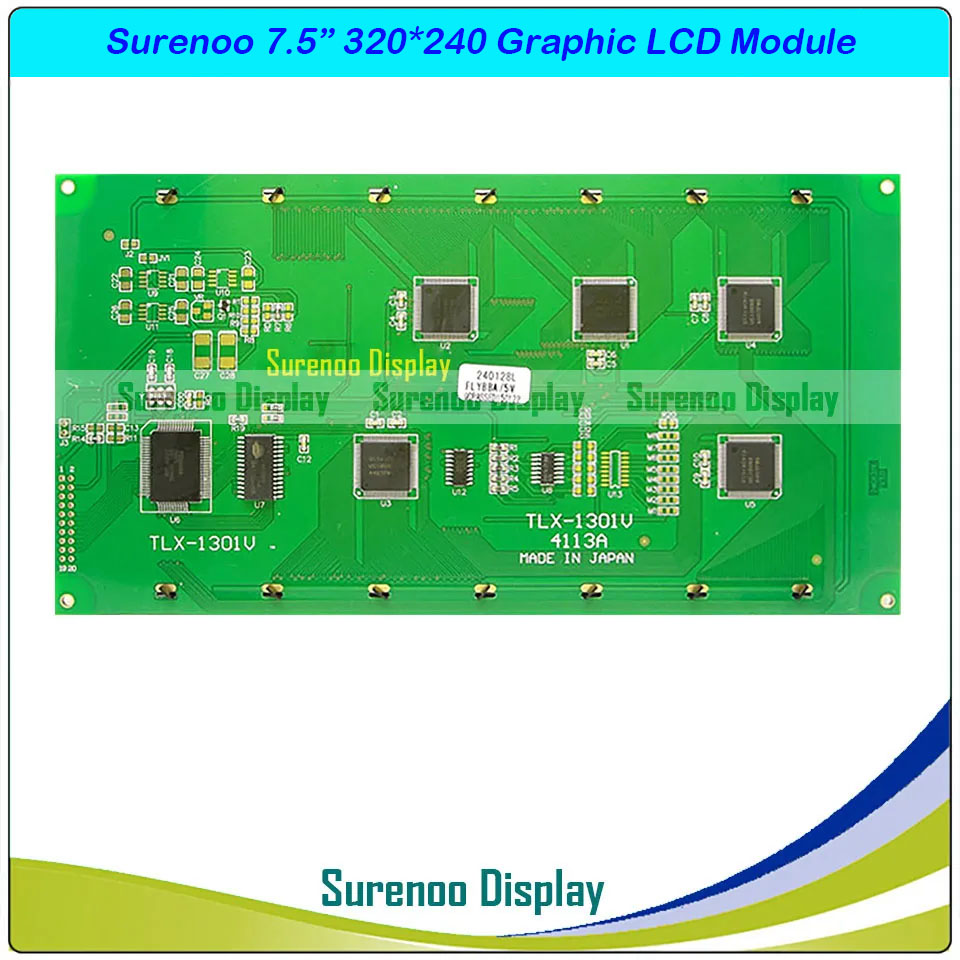

Replacement Display for TLX-1301V
- Specification
| Gross Weight | 0.300Kg |
| Manufacturer | Surenoo |
| Display Type | Graphic LCD Module |
| Continuity Supply | More than 10 years |
| Part No. | SLG240128L / TLX-1301V (7.5") |
| Display Format | 240*128 Dots |
| Interface | 8080 8-Bit Parallel |
| IC or Equivalent | RA6963 or Equal |
| Voltage | 5.0V in default |
| Connection | 2X11P/2.54 Pin Header |
| Outline Dimension | 241.00(W)x125.50(H)x11.20(T)mm |
| Visual Area | 179.50x101.50mm |
| Active Area | 167.90x89.50mm |
| Display Type | FSTN Positive |

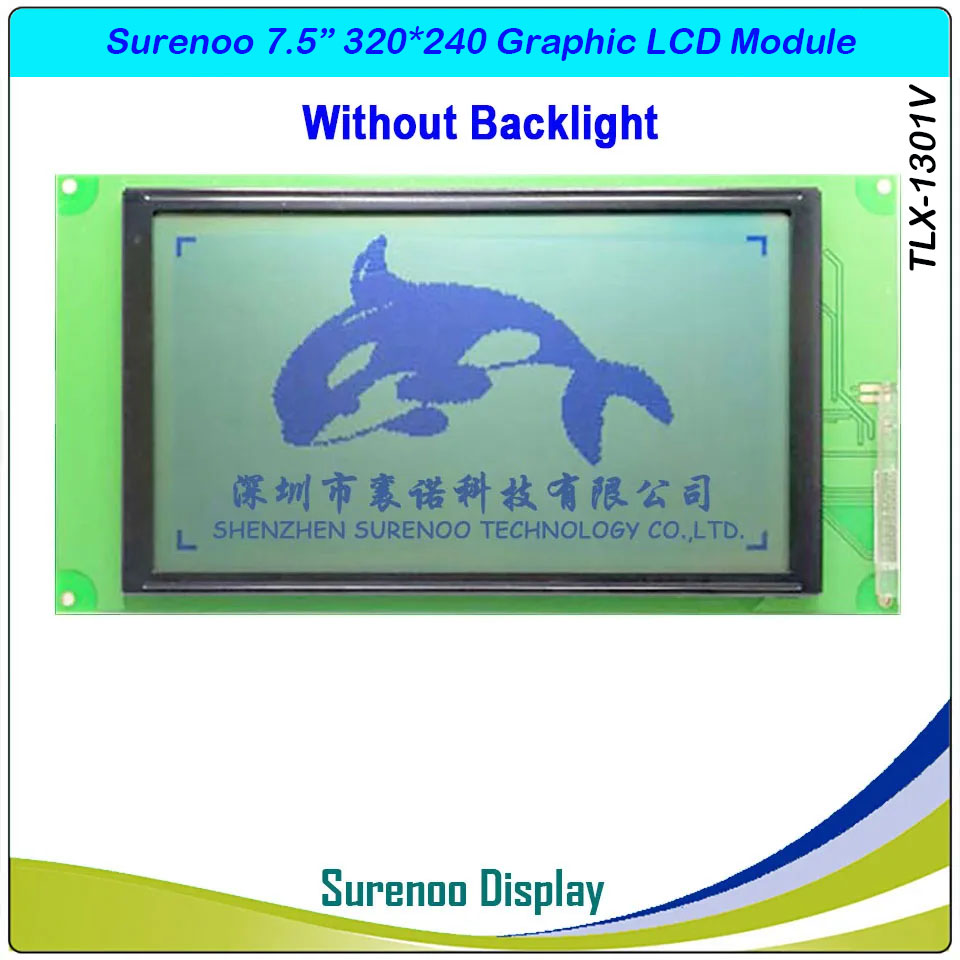

| Backlight Type (LED) | White/NC |
| IC Package | COB |
| Viewing Direction | 6:00 O'Clock |
| Operating Temperature | -20℃~70℃ |
| Storage Temperature | -30℃~80℃ |
- Outline Drawing
- Interface
| Pin No. | Symbol | Description | |
| 1 | FG | 0V | Frame Ground |
| 2 | VSS | 0V | Ground |
| 3 | VDD | +5V | Logic Supply Voltage |
| 4 | V0 | - | Contrast Adjust |
| 5 |
/WR | L | Write Signal |
| 6 | /RD | L | Read Signal |
| 7 | /CE | L | Chip Select Signal |
| 8 | C/D | H/L | H：Data L：Command |
| 9 | NC | - | No Connection |
| 10 | /RESET | L | Reset Signal |
| 11-18 | DB0-DB7 | H/L | Data Bus |
| 19 | FS | H/L | Font selection H: 6x8 L: 8x8 |
| 20 | Vout/NC | - | Negative Power output For LCD Driving/No Connection |
| 21 | LEDA | +5V | Power Supply For LED Backlight |
| 22 | LEDK | 0V | Power Supply For LED Backlight |
