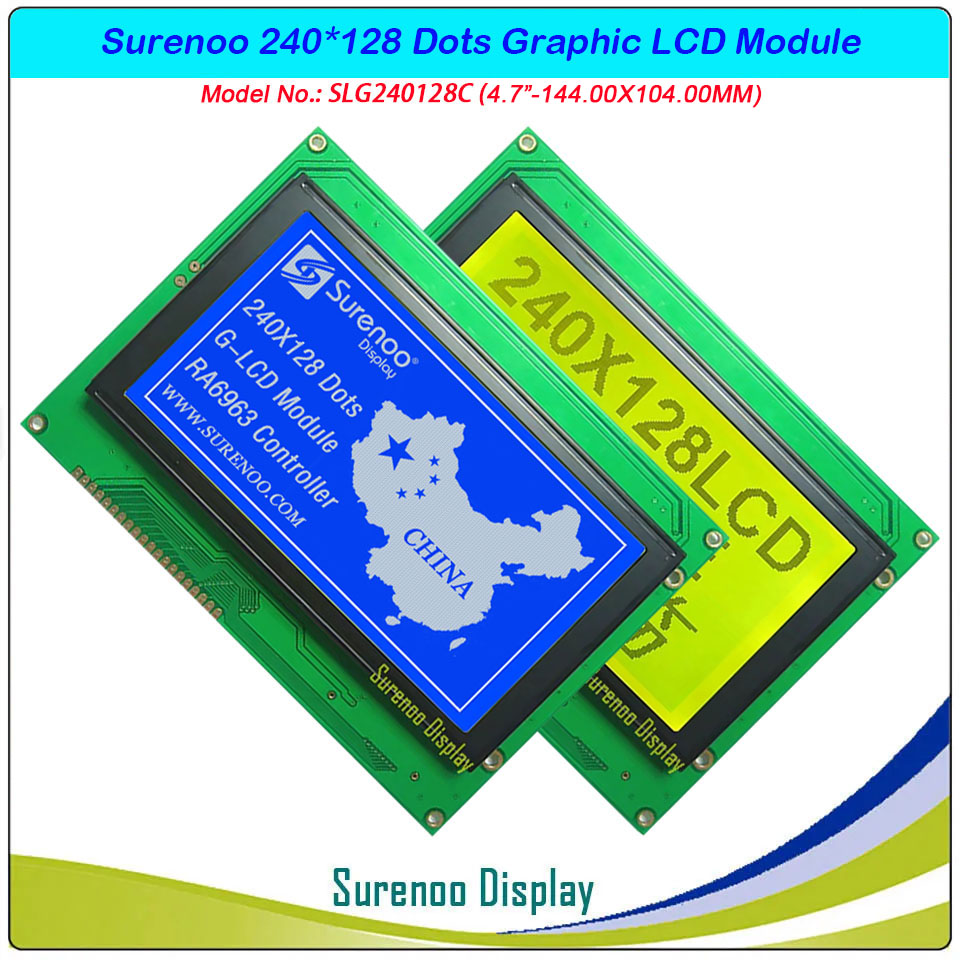

SLG240128C Outline=144.00X104.00MM 4.7" inch 240128 240X128 240*128 Surenoo Graphic LCD Module Display Screen Panel 8080 8-Bit Parallel T6963C RA6963 UCi6963 Controller STN Yellow Green Blue Negative FSTN Positive LED Backlight for 8051 PIC AVR ARM

Model No.: SLG240128C (4.7")
Display Format: 240*128 Dots
Outline: 144.00X104.00MM
Controller: RA6963 or Equal
13 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Overview
SLG240128C is a 4.7" 240*128 dots Monochrome Graphic LCD Module, T6963C/RA6963/UCi6963 Controller standard 1X20P/2.54 240*128 Parallel Graphic LCD Module, supprot 8080 8-Bit parallel interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.

It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
  • Specification
Gross Weight  0.200Kg
Manufacturer Surenoo
Display Type Graphic LCD Module
Continuity Supply More than 10 years
Part No. SLG240128C (4.7")
Display Format 240*128 Dots
Interface 8080 8-Bit Parallel

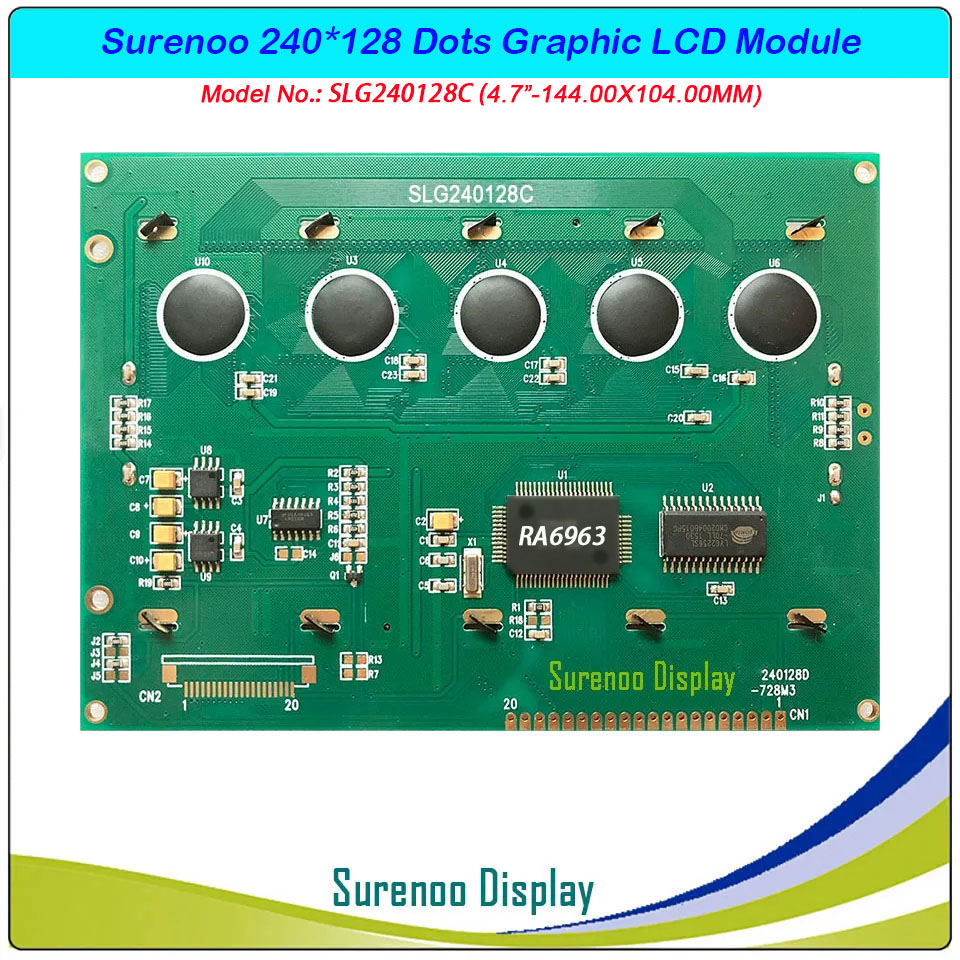

IC or Equivalent RA6963 or Equal
Voltage 5.0V in default
Connection 1X20P/2.54 Pin Header
Outline Dimension 144.00(W)x104.00(H)x12.50(T)mm
Visual Area 114.00x61.00mm
Active Area 105.56x56.28mm

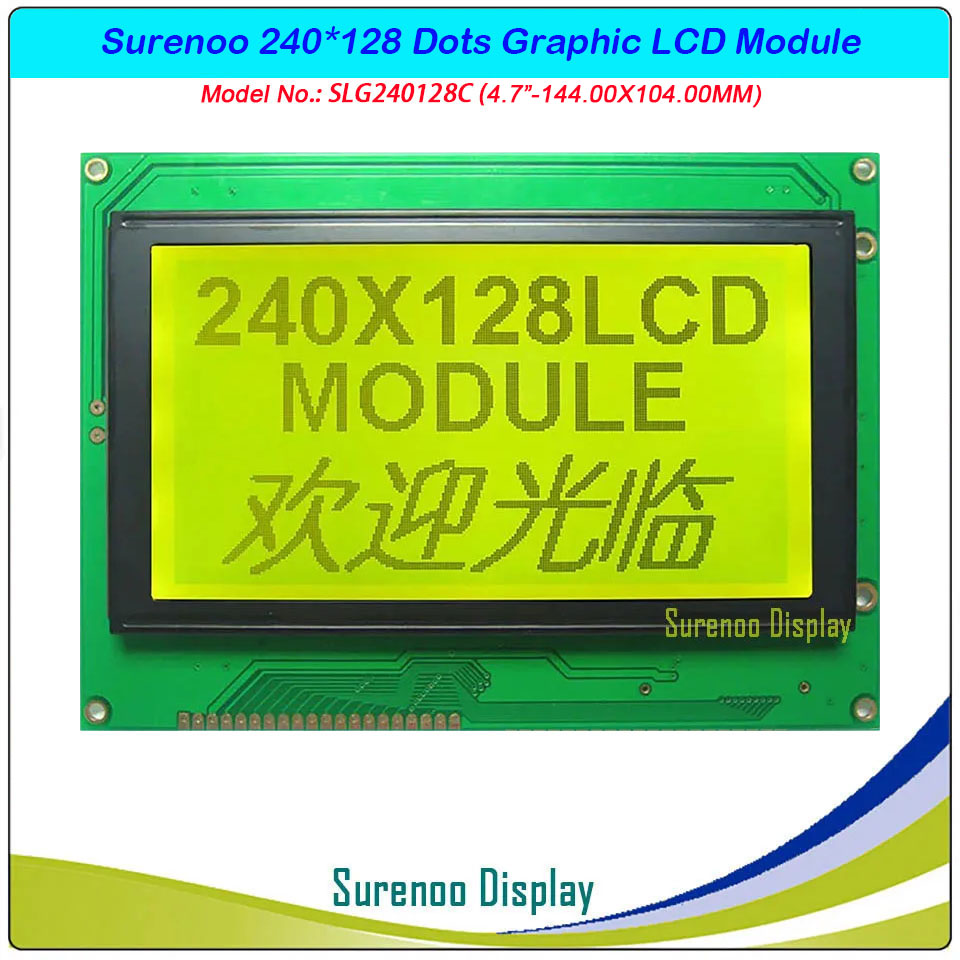

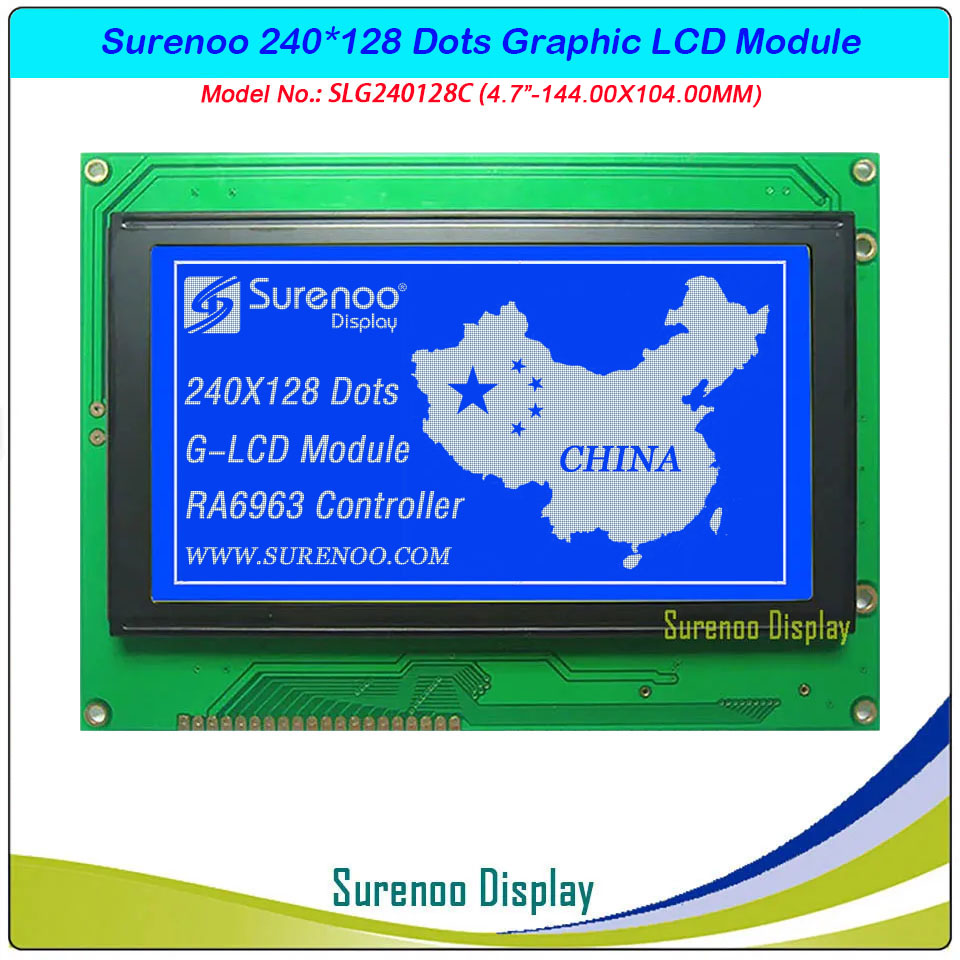

Display Type STN Yellow Green, STN Blue Negative
Backlight Type (LED) Yellow Green, White
IC Package COB
Viewing Direction 6:00 O'Clock
Operating Temperature -20℃~70℃
Storage Temperature -30℃~80℃

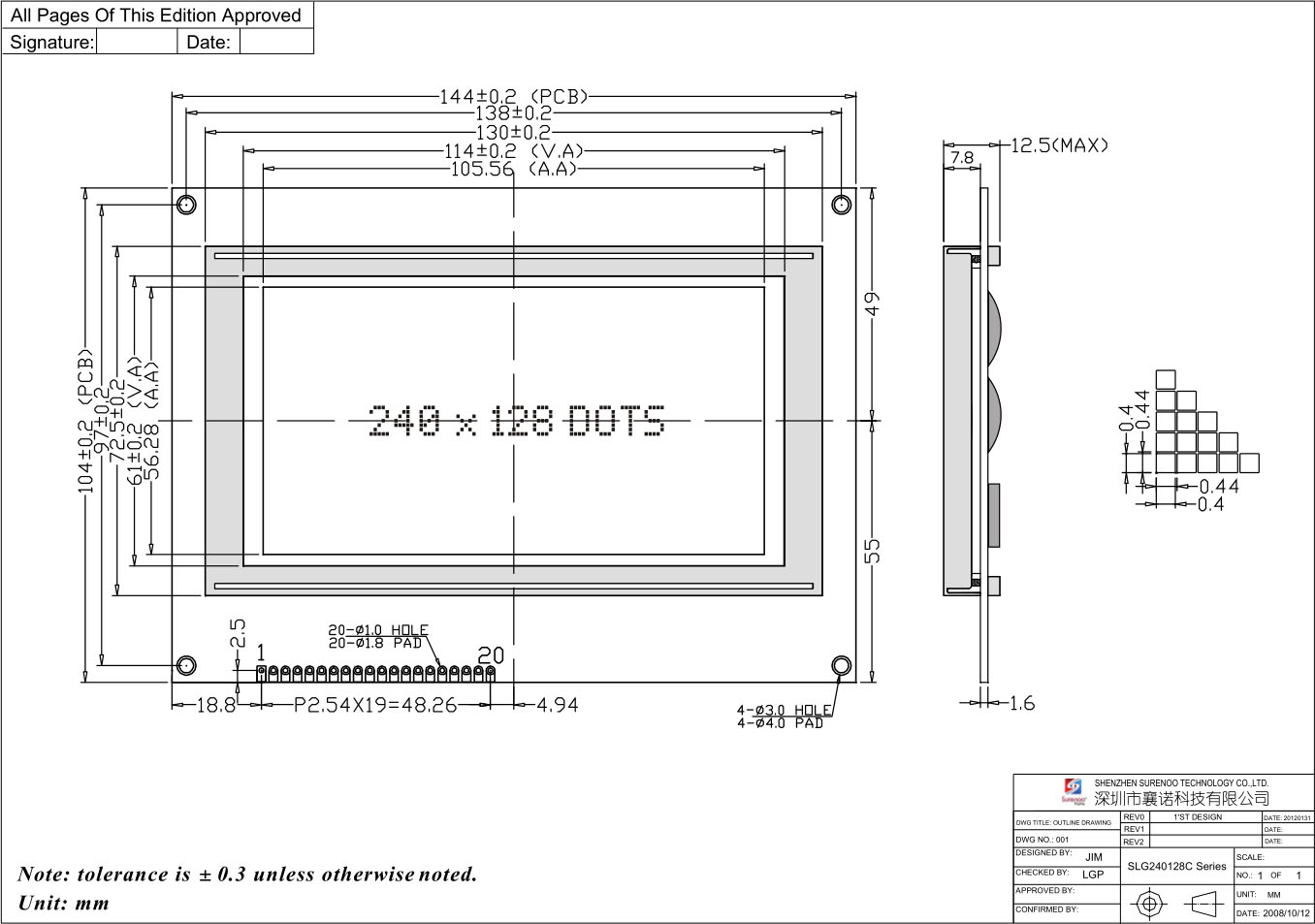

  • Outline Drawing

  • Interface
Pin No. Symbol Level
 Description
 1 FG - Frame Ground
 2 VSS 0V Power Ground
 3 VDD 5.0V Logic Power Supply
 4 V0 - Operating voltage for LCD (LCD Contrast Adjust)
 5 WR L Write Signal
6 RD L Read Signal
 7 /CE
 L Chip Enable Singal, Active-Low
8 C/D H/L L : Data Code H : Instruction Code
9 RST
 L Reset Signal,  Active-Low
 10-17 DB0-DB7 H/L
 Data Bus Line
18 FS H/L Font Selection (H: 6X8 Dots, L: 8X8 Dots)
19 VEE - Negative Voltage for LCD Driving
20 BLA 5.0V Backlight Anode
  • Documents
No. Item Document Name File Type ICON Date Description Mark
1 Datasheet 240X128 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 240128 Graphic LCD Module
2 Controller Controller IC RA6963 Datasheet PDF 2008-09-24 Graphic LCD Controller: RA6963
