SLG240128B Outline=144.00X104.00MM 4.7" inch 240128 240X128 240*128 Surenoo Graphic LCD Module Display Screen Panel 8080 8-bit Parallel T6963C RA6963 UCi6963 Controller STN Yellow Green Blue Negative FSTN Positive LED Backlight for 8051 PIC AVR ARM
SLG240128B Outline=144.00X104.00MM 4.7" inch 240128 240X128 240*128 Surenoo Graphic LCD Module Display Screen Panel 8080 8-bit Parallel T6963C RA6963 UCi6963 Controller STN Yellow Green Blue Negative FSTN Positive LED Backlight for 8051 PIC AVR ARM
Model No.: SLG240128B (4.7")
Display Format: 240*128 Dots
Outline: 144.00X104.00MM
Controller: UCi6963 or Equal
Display Format: 240*128 Dots
Outline: 144.00X104.00MM
Controller: UCi6963 or Equal
23 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
- Overview
SLG240128B is a 4.7" 240*128 dots Monochrome Graphic LCD Module, T6963C/RA6963/UCi6963 Controller standard 1X21P/2.54 & 1X22P/2.54 240*128 Parallel Graphic LCD Module, supprot 8080 8-Bit parallel interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.
It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
- Specification
| Gross Weight | 0.200Kg |
| Manufacturer | Surenoo |
| Display Type | Graphic LCD Module |
| Continuity Supply | More than 10 years |
| Part No. | SLG240128B (4.7") |
| Display Format | 240*128 Dots |
| Interface | 8080 8-bit Parallel |
| IC or Equivalent | UCi6963 or Equal |
| Voltage | 5.0V in default |
| Connection | 1X21P/2.54 & 1X22/2.54 Pin Header |
| Outline Dimension | 144.00(W)x104.00(H)x12.00(T)mm |
| Visual Area | 114.00x64.00mm |
| Active Area | 107.96x57.56mm |
| Display Type | STN Yellow Green, STN Blue Negative, FSTN Positive |
| Backlight Type (LED) | Yellow Green, White |
| IC Package | COB |
| Viewing Direction | 6:00 O'Clock |
|
Operating Temperature
|
-20℃~70℃
|
|
Storage Temperature
|
-30℃~80℃
|

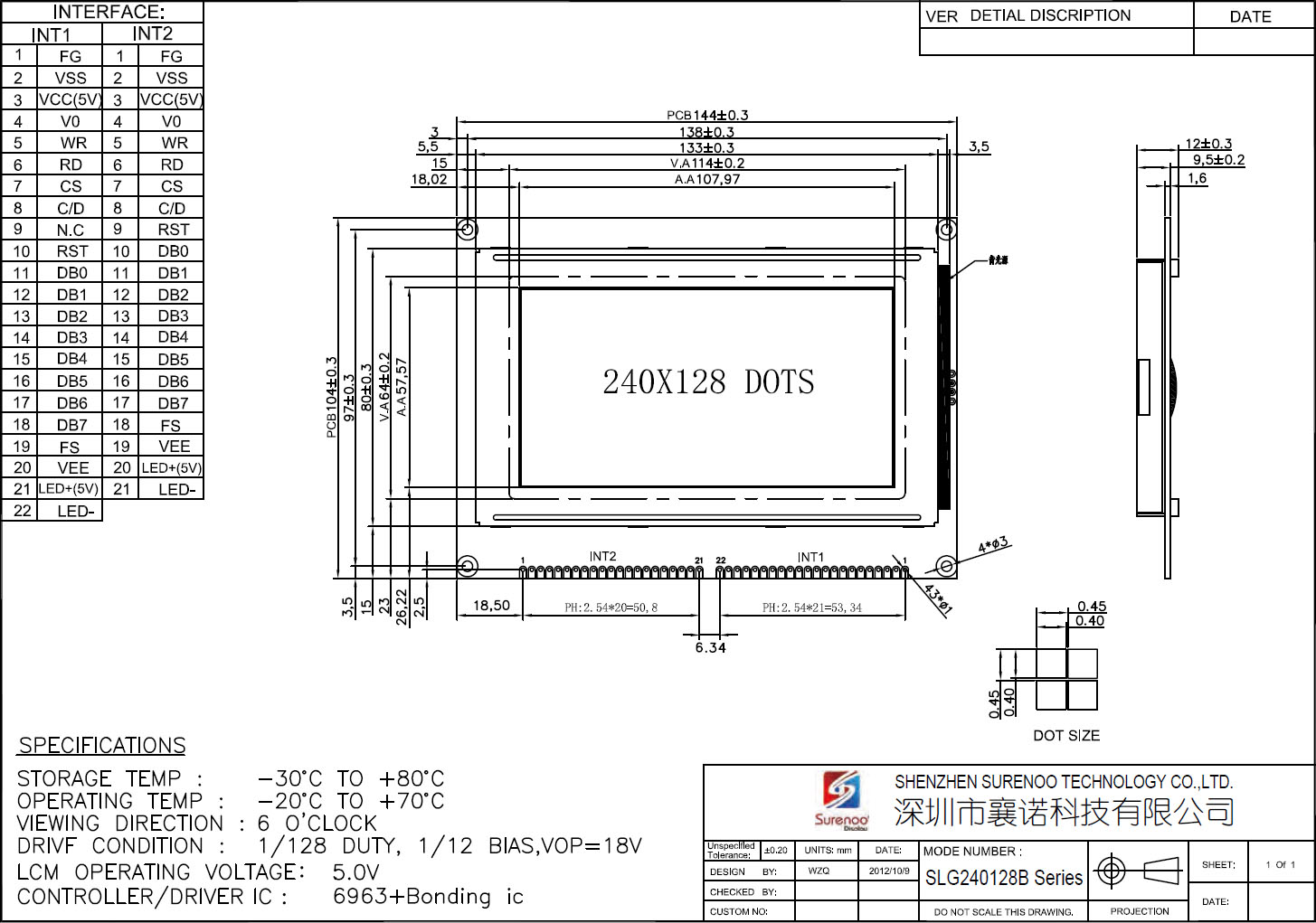

- Outline Drawing
- Interface
| Pin No. | Symbol | Level |
Description | |
| CN1 (1X21P/2.54) | CN2 (2X10P/2.54) |
|||
| 1 | 1 | FG | - | Frame Ground |
| 2 | 2 | VSS | 0V | Power Ground |
| 3 | 3 | VDD | 5.0V | Logic Power Supply |
| 4 | 4 | V0 | - | Operating voltage for LCD (LCD Contrast Adjust) |
| 5 | 5 | WR | L | Write Signal |
| 6 | 6 | RD | L | Read Signal |
| 7 | 7 | /CE |
L | Chip Enable Singal, Active-Low |
| 8 | 8 | C/D | H/L | L : Data Code H : Instruction Code |
| 9 | - |
NC | - | No Connection |
| 10 | 9 | RST |
L | Reset Signal, Active-Low |
| 11-18 | 10-17 | DB0-DB7 | H/L |
Data Bus Line |
| 19 | 18 | FS | H/L | Font Selection (H: 6X8 Dots, L: 8X8 Dots) |
| 20 | 19 | VEE | - | Negative Voltage for LCD Driving |
| 21 | 20 | BLA | 5.0V | Backlight Anode |
| 22 | 21 | BLK | 0V | Backlight Cathode |
- Documents
| No. | Item | Document Name | File Type | ICON | Date | Description | Mark |
| 1 | Datasheet | 240X128 Graphic LCD Module Datasheet |  |
2013-03-17 | Standard 240128 Graphic LCD Module | ||
| 2 | Controller | Controller IC UCi6963 Datasheet | |
2008-09-24 | Graphic LCD Controller: UCi6963 |
