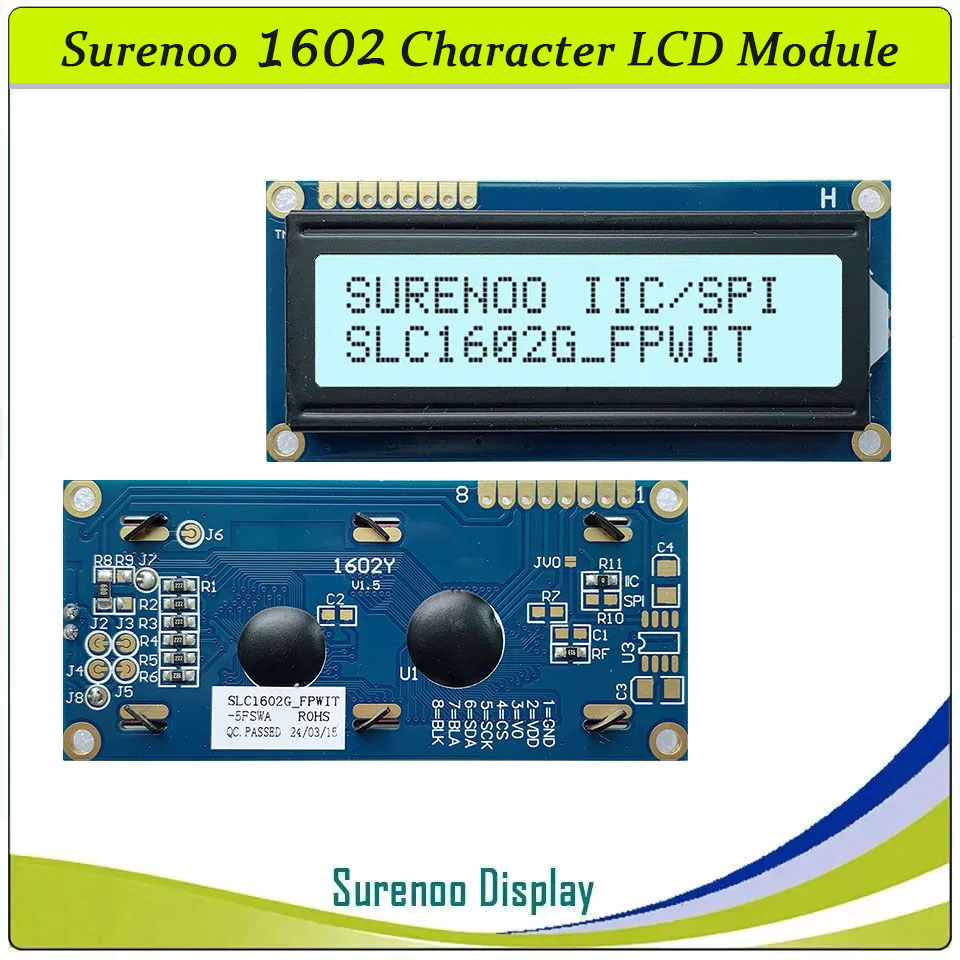

SLC1602G PCB=80.00X36.00MM 1602 16*2 Surenoo Character LCD Module Display Screen Panel Integrated Serial 3-Wire SPI IIC I2C AIP31068 Controller STN Yellow Green STN Blue FSTN Positive LED Backlight for Arduino UNO Nano Mega2560

Model No.: SLC1602G
Display Format: 16X02 Characters
PCB Size: 80.00X36.00MM
Controller: AIP31068 or Equal
80 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Overview

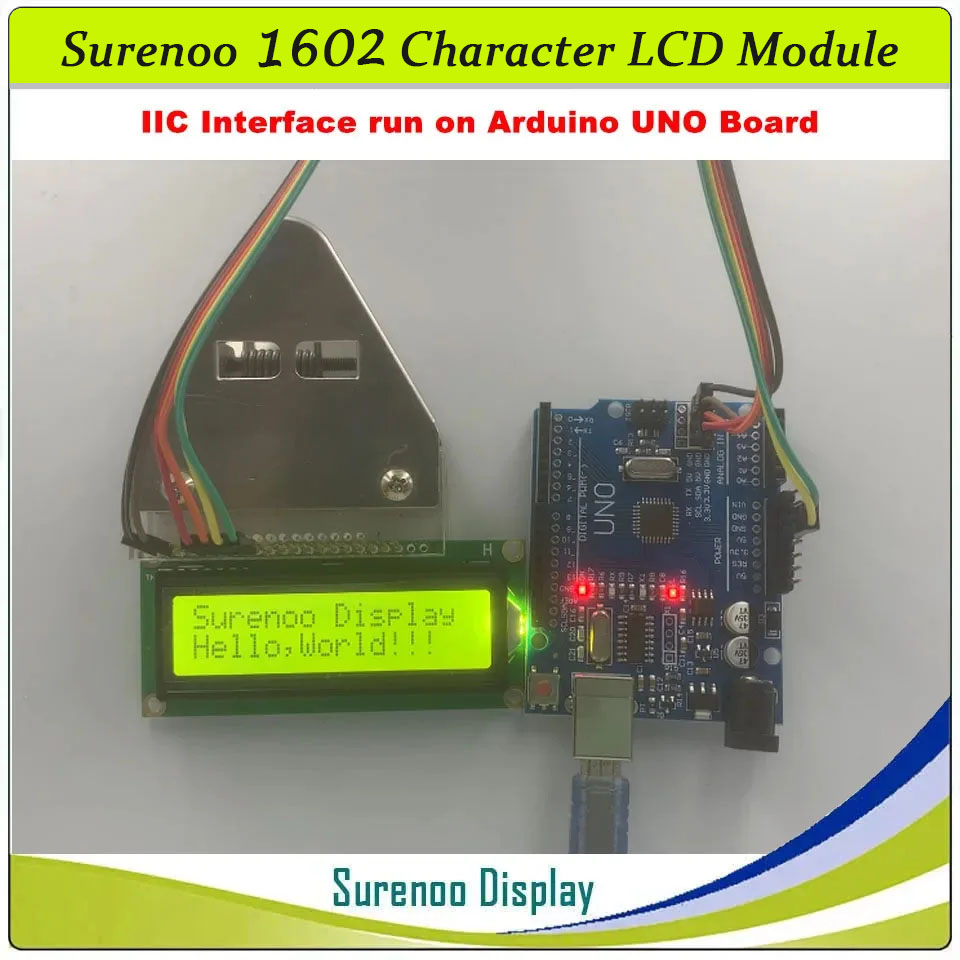

SLC1602G is 20 characters wide, 4 rows character lcd module, AIP31068 controller Integrated Serial SPI IIC interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Japanese, see the AIP31068 datasheet for the full character set. It's 5V or 3.3V power supply, can connect with Arduino UNO to work directly.

It's easily controlled by ARDUINO and Raspberry Pi. It can be used in any embedded systems,industrial device, security, medical and hand-held equipment.
  • Specification
Gross Weight  0.040Kg
Manufacturer Surenoo
Display Type Character LCD Module / IIC Display
Continuity Supply More than 10 years
Part No. SLC1602G
Display Format 16x2 Character
Interface Integrated Serial IIC; Integrated Serial SPI
IC or Equivalent AIP31068 or Equal
Fonts English-Japanese
Voltage(Type) 5.0V in default
Connection 1X8P/2.54 Pin Header
Outline Dimension 80.00(W)x36.00(H)x12.00(T)mm
Visual Area 66.00x16.00mm
Active Area 55.02x11.00mm

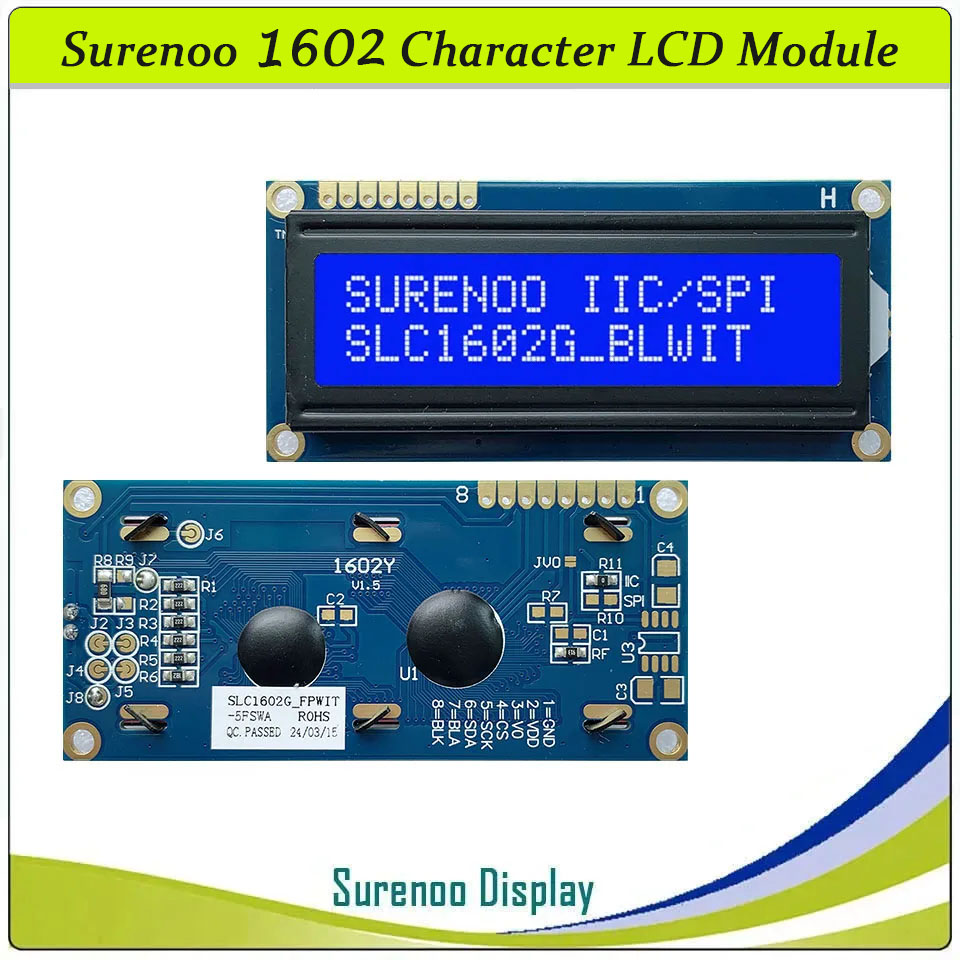

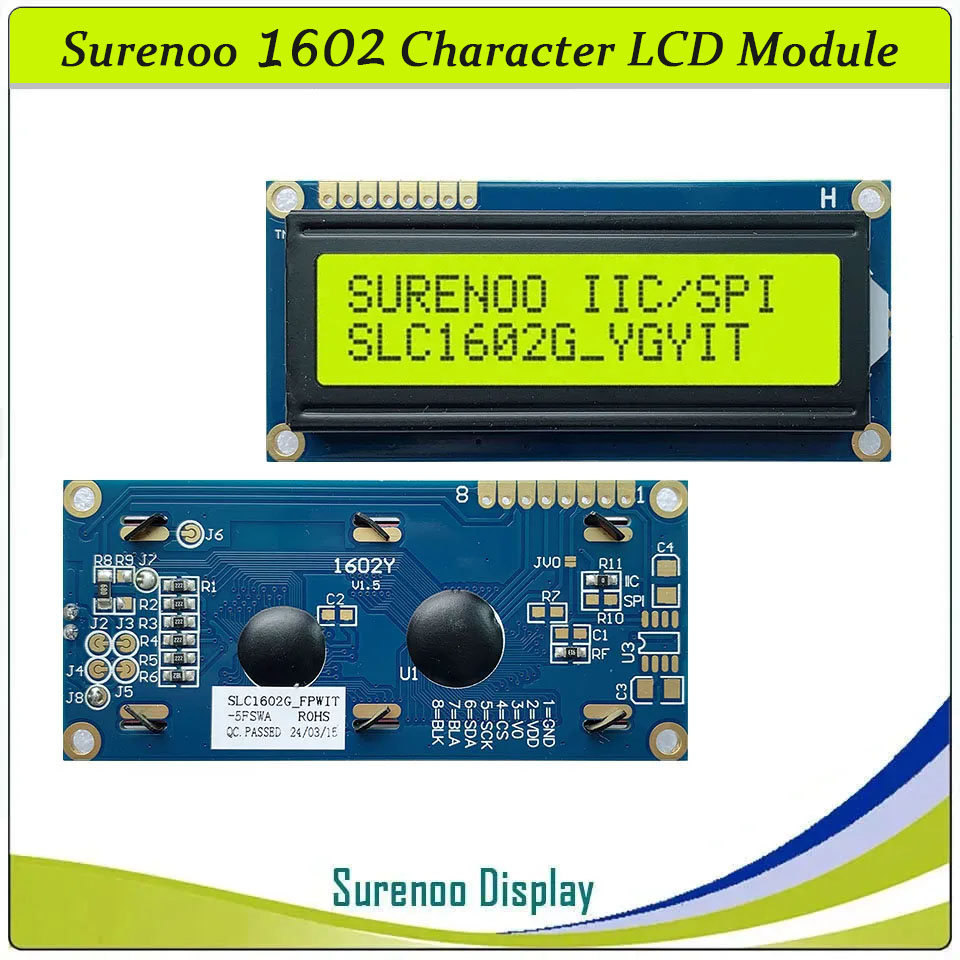

Display Type STN LCD-Yellow Green, STN Blue Negative, FSTN Positive
Backlight Type (LED) Yellow Green, White
IC Package COB
Viewing Direction 6:00 O'Clock
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
  • Outline Drawing

  • Interface
Pin No. Pin Name Description
1 GND Ground 0V
2 VDD Logic Power Supply
3 V0 Operate Voltage for LCD
4 CS IIC / SPI Chip Selection Signal, IIC Mode: No use
5 SCK Serial Clock Signal
6 SDA Serial Data Signal
7 BLA Backlight Anode
8 BLK Backlight Cathode
  • Documents
No. Item File Name File Type ICON Date Description Mark
1 Datasheet SLC1602G PDF 2013-03-17 Standard 1602 Character LCD Module
2 Controller AIP31068 PDF 2008-09-24 AIP31068 Character LCD Controller, Build-in Serual SPI IIC
3 AIP31068 51 IIC Library AIP31068 C 2017-08-22 AIP31068 51 IIC Library on STC15W4K32S4 MCU
4 Arduino IIC Library IIC Library ZIP 2009-07-19 Surenoo IIC Library for PCT8574T, AIP31068, RW1063, ST7032i to work on Arduino test Board
