SLG12864K Outline=40.00X34.50MM 1.4" 12864 128X64 Surenoo COG Graphic LCD Module Display Screen Panel 6800 8080 8-Bit Parallel Serial SPI 3.3V ST7567 Controller FSTN Positive White LED Backlight for MCU 8051 PIC AVR ARM Arduino

• Overview

• Specification

Gross Weight	0.040Kg
Manufacturer	Surenoo
Display Type	Graphic LCD Module
Continuity Supply	More than 10 years
Part No.	SLG12864K (1.4")
Display Format	128*64 Dots
Interface	8080 8-Bit Parallel; 6800 4/8-Bit Parallel; Serial SPI
IC or Equivalent	ST7567 or Equal
Voltage	3.3V in default
Connection	SLGM12864K: 1X8P/2.54 Pin Header & 1X16P/1.0 Connector; SLGP12864K: 1X30P/0.8 FPC
Outline Dimension	SLGM12864K: 40.00(W)x34.50(H)x5.60(T)mm; SLGP12864K: 38.00(W)x30.00(H)x6.25(T)mm
Visual Area	32.00x19.50mm
Active Area	30.70x16.62mm
Display Type	FSTN Positive
Backlight Type (LED)	White
IC Package	COG
Viewing Direction	6:00 O'Clock
Operating Temperature	-20℃~70℃
Storage Temperature	-30℃~80℃

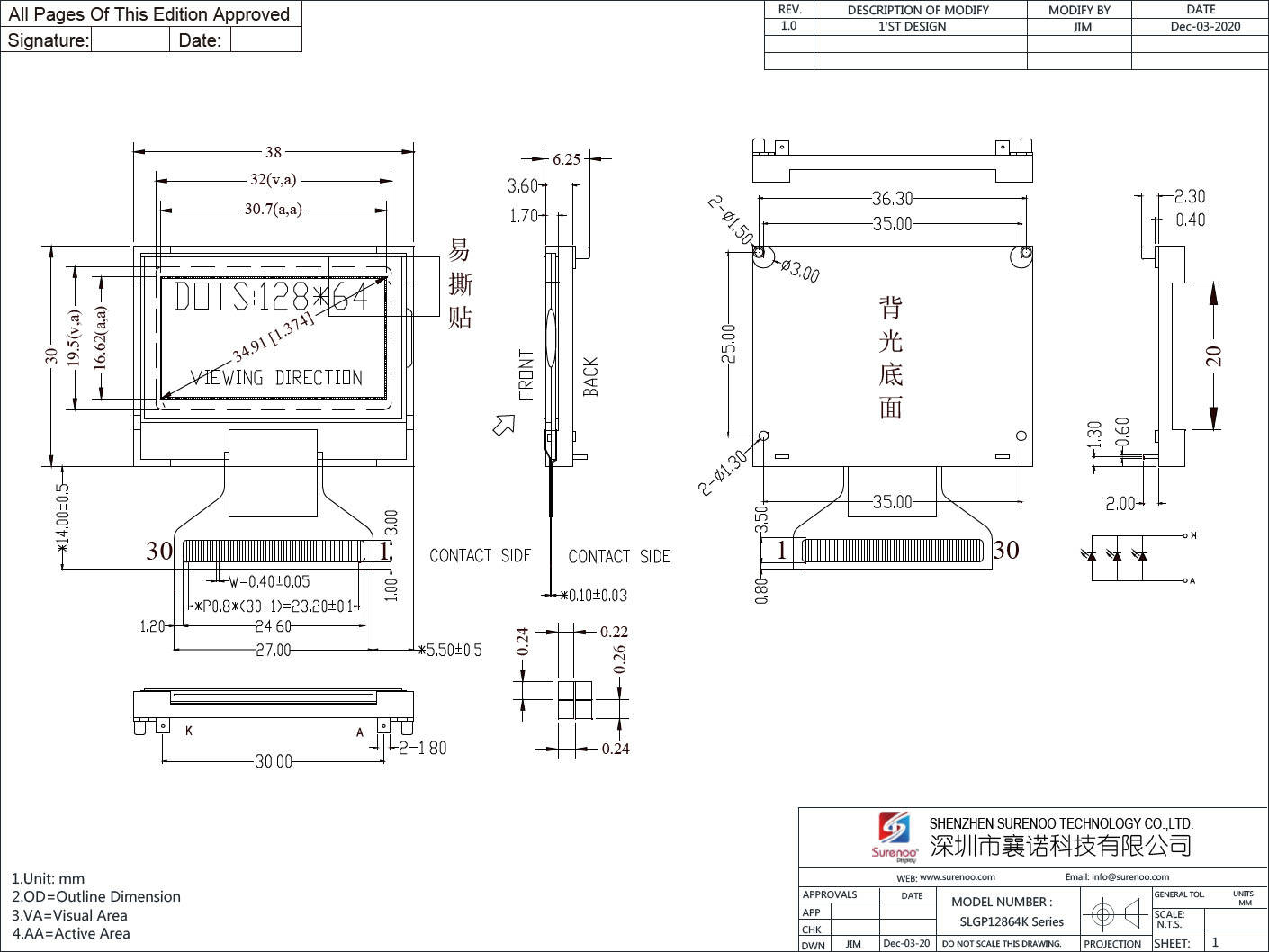

• Outline Drawing

1. Model No.: SLGM12864K (With PCB Adapter)

2. Model No.: SLGP12864K (Without PCB Adapter)

• Interface

1. Model No.: SLGM12864K (With PCB Adapter)
1.1 J1: Serial Port, PSB=0 (Short "S", Open "P")

Pin No.	Symbol	Value	Description
1	CSB	I	Chip select input pin. Interface access is enabled when CSB is “L”.
2	RSTB	I	Reset Singal, Active "L".
3	A0 (RS)	I	A0=“H”: Display data, A0=“L”: Command.
4	SCL	I	Serial Clock Input
5	SDA	I/O	Serial Data Input
6	VDD	-	Power Supply for Logic (3.3V)
7	VSS	-	Ground
8	LEDA	-	Backlight Anode (3.3V)

1.2 J4: Parallel Port PSB=1 (Short "P", Open "S")

Pin No.	Symbol	Value	Description
1-8	DB0-DB7	I/O	Parallel: Data Bus Line between MPU and LCD. Serial: D6=SCLK, D7=SDA, Others=NC. If with Chinese Font Chip, D2-D5 are SPI Port of ROM Chip.
9	VDD	-	Power Supply for Logic (3.3V)
10	VSS	-	Ground
11	LEDA	-	Backlight Anode (3.3V)
12	CSB	I	Chip select input pin. Interface access is enabled when CSB is “L”.
13	RSTB	I	Reset Singal, Active "L".
14	A0 (RS)	I	A0=“H”: Display data, A0=“L”: Command.
15	RWR	I	6800: R/W=0 (Write), R/W=1 (Read)
			8080: Write Port, Active "L".
16	ERD	I	6800: Enabled Port, Active "H".
			8080: Read Port, Active "L".

2. Model No.: SLGP12864K (Without PCB Adapter)

Pin No.	Symbol	Value	Description
1, 30	NC	-	No Connection
2	CSB	I	Enabled Port, Active "L".
3	RSTB	I	Hardware reset input pin. When RSTB is “L”, internal initialization is executed and the internal registers will be initialized.
4	A0 (RS)	I	A0=“H”: Display data, A0=“L”: Command.
5	RWR	I	6800: R/W=0 (Write), R/W=1 (Read)
			8080: Write Port, Active "L".
6	ERD	I	6800: Enabled Port, Active "H".
			8080: Read Port, Active "L".
7-12	DB0-DB5	I/O	Data Bus Line between MPU and LCD.
13	DB6/SCLK	I/O	Parallel: Data Bus Line/ Serial: Clock Input
14	DB7/SDA	I/O	Parallel: Data Bus Line/ Serial: Data Input
15	VDD	-	Power Supply for Logic (3.3V)
16	VSS	-	Ground
17	VOUT	Multiplier Voltage	Image 01 (Please review it in the following of this sheet)
18	C3P
19	C1N
20	C1P
21	C2P
22	C2N
23	V4	Biased Voltage	Image 02 (Please review it in the following of this sheet)
24	V3
25	V2
26	V1
27	V0
28	C86	6800/8080	6800, Active "H" / 8080, Active "L"
29	PS	Parallel/Serial	Parallel, Active "H" / Serial, Active "L"
A	LEDA	-	Backlight Anode (MAX=3.0V, Current=3*15=45MA)
K	LEDK	-	Backlight Cathode



• Documents

No.	Item	Document Name	File Type	ICON	Date	Description	Mark
1	Datasheet	128X64 Graphic LCD Module Datasheet	PDF		2013-03-17	Standard 12864 Graphic LCD Module
2	Controller	Controller IC ST7567 Datasheet	PDF		2008-09-24	Graphic LCD Controller: ST7567
