SLC1604A PCB=87.00X60.00MM 1604 16*4 Surenoo Character LCD Module Display Screen Panel 6800 4-bit 8-bit Parallel Serial IIC I2C AIP31066 SPLC780D ST7066 PCF8574 Controller STN Yellow Green STN Blue Negative LED Backlight USB2LCD LCD Smartie AIDA64

Model No.: SLC1604A
Display Format: 16X04 Characters
PCB Size: 87.00X60.00MM
Controller: AIP31066, ST7066 or Equal
68 sold
Quantity
ADD TO CART
BUY IT NOW
Detail
Customer Reviews
  • Overview

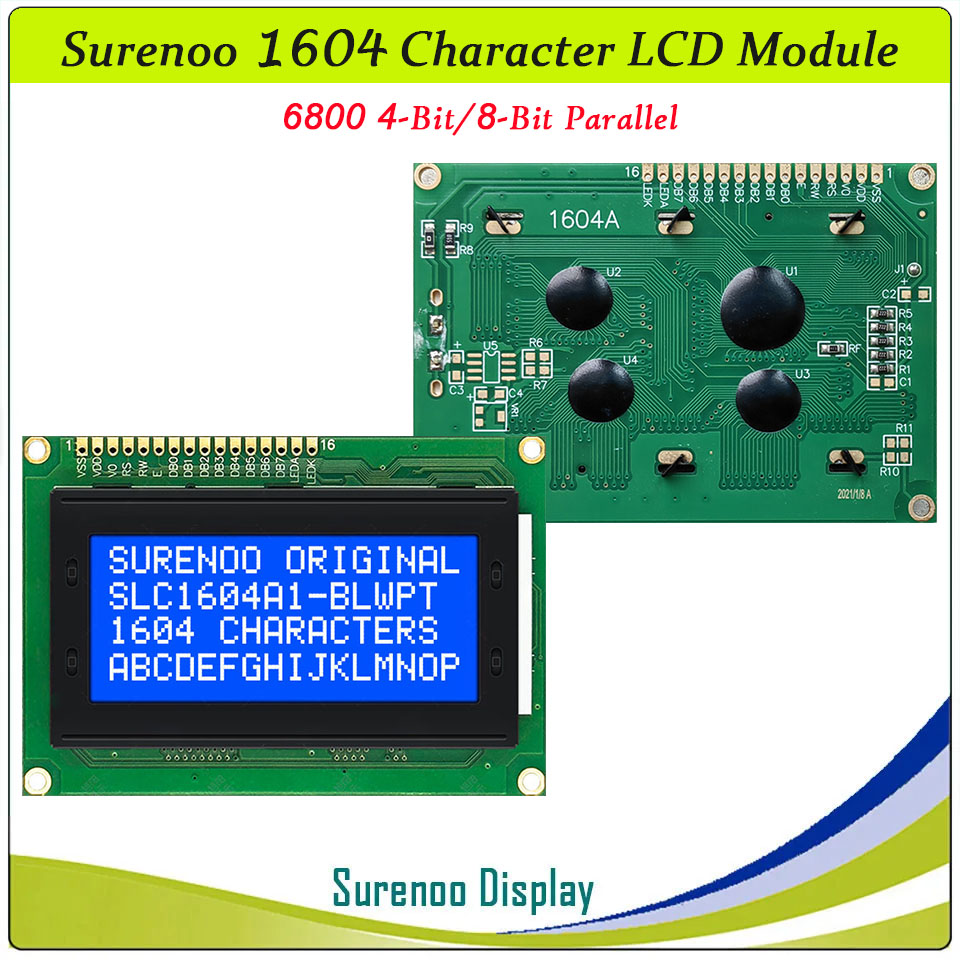

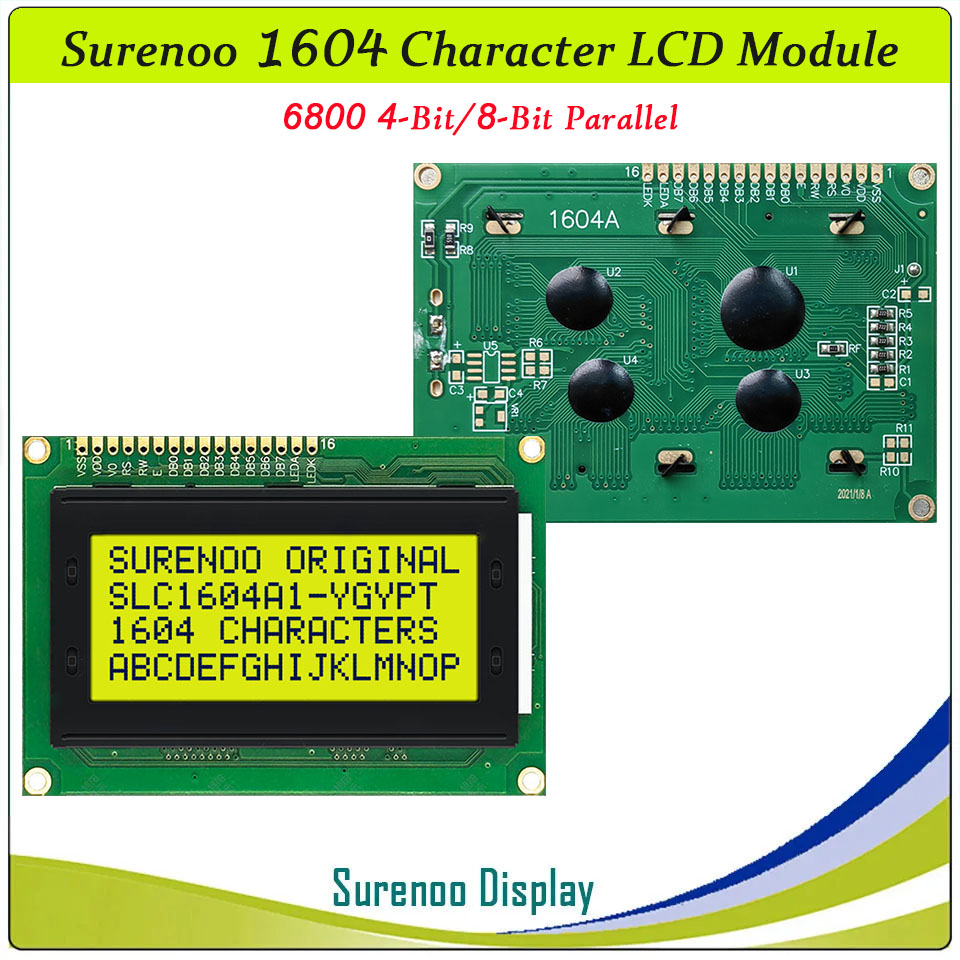

SLC1604A is 16 characters wide, 4 rows character lcd module, AIP31066 controller (Industry-standard HD44780 compatible controller), 6800 4/8-bit parallel interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Japanese, see the AIP31066 datasheet for the full character set. It's 5V or 3.3V power supply, and I2C adapter board is optional for Arduino.

It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, 56.21industrial device, security, medical and hand-held equipment.
  • Specification
Gross Weight  0.072Kg
Manufacturer Surenoo
Display Type Character LCD Module / IIC Display / USB Display
Continuity Supply More than 10 years
Part No. SLC1604A
Display Format 16x4 Character
Interface 6800 4-bit Parallel, 6800 8-bit Parallel, Serial IIC, Serial USB
IC or Equivalent AIP31066, ST7066 or Equal
Fonts English-Japanese
Voltage(Type) 5.0V in default, 3.3V is Optional
Connection 1X16P/2.54 Pin Header
Outline Dimension 87.00(W)x60.00(H)x12.90(T)mm
Visual Area 62.00x27.20mm
Active Area 56.21x20.81mm

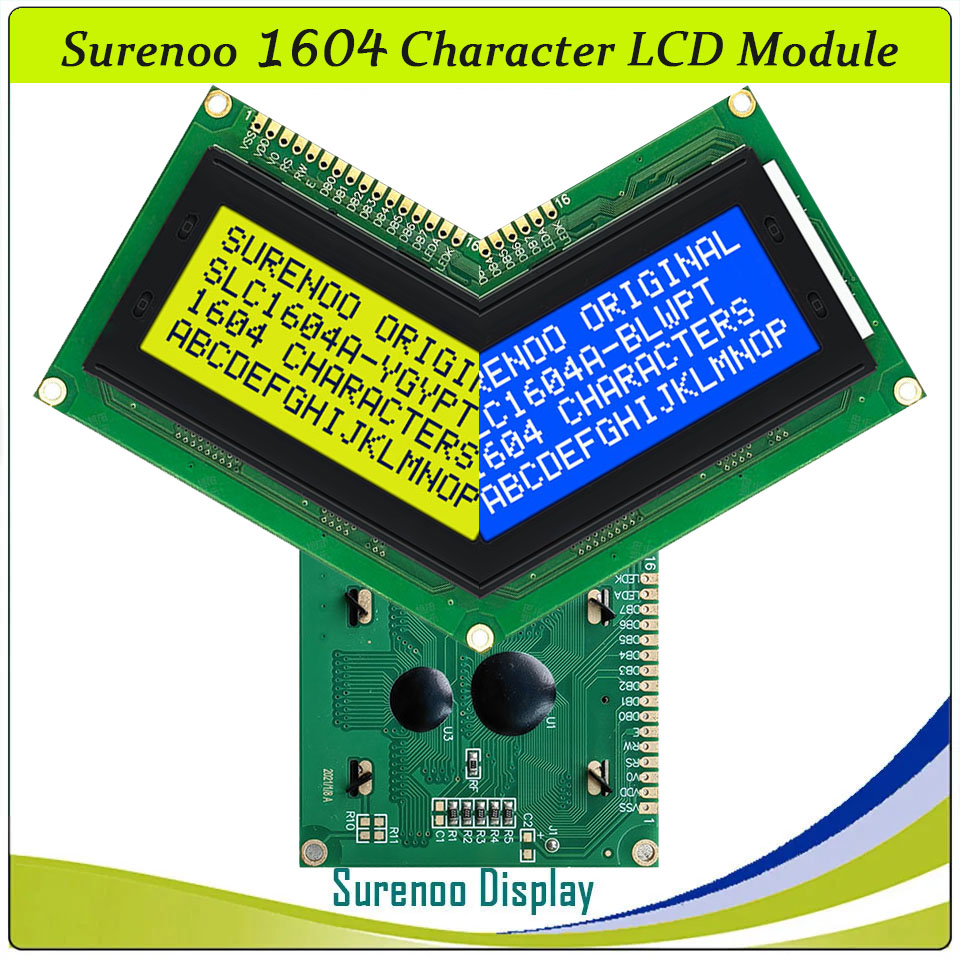

Display Type STN LCD-Yellow Green, STN Blue Negative
Backlight Type (LED) Yellow Green, White
IC Package COB
Viewing Direction 6:00 O'Clock
Operating Temperature
-20℃~70℃
Storage Temperature
-30℃~80℃
  • Outline Drawing

  • Interface
Pin No. Pin Name Description
CN1
1 VSS Ground 0V
2 VDD Logic Power Supply
3 V0 Operating voltage for LCD
4 RS Data / Instruction Register Select (H: Data Signal, L: Instruction Signal)
5 R/W Read / Write (H: Read Mode, L: Write Mode)
6 E Enable Signal
7-14 DB0-DB7 Data Bus
15 LED_A Backlight Anode
16 LED_K Backlight Cathode
CN2
1 SCK Serial Clock
2 SDA Serial Data
3 VCC Logic Power Supply
4 GND Ground 0V
  • Documents
No. Item File Name File Type ICON Date Description Mark
1 Datasheet SLC1604A PDF 2013-03-17 Standard 1604 Character LCD Module
2 Controller AIP31066 PDF 2008-09-24 Character LCD Controller, Compatible with SPC780, ST7066, HD44780, ......
3 Accessory

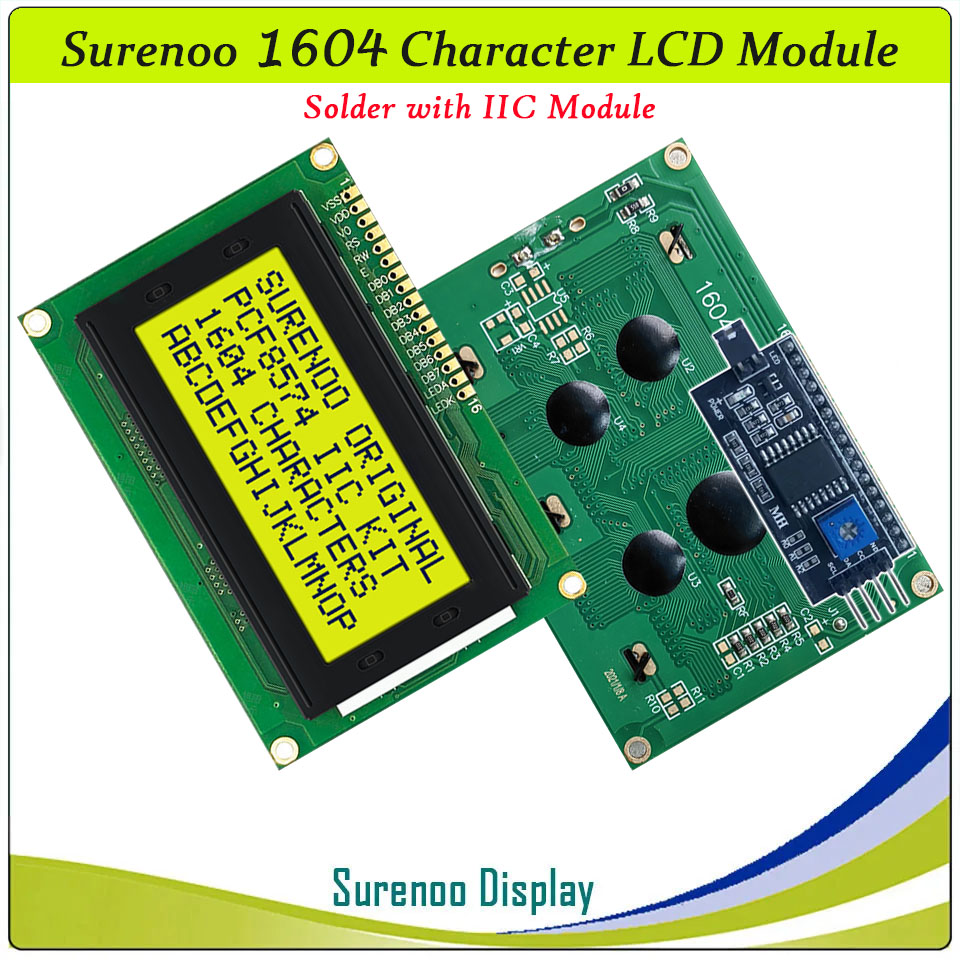

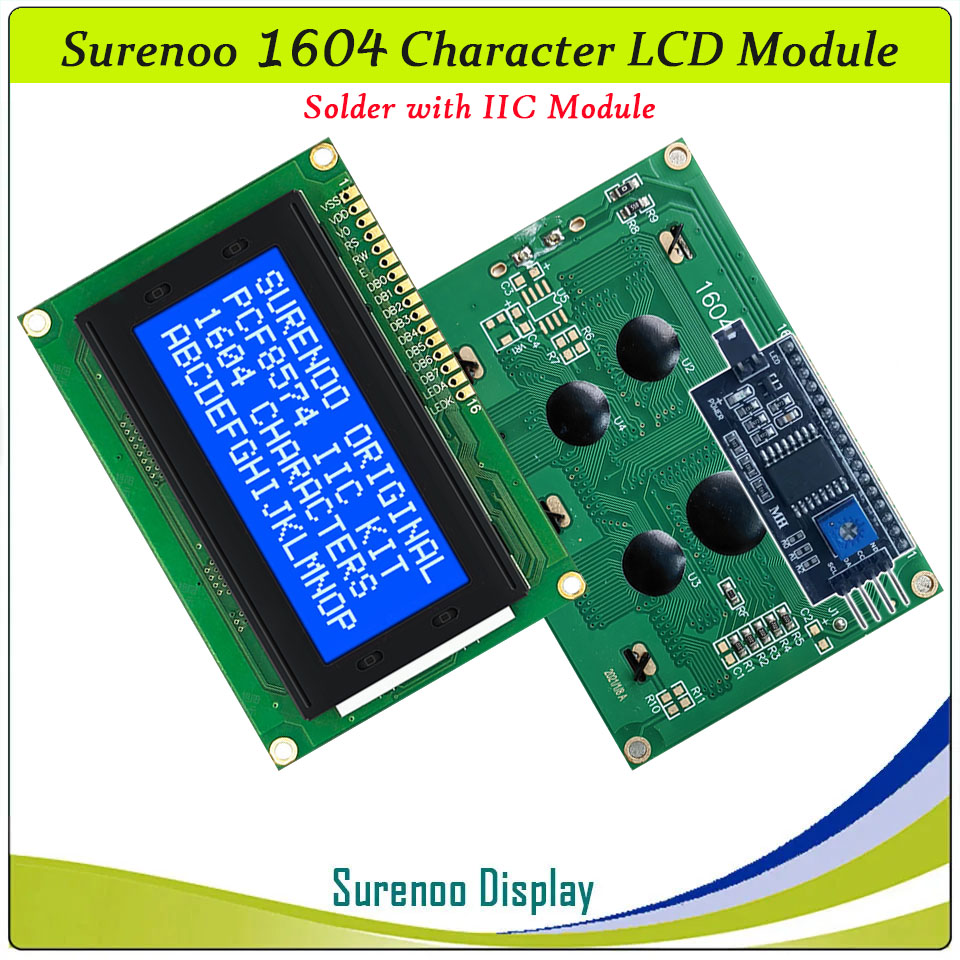

(PCF8574T IIC Module)		 PCF8574T IIC Module PDF 2011-02-09 1*16 and 2*8 Pin valid for Standard 0801, 0802, 1601, 1602, 1604, 2002, 2004, 2402, 4002 Character LCD Module
4 Accessory

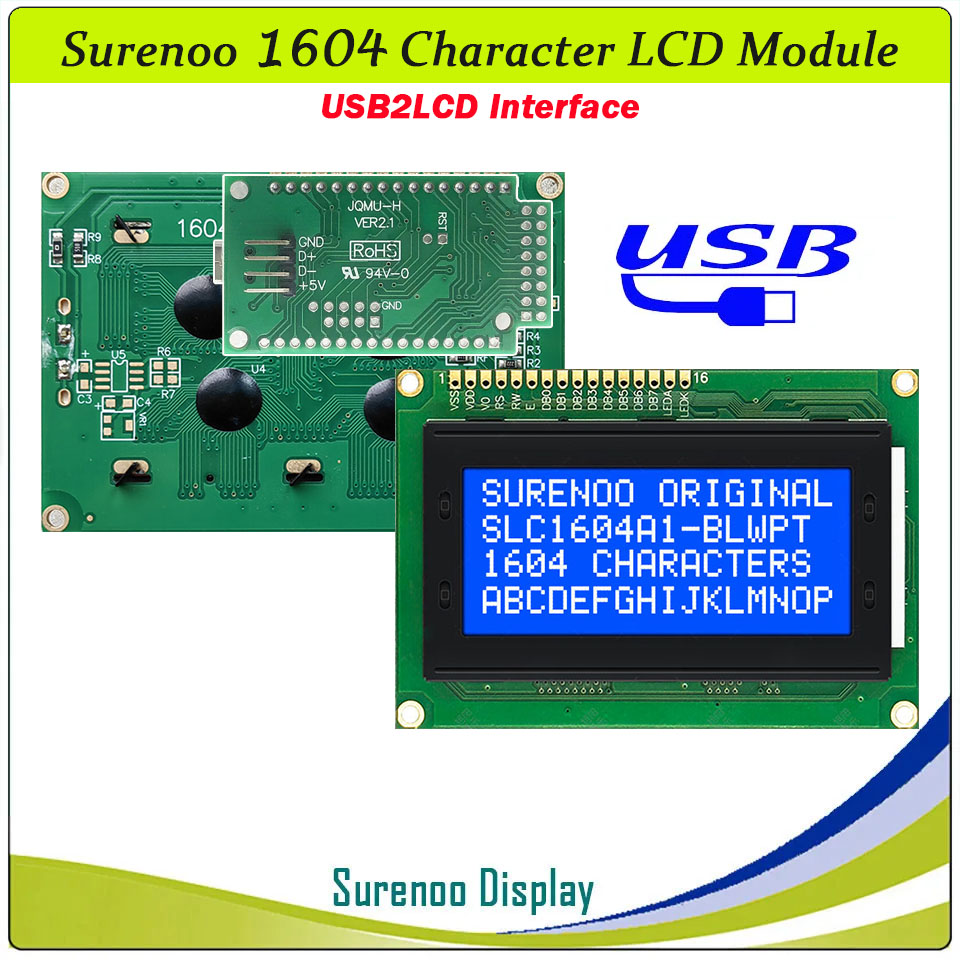

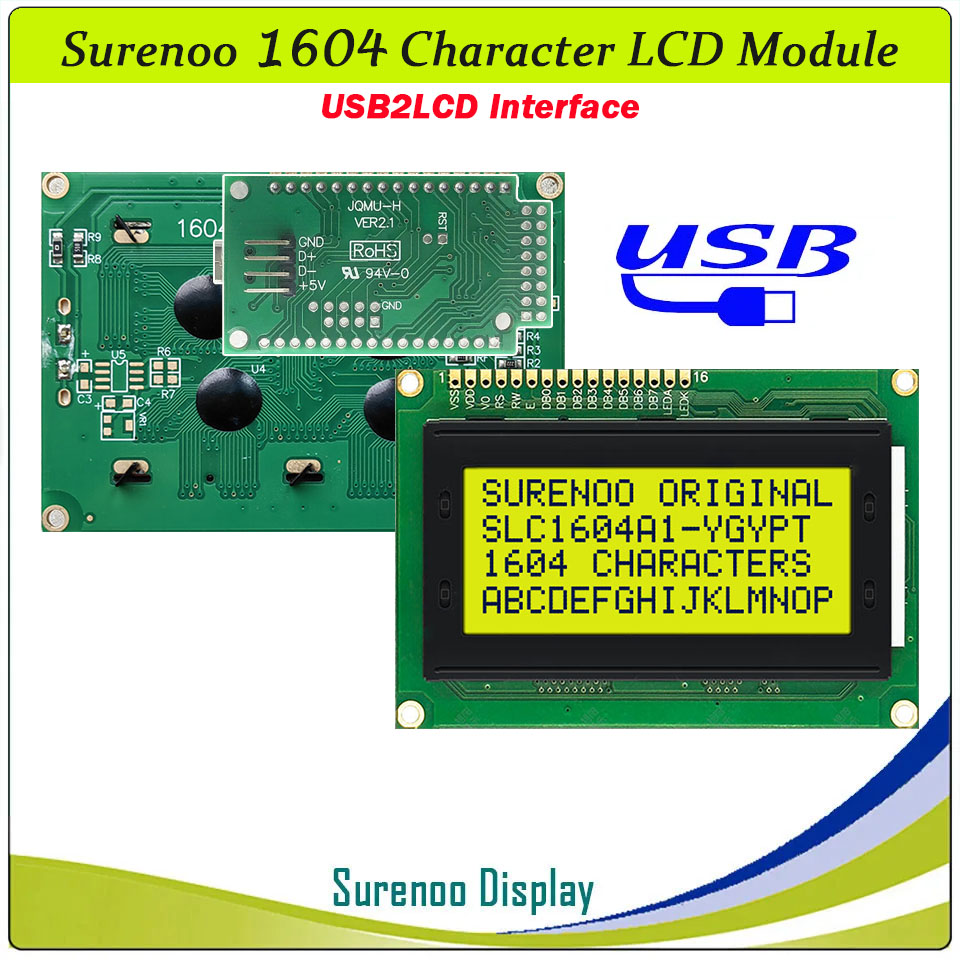

(USB2LCD Module)		 USB2LCD Module PDF 2012-11-28 USB2LCD Module can work on all standard LCD interface, suitablefor LCD Smrtie or AIDA64
5 51 Library 51 Library TXT 2006-09-11 STC86S52 6800 4/8-Bit Parallel Library
6 IIC Library IIC Library ZIP 2009-07-19 Surenoo IIC Library for PCT8574T, AIP31068, RW1063, ST7032i to work on Arduino test Board
