Model No.: SLC2004F
Display Format: 20X04 Characters
PCB Size: 98.00X60.00MM
Interface: Serial UART / SPI / IIC
19 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SLC2004F is 20 characters wide, 4 rows character lcd module, ST7066 controller (Industry-standard HD44780 compatible controller), UART/SPI/IIC interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Japanese, see the detailed datasheet for the full character set. It's 5V power supply.

    It's easily controlled by MCU such as PLC, 8051, PIC, AVR, ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.080Kg
    Manufacturer Surenoo
    Display Type Character LCD Module
    Continuity Supply More than 10 years
    Part No. SLC2004F
    Display Format 20x4 Character
    Interface Serial UART/SPI/IIC
    IC or Equivalent AIP31066, ST7066 or Equal
    Fonts English-Japanese
    Voltage(Type) 5.0V in default
    Connection 1X10P/2.54 Pin Header
    Outline Dimension 98.00(W)x60.00(H)x13.60(T)mm
    Visual Area 77.00x25.20mm
    Active Area 70.40x20.80mm
    Display Type STN Yellow Green, STN Blue Negative, FSTN Positive
    Backlight Type (LED) Yellow Green LED Backlight, White LED Backlight
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃

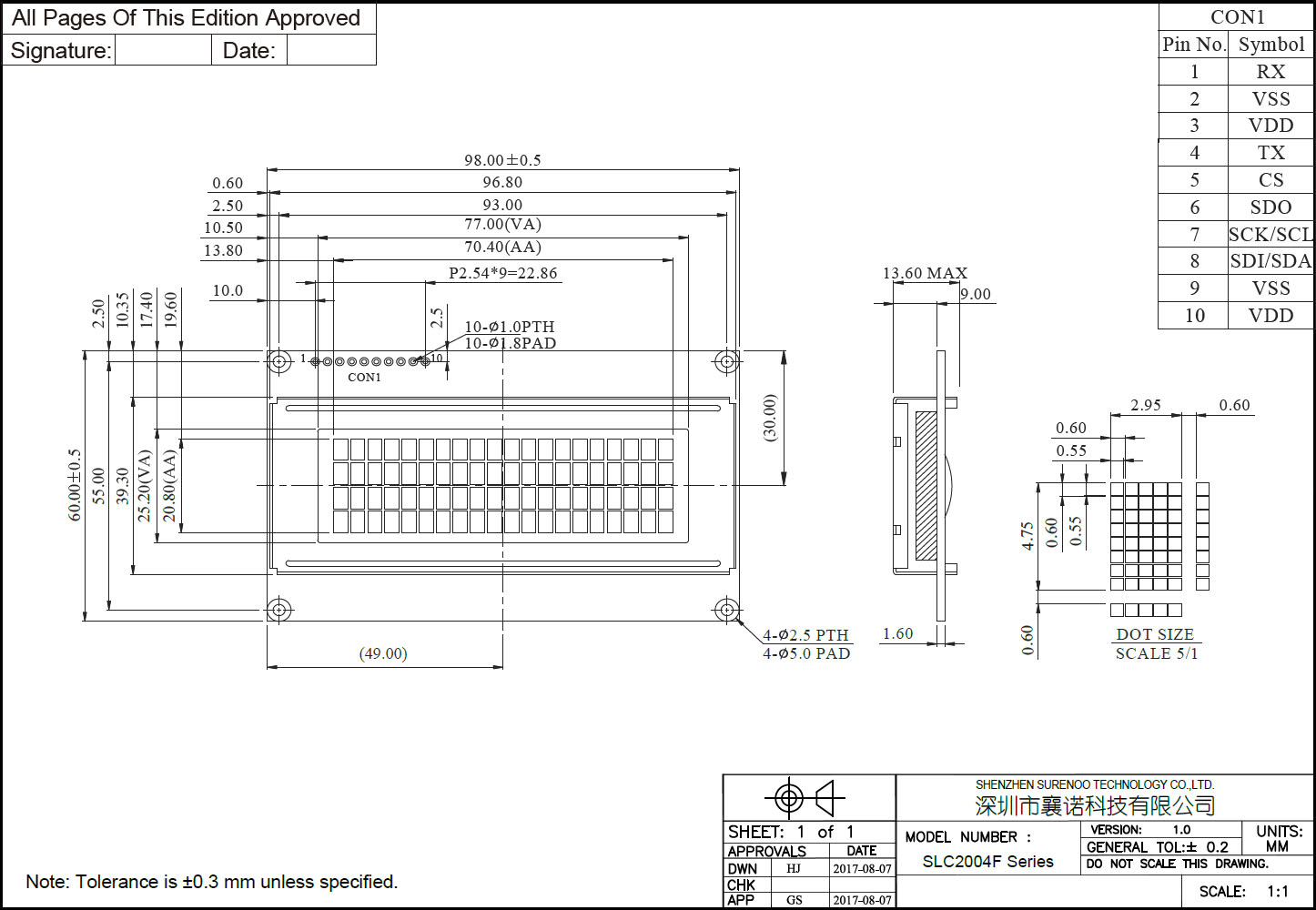

    • Outline Drawing

    • Interface
    Pin No. Pin Name Description
    1 RX UART: Serial Data Input (full duplex communication)
    2 VSS Ground
    3 VDD Supply Voltage
    4 TX UART: Serial Data Output
    5 CS SPI: Chip Selection
    6 SDO SPI: Serial Data Output
    7 SCK/SCL SPI/IIC: Serial Clock Signal
    8 SDI/SDA SPI: Serial Data Input / IIC: Serial Data Input/Output
    9 VSS Ground
    10 VDD Supply Voltage
    • Documents
    No. Item File Name File Type ICON Date Description Mark
    1 Datasheet SLC2004F PDF 2013-03-17 Standard 2004 Character LCD Module
    2 Controller AIP31066 PDF 2008-09-24 Character LCD Controller, Compatible with SPC780, ST7066, HD44780, ......
