SLC1602Q PCB=80.00X36.00MM 1602 16*2 Surenoo Character LCD Module Display Screen Panel 6800 4/8-Bit Parallel Integrated Serial IIC I2C AIP31066 PCF8574 PCF8574T STN Yellow Green Blue VA-TN Negative Black LED Backlight for Arduino UNO Nano Mega2560

WISHLIST
Model No.: SLC1602Q
Display Format: 16X02 Characters
PCB Size: 80*36MM
Controller: AIP31066 or Equal / PCF8574
126 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview

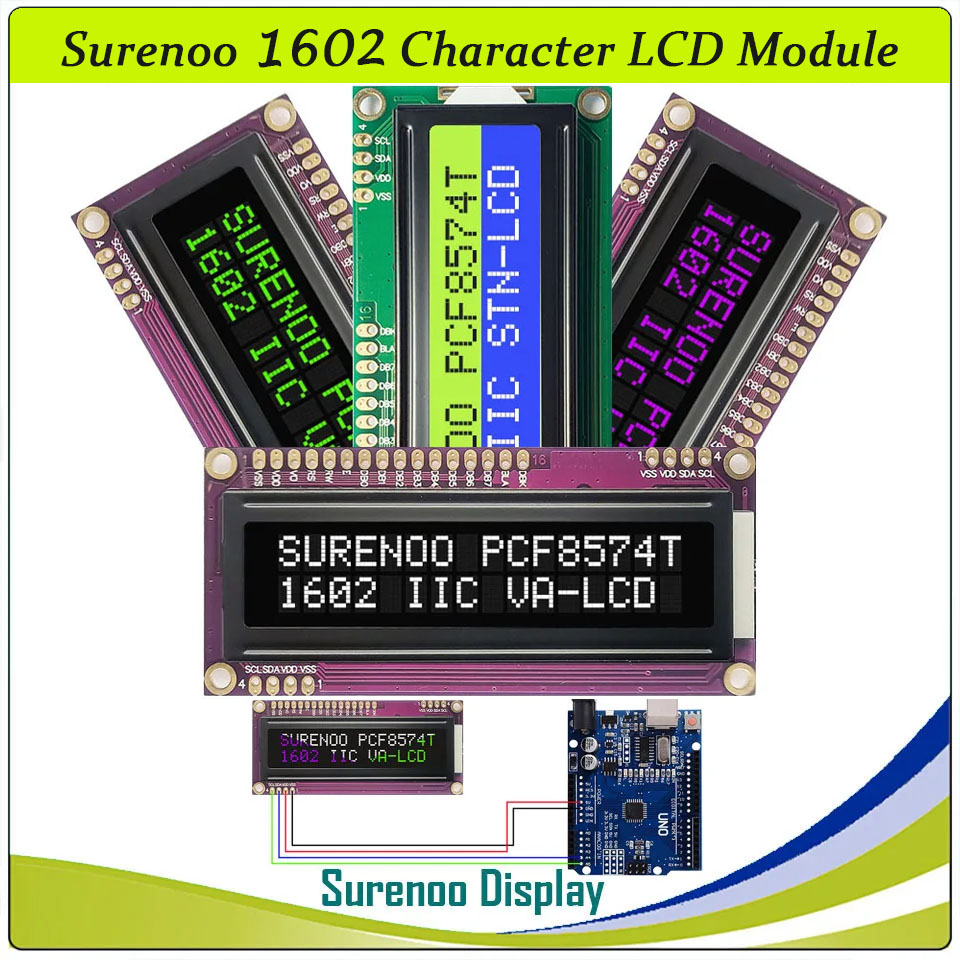

    SLC1602Q is 16 characters wide, 2 rows character LCD Module, AIP31066 & PCF8574 controller (Industry-standard HD44780 compatible controller), 6800 4/8-bit parallel interface, Serial IIC interface(PCF8574T), wide operating temperature range, RoHS Compliant, built in character set supports English-Japanese, see the AIP31066 datasheet for the full character set. It's 5V or 3.3V power supply, and IIC Interface is optional for Arduino.
    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.040Kg
    Manufacturer Surenoo
    Display Type Character LCD Module / IIC Display
    Continuity Supply More than 10 years
    Part No. SLC1602Q
    Display Format 16x2 Character
    Interface 6800 4/8-Bit Parallel & Integrated Serial IIC
    IC or Equivalent AIP31066 or Equal / PCF8574T
    Fonts English-Japanese
    Voltage(Type) 5.0V in default
    Connection 1X16P/2.54 Parallel & 1*4P/2.54 IIC Pin Header
    Outline Dimension 80.00(W)x36.00(H)x13.50(T)mm
    Visual Area 64.50x14.50mm
    Active Area 55.70x11.00mm

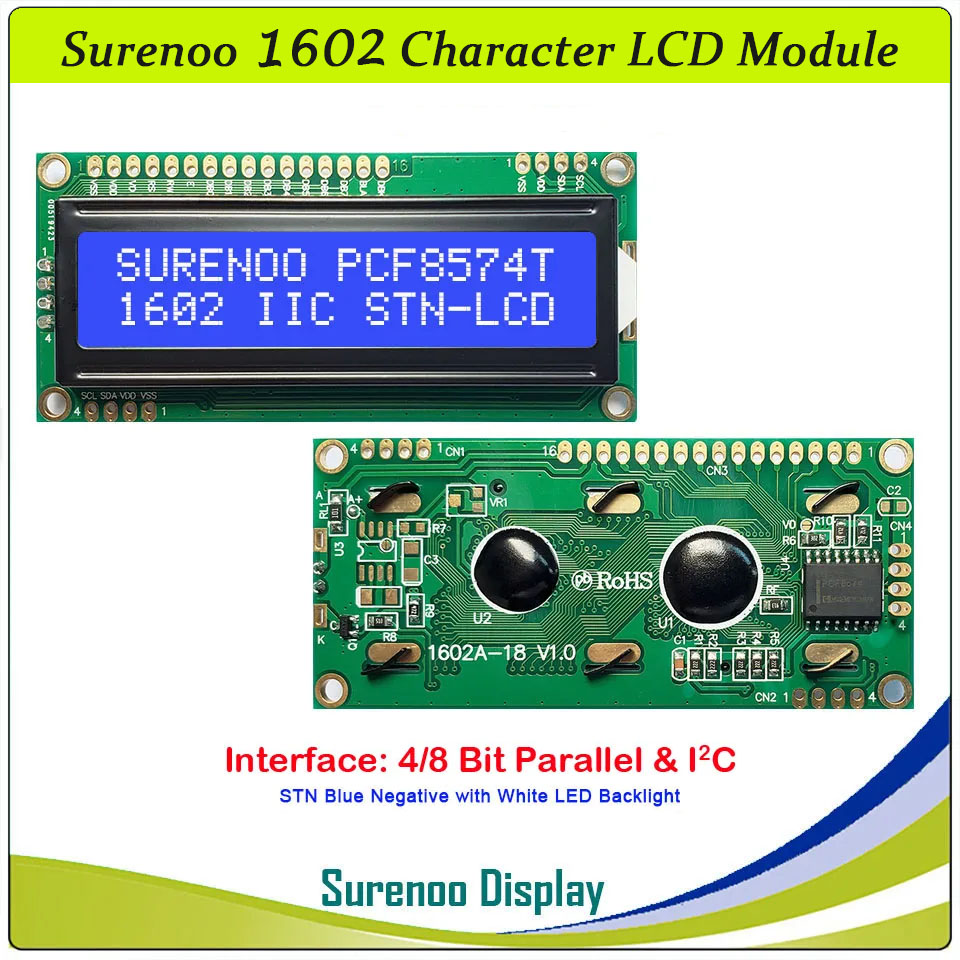

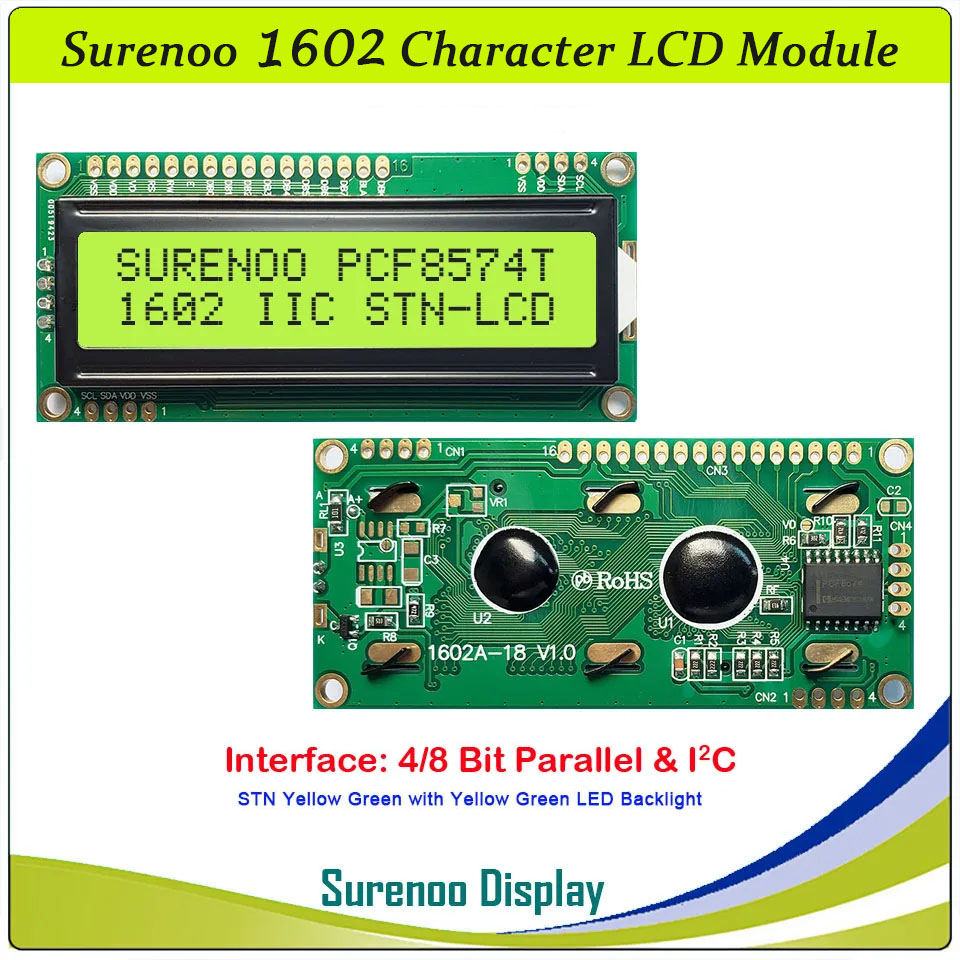

    Display Type STN Yellow Green, STN Blue Negative, Full-View Angle VA-TN Negative

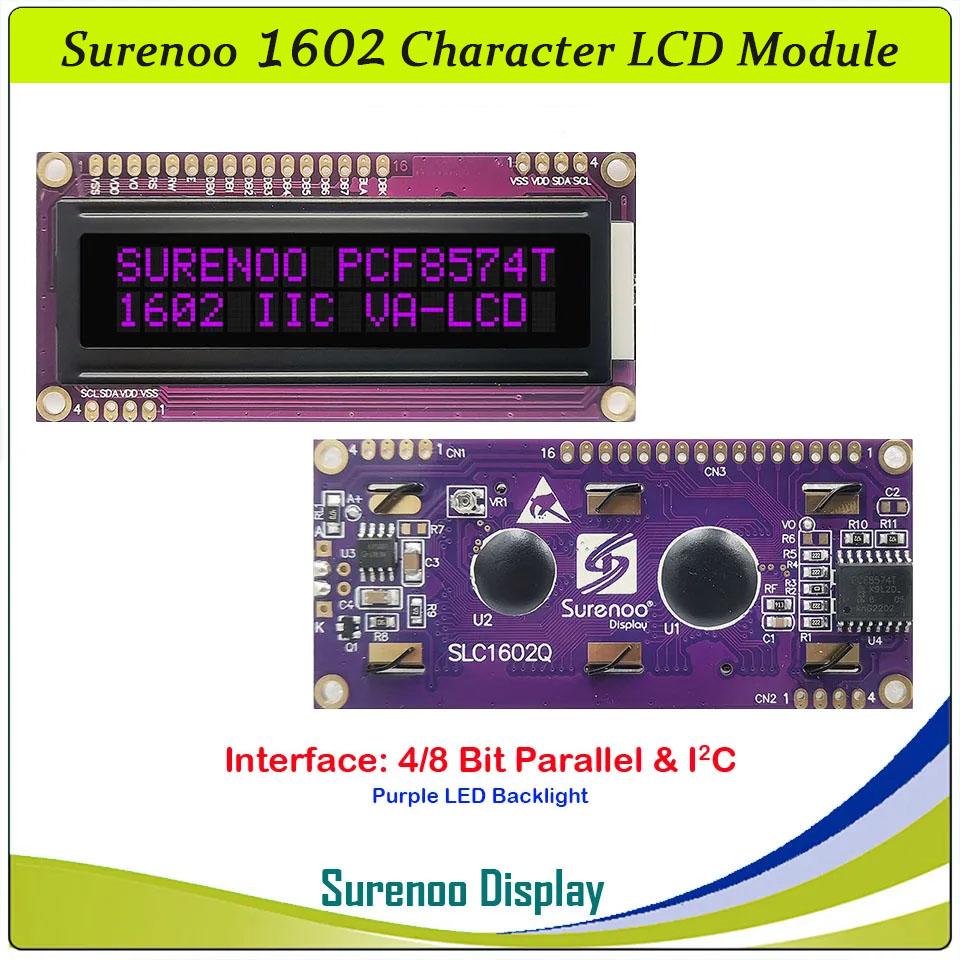

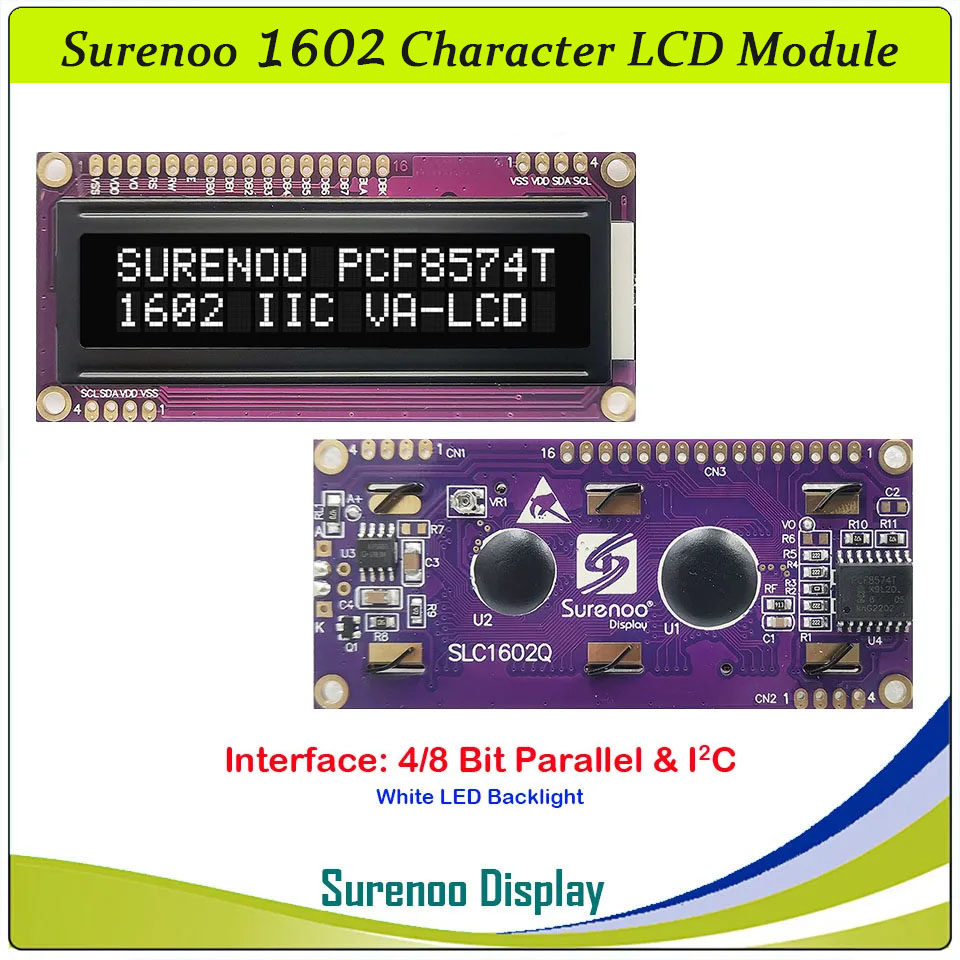

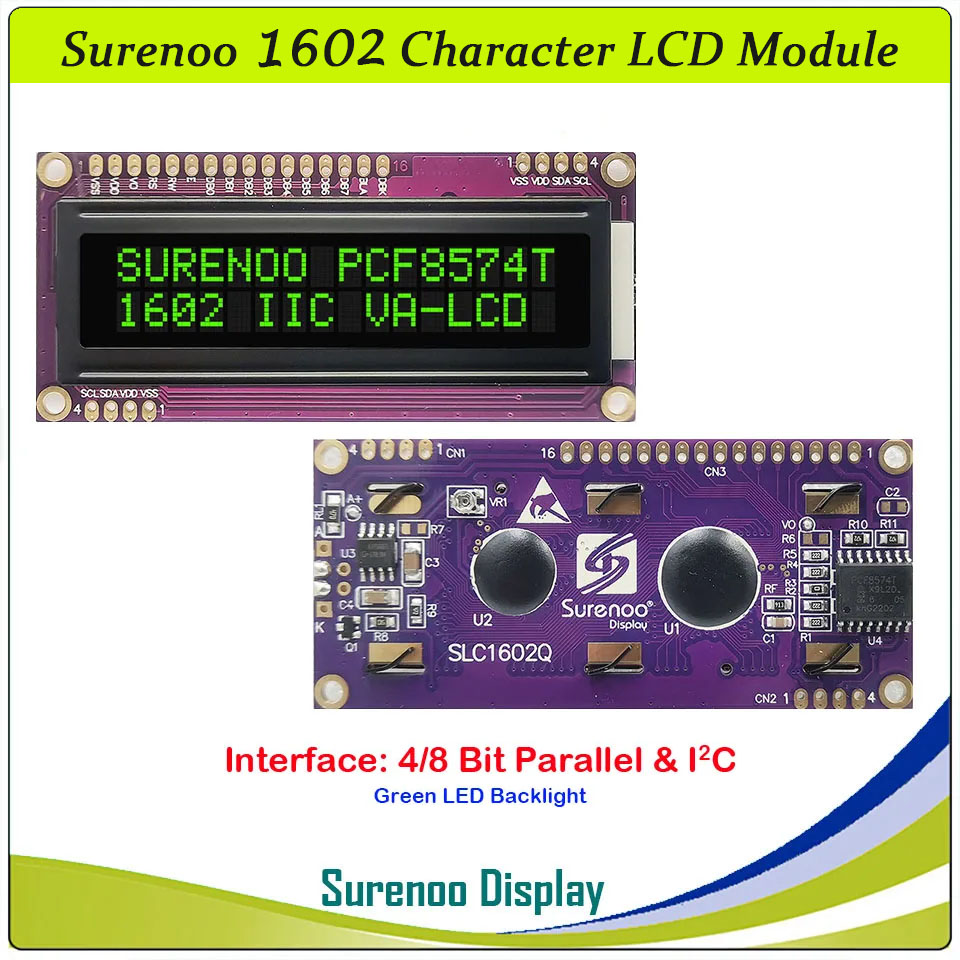

    Backlight Type (LED) Yellow Green, White, Green, Purple
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃
    • Outline Drawing

    • Interface
    Pin No. Symbol Level  Function
    >> Serial IIC Interface (CN1/CN2)
    1 VSS 0V Ground
    2 VDD 5.0V Logic Power Supply
    3 SDA H/L Serial Data Input
    4 SCK H/L
    Serial Clock Input
    >> 6800 4-Bit / 8-Bit Parallel Interface (CN3)
    1 VSS 0V Ground 0V
    2 VDD 5.0V Logic Power Supply
    3 V0 (Variable) Operating voltage for LCD
    4 RS H/L H: Data Signal, L: Instruction Signal
    5 R/W H/L Read / Write (H: Read Mode, L: Write Mode)
    6 E H, H➡L Chip Enable Signal
    7-14 DB0-DB7 H/L Data Bus
    15 LED_A - Backlight Anode
    16 LED_K - Backlight Cathode
    • Documents
    No. Item File Name File Type ICON Date Description Mark
    1 Datasheet SLC1602Q PDF 2013-03-17 Standard 1602 Character LCD Module
    2 Controller AIP31066 PDF 2008-09-24 Character LCD Controller, Compatible with SPC780, ST7066, HD44780, ......
    3 IIC Controller PCF8574T PDF 2011-02-09 PCF8574T IIC Controller, can convert stanadrd parallel display to IIC interface
    4 51 Library 51 Library TXT 2006-09-11 STC86S52 6800 4/8-Bit Parallel Library
    5 IIC Library IIC Library ZIP 2009-07-19 Surenoo IIC Library for PCT8574T, AIP31068, RW1063, ST7032i to work on Arduino test Board
