SLC1602N PCB=53.00X20.00MM 1602 16*2 Surenoo Character LCD Module Display Screen Panel 6800 4-bit 8-bit Parallel AIP31066 SPLC780D ST7066 Controller STN Yellow Green STN Blue Negative FSTN Positive LED Backlight

WISHLIST
Model No.: SLC1602N
Display Format: 16X02 Characters
PCB Size: 53*20MM
Controller: AIP31066, ST7066 or Equal
98 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview

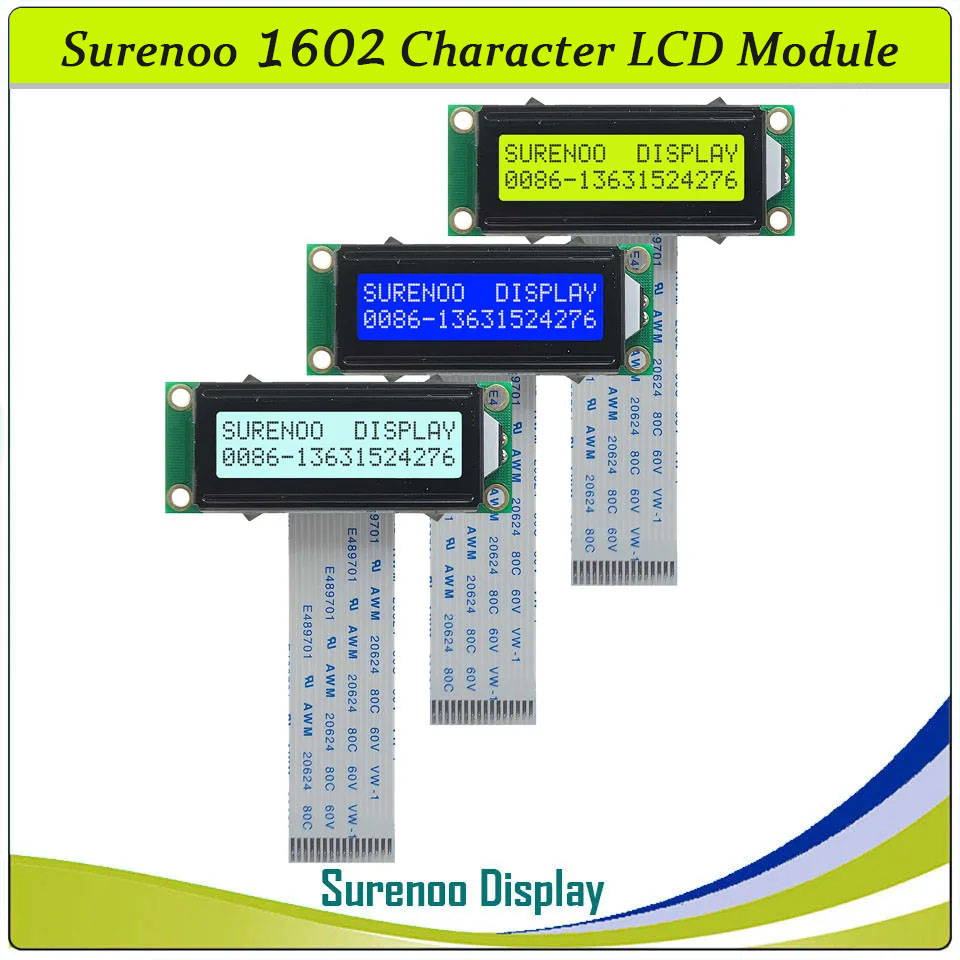

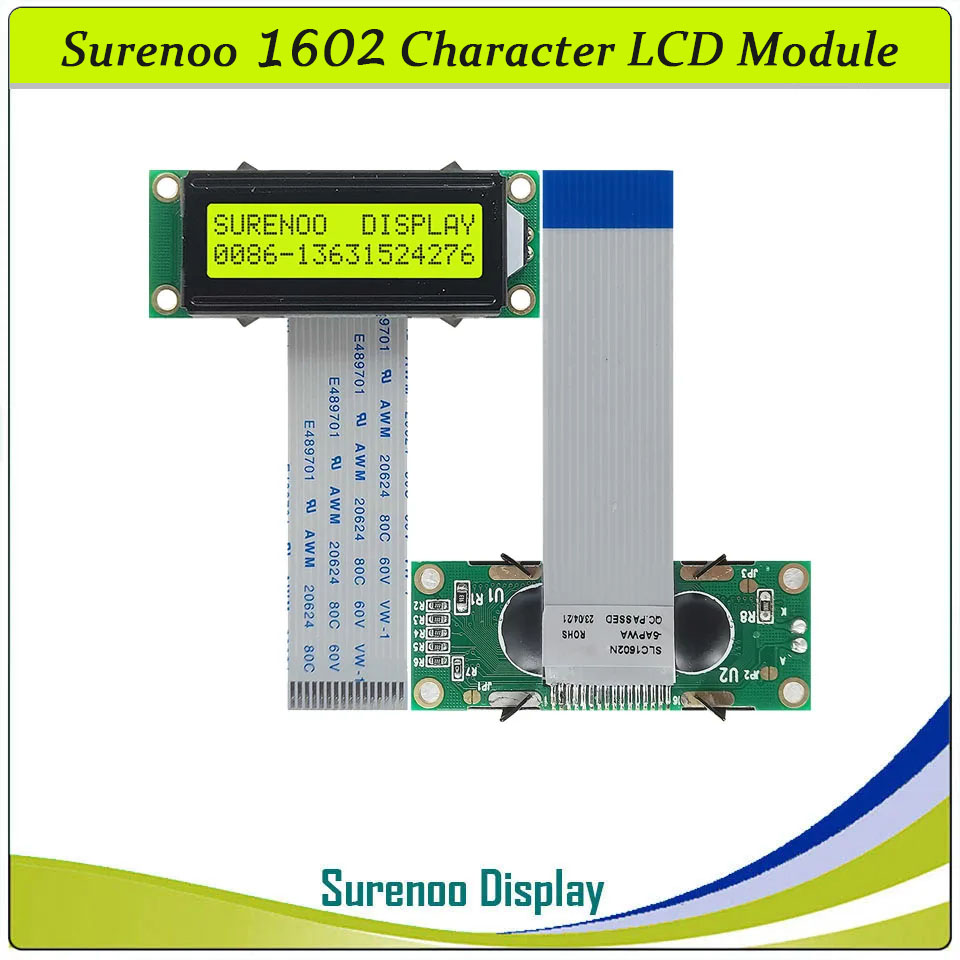

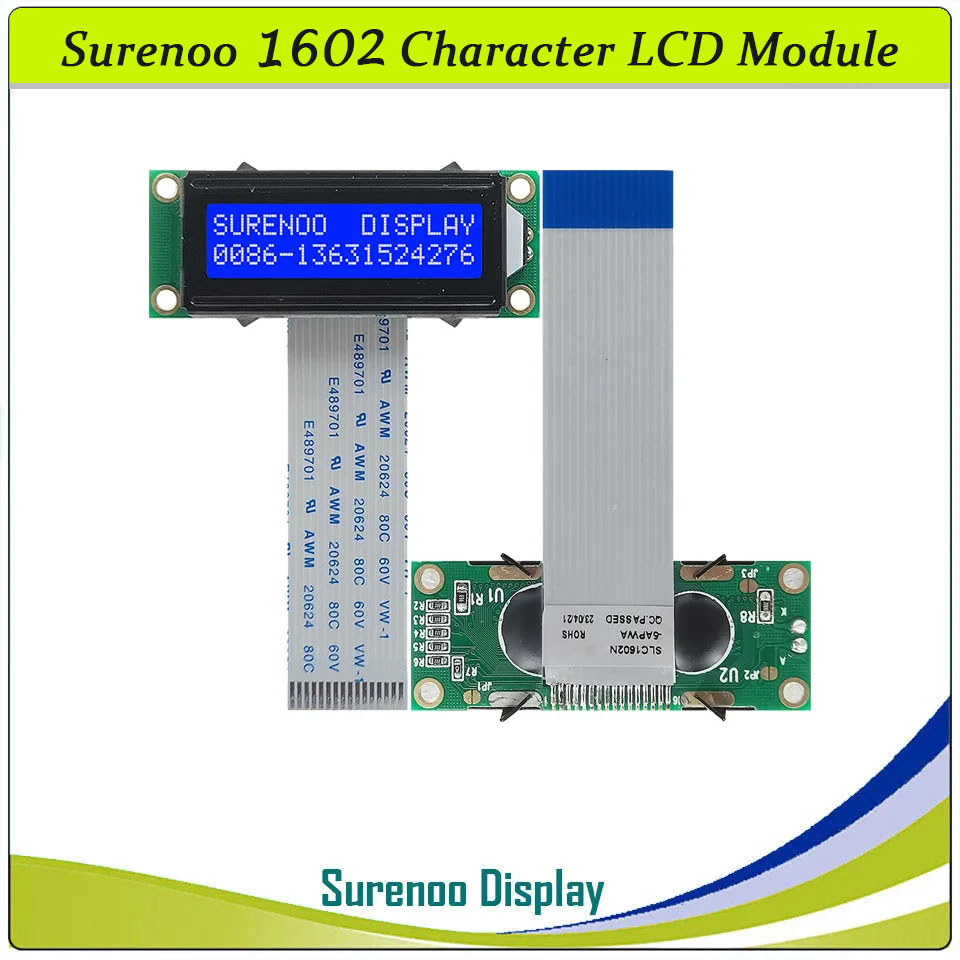

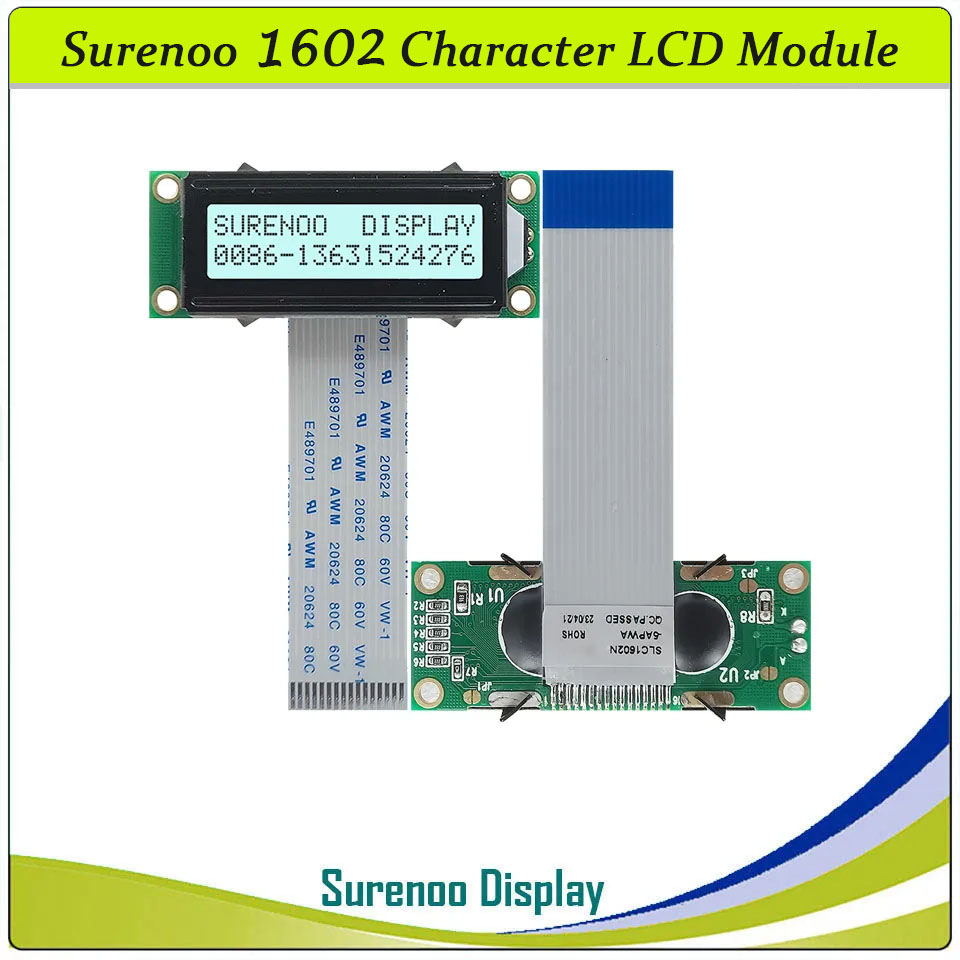

    SLC1602N is 16 characters wide, 2 rows character lcd module, AIP31066 controller (Industry-standard HD44780 compatible controller), 6800 4/8-bit parallel interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Japanese, see the AIP31066 datasheet for the full character set. It's 5V or 3.3V power supply, and I2C adapter board is optional for Arduino.

    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems,industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.020Kg
    Manufacturer Surenoo
    Display Type Character LCD Module / IIC Display
    Continuity Supply More than 10 years
    Part No. SLC1602N
    Display Format 16x2 Character
    Interface 6800 4-bit Parallel, 6800 8-bit Parallel, Serial IIC
    IC or Equivalent AIP31066, ST7066 or Equal
    Fonts English-Japanese
    Voltage(Type) 5.0V in default
    Connection 1X16P/1.0 FFC
    Outline Dimension 53.00(W)x20.00(H)x8.10(T)mm
    Visual Area 36.00x10.00mm
    Active Are 34.10x7.40mm
    Display Type STN Yellow Green, STN Blue Negative, FSTN Positive
    Backlight Type (LED) Yellow Green, White
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃
    • Outline Drawing

    • Interface
    Pin No. Pin Name Description
    1 VSS Ground 0V
    2 VDD Logic Power Supply
    3 V0 Operating voltage for LCD
    4 RS Data / Instruction Register Select (H: Data Signal, L: Instruction Signal)
    5 R/W Read / Write (H: Read Mode, L: Write Mode)
    6 E Enable Signal
    7-14 DB0-DB7 Data Bus
    15 LED_A Backlight Anode
    16 LED_K Backlight Cathode
    • Documents
    No. Item File Name File Type ICON Date Description Mark
    1 Datasheet SLC1602N PDF 2013-03-17 Standard 1602 Character LCD Module
    2 Controller AIP31066 PDF 2008-09-24 Character LCD Controller, Compatible with SPC780, ST7066, HD44780, ......
    3 Accessory

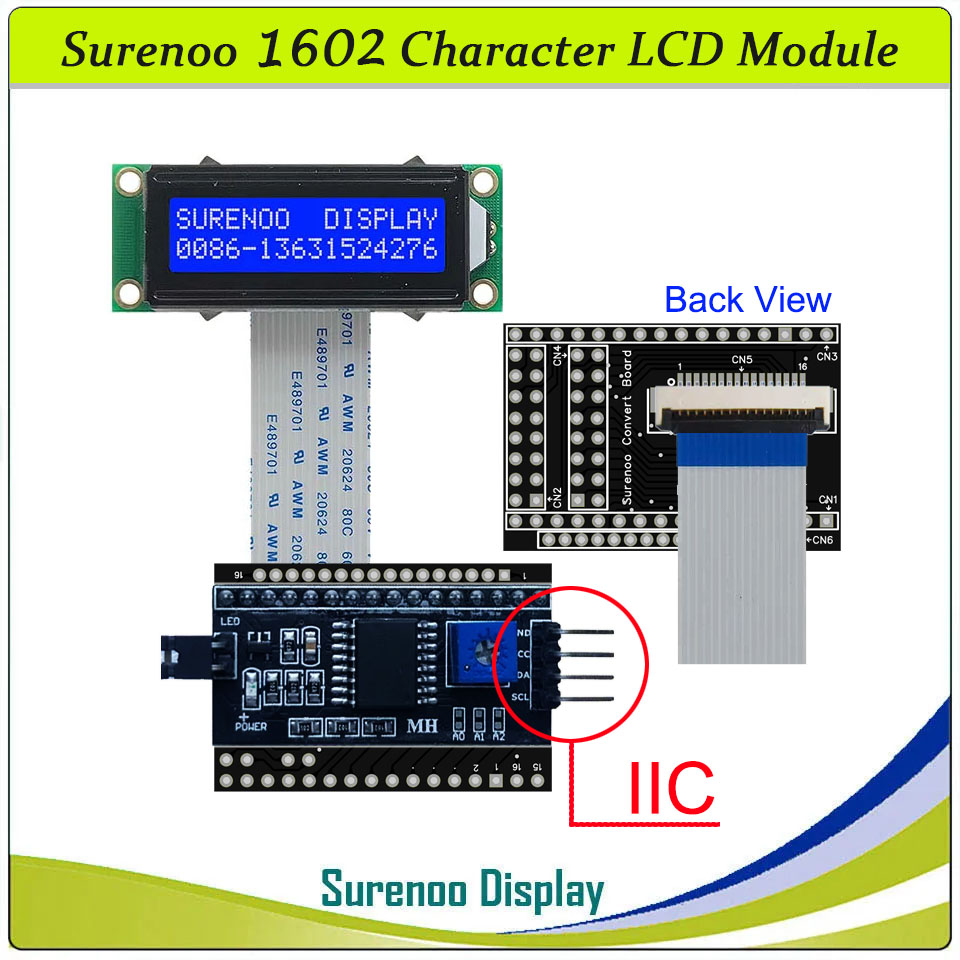

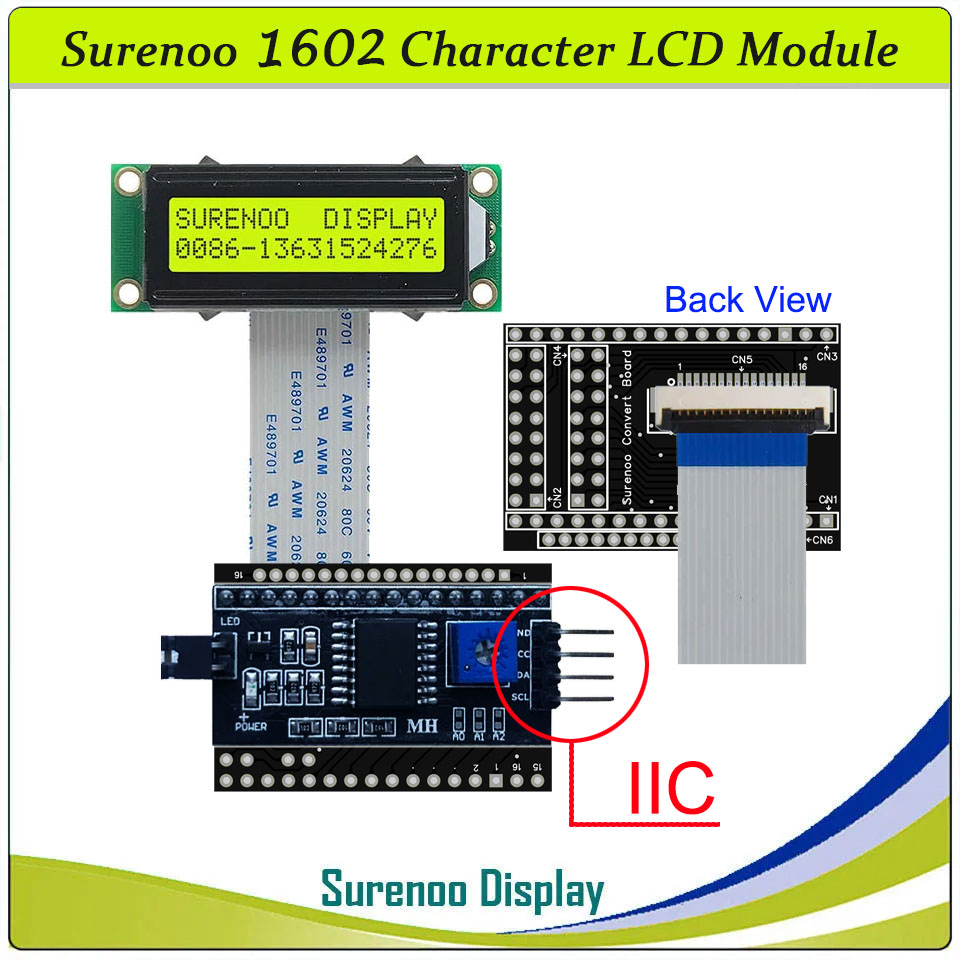

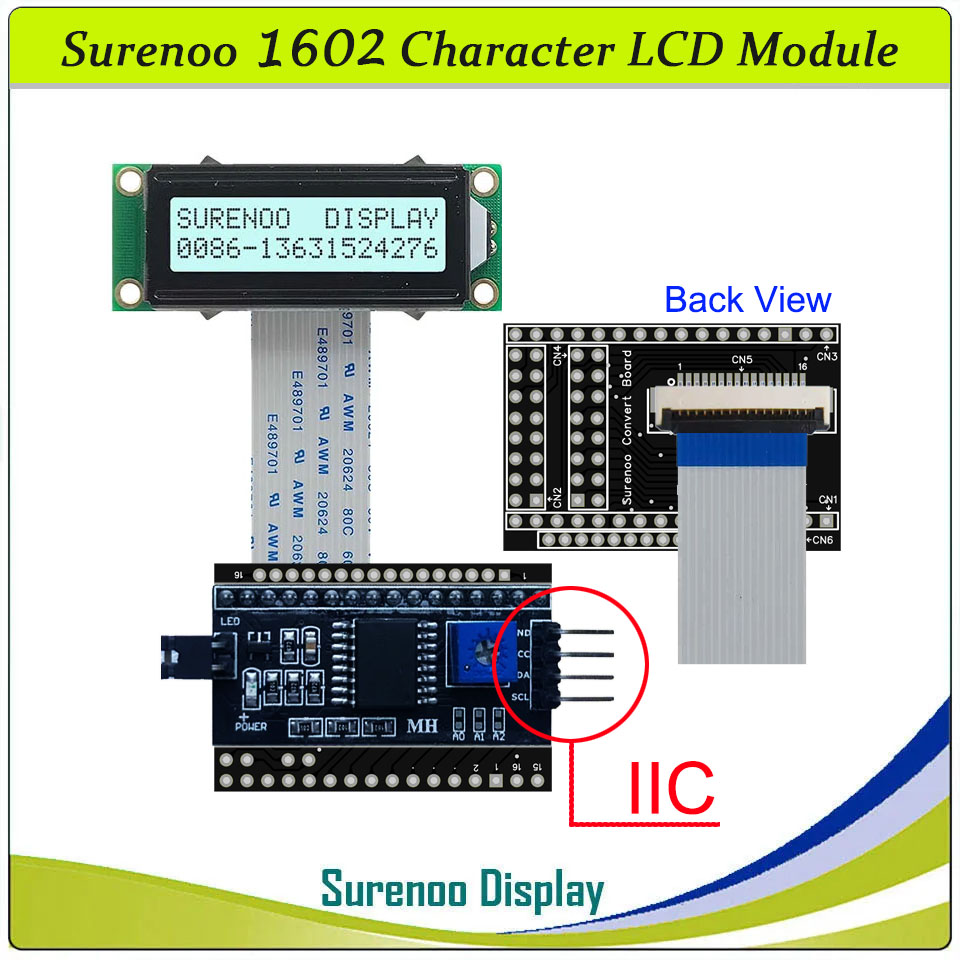

    (PCF8574T IIC Module)    		 PCF8574T IIC Module PDF 2011-02-09 1*16 and 2*8 Pin valid for Standard 0801, 0802, 1601, 1602, 1604, 2002, 2004, 2402, 4002 Character LCD Module
    4 51 Library 51 Library TXT 2006-09-11 STC86S52 6800 4/8-Bit Parallel Library
    5 IIC Library IIC Library ZIP 2009-07-19 Surenoo IIC Library for PCT8574T, AIP31068, RW1063, ST7032i to work on Arduino test Board
