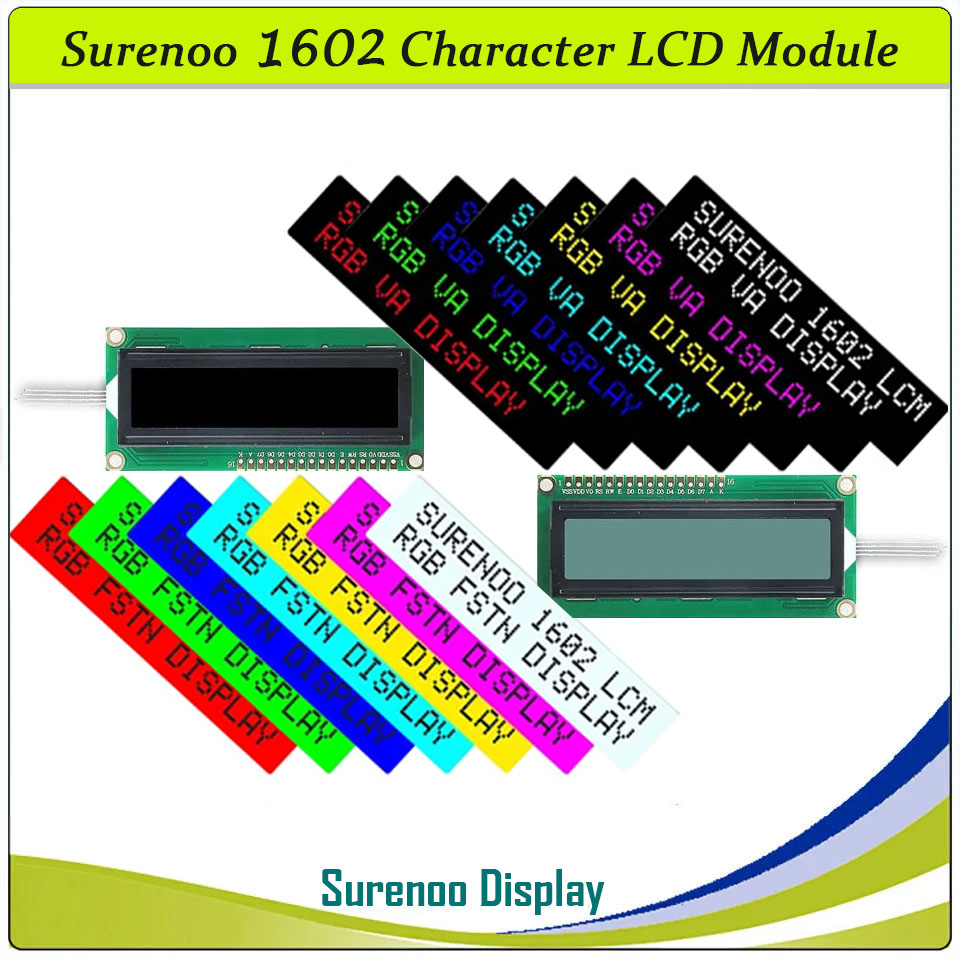

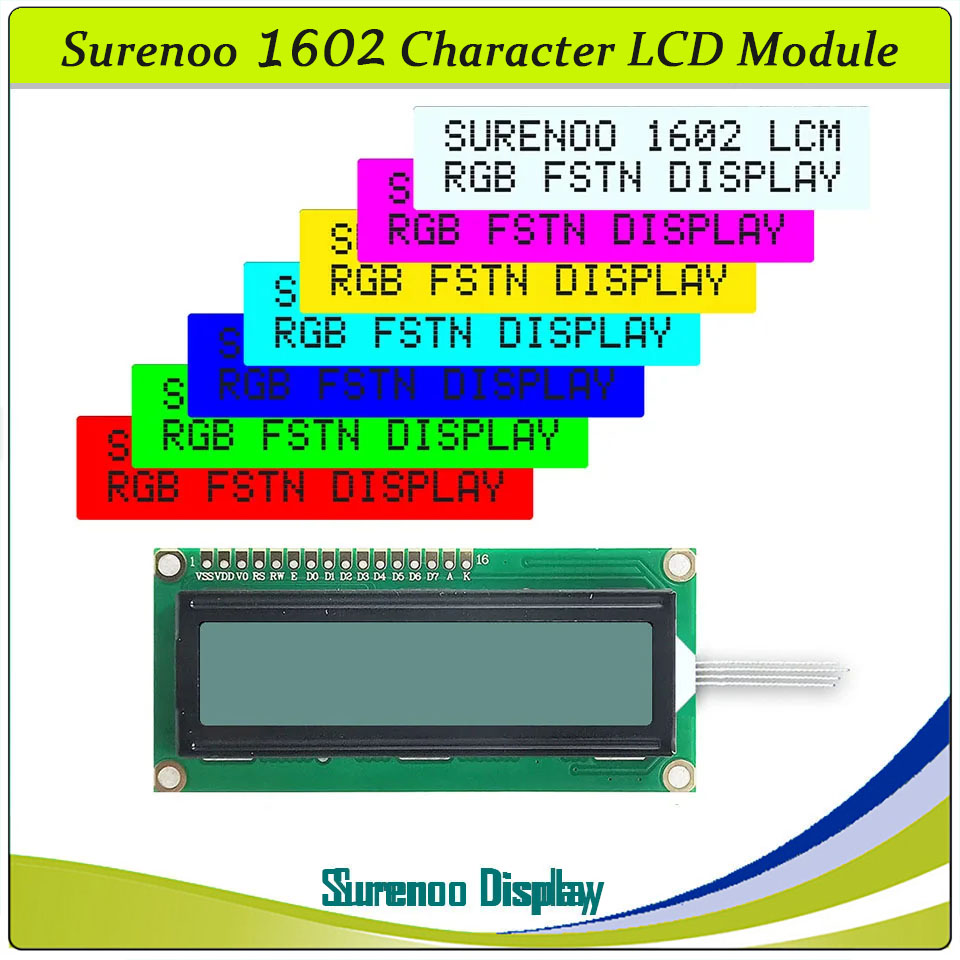

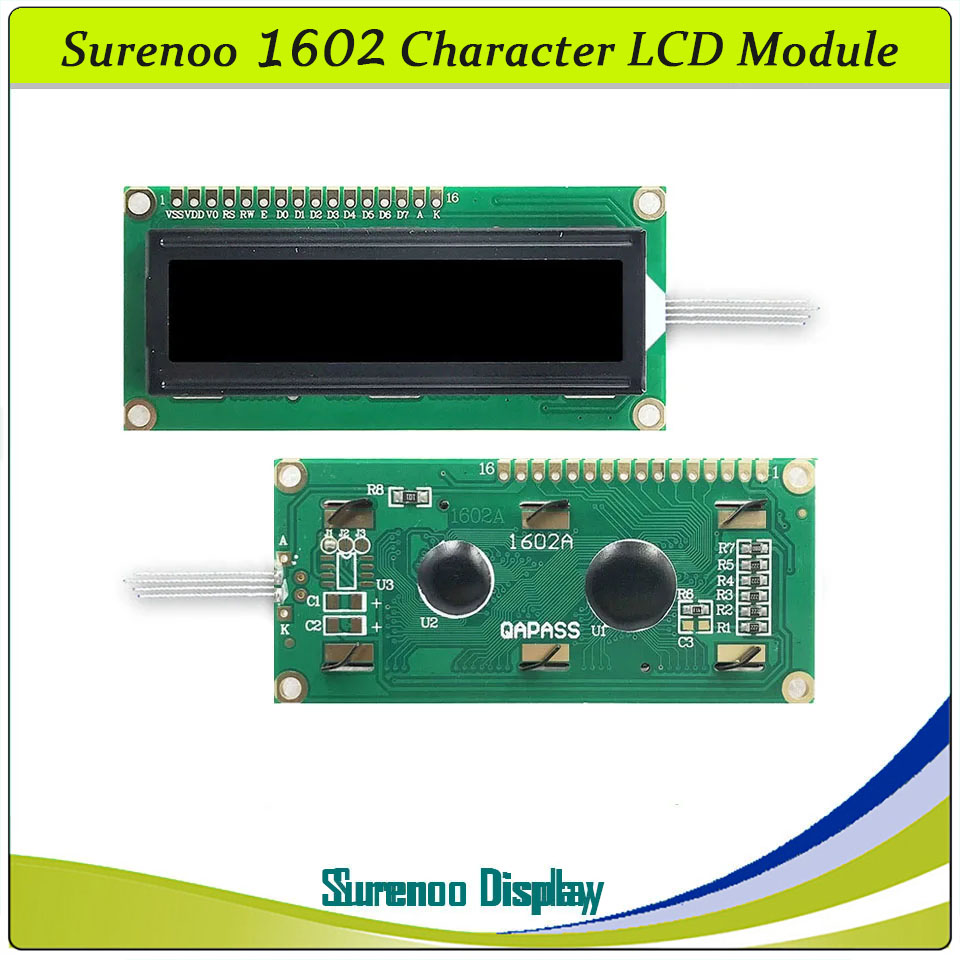

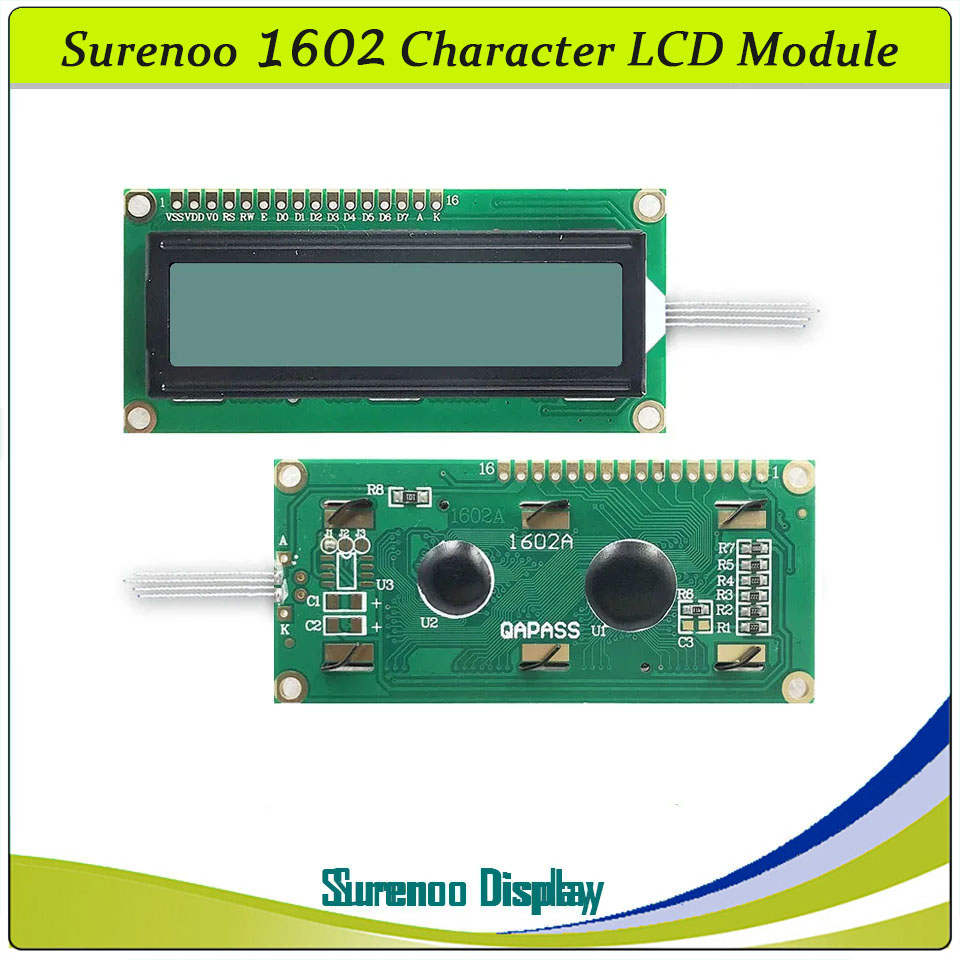

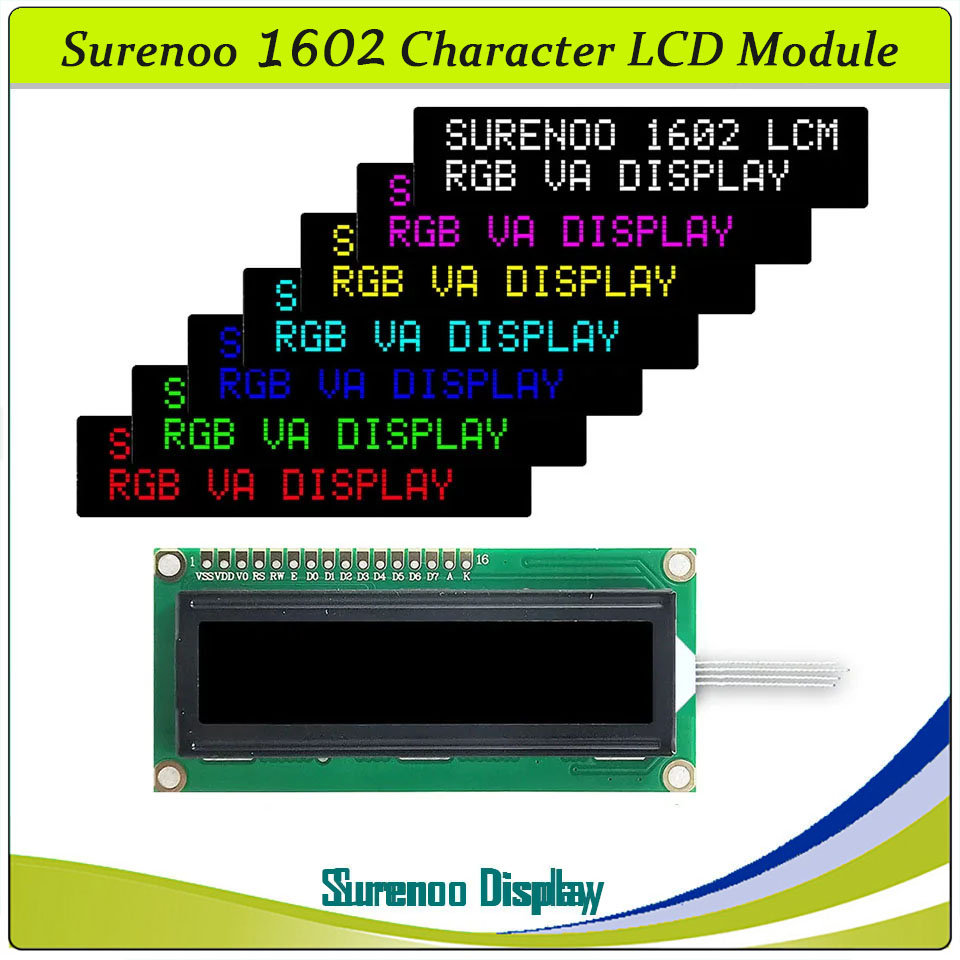

SLC1602A2 PCB=80.00X36.00MM 1602 16*2 Surenoo Character LCD Module Display Screen Panel 6800 4-bit 8-bit Parallel AIP31066 SPLC780D ST7066 Controller FSTN Positive VA-TN Negative FSTN Positive with RGB LED Backlight

WISHLIST
Model No.: SLC1602A2
Display Format: 16X02 Characters
PCB Size: 80.00X36.00MM
Controller: AIP31066, ST7066 or Equal
118 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SLC1602A2 is 16 characters wide, 2 rows character lcd module, AIP31066 controller (Industry-standard HD44780 compatible controller), 6800 4/8-bit parallel interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Japanese, see the AIP31066 datasheet for the full character set. It's 5V or 3.3V power supply, and I2C adapter board is optional for Arduino.

    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.040Kg
    Manufacturer Surenoo
    Dispaly Type Character LCD Module
    Continuity Supply More than 10 years
    Part No. SLC1602A2
    Display Format 16x2 Character
    Interface 6800 4-bit Parallel, 6800 8-bit Parallel
    IC or Equivalent AIP31066, ST7066 or Equal
    Fonts English-Japanese
    Voltage(Type) 5.0V in default
    Connection 1X16P/2.54 Pin Header, 4P RGB LED
    Outline Dimension 80.0(W)x36.0(H)x11.5(T)mm
    Visual Area 64.50x14.50mm
    Active Area 55.45x10.85mm
    Display Type FSTN Positive, VA-TN Negative
    Backlight Type (LED) 4P RGB LED
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃
    • Outline Drawing

    • Interface
    Pin No. Pin Name Description
    1 VSS Ground 0V
    2 VDD Logic Power Supply (5.0V)
    3 V0 Operating voltage for LCD
    4 RS Data / Instruction Register Select (H: Data Signal, L: Instruction Signal)
    5 R/W Read / Write (H: Read Mode, L: Write Mode)
    6 E Enable Signal
    7-14 DB0-DB7 Data Bus
    15 NC No Connection
    16 NC No Connection
    LED_1 B Ground 0V
    LED_2 G Ground 0V
    LED_3 + 3.0-3.3V
    LED_4 R Ground 0V
    • Documents
    No. Item File Name File Type ICON Date Description Mark
    1 Datasheet SLC1602A2 PDF 2013-03-17 Standard 1602 Character LCD Module
    2 Controller AIP31066 PDF 2008-09-24 Character LCD Controller, Compatible with SPC780, ST7066, HD44780, ......
    3 51 Library 51 Library TXT 2006-09-11 STC86S52 6800 4/8-Bit Parallel Library
