SLC2004E PCB=98.00X60.00MM 2004 20*4 Surenoo Character LCD Module Display Screen Panel 6800 4-bit 8-bit Parallel AIP31066 SPLC780D ST7066 Controller FSTN Positive VA-TN Black Negative and RGB LED Backlight

WISHLIST
Model No.: SLC2004E
Display Format: 20X04 Characters
PCB Size: 98.00X60.00MM
Controller: AIP31066, ST7066 or Equal
21 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SLC2004E is 20 characters wide, 4 rows character lcd module, AIP31066 controller (Industry-standard HD44780 compatible controller), 6800 4/8-bit parallel interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Russian, see the AIP31066 datasheet for the full character set. It's 5V power supply.

    It's easily controlled by MCU such as 8051, PIC, AVR, ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.080Kg
    Manufacturer Surenoo
    Display Type Character LCD Module
    Continuity Supply More than 10 years
    Part No. SLC2004E
    Display Format 20x4 Character
    Interface 6800 4-bit Parallel, 6800 8-bit Parallel
    IC or Equivalent AIP31066, ST7066 or Equal
    Fonts English-Russian
    Voltage(Type) 5.0V in default
    Connection 1X18P/2.54 Pin Header
    Outline Dimension 98.00(W)x60.00(H)x13.50(T)mm
    Visual Area 77.00x25.20mm
    Active Area 70.40x20.80mm

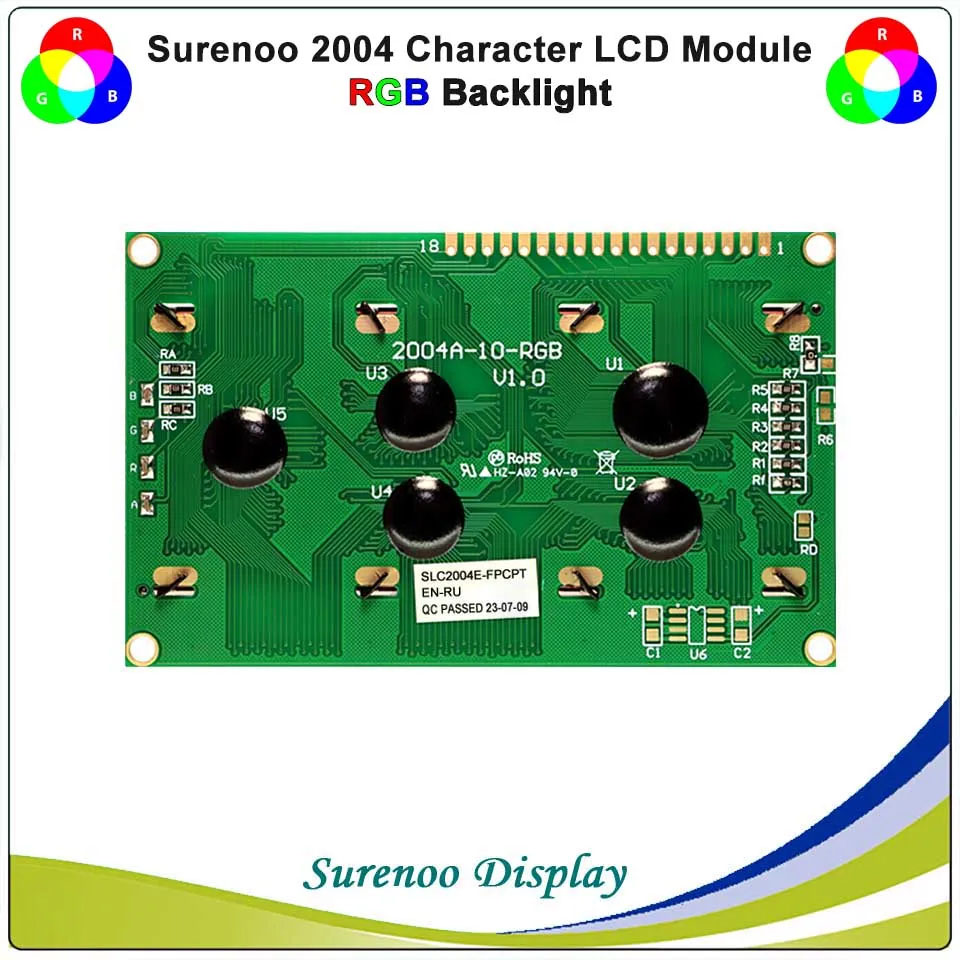

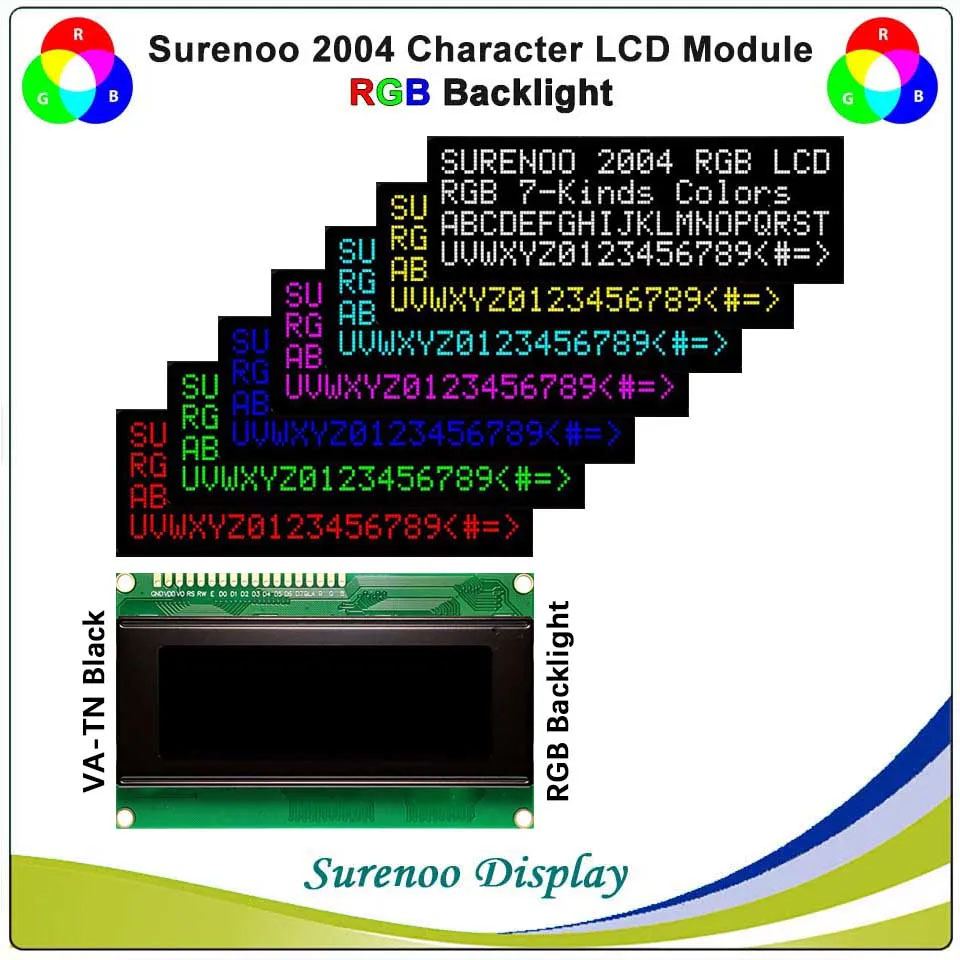

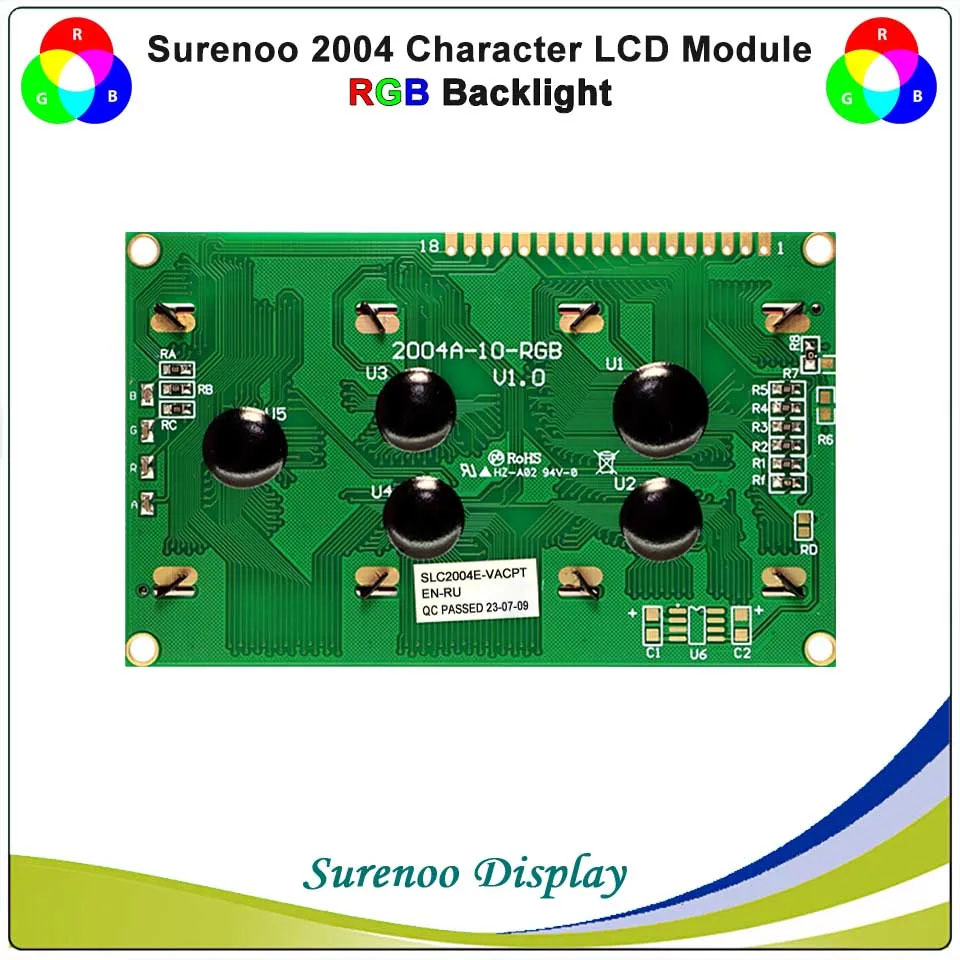

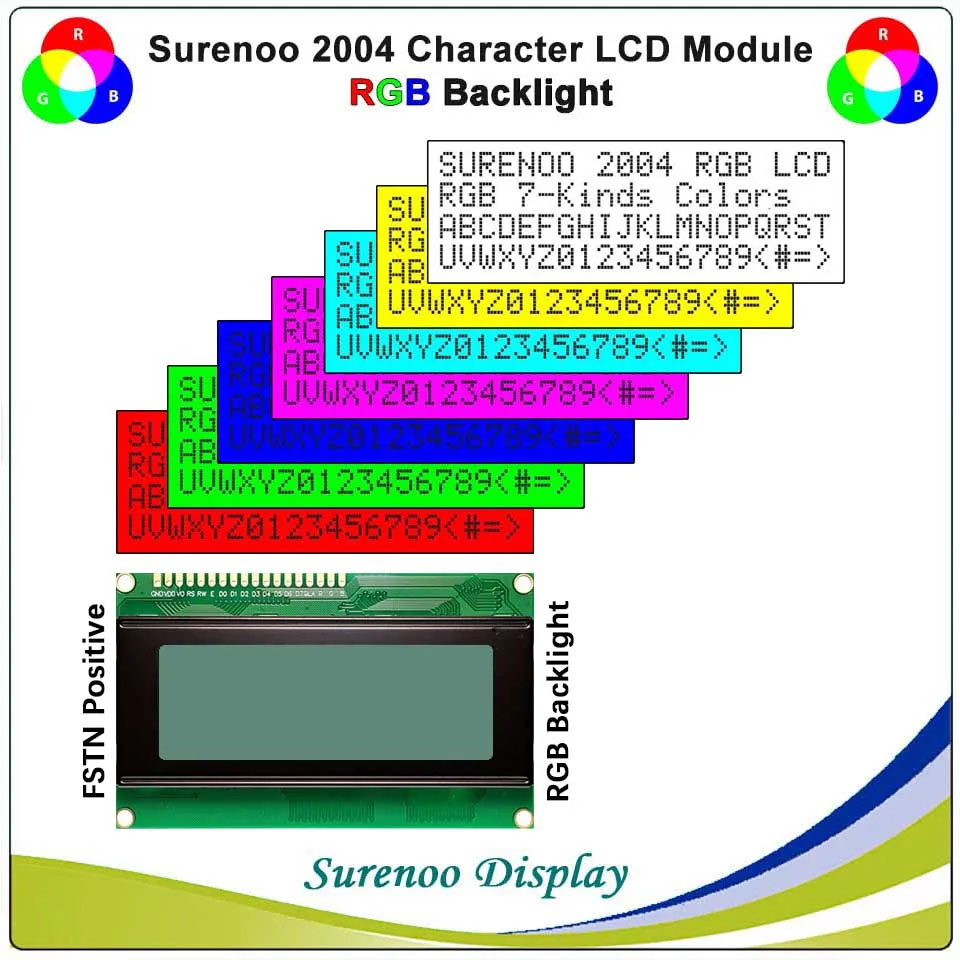

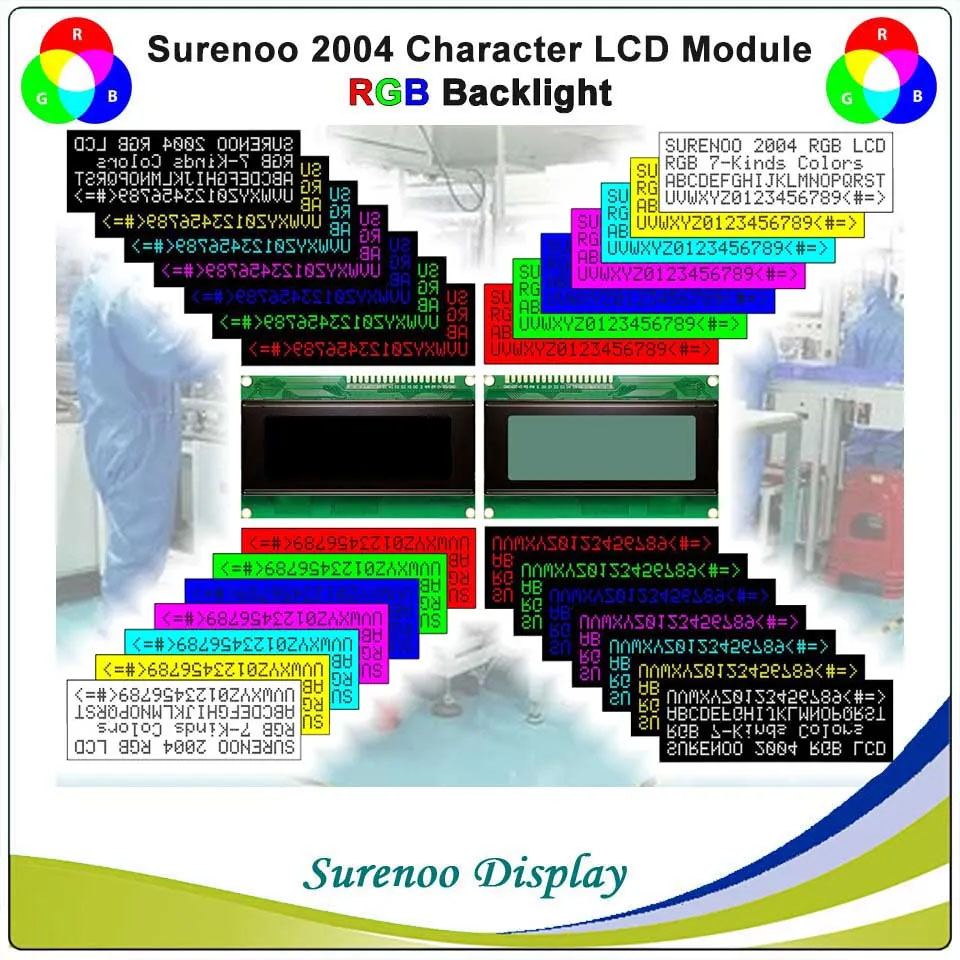

    Display Type FSTN Positive, VA-TN Black Negative
    Backlight Type (LED) RGB Backlight
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃
    • Outline Drawing

    • Interface
    Pin No. Pin Name Description
    1 VSS Ground 0V
    2 VDD Logic Power Supply
    3 V0 Operating voltage for LCD
    4 RS Data / Instruction Register Select (H: Data Signal, L: Instruction Signal)
    5 R/W Read / Write (H: Read Mode, L: Write Mode)
    6 E Enable Signal
    7-14 DB0-DB7 Data Bus
    15 LED_A Backlight Anode
    16 LED_K (R) Backlight Cathode (Red)
    17 LED_K (G) Backlight Cathode (Green)
    18 LED_K (B) Backlight Cathode (Blue)
    • Documents
    No. Item File Name File Type ICON Date Description Mark
    1 Datasheet SLC2004E PDF 2013-03-17 Standard 2004 Character LCD Module
    2 Controller AIP31066 PDF 2008-09-24 Character LCD Controller, Compatible with SPC780, ST7066, HD44780, ......
    3 51 Library 51 Library TXT 2006-09-11 STC86S52 6800 4/8-Bit Parallel Library
