Model No.: SLC2004C
Display Format: 20X04 Characters
PCB Size: 182.00X90.00MM
Controller: AIP31066, ST7066 or Equal
33 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview

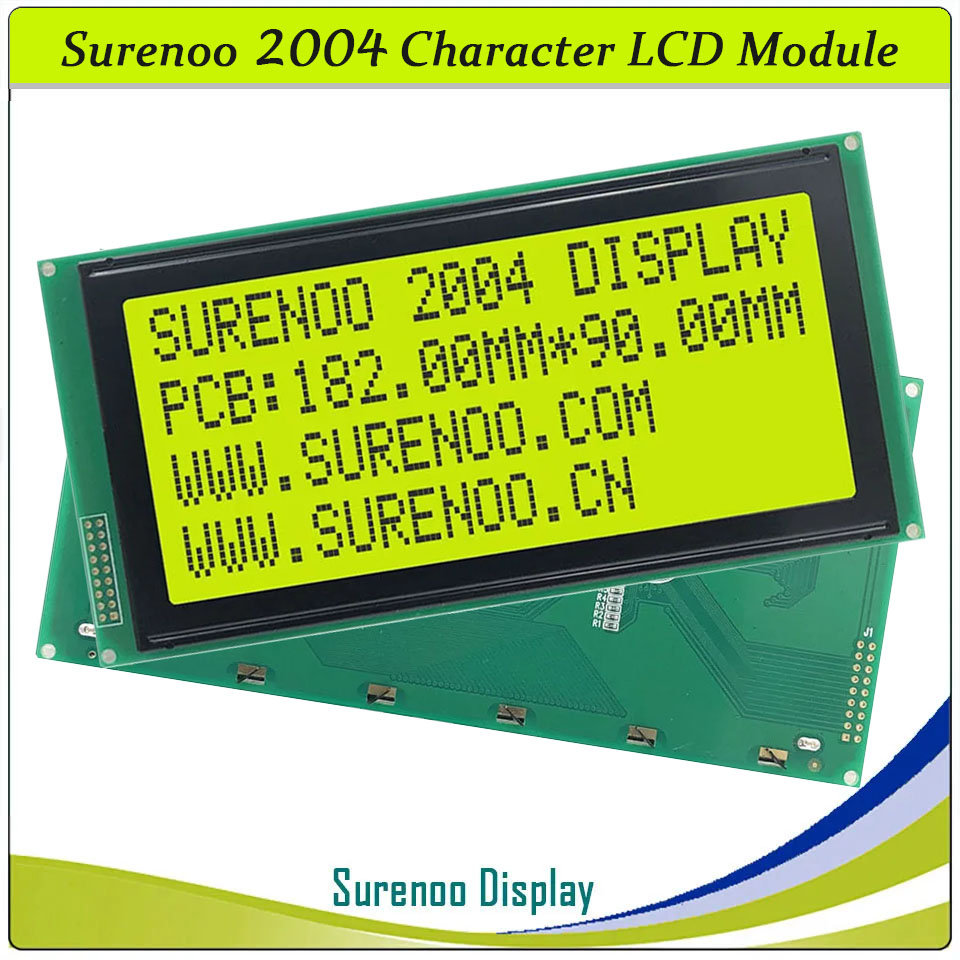

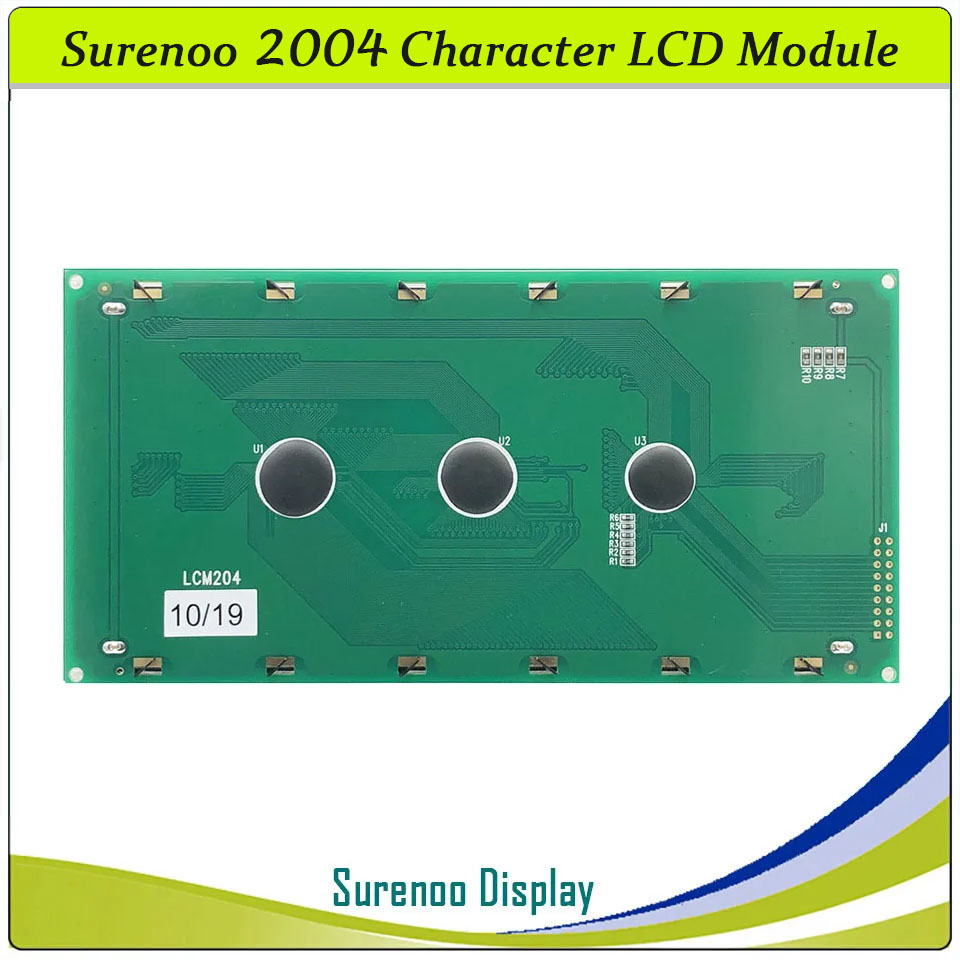

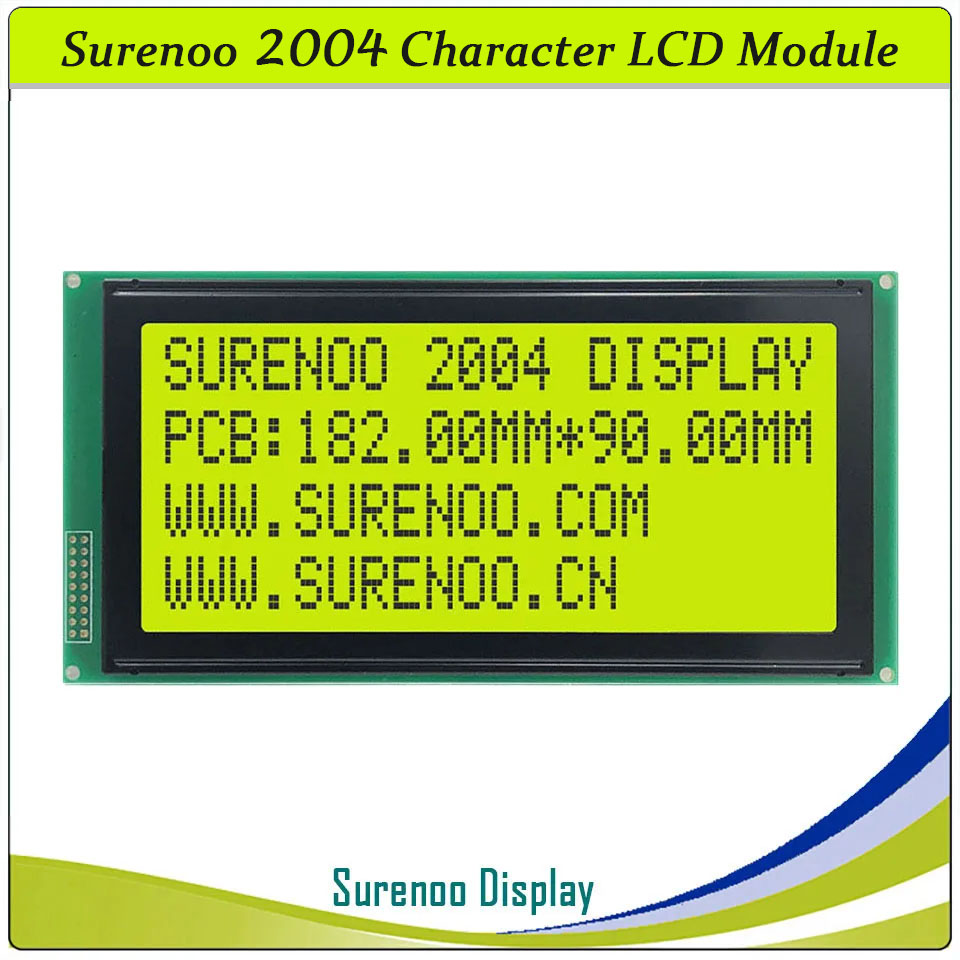

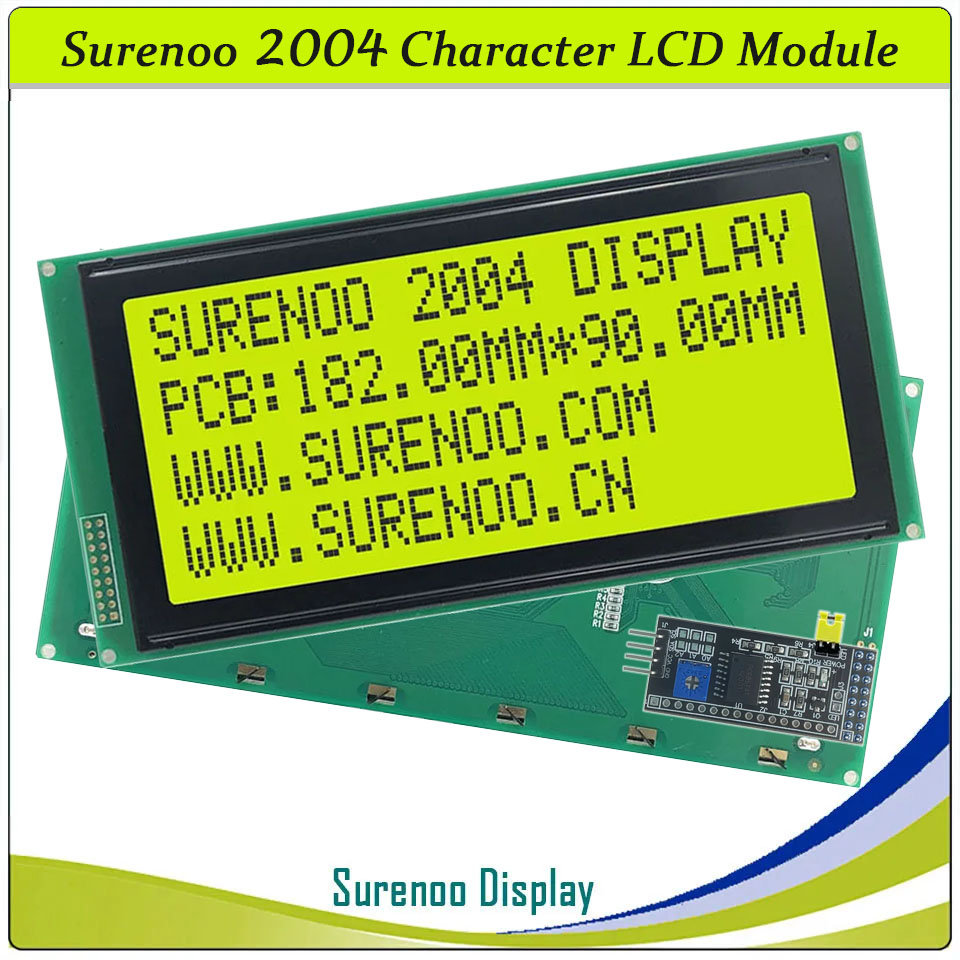

    SLC2004C is 20 characters wide, 4 rows character lcd module, AIP31066 controller (Industry-standard HD44780 compatible controller), 6800 4/8-bit parallel interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Japanese, see the AIP31066 datasheet for the full character set. It's 5V or 3.3V power supply, and I2C adapter board is optional for Arduino.

    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.200Kg
    Manufacturer Surenoo
    Display Type Character LCD Module / IIC Display / USB Diaplay
    Continuity Supply More than 10 years
    Part No. SLC2004C
    Display Format 20x4 Character
    Interface 6800 4-bit Parallel, 6800 8-bit Parallel, Serial IIC, Serial USB
    IC or Equivalent AIP31066, ST7066 or Equal
    Fonts English-Japanese
    Voltage(Type) 5.0V in default
    Connection 2X9P/2.54 Pin Header
    Outline Dimension 182.00(W)x90.00(H)x14.00(T)mm
    Visual Area 147.00x65.40mm
    Active Area 137.00x59.80mm
    Display Type STN LCD-Yellow Green
    Backlight Type (LED) Yellow Green
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃
    • Outline Drawing

    • Interface
    Pin No. Pin Name Description
    1 VSS Ground 0V
    2 VDD Logic Power Supply
    3 V0 Operating voltage for LCD
    4 RS Data / Instruction Register Select (H: Data Signal, L: Instruction Signal)
    5 R/W Read / Write (H: Read Mode, L: Write Mode)
    6 E Enable Signal
    7-14 DB0-DB7 Data Bus
    15 LED_A Backlight Anode
    16 LED_K Backlight Cathode
    17-18 NC No Connection
    • Documents
    No. Item File Name File Type ICON Date Description Mark
    1 Datasheet SLC2004C PDF 2013-03-17 Standard 2004 Character LCD Module
    2 Controller AIP31066 PDF 2008-09-24 Character LCD Controller, Compatible with SPC780, ST7066, HD44780, ......
    3 Accessory
    (PCF8574T IIC Module)    		 PCF8574T IIC Module PDF 2011-02-09 1*16 and 2*8 Pin valid for Standard 0801, 0802, 1601, 1602, 1604, 2002, 2004, 2402, 4002 Character LCD Module
    4 Accessory
    (USB2LCD Module)    		 USB2LCD
    Module    		 PDF 2012-11-28 USB2LCD Module can work on all standard LCD interface, suitablefor LCD Smrtie or AIDA64
    5 51 Library 51 Library TXT 2006-09-11 STC86S52 6800 4/8-Bit Parallel Library
    6 IIC Library IIC Library ZIP 2009-07-19 Surenoo IIC Library for PCT8574T, AIP31068, RW1063, ST7032i to work on Arduino test Board
