Model No.: SLC2004A2
Display Format: 20X04 Characters
PCB Size: 98*60MM
Controller: AIP31068 or Equal
75 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SLC2004A2 is 20 characters wide, 4 rows character lcd module, AIP31068 controller Integrated Serial IIC interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Japanese, see the AIP31068 datasheet for the full character set. It's 5V or 3.3V power supply, can connect with Arduino UNO to work directly.

    It's easily controlled by ARDUINO and Raspberry Pi. It can be used in any embedded systems,industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.080Kg
    Manufacturer Surenoo
    Display Type Character LCD Module / IIC Display
    Continuity Supply More than 10 years
    Part No. SLC2004A2
    Display Format 20x4 Character
    Interface Integrated Serial IIC
    IC or Equivalent AIP31068 or Equal
    Fonts English-Japanese
    Voltage(Type) 5.0V in default
    Connection 1X4P/2.54 Pin Header
    Outline Dimension 98.00(W)x60.00(H)x13.10(T)mm
    Visual Area 76.00x25.20mm
    Active Area 70.40x20.80mm

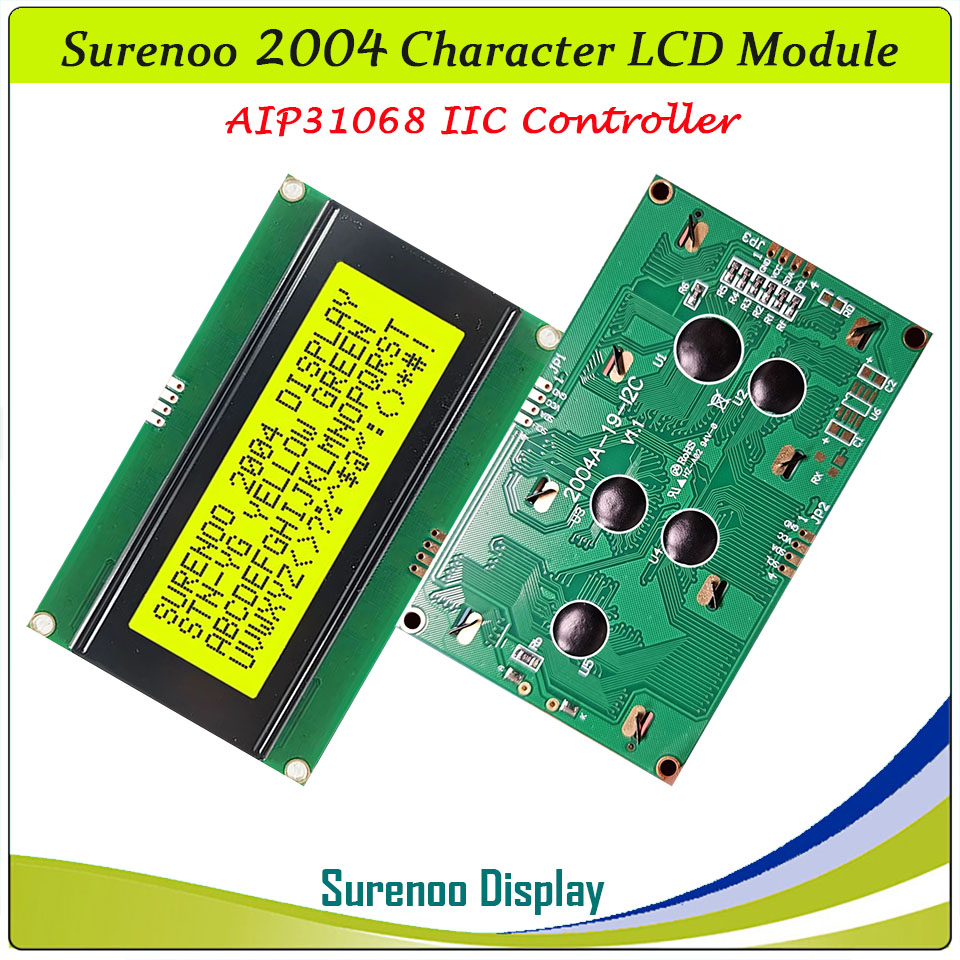

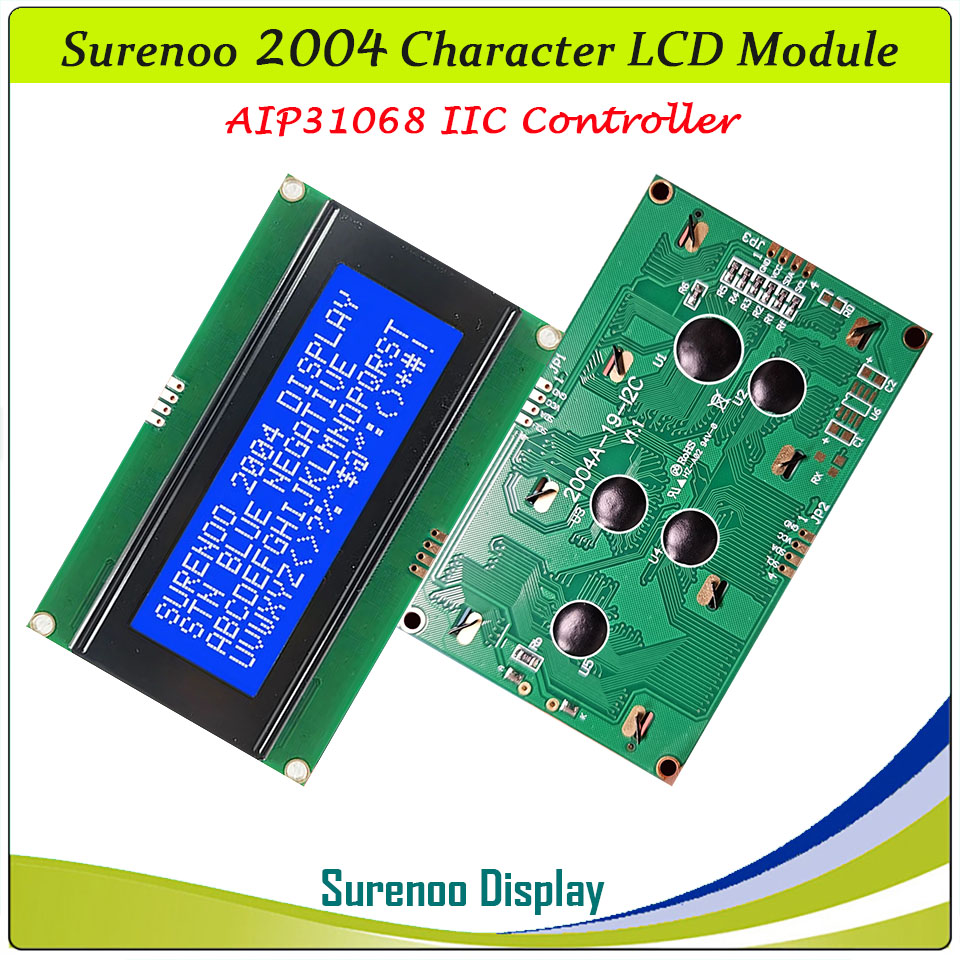

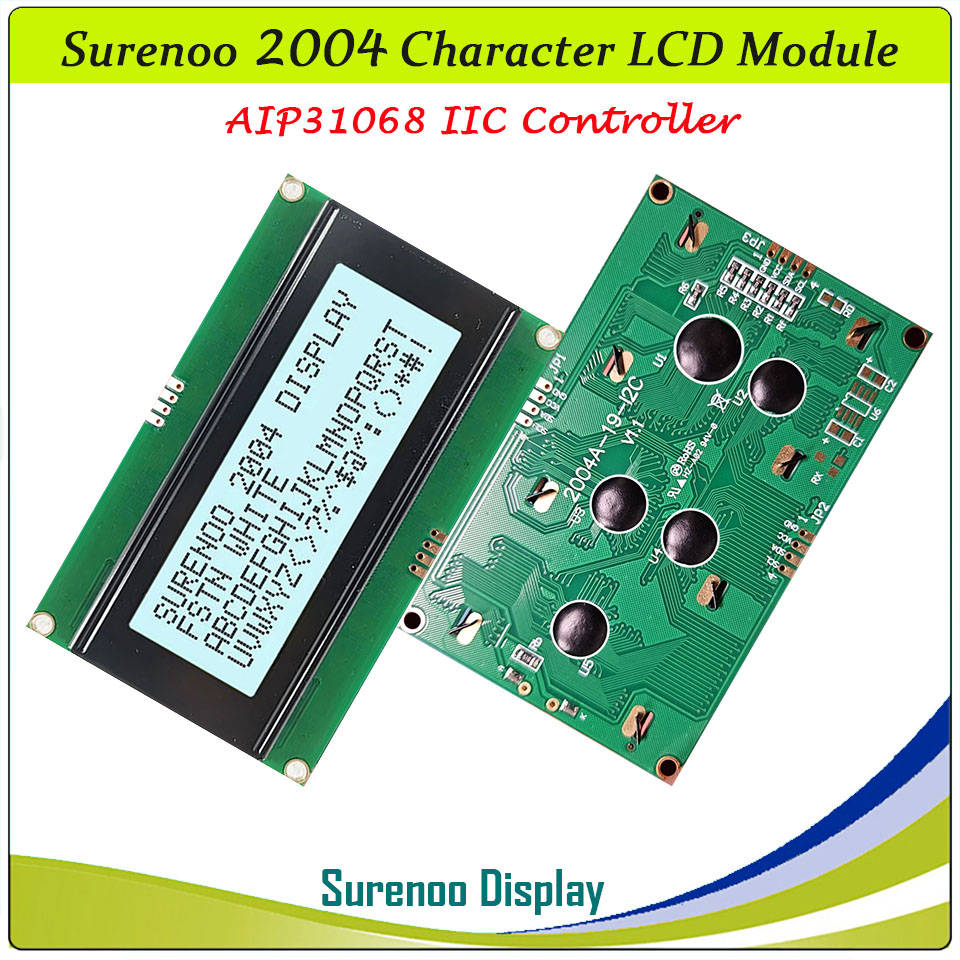

    Display Type STN LCD-Yellow Green, STN Blue Negative, FSTN Positive
    Backlight Type (LED) Yellow Green, White
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃
    • Outline Drawing

    • Interface
    Pin No. Pin Name Description
    1 GND Ground 0V
    2 VCC Logic Power Supply
    3 SDA Serial Data Signal
    4 SCL Serial Clock Signal
    • Documents
    No. Item File Name File Type ICON Date Description Mark
    1 Datasheet SLC2004A2 PDF 2013-03-17 Standard 2004 Character LCD Module
    2 Controller AIP31068 PDF 2008-09-24 AIP31068 Character LCD Controller, Build-in Serual SPI IIC
    3 AIP31068 51 IIC Library AIP31068 C 2017-08-22 AIP31068 51 IIC Library on STC15W4K32S4 MCU
    4 Arduino IIC Library IIC Library ZIP 2009-07-19 Surenoo IIC Library for PCT8574T, AIP31068, RW1063, ST7032i to work on Arduino test Board
