SLC2002C PCB=146.00X43.00MM 2002 20*2 Surenoo Larger Character LCD Module Display Screen Panel 6800 4-bit 8-bit Parallel Serial IIC I2C AIP31066 SPLC780D ST7066 PCF8574 Controller STN Yellow Green STN Blue LED Backlight USB2LCD for LCD Smartie AIDA64

WISHLIST
Model No.: SLC2002C
Display Format: 20X02 Characters
PCB Size: 146.00X43.00MM
Controller: AIP31066, ST7066 or Equal
85 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview

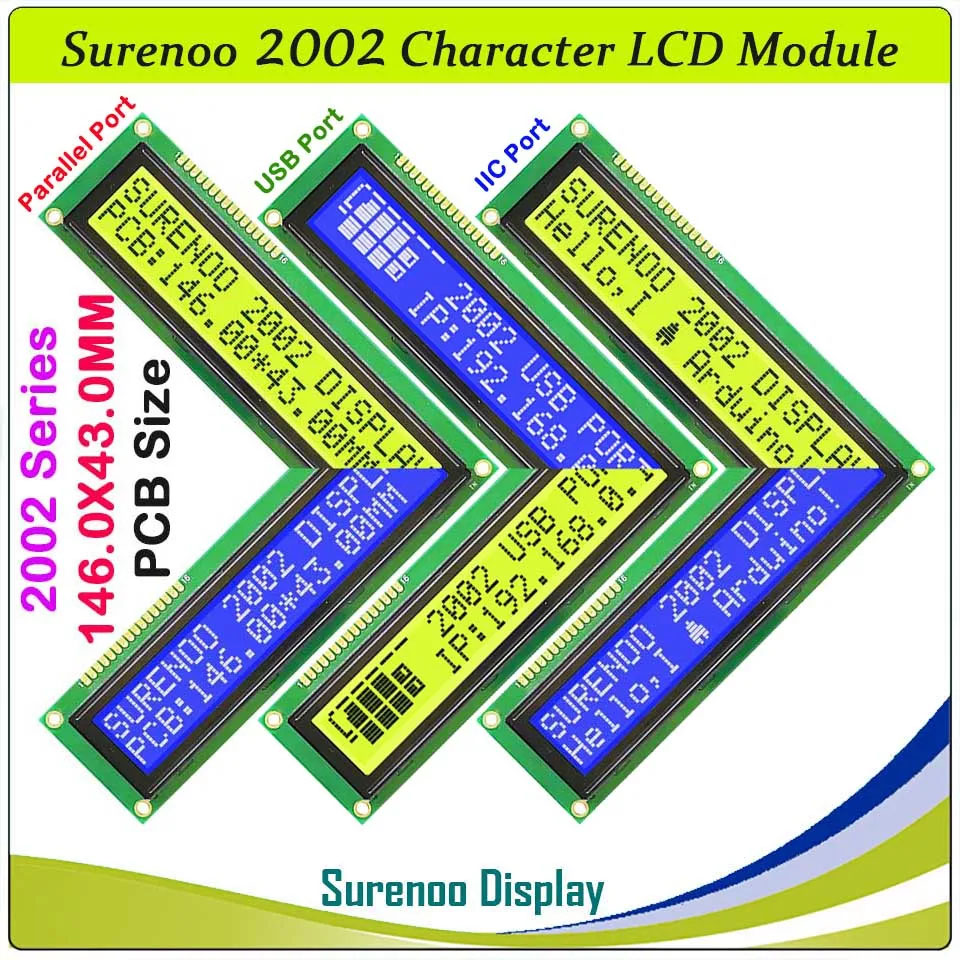

    SLC2002C is 20 characters wide, 2 rows character lcd module, AIP31066 controller (Industry-standard HD44780 compatible controller), 6800 4/8-bit parallel interface, wide operating temperature range, RoHS Compliant, built in character set supports English-Japanese, see the AIP31066 datasheet for the full character set. It's 5V or 3.3V power supply, and I2C adapter board is optional for Arduino.

    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.010Kg
    Manufacturer Surenoo
    Display Type Character LCD Module / IIC Display / USB Display
    Continuity Supply More than 10 years
    Part No. SLC2002C
    Display Format 20x2 Character

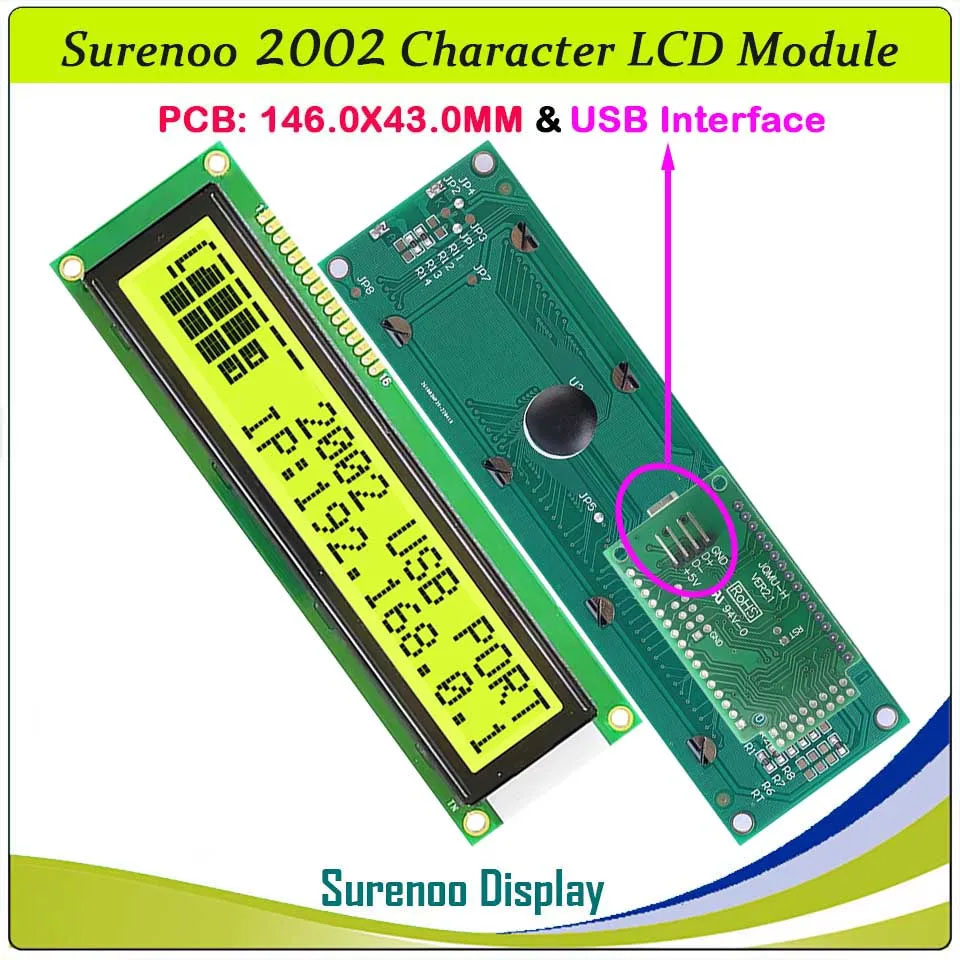

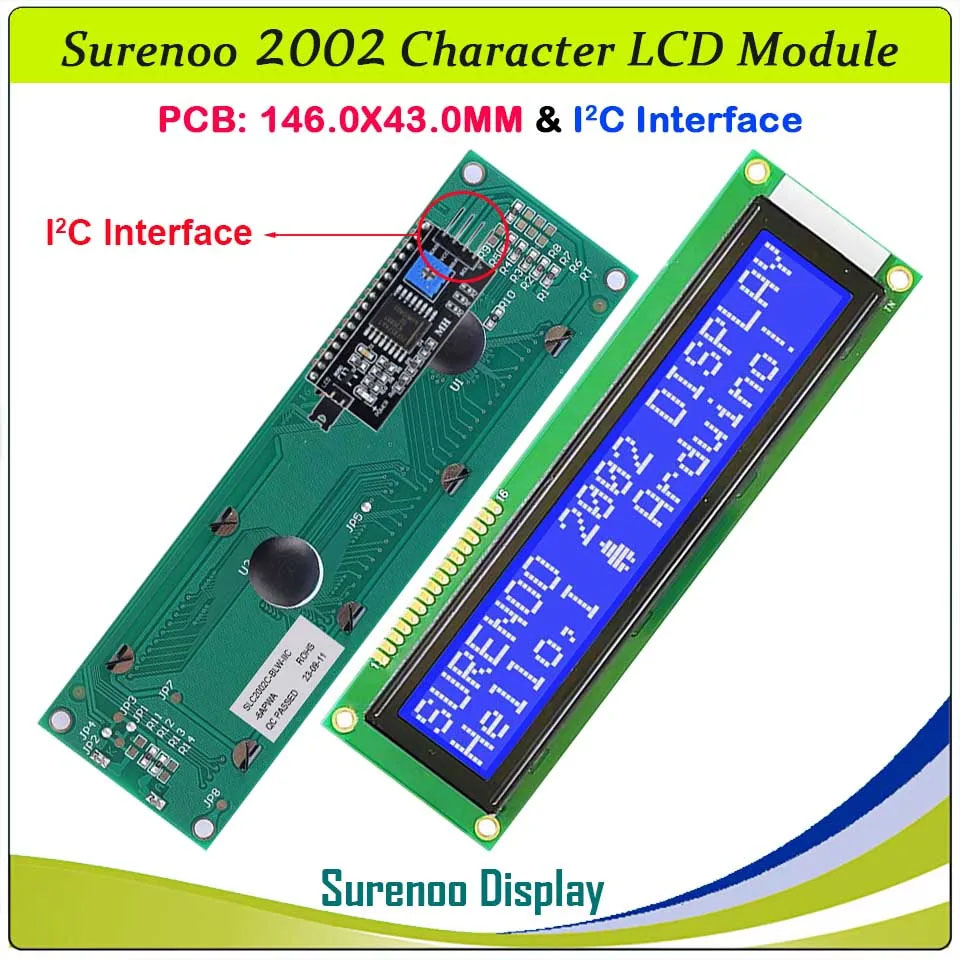

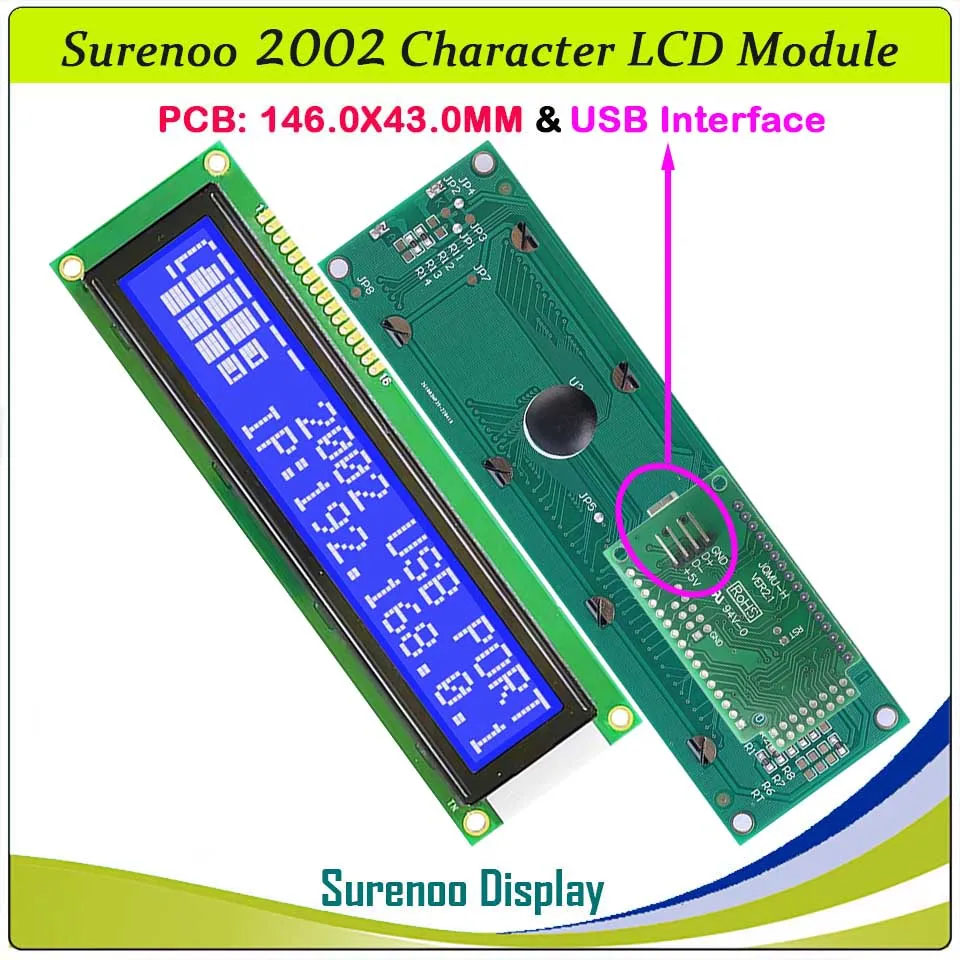

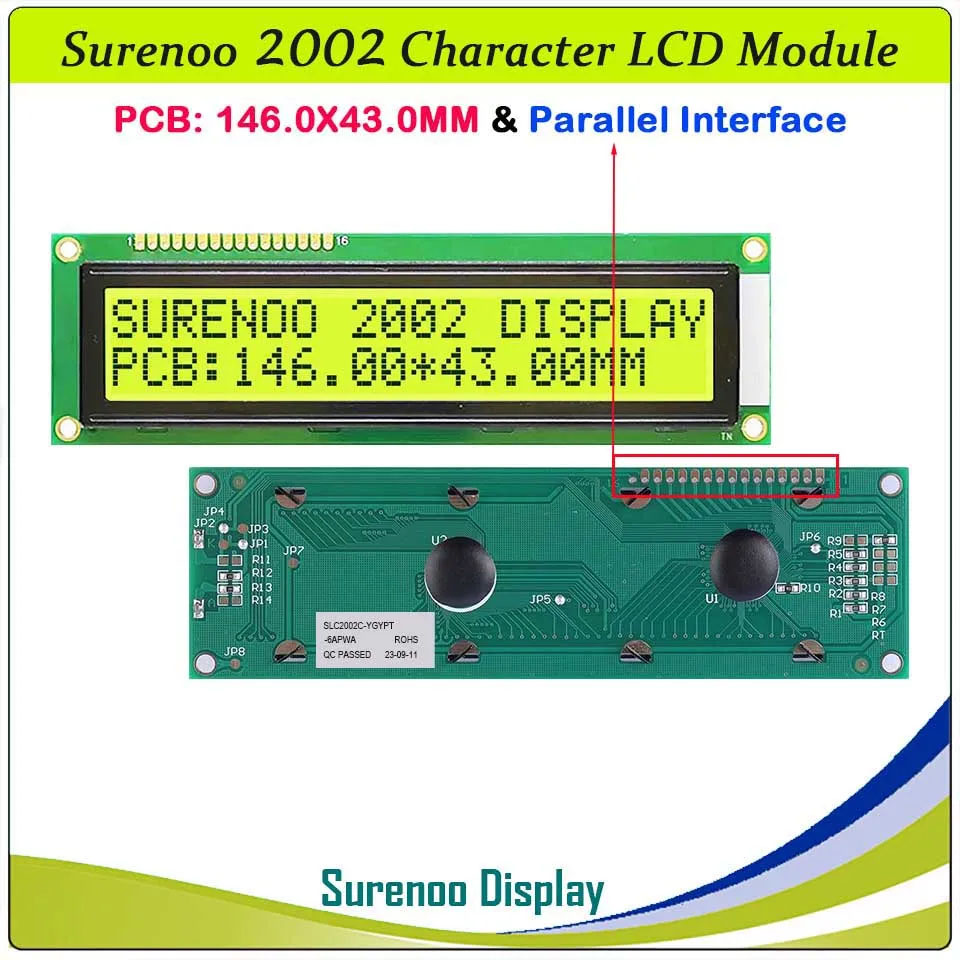

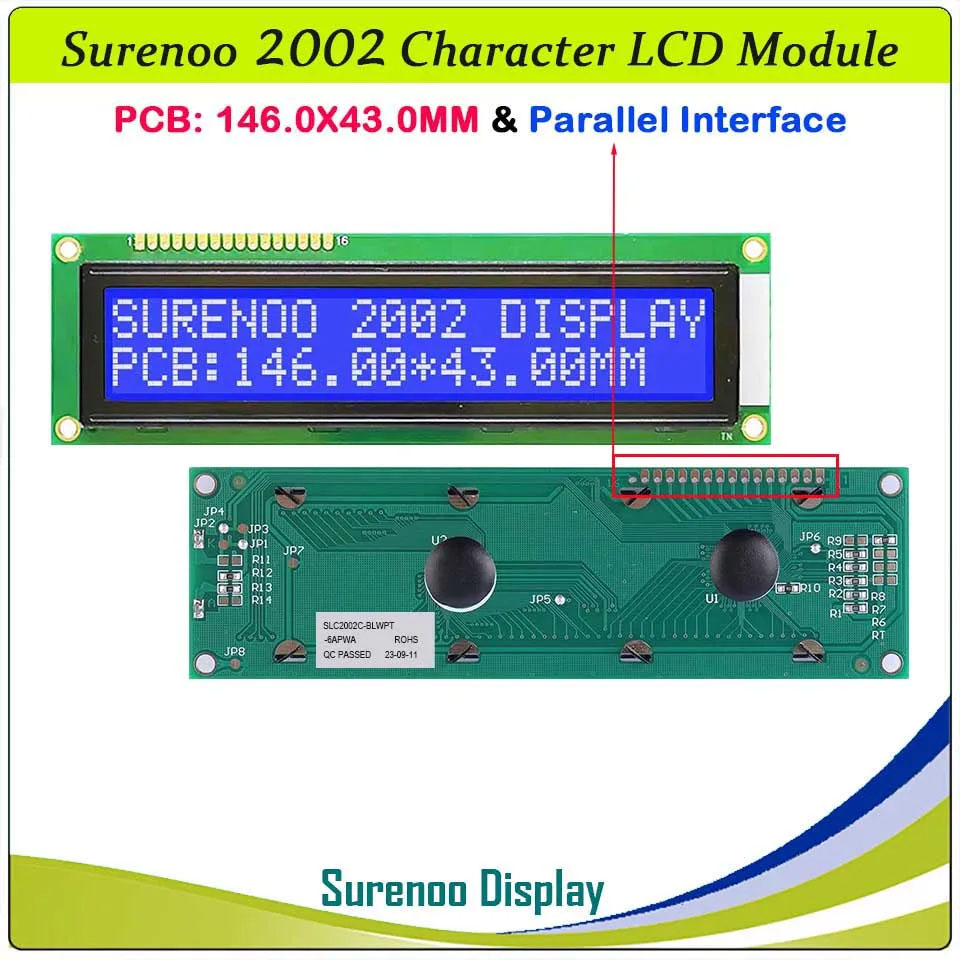

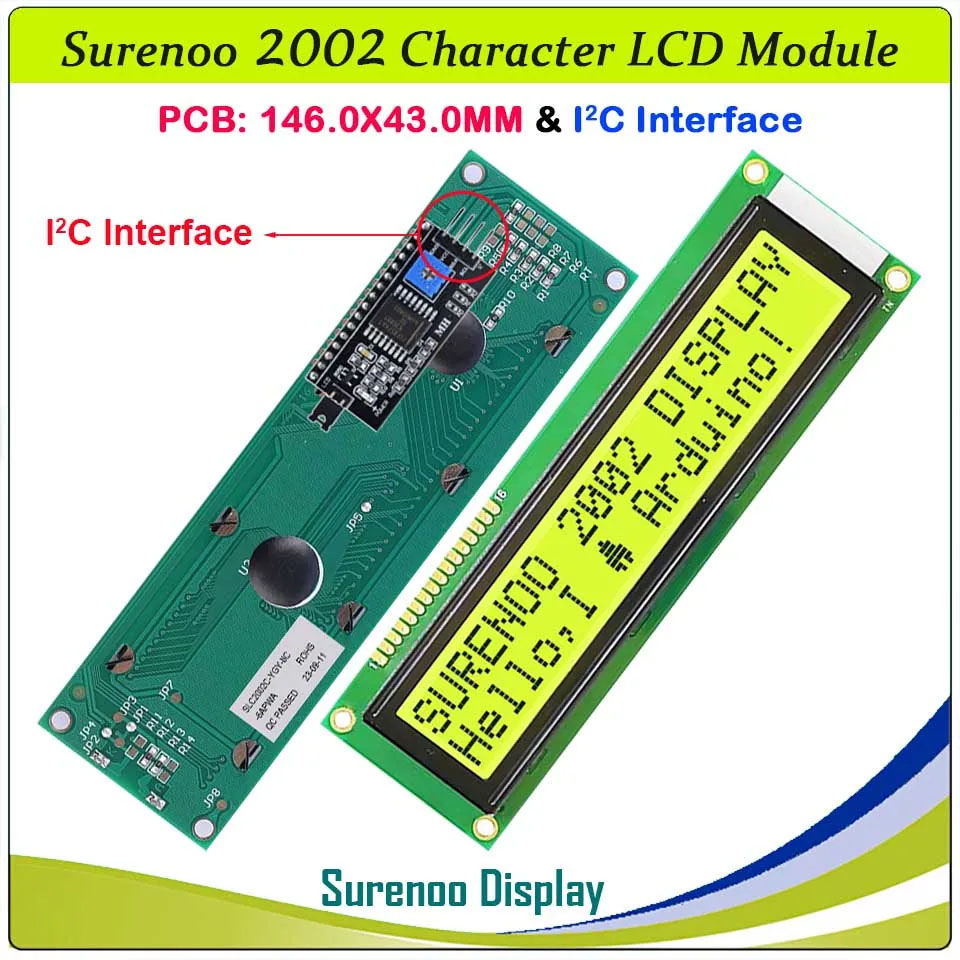

    Interface 6800 4-bit Parallel, 6800 8-bit Parallel, Serial IIC, Serial USB
    IC or Equivalent AIP31066, ST7066 or Equal
    Fonts English-Japanese
    Voltage(Type) 5.0V in default, 3.3V is Optional
    Connection 1X16P/2.54 Pin Header
    Outline Dimension 146.00(W)x43.00(H)x13.30(T)mm
    Visual Area 122.00x23.00mm
    Active Area 118.84x18.97mm
    Display Type STN Yellow Green, STN Blue Negative
    Backlight Type (LED) Yellow Green, White
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃
    • Outline Drawing

    • Interface
    Pin No. Symbol Description Pin No.  Symbol Description
    1 VSS Ground 0V 9 DB2 Data Bit 2
    2 VDD Logic Power Supply 10 DB3 Data Bit 3
    3 V0 Operating voltage for LCD 11 DB4 Data Bit 4
    4 RS Data / Instruction (H: Data Signal, L: Instruction Signal) 12 DB5 Data Bit 5
    5 R/W Read / Write (H: Read Mode, L: Write Mode) 13 DB6 Data Bit 6
    6 E Enable Signal 14 DB7 Data Bit 7
    7 DB0 Data Bit 0 15 LED_A Backlight Anode
    8 DB1 Data Bit 1 16 LED_K Backlight Cathode
    • Documents
    No. Item File Name File Type ICON Date Description Mark
    1 Datasheet SLC2002C PDF 2013-03-17 Standard 2002 Character LCD Module
    2 Controller AIP31066 PDF 2008-09-24 Character LCD Controller, Compatible with SPC780, ST7066, HD44780, ......
    3 Accessory
    (PCF8574T IIC Module)    		 PCF8574T IIC Module PDF 2011-02-09 1*16 and 2*8 Pin valid for Standard 0801, 0802, 1601, 1602, 1604, 2002, 2004, 2402, 4002 Character LCD Module
    4 Accessory
    (USB2LCD Module)    		 USB2LCD
    Module    		 PDF 2012-11-28 USB2LCD Module can work on all standard LCD interface, suitablefor LCD Smrtie or AIDA64
    5 51 Library 51 Library TXT 2006-09-11 STC86S52 6800 4/8-Bit Parallel Library
    6 IIC Library IIC Library ZIP 2009-07-19 Surenoo IIC Library for PCT8574T, AIP31068, RW1063, ST7032i to work on Arduino test Board
