Surenoo Graphic OLED Module 2.7" 12864 128*64 128X64 Graphic LCD Module Display Screen Panel PM-OLED 6800/8080 8-Bit Parallel 4-Wire Serial SPI SSD1325 Controller SOG12864A_P270

WISHLIST
Display Size: 2.7"

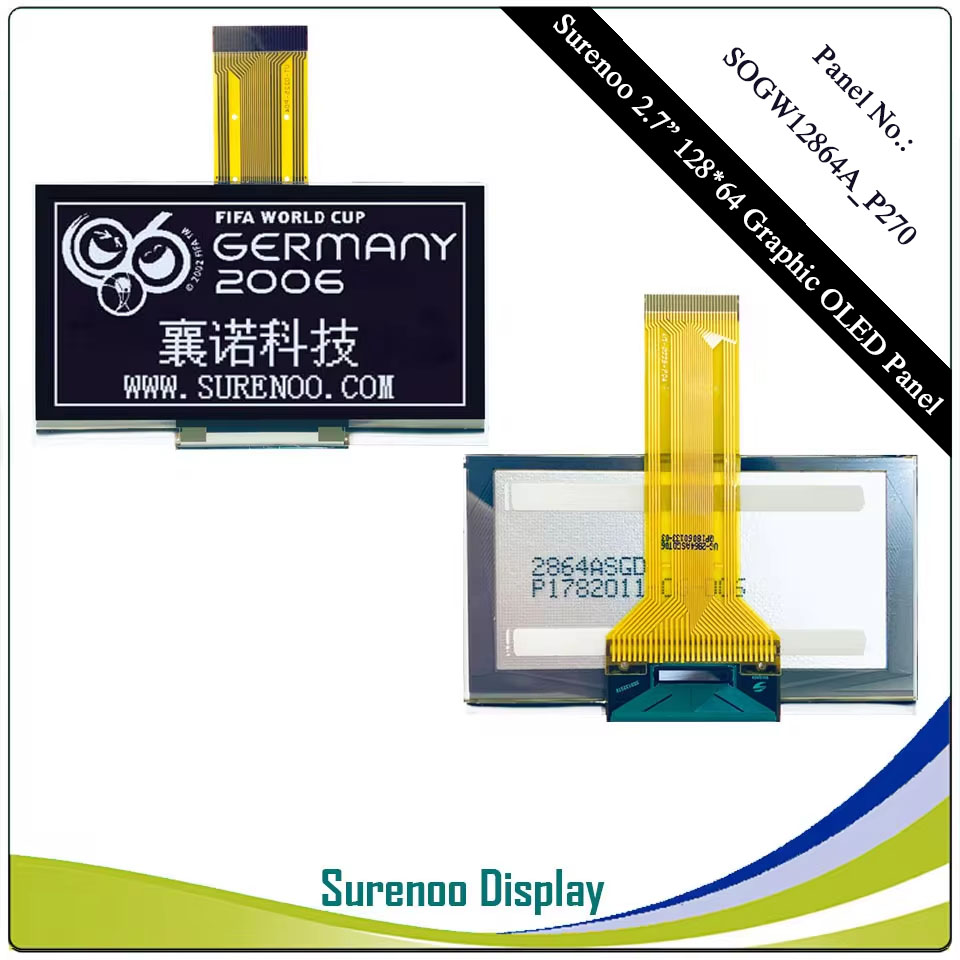

Model No.: SOG12864A_P270
Display Format: 128*64 Dots
Outline: 73.00X41.86MM
Controller: SSD1325 or Equal
13 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SOG12864A_PM270 is 2.7" 128X64 Dots Graphic OLED Module, build-in SSD1325 controller supprot 6800/8080 8-Bit Parallel & 4-Wire Serial SPI MPU interface, wide operating temperature range, RoHS Compliant, It's 3.3V power supply.

    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.060Kg
    Manufacturer Surenoo
    Display Type Graphic OLED Panel
    Continuity Supply More than 10 years
    Part No. SOG12864A_P270
    Diagonal Size (Visual Area)
    		 2.7"
    Display Format 128*64 Dots
    Interface
    		 SOG12864A_P270, 6800/8080 8-Bit Parallel, 4-Wire Serial SPI (30P/0.5 FPC) <OLED Panel>
    IC or Equivalent SSD1325 or Equal
    Voltage(Type) OLED Module: 3.3-5.0V; OLED Panel: 3.3V;
    Outline Dimension 73.00(W)x41.86(H)x2.20(T)mm
    Visual Area 63.41x32.69mm
    Active Area
    		 61.41x30.69mm
    Dots Size 0.45x0.45mm
    Dots Pitch
    		 0.48x0.48mm
    Display Type PM-OLED Panel

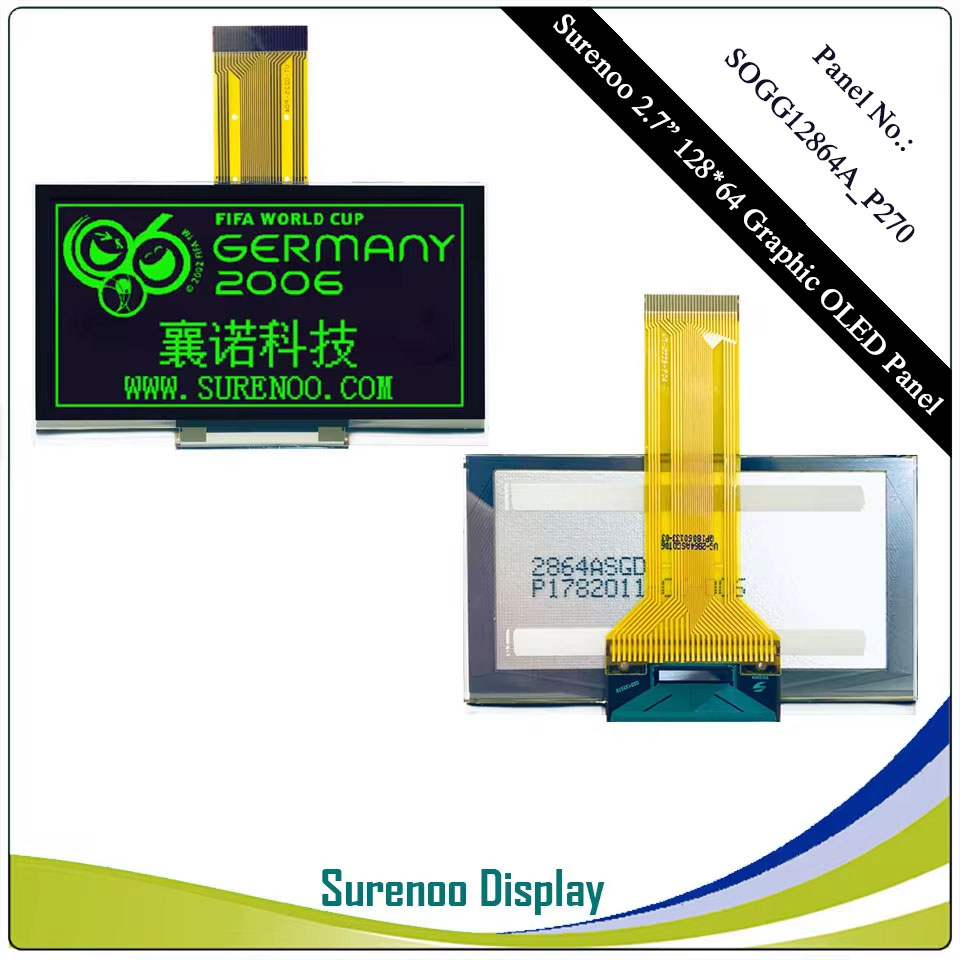

    Colors Code White(SOGW) / Yellow(SOGY) / Green(SOGG)
    IC Package COG
    Viewing Direction Full Viewing Angle
    Operating Temperature
    -40℃~70℃
    Storage Temperature
    -40℃~80℃
    • Outline Drawing

    • Interface
    Pin No. Symbol Type Description
    Power Supply
    21 VDD P Power Supply for Logic Circuit
    This is a voltage supply pin. It must be connected to external source.
    9 VSS P Ground of OEL System
    This is a ground pin. It also acts as a reference for the logic pins, the OEL driving voltages, and the analog circuits. It must be connected to external ground.
    2 VCC P Power Supply for OEL Panel
    This is the most positive voltage supply pin of the chip. It must be supplied externally.
    Driver
    4 IREF I Current Reference for Brightness Adjustment
    This pin is segment current reference pin. A resistor should be connected between this pin and VSS. Set the current at 10uA.
    3 VCOMH P Voltage Output High Level for COM Signal
    This pin is the input pin for the voltage output high level for COM signals. It can be supplied externally or internally. When VCOMH is generated internally, a capacitor should be connected between this pin and VSS
    30 VSL O Voltage Output Low Level for SEG Signal
    This pin is the output pin for the voltage output low level for SEG signals. A capacitor should be connected between this pin and VSS
    Interface
    20
    19    		 BS1
    BS2    		 I
    Communicating Protocol Select
    These pins are MCU interface selection input. See the following table:
    8-bit 68XX Parallel 8-bit 80XX Parallel 4-wire SPI
    BS1 0 1 0
    BS2 1 1 0
    16 RES# I Power Reset for Controlle and Driver
    This pin is reset signal input. When the pin is low, initialization of the chip is executed.
    17 CS# I Chip Select
    This pin is the chip select input.  The chip is enabled for MCU communication only when CS# is pulled low.
    15 D/C#  I Data/Command Control
    This pin is Data/Command control pin.  When the pin is pulled high, the input at D7~D0 is treated as display data.
    When the pin is pulled low, the input at D7~D0 will be transferred to the command register. For detail relationship to MCU interface signals, please refer to the Timing Characteristics Diagrams.
    13 E/RD# I Read/Write Enable or Read
    This pin is MCU interface input.
    When interfacing to a 68XX-series microprocessor, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled high and the CS# is pulled low.
    When connecting to an 80XX-microprocessor, this pin receives the Read (RD#) signal. Data read operation is initiated when this pin is pulled low and CS# is pulled low.
    When serial mode is selected, this pin must be connected to VSS.
    14 R/W# I Read/Write Select or Write
    This pin is MCU interface input.
    When interfacing to a 68XX-series microprocessor, this pin will be used as Read/Write (R/W#) selection input.  Pull this pin to “High" for read mode and pull it to “low" for write mode.
    When 80XX interface mode is selected, this pin will be the Write (WR#) input.  Data write operation is initiated when this pin is pulled low and the CS# is pulled low.
    When serial mode is selected, this pin must be connected to VSS.
    5~12 D7-D0 I/O Host Data Input/Output Bus
    These pins are 8-bit bi-directional data bus to be connected to the microprocessor mode is selected, D1 will be the serial data input SDIN and D0 will be the serial clock input SCLK.
    Reserve
    18, 22-28 NC - Reserved Pin
    The NC pin between function pins are reserved for compatible and flexible design.
    1 NC (GND) - Reserved Pin (Supporting Pin)
    The supporting pins can reduce the influences from stresses on the function pins.  These pins must be connected to external ground.
    Please download the datasheet to get the detailed Pin description.
