Surenoo Graphic OLED Module 1.54" 12864 128*64 128X64 Graphic LCD Module Display Screen Panel PM-OLED 6800/8080 8-Bit Parallel 4-Wire Serial SPI IIC I2C SSD1309 Controller SOG12864C1_M154

WISHLIST
Display Size: 1.54"
Model No.: SOG12864C2_M154
Display Format: 128*64 Dots
Outline: 42.40X38.00MM
Controller: SSD1309 or Equal
47 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SOG12864C2_M154 is 1.54" 128X64 Dots Graphic OLED Module, build-in SSD1309 controller supprot Serial SPI & IIC MPU interface, wide operating temperature range, RoHS Compliant, It's 3.3V power supply.

    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.040Kg
    Manufacturer Surenoo
    Display Type Graphic OLED Module
    Continuity Supply More than 10 years
    Part No. SOG12864C2_M154
    Diagonal Size (Visual Area)
    		 1.54"
    Display Format 128*64 Dots
    Interface
    		 7P: Serial SPI / IIC; 5P: IIC
    IC or Equivalent SSD1309 or Equal
    Voltage(Type) 3.3V
    Outline Dimension 42.40(W)x38.00(H)x3.65(T)mm
    Visual Area 37.05x19.52mm
    Active Area
    		 35.05x17.52mm
    Dots Size 0.254x0.254mm
    Dots Pitch
    		 0.274x0.274mm
    Display Type PM-OLED Panel

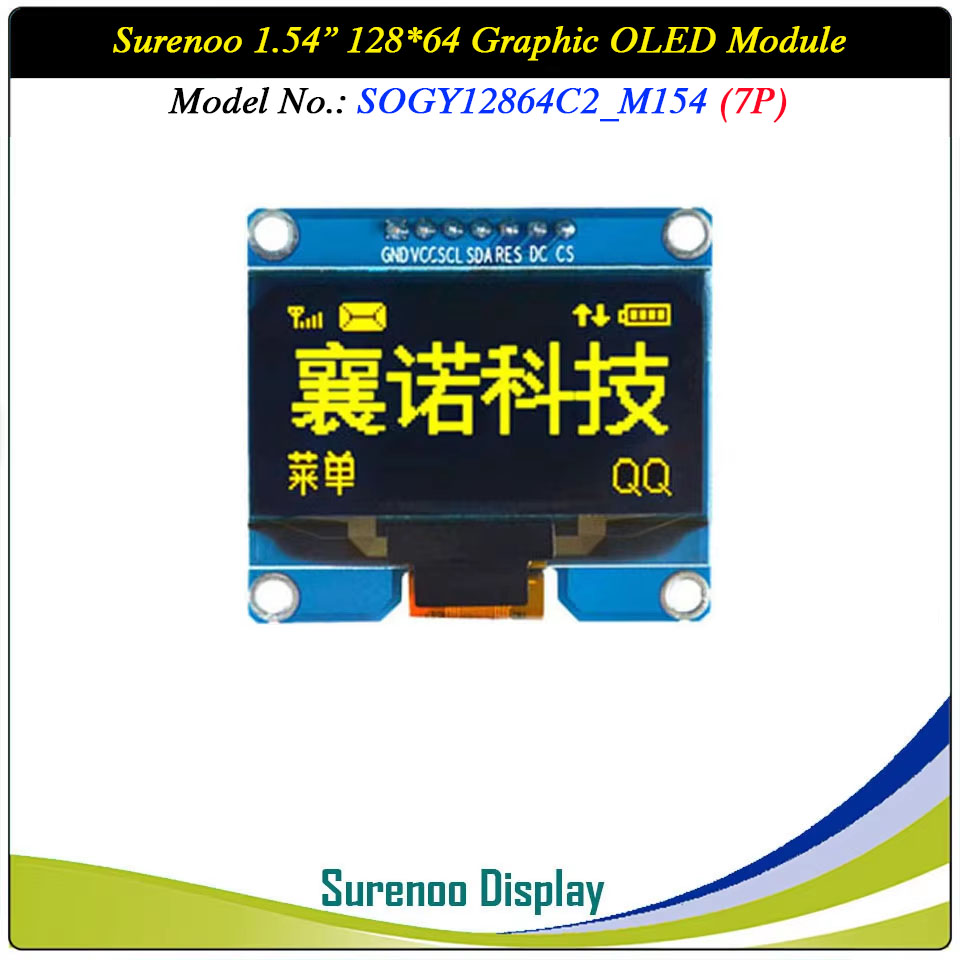

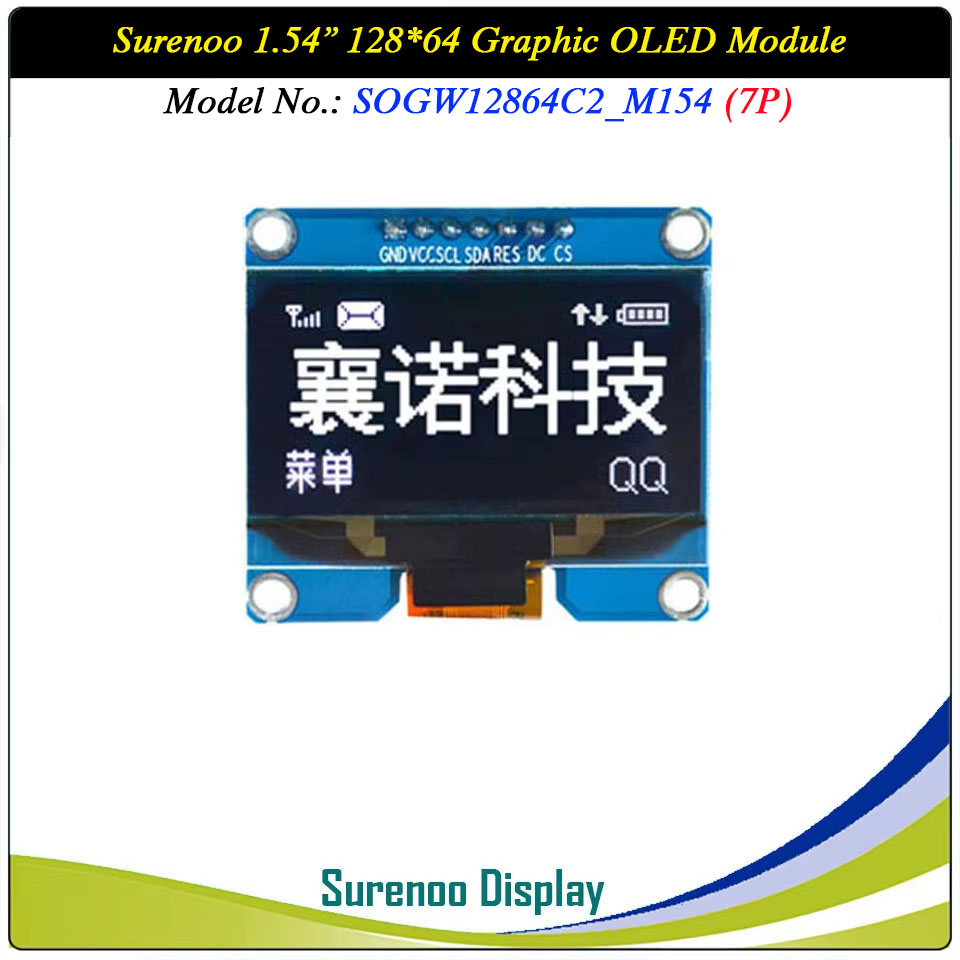

    Colors Code White(SOGW) / Yellow(SOGY) / Blue(SOGB)
    IC Package COG
    Viewing Direction Full Viewing Angle
    Operating Temperature
    -40℃~70℃
    Storage Temperature
    -40℃~80℃
    • Outline Drawing

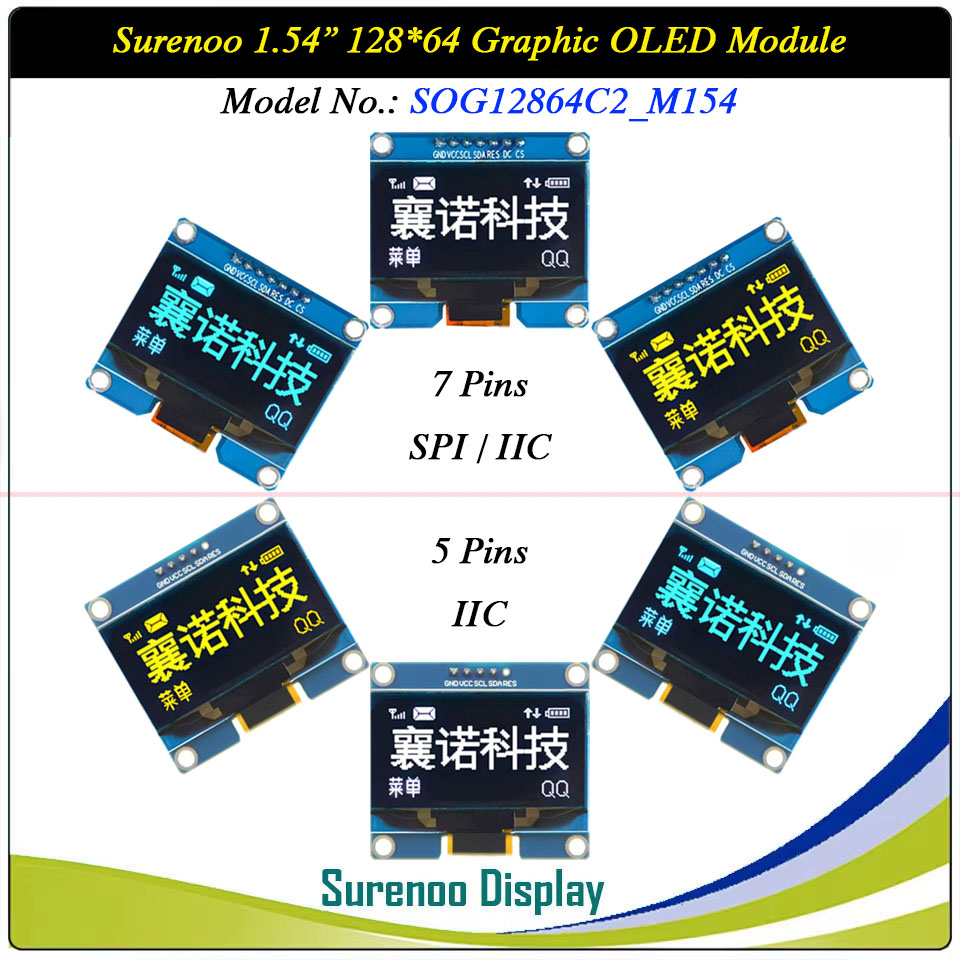

    1. Model No.: SOG12864C2_M154 (7P)

    2. Model No.: SOG12864C2_M154 (5P)

    • Interface

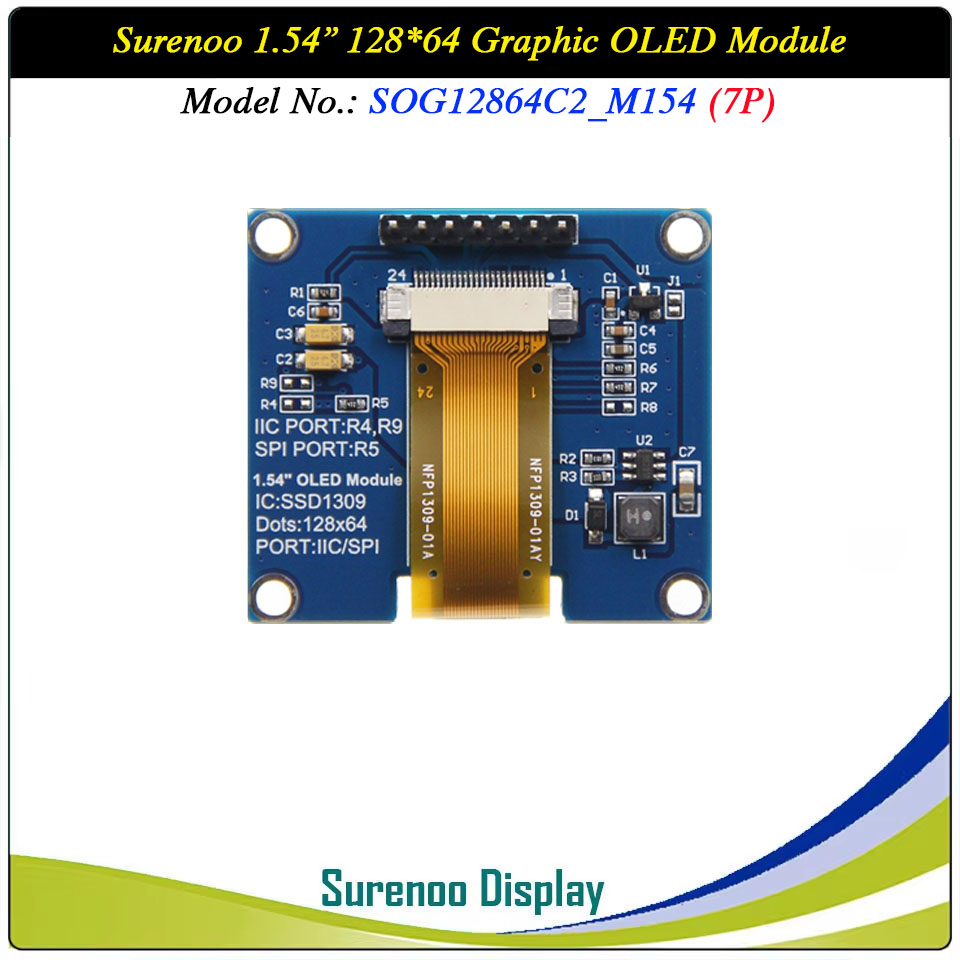

    1. SOG12864C2_M154 (7Pins) <SPI: R5 / IIC: R4 R9>
    Pin No. Pin Name Description
    1
    		 GND (0V)
    		 Ground 0V
    2
    		 VCC (3.3V) Power Supply for logic
    3 SCL (H/L) The serial clock input SCL
    4 SDA (H/L) The serial data input SDA
    5 RES Reset signal, Active LOW
    6 SPI: D/C IIC: NC SPI: H: Data L: Command IIC: No Connection
    7 SPI: CS IIC: NC
    		 SPI: Chip Selection, Active LOW IIC: No Connection

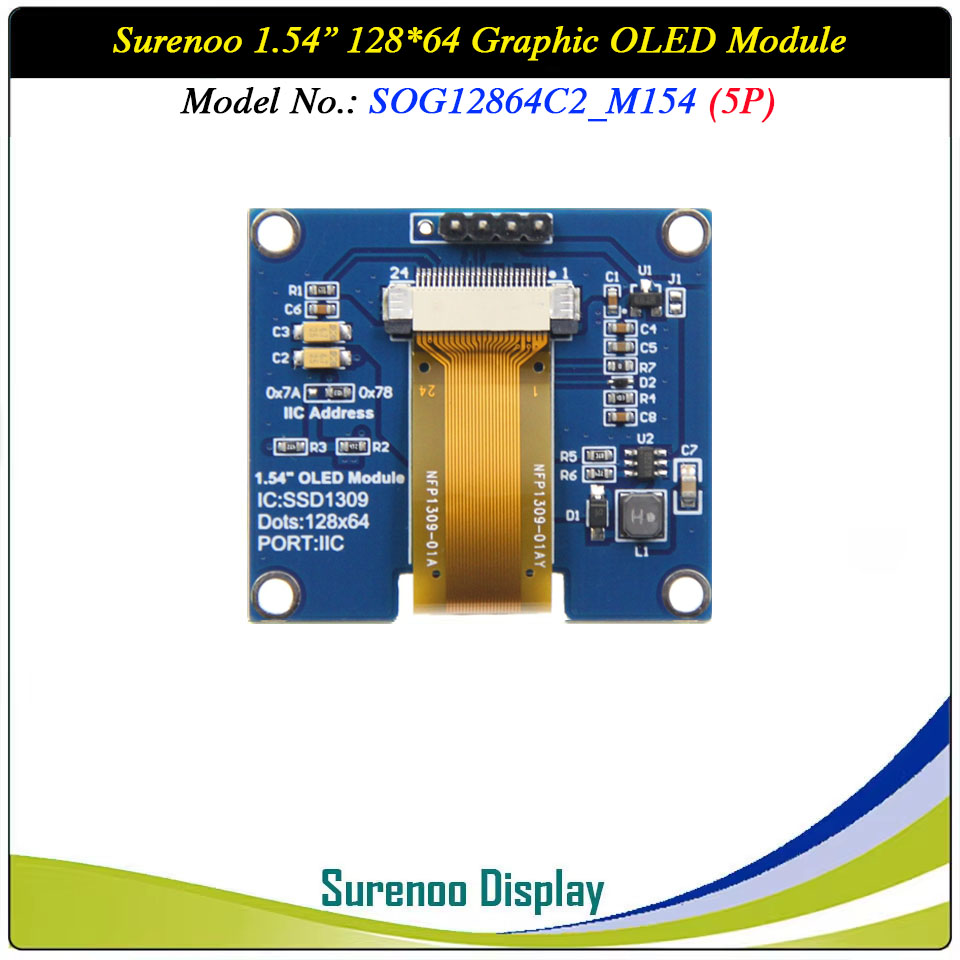

    1. SOG12864C2_M154 (5Pins) <IIC>
    Pin No. Pin Name Description
    1
    		 GND (0V)
    		 Ground 0V
    2
    		 VCC (3.3V) Power Supply for logic
    3 SCL (H/L) The serial clock input SCL
    4 SDA (H/L) The serial data input SDA
    5 RES No Connection
    • Documents
    No. Item File Name File Type ICON Date Description Mark
    1 Datasheet SOG12864C2_M154 PDF 2013-03-17 Standard 128*64 Graphic OLED Module
    2 Controller SSD1309 PDF 2008-09-24 SSD1309 is a COG Graphic 128*64 OLED Controller
