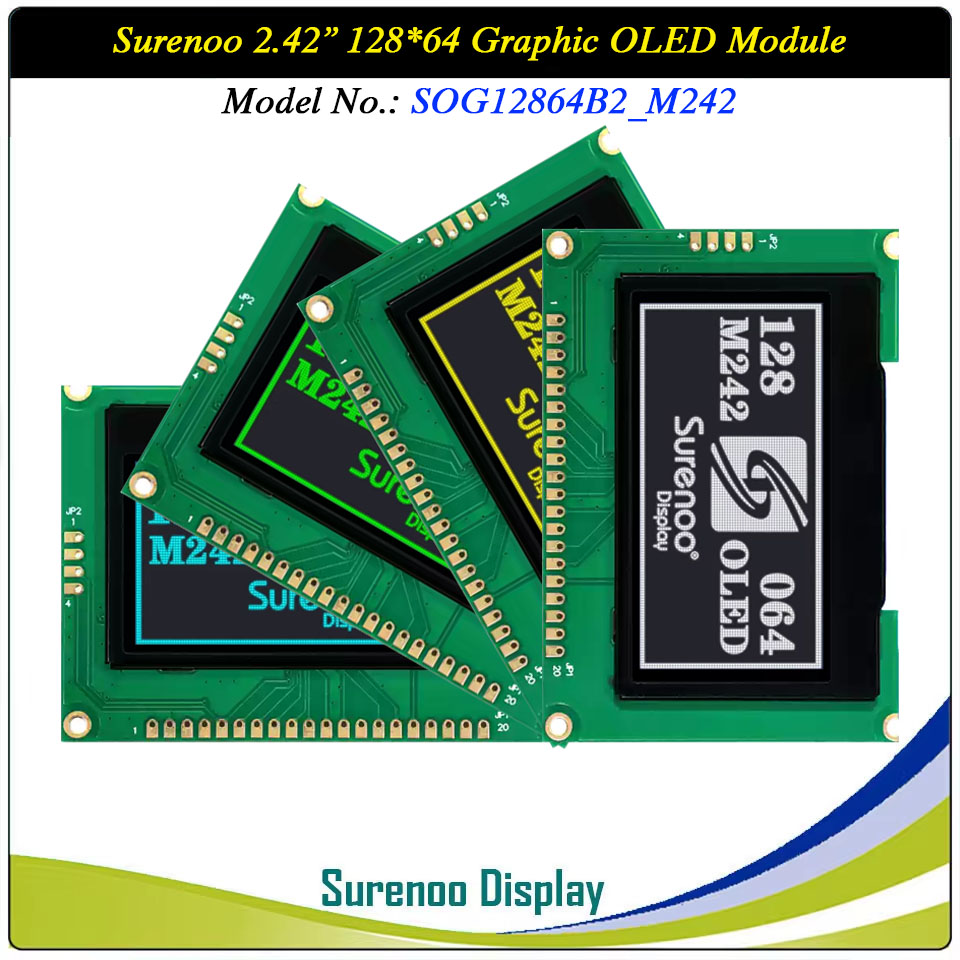

Surenoo Graphic OLED Module 75.00MMX52.70MM 2.42" 12864 128*64 128X64 Graphic LCD Module Display Screen Panel PM-OLED 6800/8080 8-Bit Parallel 4-Wire Serial SPI IIC I2C SSD1309 Controller SOG12864B2_M242

WISHLIST
Display Size: 2.42"
Model No.: SOG1286B2_M242
Display Format: 128*64 Dots
Outline: 75.00X52.70MM
Controller: SSD1309 or Equal
37 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SOG12864B2_M242 is 2.42" 128X64 Dots Graphic OLED Module, build-in SSD1309 controller supprot 6800/8080 8-Bit Parallel & 4-Wire Serial SPI & IIC MPU interface, wide operating temperature range, RoHS Compliant, It's 3.3V power supply.

    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.040Kg
    Manufacturer Surenoo
    Display Type Graphic OLED Module
    Continuity Supply More than 10 years
    Part No. SOG12864B2_M242
    Diagonal Size (Visual Area)
    		 2.42"
    Display Format 128*64 Dots
    Interface
    		 6800/8080 8-Bit Parallel, 4-Wire Serial SPI, IIC
    IC or Equivalent SSD1309 or Equal
    Voltage(Type) 3.3-5.0V
    Outline Dimension 75.00(W)x52.70(H)x5.90(T)mm
    Visual Area 57.01x29.49mm
    Active Area
    		 55.01x27.49mm
    Dots Size 0.40x0.40mm
    Dots Pitch
    		 0.43x0.43mm
    Display Type PM-OLED Panel

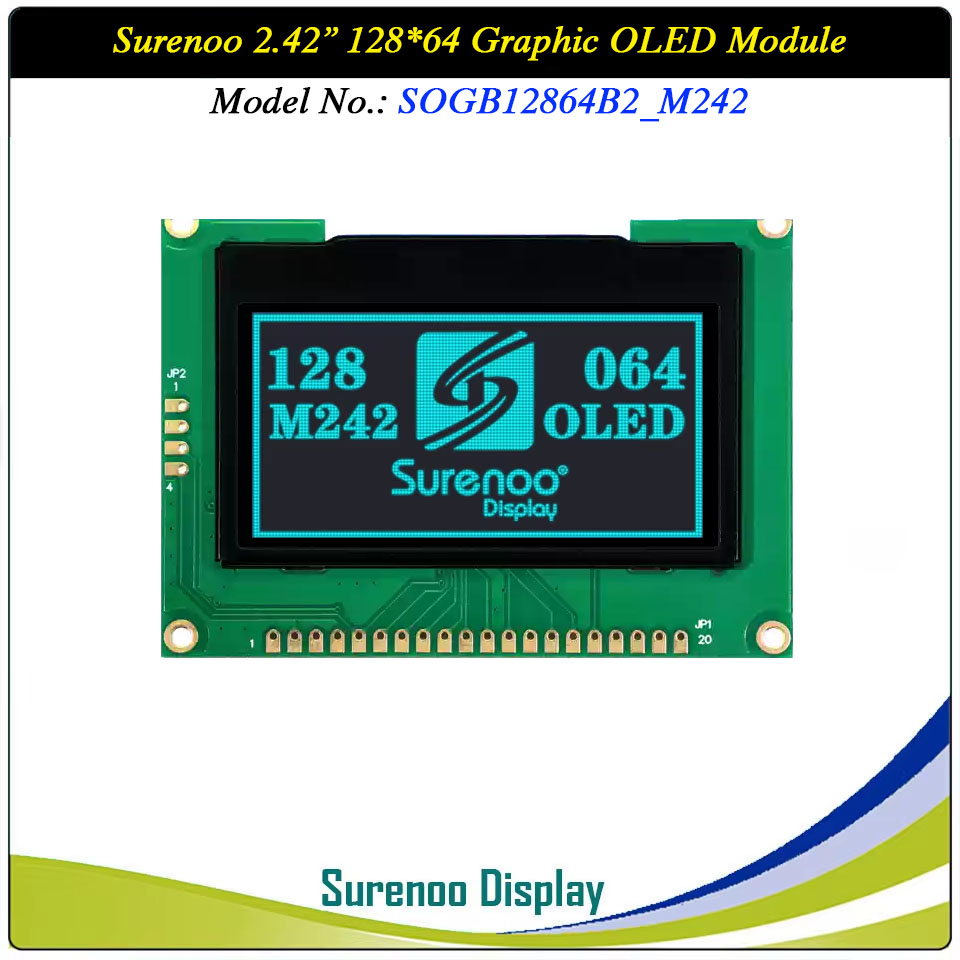

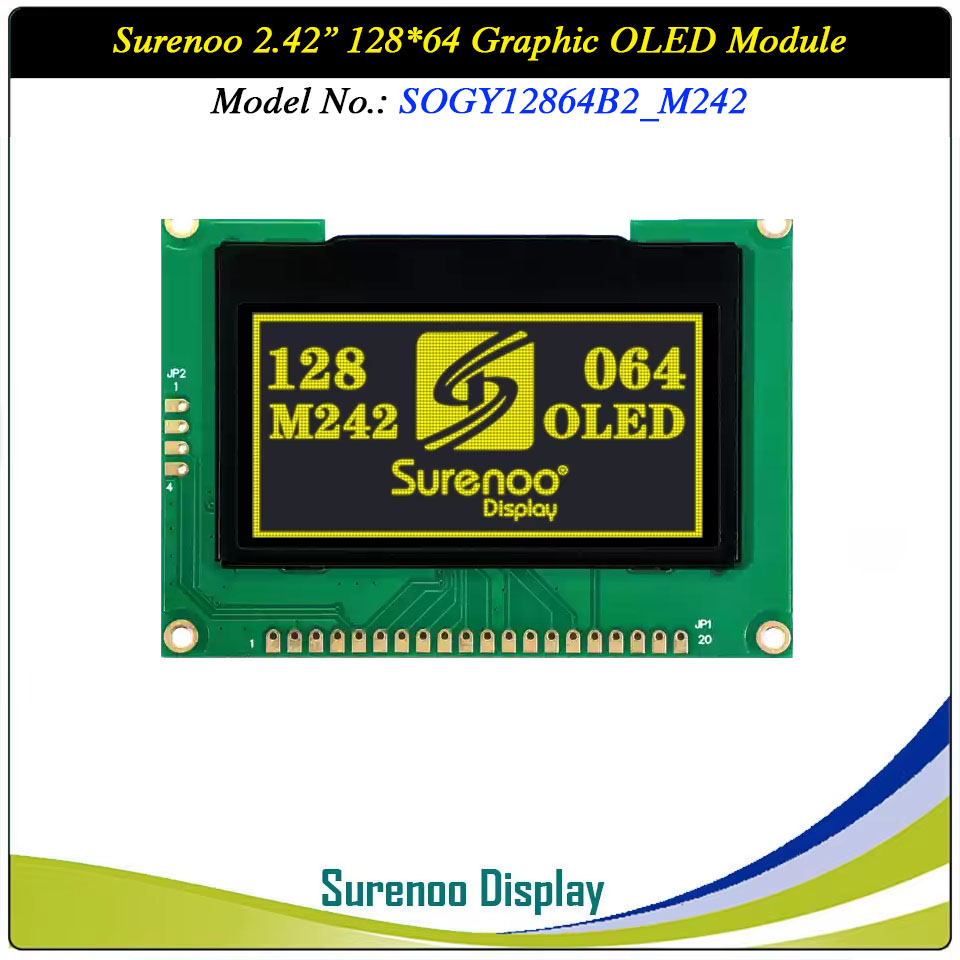

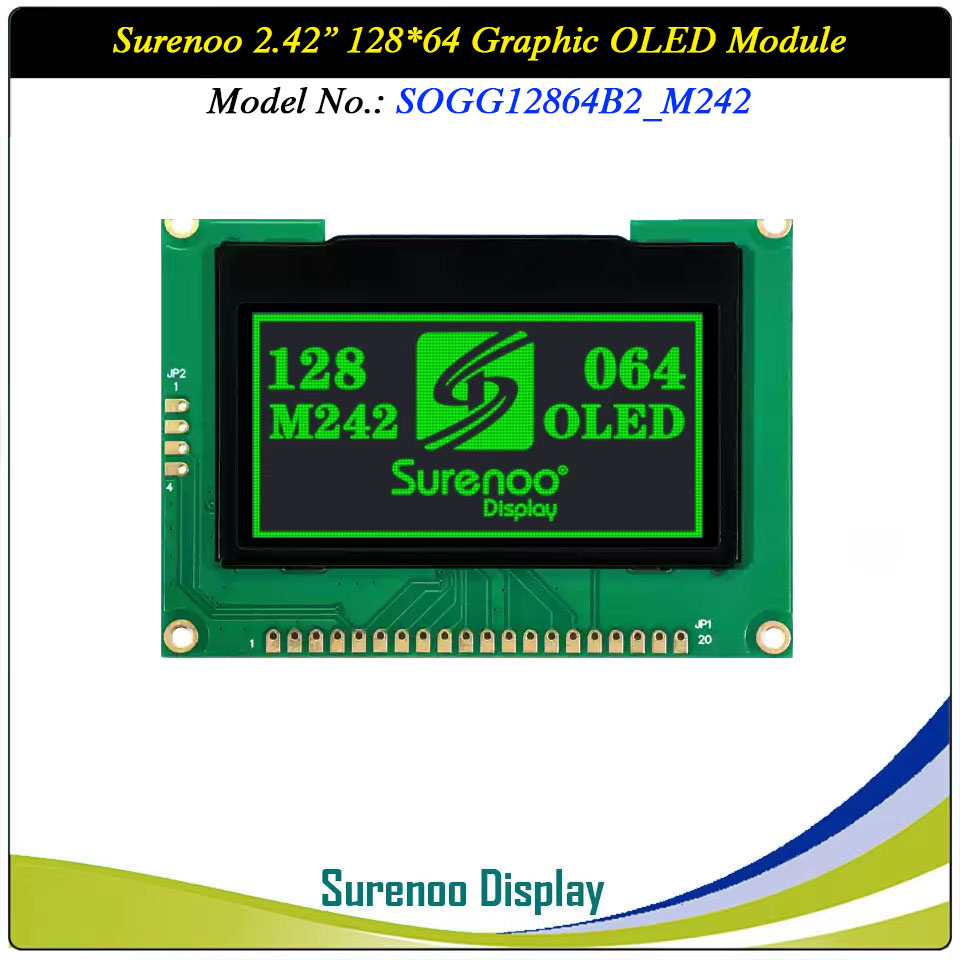

    Colors Code White(SOGW) / Yellow(SOGY) / Green(SOGG) / Blue(SOGB)
    IC Package COG
    Viewing Direction Full Viewing Angle
    Operating Temperature
    -40℃~70℃
    Storage Temperature
    -40℃~80℃
    • Outline Drawing (SOG12864B2_M242)

    • Interface

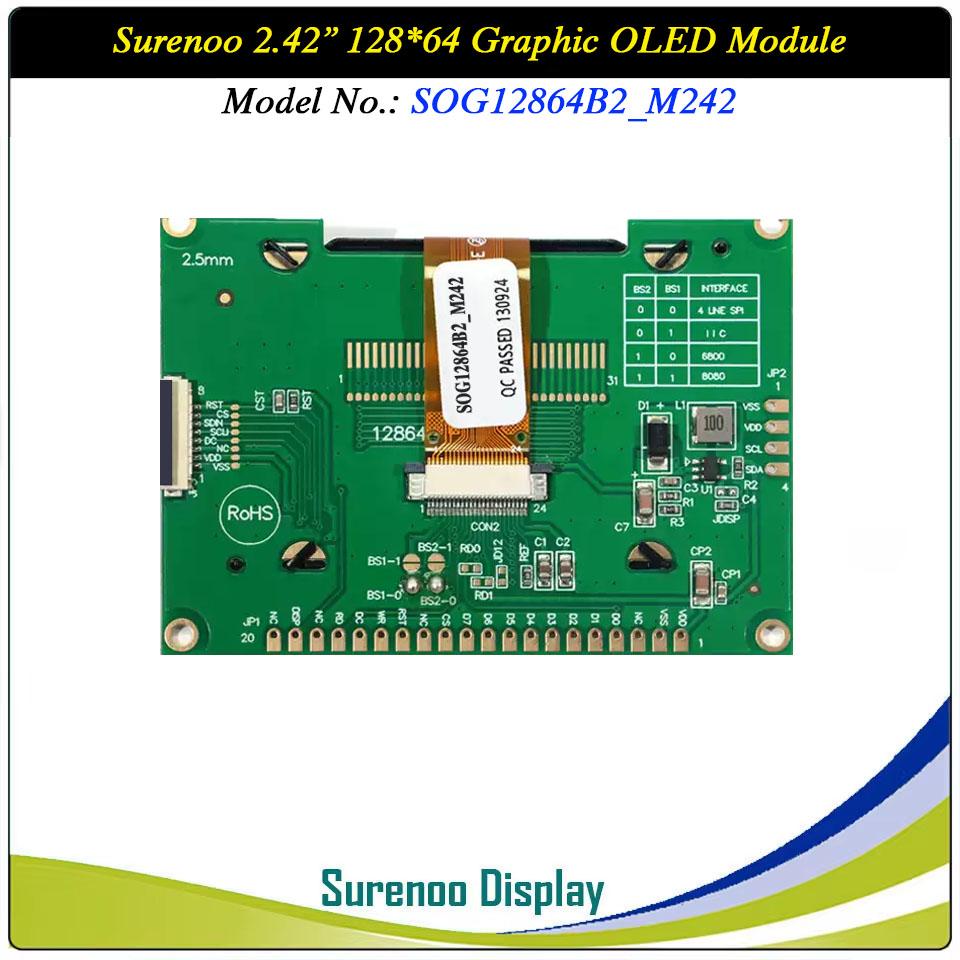

    1. SOG12864B2_M242: JP1 <Parallel Interface(8080): (USE: R2 R4, NO USE: R3 R5) / Parallel Interface(6800): (USE: R3 R4 ; NO USE: R2 R5)>
    Pin No. Pin Name Description
    1
    		 VDD (3.3-5.0V)
    		 Power Supply for logic
    2
    		 GND (0V)
    		 Ground 0V
    3 NC No Connection
    4-11 D0-D7
    		 Data Bus
    12 /CS (L)
    This pin is the chip select input connecting to the MCU.
    The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).
    13 NC
    		 No Connection
    14 /RES (H/L)
    This pin is reset signal input.
    When the pin is pulled LOW, initialization of the chip is executed. Keep this pin pull HIGH during normal operation.
    15 8080: WR (H/L) 6800: R/W (H/L) 8080: Active LOW Writed signal 6800: Read/Write: R/W=1: Read; R/W:=0: Write
    16 D/C (H/L)
    		 This pin is Data/Command control pin connecting to the MCU.
    17 8080: RD (H/L) 6800: E (H/L) 8080: Active LOW Read signal 6800: Operation enable signal. Falling edge triggered.
    18 NC No Connection
    19 DISP Display off when it's pulled low; Display on when it's pulled high.
    20 NC No Connection

    2. SOG12864B2_M242: JP2 <IIC (USE: R2 R5; NO USE: R3 R4; USE: R11~R20)>
    Pin No. Pin Name Description
    1 GND (0V) Ground 0V
    2 VDD (3.3-5.0V) Power Supply for logic
    3 SCLK  (H/L) Serial Clock signal
    4 SDA (H/L) Serial Data input signal

    3. SOG12864B2_M242: JP3 <4-Wire SPI: (USE: R3 R5; NO USE: R2 R4; USE: R11~R17)>
    Pin No. Pin Name Description
    1 GND (0V) Ground 0V
    2 VDD (3.3-5.0V) Power Supply for logic
    3 NC No Connection
    4 D/C (H/L) This pin is Data/Command control pin connecting to the MCU
    5 SCLK (H/L) Serial Clock signal
    6 SDIN (H/L) Serial Data input signal
    7 /CS (L) Chip Selection
    8 /RST (H/L) Active LOW Reset signal
    • Documents
    No. Item File Name File Type ICON Date Description Mark
    1 Datasheet SOG12864B2_M242 PDF 2013-03-17 Standard 128*64 Graphic OLED Module
    2 Controller SSD1309 PDF 2008-09-24 SSD1309 is a COG Graphic 128*64 OLED Controller
