Surenoo Graphic OLED Module 2.42" 12864 128*64 128X64 Graphic LCD Module Display Screen Panel PM-OLED Serial IIC I2C SSD1309 Controller SOG12864B1a_M242

WISHLIST
Display Size: 2.42"
Model No.: SOG1286B1a_M242
Display Format: 128*64 Dots
Outline: 72.00X43.00MM
Controller: SSD1309 or Equal
20 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview

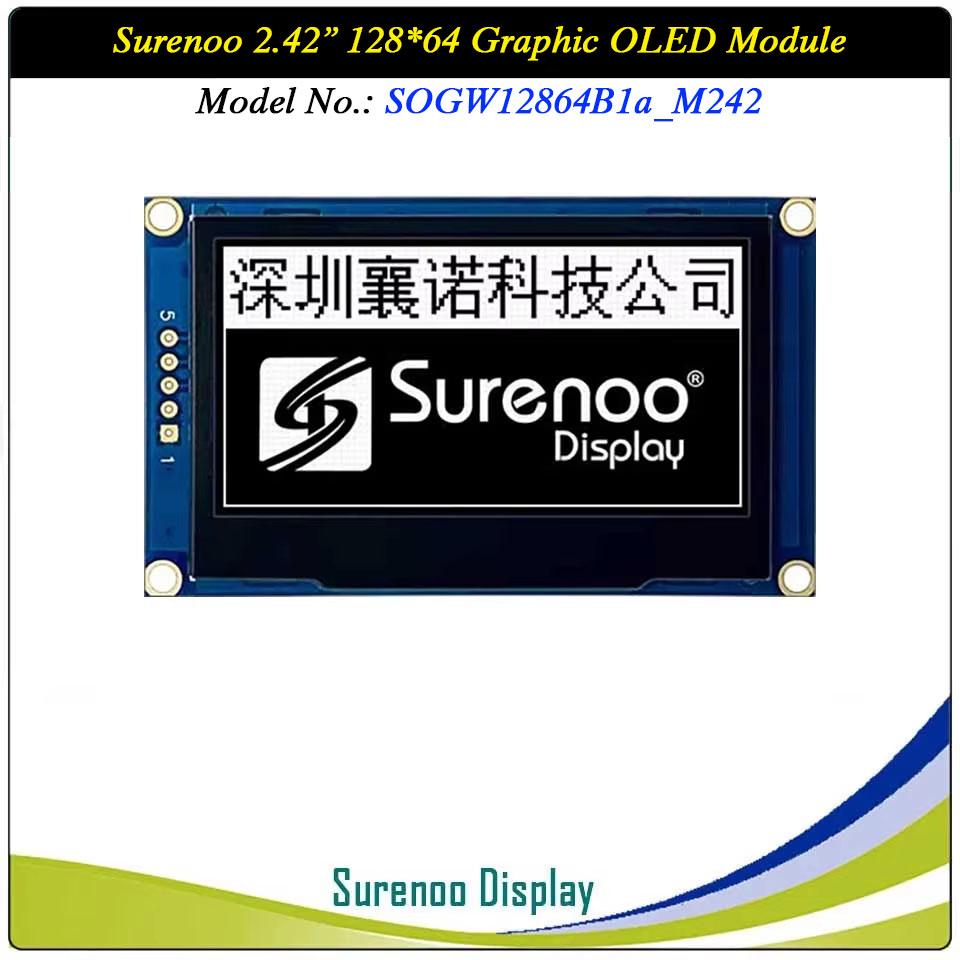

    SOG12864B1a_M242 is 2.42" 128X64 Dots Graphic OLED Module, build-in SSD1309 controller supprot Serial IIC MPU interface, wide operating temperature range, RoHS Compliant, It's 3.3-5.0V power supply.

    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.040Kg
    Manufacturer Surenoo
    Display Type Graphic OLED Module
    Continuity Supply More than 10 years
    Part No. SOG12864B1a_M242
    Diagonal Size (Visual Area)
    		 2.42"
    Display Format 128*64 Dots
    Interface
    		 Serial IIC
    IC or Equivalent SSD1309 or Equal
    Voltage(Type) 3.3-5.0V
    Outline Dimension 72.00(W)x42.80(H)x5.90(T)mm
    Visual Area 57.01x29.49mm
    Active Area
    		 55.01x27.49mm
    Dots Size 0.40x0.40mm
    Dots Pitch
    		 0.43x0.43mm
    Display Type PM-OLED Panel

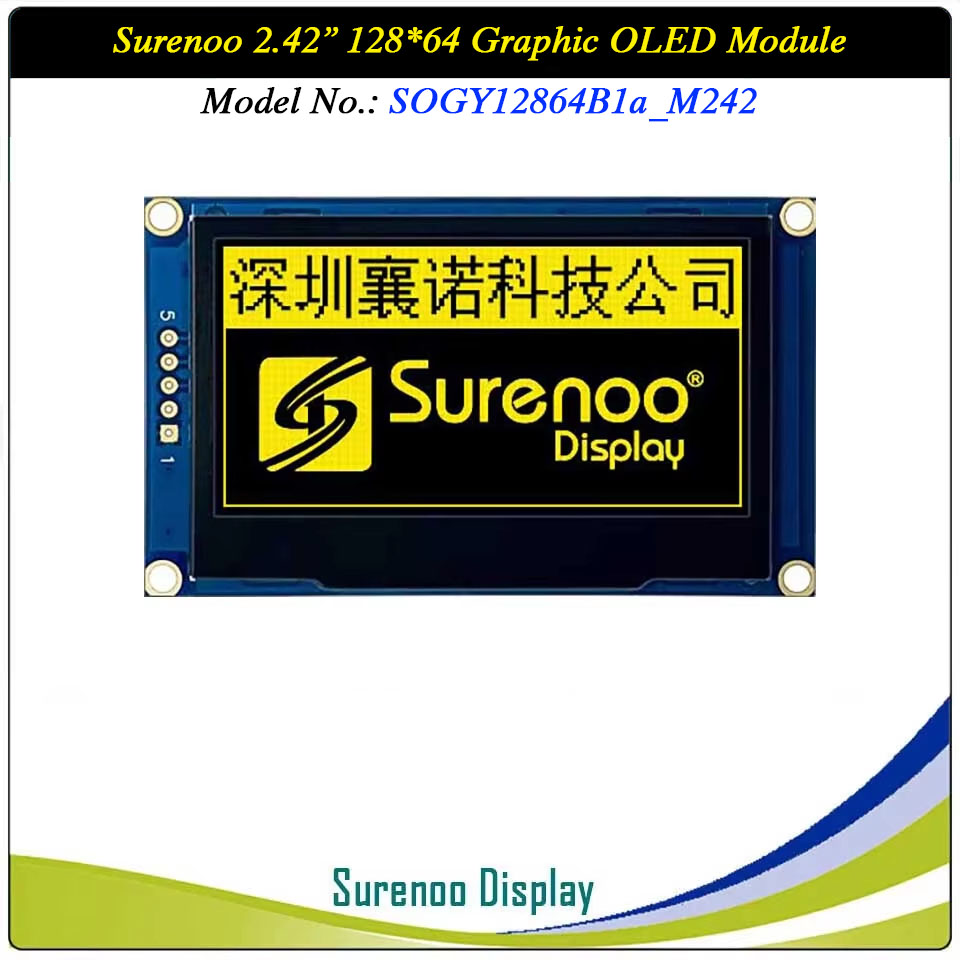

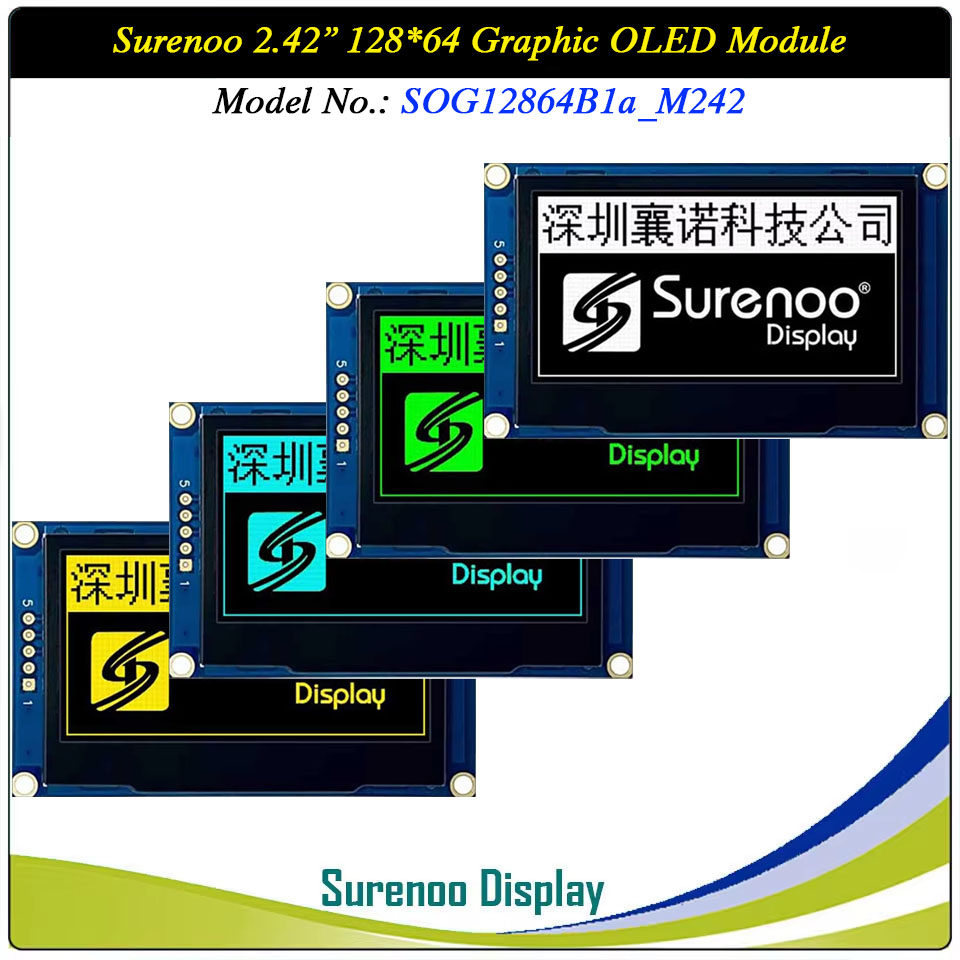

    Colors Code White(SOGW) / Yellow(SOGY) / Green(SOGG) / Blue(SOGB)
    IC Package COG
    Viewing Direction Full Viewing Angle
    Operating Temperature -40℃~70℃
    Storage Temperature -40℃~90℃
    • Outline Drawing (SOG12864B1b_M242)

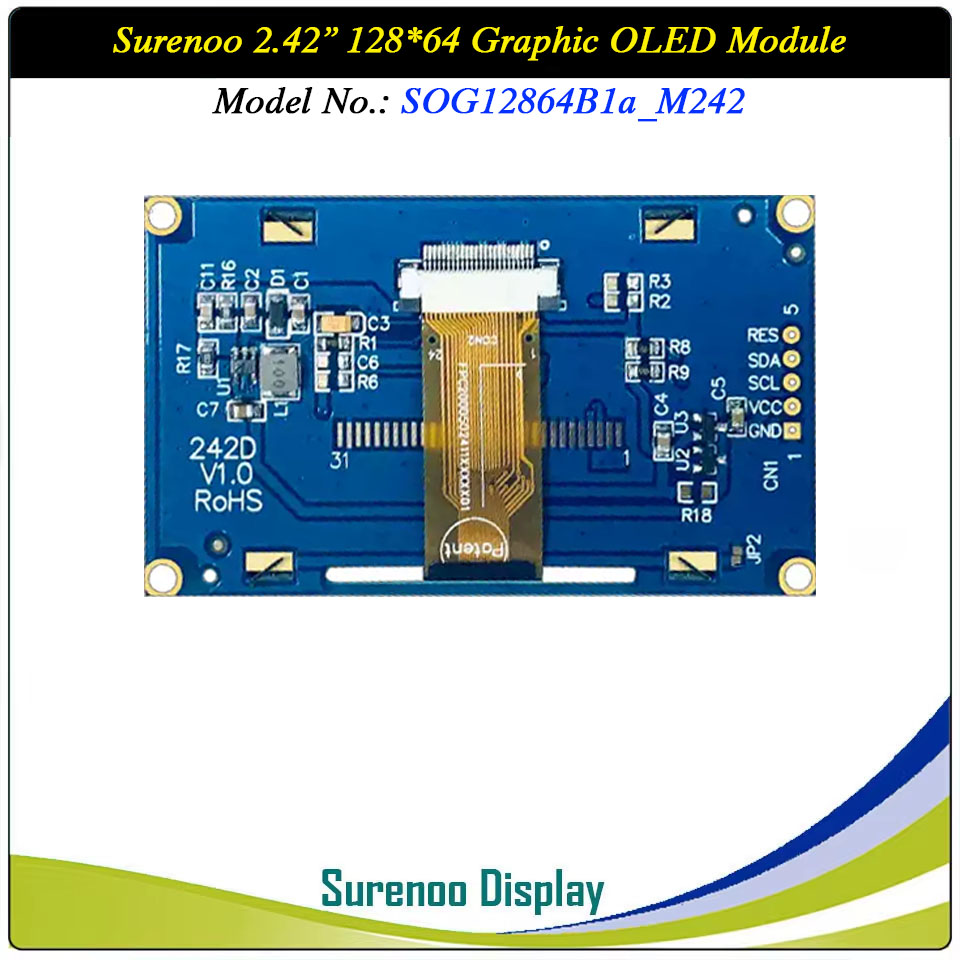

    • Interface
    Pin No. Pin Name LEVEL
    		 Description
    1 GND 0V Ground 0V
    2 VDD 3.3-5.0V Power Supply for logic
    3 SCLK H/L Serial Clock signal
    4 SDA H/L Serial Data input signal
    5 /RES H/L Active LOW Reset signal. (R6=10K C6=0.1uF)
    • Documents
    No. Item File Name File Type ICON Date Description Mark
    1 Datasheet SOG12864B1a_M242 PDF 2013-03-17 Standard 128*64 Graphic OLED Module
    2 Controller SSD1309 PDF 2008-09-24 SSD1309 is a COG Graphic 128*64 OLED Controller
