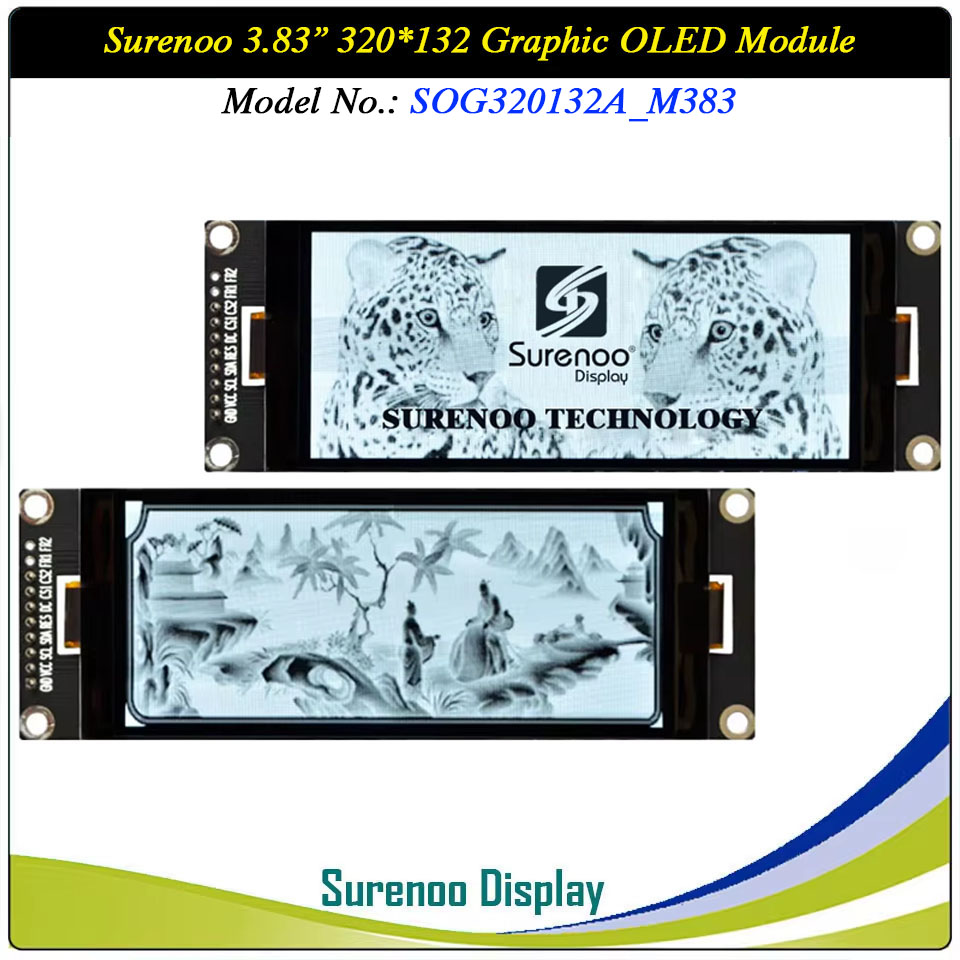

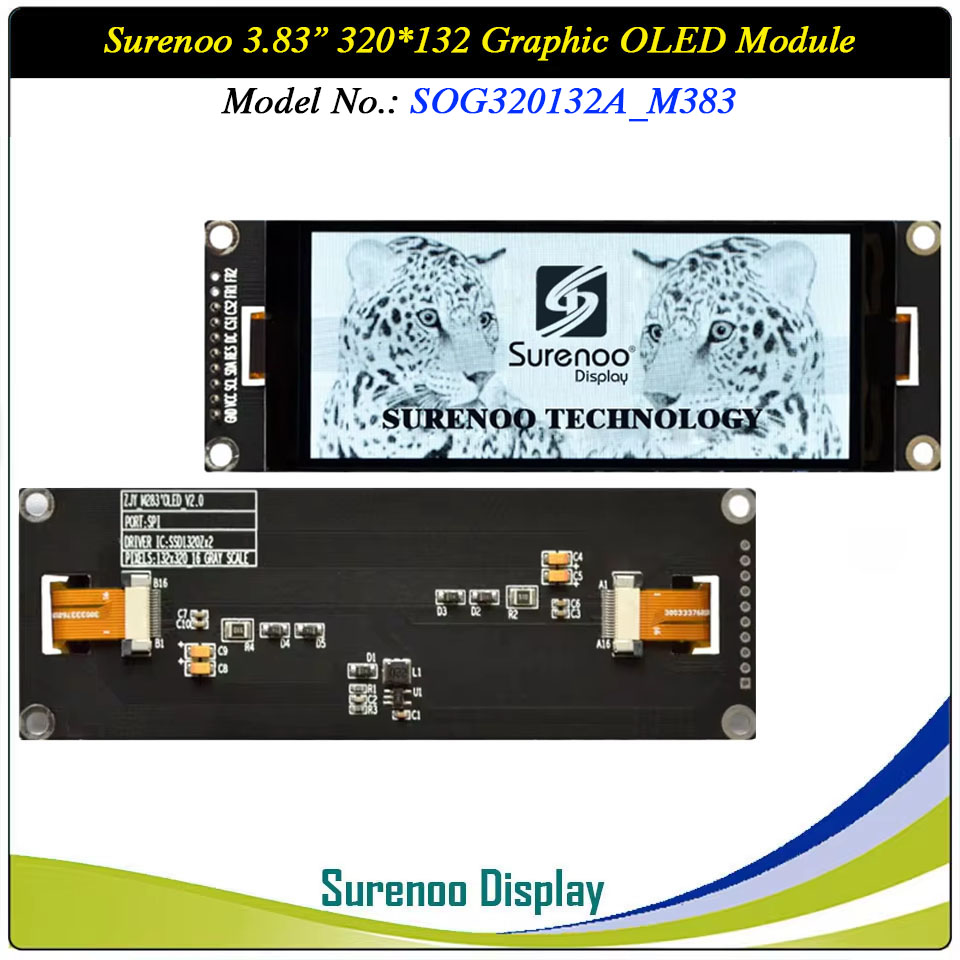

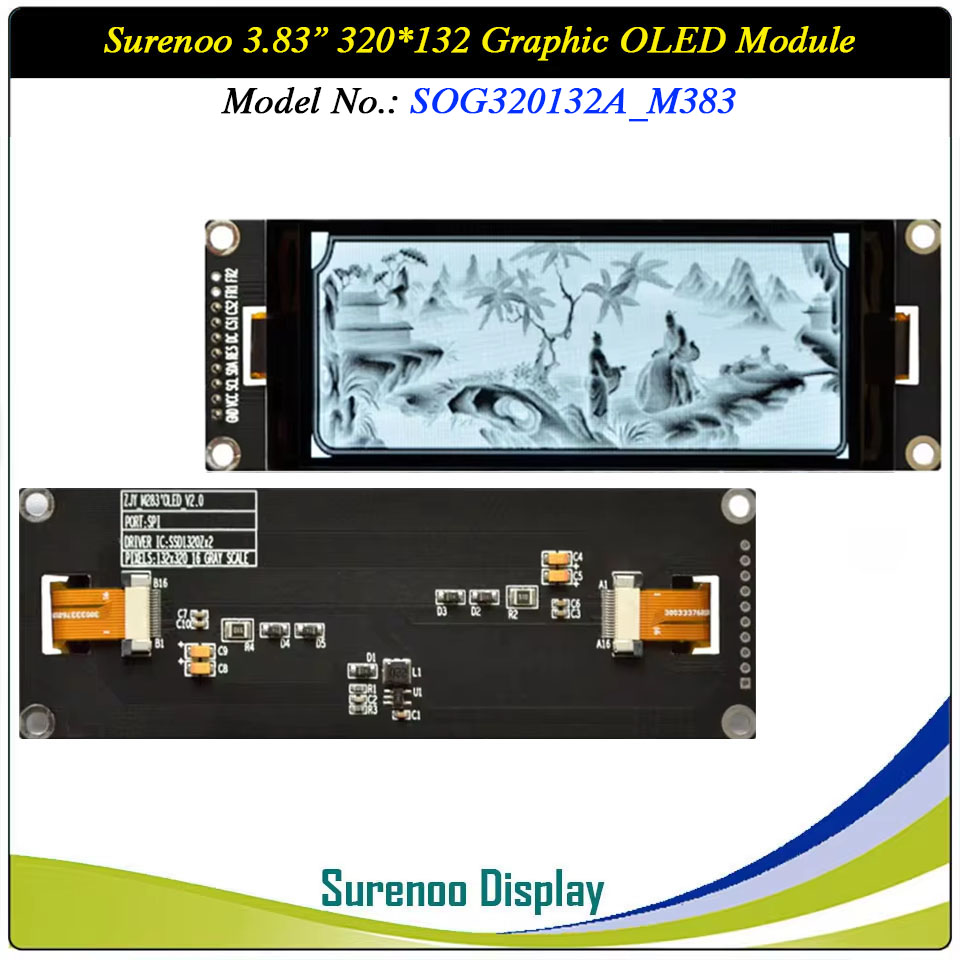

Surenoo Graphic OLED Module 3.83" 320132 320*132 320X132 Graphic LCD Module Display Screen Panel PM-OLED 4-Wire Serial SPI SSD1320 Controller SOG320132A_M383 P383

WISHLIST
Display Size: 3.83"
Model No.: SOG320132A_M383
Display Format: 320*132 Dots
Outline: 124.00X42.00MM
Controller: SSD1320 X2 or Equal
12 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SOG320132 is 3.83" 320X132 Dots Graphic OLED Module, build-in SSD1320X2 controller supprot Serial SPI MPU interface, wide operating temperature range, RoHS Compliant, It's 3.3V power supply.

    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.080Kg
    Manufacturer Surenoo
    Display Type Graphic OLED Module / Graphic OLED Panel
    Continuity Supply More than 10 years
    Part No. SOG320132A_M383 / SOG320132A_P383
    Diagonal Size (Visual Area)
    		 3.83"
    Display Format 320*132 Dots
    Interface
    		 4-Wire Serial SPI
    IC or Equivalent SSD1320 X2 or Equal
    Voltage(Type) 3.3V
    Outline Dimension SOG320132A_M383, 124.00(W)x42.00(H)x3.23(T)mm (OLED Module)
    SOG320132A_P383, 105.52(W)x41.67(H)x2.03(T)mm (OLED Panel)
    Visual Area 90.90x38.07mm
    Active Area
    		 89.90x37.07mm
    Dots Size 0.281x0.281mm
    Dots Pitch
    		 0.261x0.261mm
    Display Type PM-OLED Panel
    Colors Code White
    IC Package COG
    Viewing Direction Full Viewing Angle
    Operating Temperature
    -40℃~70℃
    Storage Temperature
    -40℃~80℃
    • Outline Drawing
    1. OLED Module: SOG320132A_M383


    2. OLED Panel: SOG320132A_PM383

    • Interface
    1. OLED Module: SOG320160A_M383
    Pin No. Pin Name Description
    1 GND
    Ground of Logic Circuit
    This is a ground pin. It must be connected to ground
    2 VCC
    Power Supply for OLED
    This is a voltage supply pin. It must be connected to source
    3 SCL The serial clock input SCL
    4 SDA The serial data input SDA
    5 RES
    Power Reset for Controller and Driver
    This pin is reset signal input.
    When the pin is low, initialization of the chip is executed. Keep this pin pull high during normal operation
    6 DC Data/Command Control
    This pin is Data/Command control pin.
    When the pin is pulled high, the input at SDA is treated as display data.
    When the pin is pulled low, the input at SDA will be transferred to the command register.
    7 CS1
    Chip Select
    This pin is the chip select pin. Low enable, high disable.
    8 CS2
    Chip Select
    This pin is the chip select pin. Low enable, high disable.
    9 FR1 No Connection
    10 FR2 No Connection

    2. OLED Panel: SOG320160A_P383 (FPC_1 & FPC_2)
    Pin No. Pin Name Description
    1 VCC Power supply for panel driving voltage.
    2 VCOMH_1 / VCOMH_2 COM signal deselected voltage level.
    3 VSL_1 / VSL_2 This is segment voltage (output low level) reference pin.
    4 VLSS Analog system ground pin.
    5 VP_1 / VP_2 This pin is the segment pre-charge voltage reference pin.
    6 VDD Power supply pin for core logic operation.
    7 FR_1 / FR_2 This pin outputs RAM write synchronization signal.
    8 CS#_1 / CS#_2 This pin is the chip select input connecting to the MCU. (active LOW)
    9 RES#  This pin is reset signal input.
    10 D/C# This pin is Data/Command control pin connecting to the MCU.
    11 D0(SCLK)
    The serial clock input: SCLK.
    12 D1(SDIN)
    The serial data input: SDIN.
    13 VSS Ground pin.
    14 VLSS Analog system ground pin.
    15 IREF_1 / IREF_2 This pin is the segment output current reference pin.
    16 VCC Power supply for panel driving voltage.
    Please download the datasheet to get the detailed Pin description.
    • Documents
    No. Item File Name File Type ICON Date Description Mark
    1 Datasheet SOG320132A_M383 PDF 2013-03-17 Standard 320*132 Graphic OLED Module
    SOG320132A_P383
    		 PDF 2013-03-17 Standard 320*132 Graphic OLED Panel
    2 Controller SSD1320 PDF 2008-09-24 SSD1320 is a COG Graphic 160*160 OLED Controller
