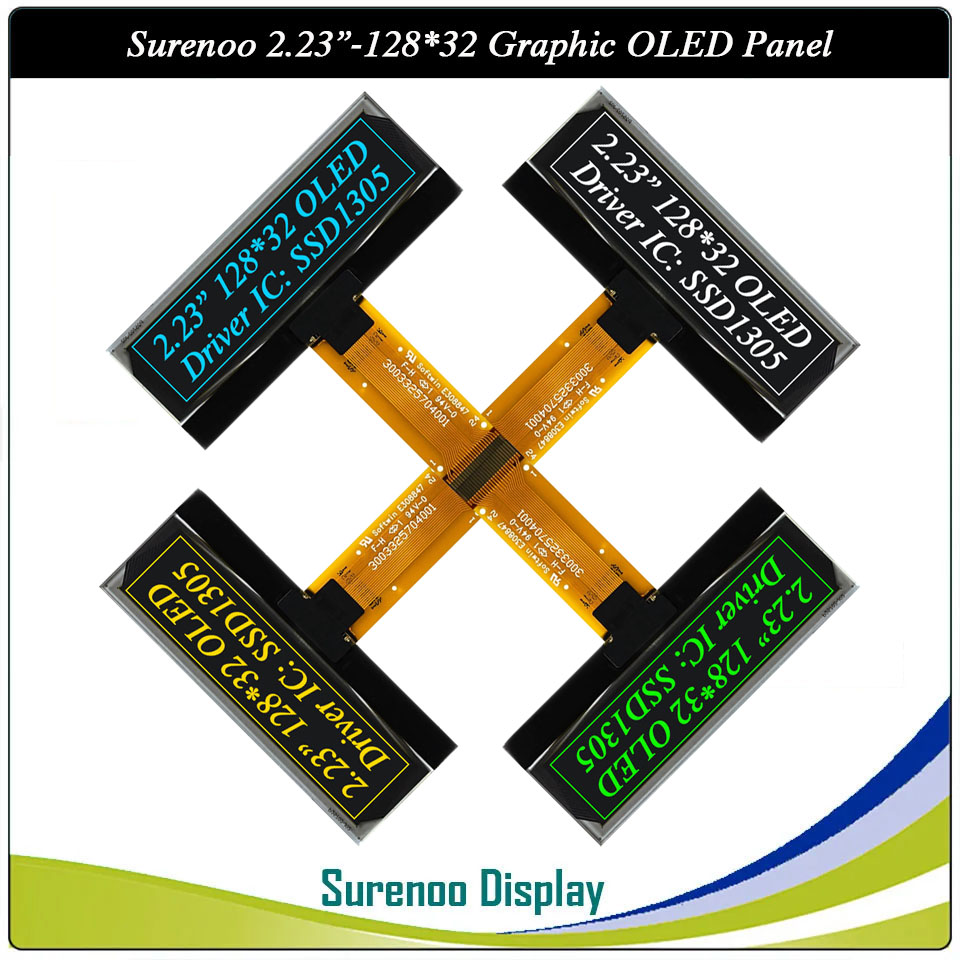

Surenoo Graphic OLED Module 2.23" 12832 128*32 128X32 Graphic LCD Module Display Screen Panel PM-OLED Serial SPI IIC SSD1305 Controller SOG12832A_P223

WISHLIST
Display Size: 2.23"
Model No.: SOG12832A_P223
Display Format: 128*32 Dots
Outline: 62.00X24.00MM
Controller: SSD1305 or Equal
87 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SOG12832A is 2.23" 128X32 Dots Graphic OLED Module, build-in SSD1305 controller supprot 6800/8080 8-Bit Parallel & Serial SPI/IIC MPU interface, wide operating temperature range, RoHS Compliant, It's 3.3V power supply.

    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.036Kg
    Manufacturer Surenoo
    Display Type Graphic OLED Panel
    Continuity Supply More than 10 years
    Part No. SOG12832A_P223
    Diagonal Size (Visual Area)
    		 2.23"
    Display Format 128*32 Dots
    Interface
    		 6800/8080 8-Bit Parallel, Serial SPI/IIC (24P/0.5 FPC)
    IC or Equivalent SSD1305 or Equal
    Voltage(Type) 3.3V
    Outline Dimension 62.00(W)x24.00(H)x2.00(T)mm
    Visual Area 57.00x15.10mm
    Active Area
    		 55.02x13.10mm
    Dots Size 0.41x0.30mm
    Dots Pitch
    		 0.43x0.40mm
    Display Type PM-OLED Panel
    Colors Code White(SOGW) / Yellow(SOGY) / Green(SOGG) / Blue(SOGB)
    IC Package COG
    Viewing Direction Full Viewing Angle
    Operating Temperature
    -40℃~70℃
    Storage Temperature
    -40℃~80℃
    • Outline Drawing

    • Interface
    PIN No. 1 2 3 4 5 6 7 8 9 10 11 12
    Symbol N.C. (GND) VLSS VSS N.C. VDD BS1 BS2 CS# RES# D/C# R/W# E/RD#
    PIN No. 13 14 15 16 17 18 19 20 21 22 23 24
    Symbol D0 D1 D2 D3 D4 D5 D6 D7 IREF VCOMH VCC N.C. (GND)
    Please download the datasheet to get the detailed Pin description.
    • Documents
    No. Item File Name File Type ICON Date Description Mark
    1 Datasheet SOG12832A_P223
    		 PDF 2013-03-17 Standard 128*32 Graphic OLED Panel
    2 Controller SSD1305 PDF 2008-09-24 SSD1305 is a COG Graphic 128*64 OLED Controller
