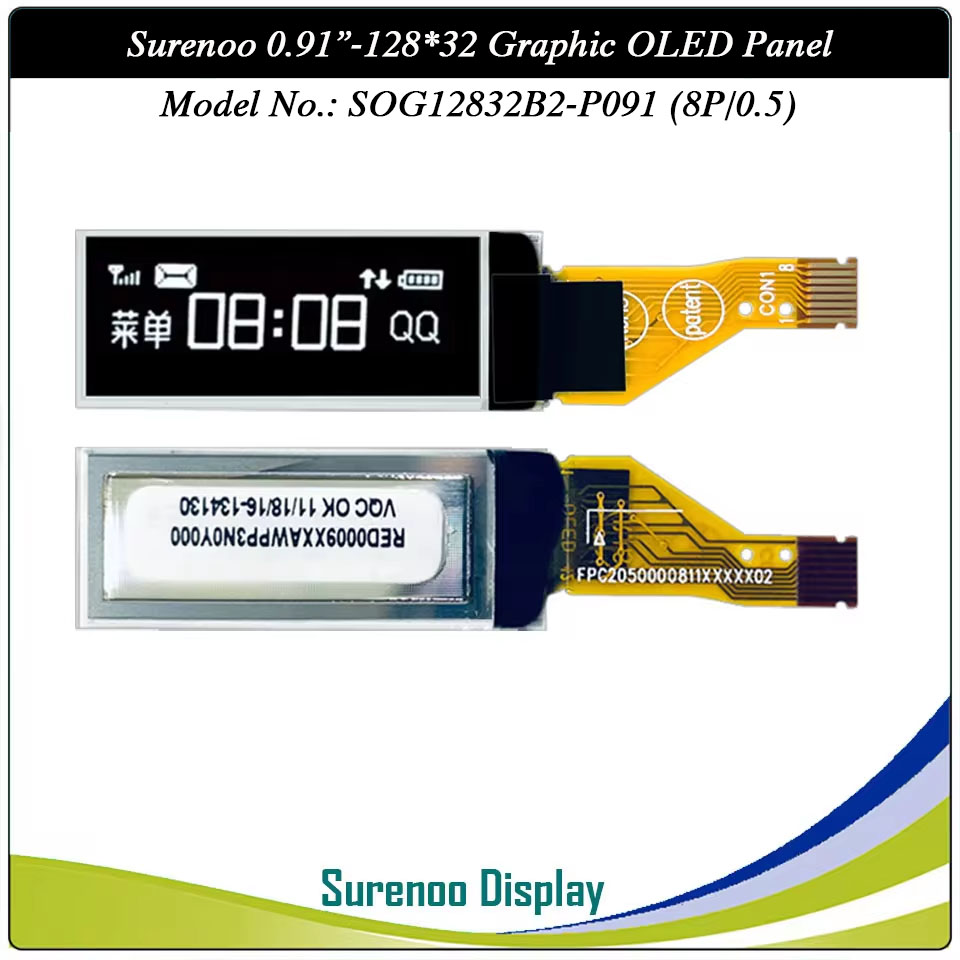

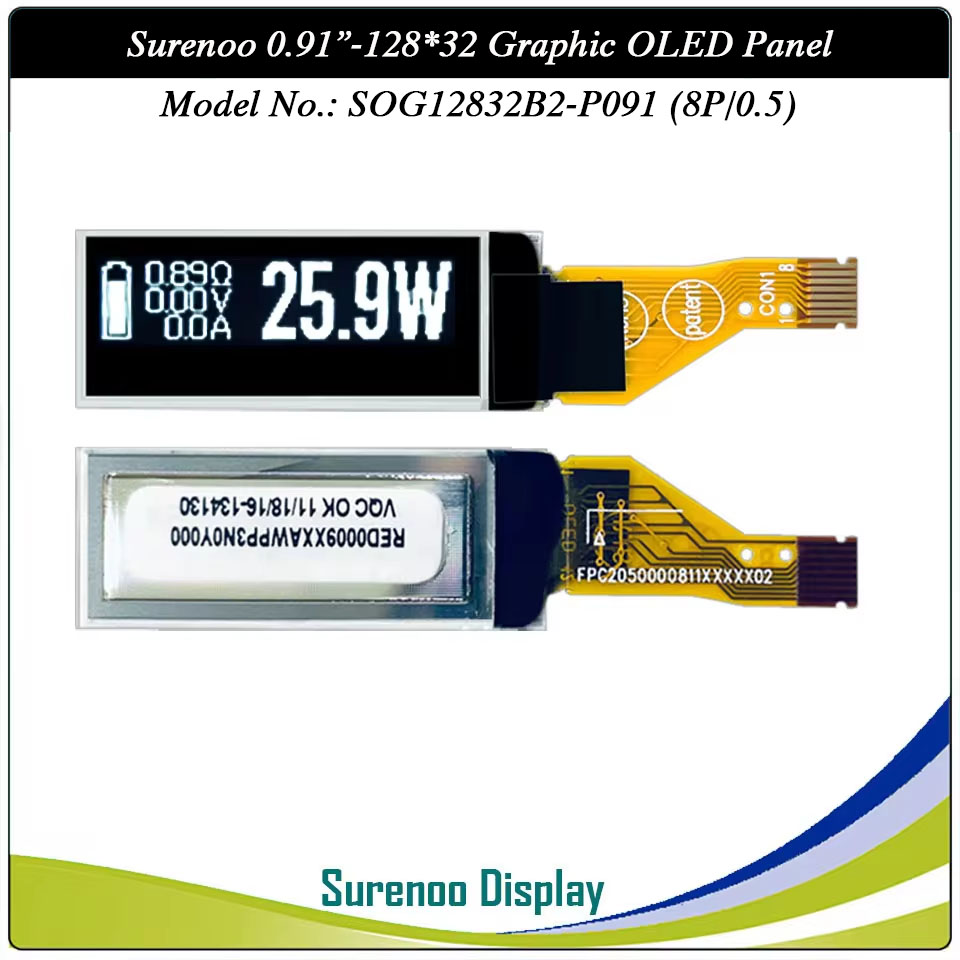

Surenoo Graphic OLED Module 0.91" 12832 128*32 128X32 8Pin 8P Pitch=0.5MM Graphic LCD Module Display Screen Panel PM-OLED PMOLED Serial IIC I2C SSD1306 Plug-In MI12832DO for DNA DNA75 60 75 200 250 166

WISHLIST
Display Size: 0.91"
Model No.: SOG12832B2_P091
Display Format: 128*32 Dots
Outline: 30.00x11.50mm
Controller: SSD1306 or Equal
87 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SOG12832B2_P091 is a 8P/0.5 0.91" 128X32 Dots Graphic OLED Module, build-in SSD1306 controller supprot Serial IIC MPU interface, wide operating temperature range, RoHS Compliant, It's 3.3V power supply.

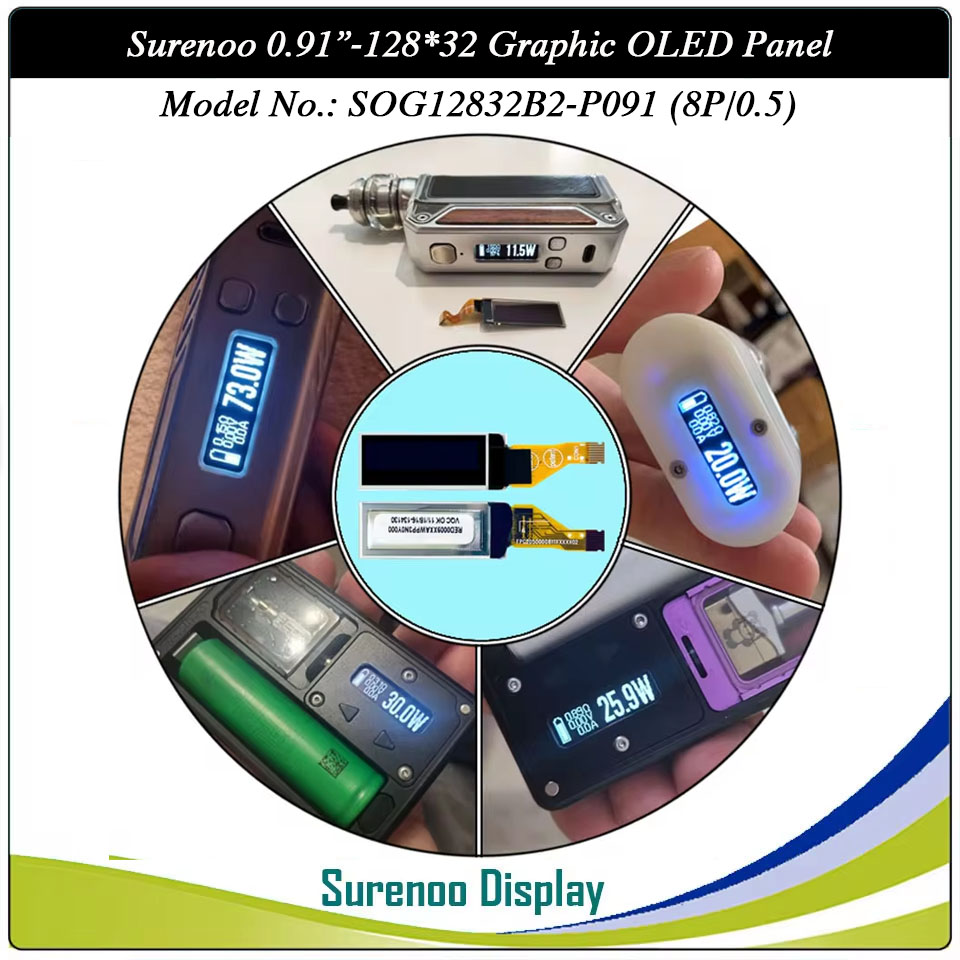

    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.020Kg
    Manufacturer Surenoo
    Display Type Graphic OLED Panel
    Continuity Supply More than 10 years
    Part No. SOG12832B2_P091 (8P/0.5)
    Diagonal Size (Visual Area)
    		 0.91"
    Display Format 128*32 Dots
    Interface (OLED Panel)
    		 Serial IIC (8P/0.5 FPC)
    IC or Equivalent SSD1306 or Equal
    Voltage(Type) 3.3V
    Outline Dimension 30.00(W)x11.50(H)x1.20(T)mm
    Visual Area 24.38x7.58mm
    Active Area
    		 22.38x5.58mm
    Dots Size 0.159x0.159mm
    Dots Pitch
    		 0.175x0.175mm
    Display Type PM-OLED Panel
    Colors Code White(SOGW)
    IC Package COG
    Viewing Direction Full Viewing Angle
    Operating Temperature
    -40℃~70℃
    Storage Temperature
    -40℃~80℃
    • Outline Drawing (OLED Panel: SOG12832B2_P091-8P/0.5)

    • Interface
    PIN No. 1 2 3 4 5 6 7 8
    Symbol VSS VDD RES SCL SDA IREF VCOMH VCC
    Please download the datasheet to get the detailed Pin description.
    • Documents
    No. Item File Name File Type ICON Date Description Mark
    1 Datasheet SOG12832B2_P091
    		 PDF 2013-03-17 Standard 128*32 Graphic OLED Panel
    2 Controller SSD1306 PDF 2008-09-24 SSD1306 is a COG Graphic 128*64 OLED Controller
