Surenoo Graphic OLED Module 0.91" 12832 128*32 128X32 Graphic LCD Module Display Screen Panel PM-OLED Serial SPI IIC SSD1306 Controller SOG12832B_M091 SOG12832B_P091

WISHLIST
Display Size: 0.91"
Model No.: SOG12832B OLED
Display Format: 128*32 Dots
Outline: B1-M223(74.00X30.00MM) / B2-M223(38.00X12.00MM)
Controller: SSD1306 or Equal
87 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview

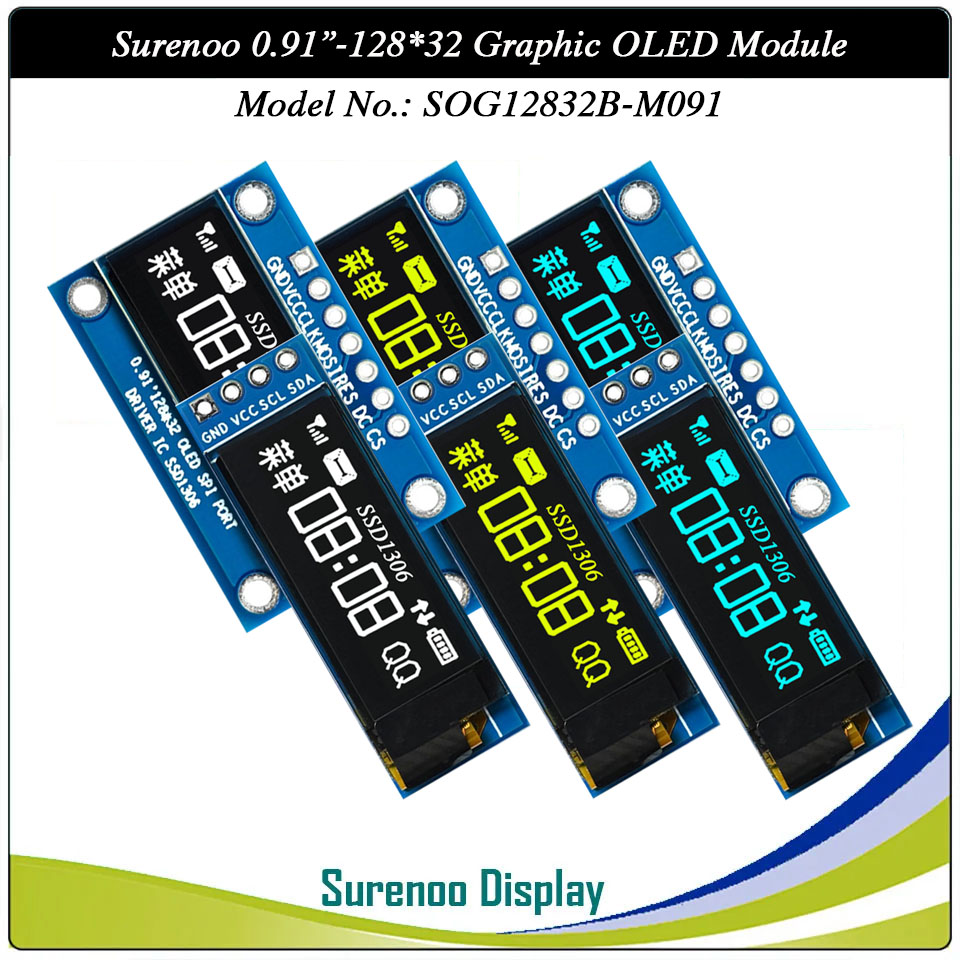

    SOG12832B is 0.91" 128X32 Dots Graphic OLED Module, build-in SSD1306 controller supprot Serial SPI/IIC MPU interface, wide operating temperature range, RoHS Compliant, It's 3.3V power supply.

    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.020Kg
    Manufacturer Surenoo
    Display Type Graphic OLED Module / Graphic OLED Panel
    Continuity Supply More than 10 years
    Part No. SOG12832B
    Diagonal Size (Visual Area)
    		 0.91"
    Display Format 128*32 Dots
    Interface
    		 SOG12832B1_M091, Serial SPI (7Pin/2.54 Pin Header) (OLED Module)
    SOG12832B2_M091, Serial IIC (4Pin/2.54 Pin Header) (OLED Module)
    SOG12832B1_P091, Serial SPI/IIC (14P/0.62 FPC) (OLED Panel)
    IC or Equivalent SSD1306 or Equal
    Voltage(Type) 3.3V
    Outline Dimension SOG12832B1_M091, 32.50(W)x20.50(H)x2.55(T)mm (OLED Module)
    SOG12832B2_M091, 38.00(W)x12.00(H)x2.55(T)mm (OLED Module)
    SOG12832B1_P091, 30.00(W)x11.50(H)x1.20(T)mm (OLED Panel)
    Visual Area 24.38x7.58mm
    Active Area
    		 22.38x5.58mm
    Dots Size 0.159x0.159mm
    Dots Pitch
    		 0.175x0.175mm
    Display Type PM-OLED Panel
    Colors Code White(SOGW) / Yellow(SOGY) / Blue(SOGB)
    IC Package COG
    Viewing Direction Full Viewing Angle
    Operating Temperature
    -40℃~70℃
    Storage Temperature
    -40℃~80℃
    • Outline Drawing
    1. OLED Module: SOG12832B1-M091-7Pin (SPI)


    2. OLED Module: SOG12832B2-M091-4Pin (IIC)


    3. OLED Panel: SOG12832B1-P091 (14P/0.62)

    • Interface

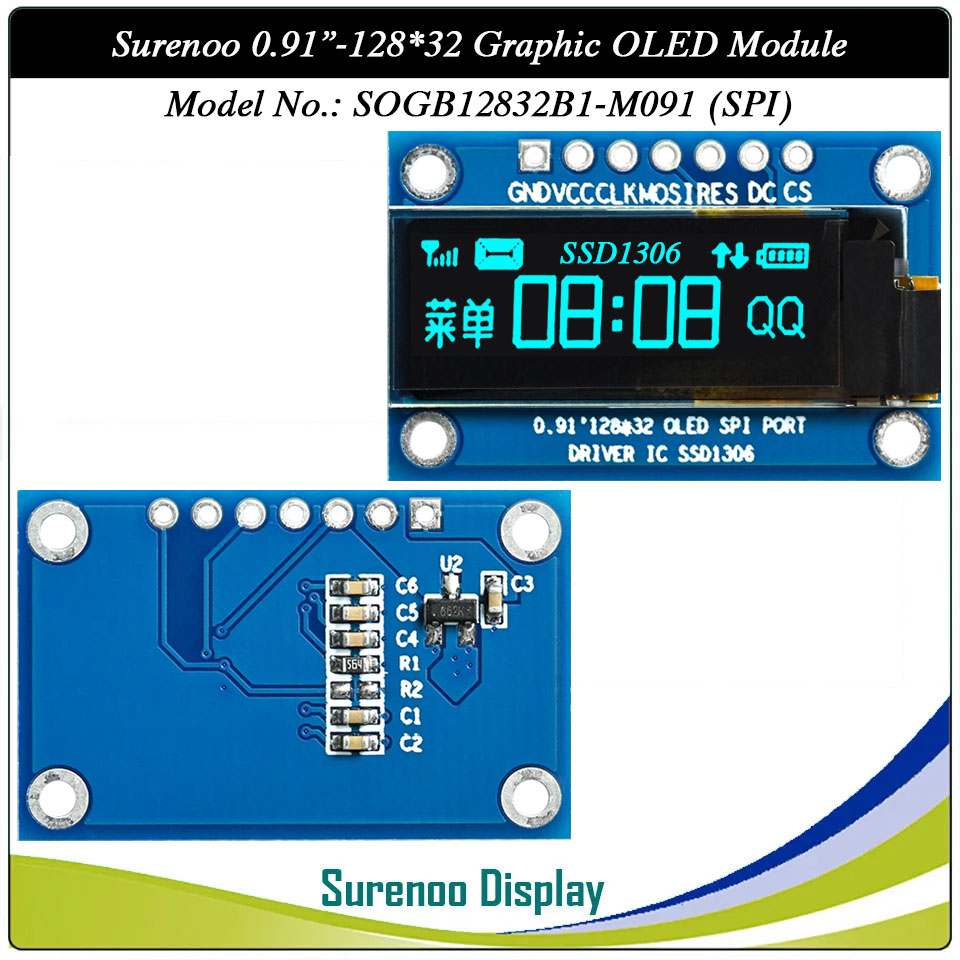

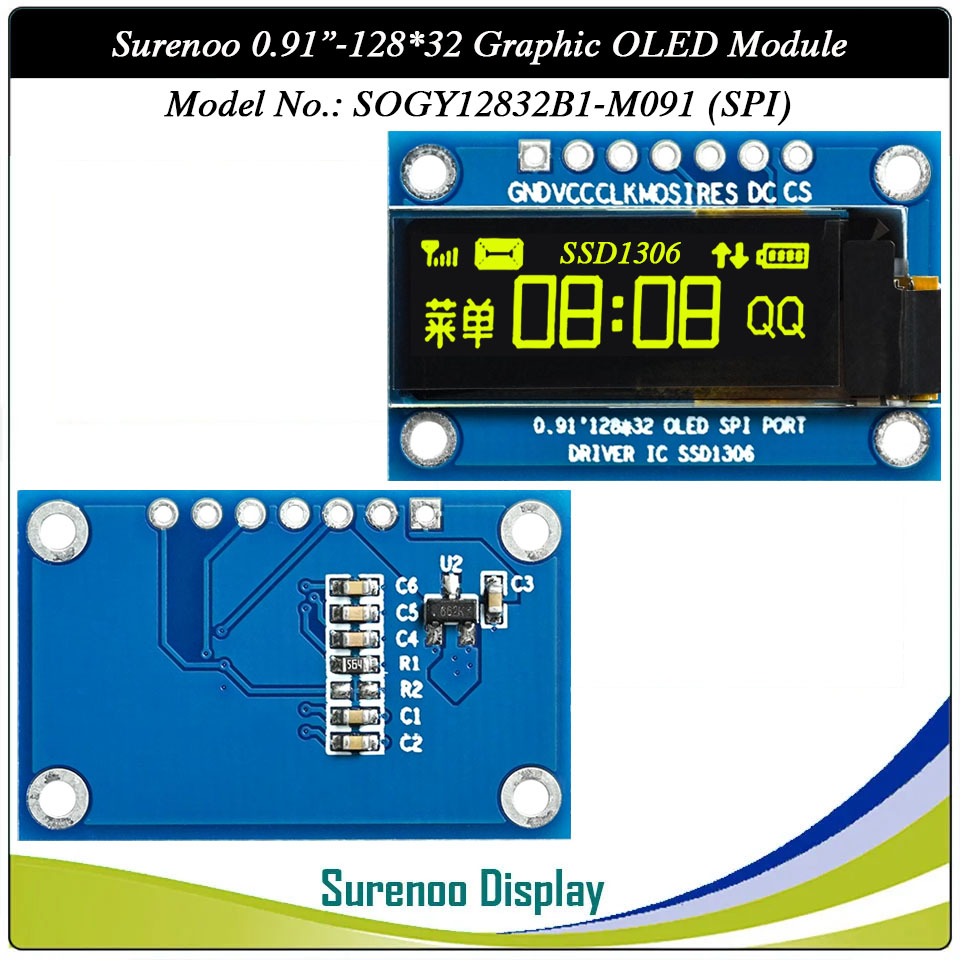

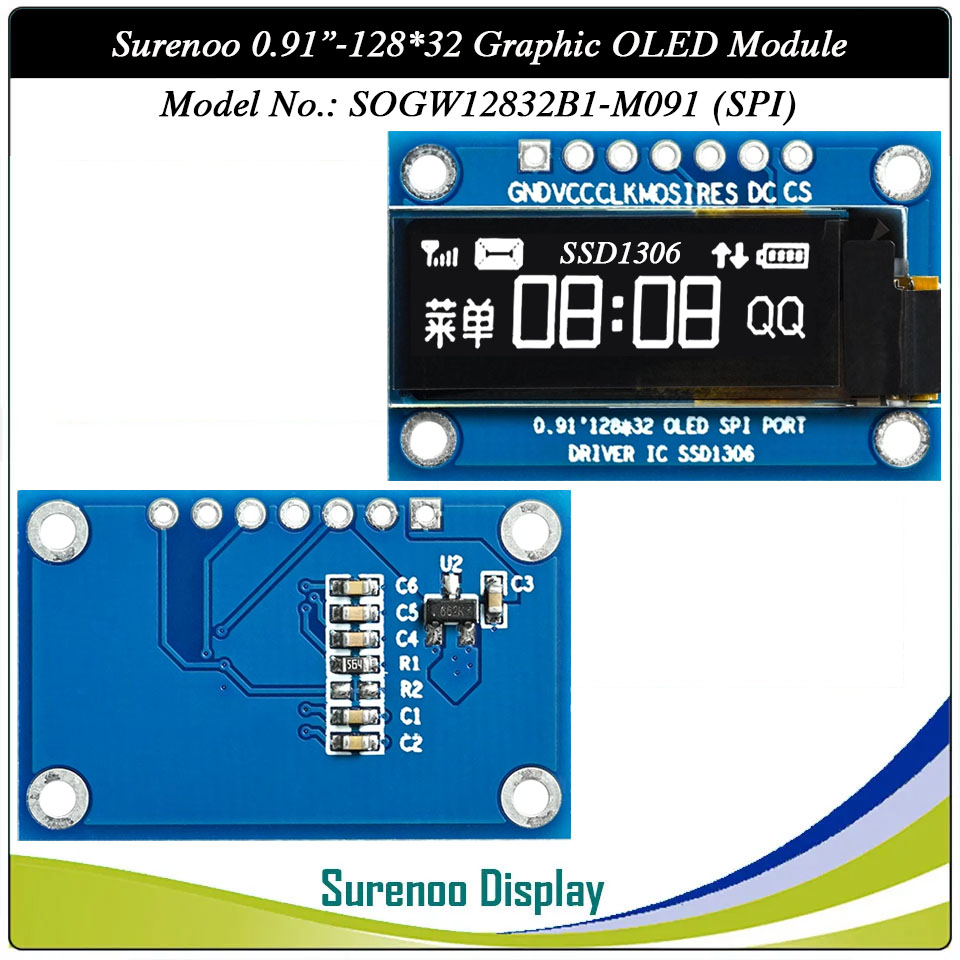

    1. OLED Module: SOG12832B1-M091-7Pin (SPI)
    Pin No. Pin Name Description
    1 GND Ground 0V
    2 VCC Power Supply for OLED
    3 SCL The Serial Clock Input SCL
    4 SDA The Serial Data Input SDA
    5 RES Power Reset for Controller and Driver
    6 DC Data/Command Control
    7 CS Chip Selection

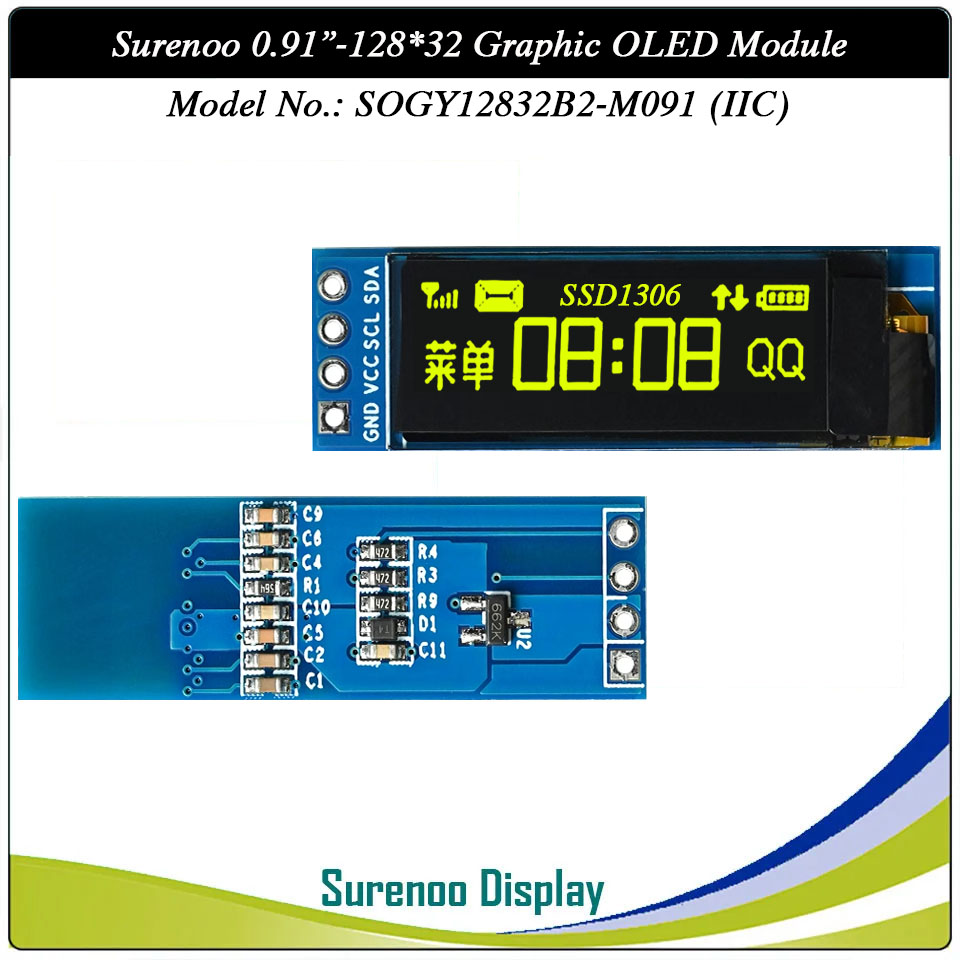

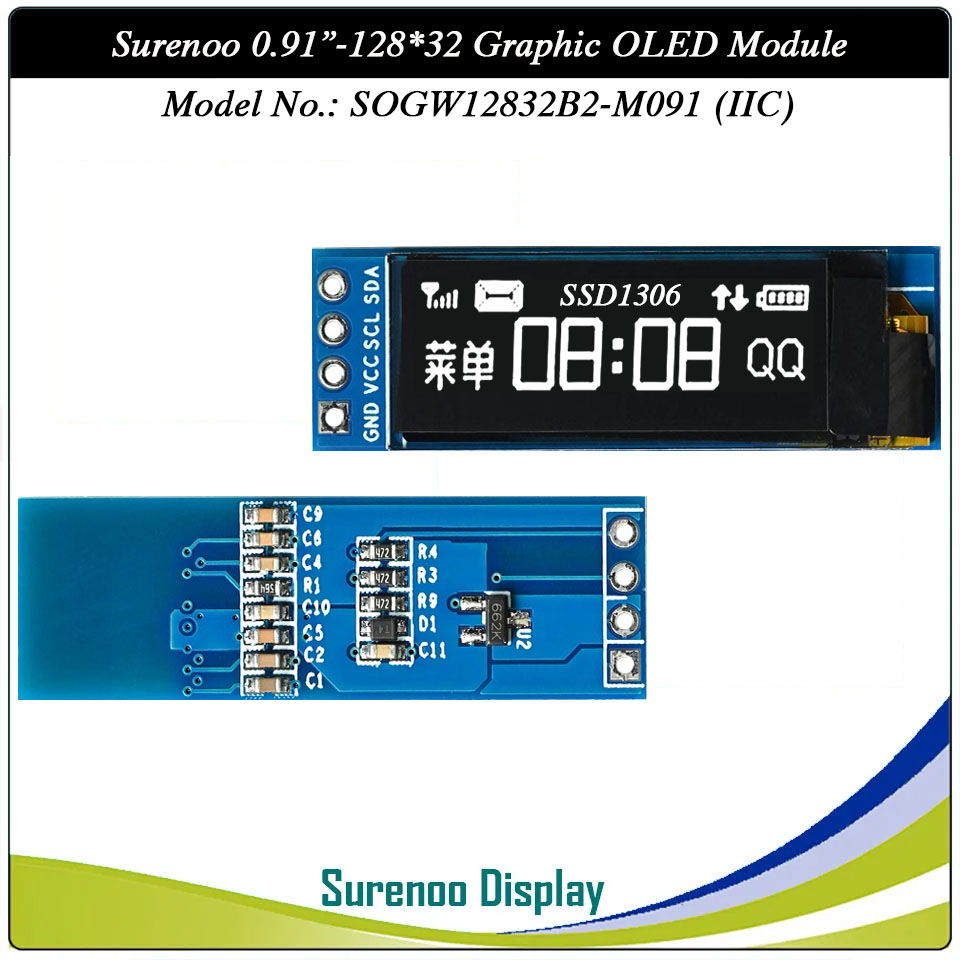

    2. OLED Module: SOG12832B2-M091-4Pin (IIC)
    Pin No. Pin Name Description
    1 GND Ground 0V
    2 VCC Power Supply for OLED
    3 SCL The Serial Clock Input SCL
    4 SDA The Serial Data Input SDA

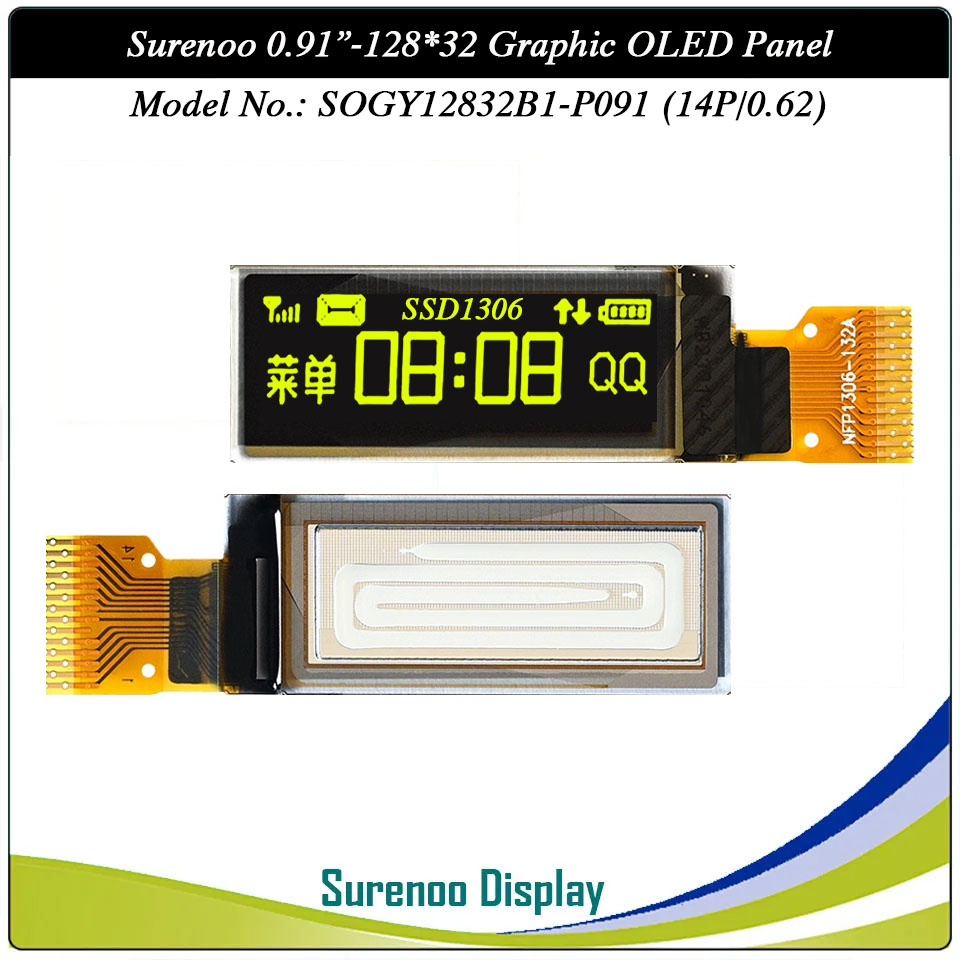

    3. OLED Panel: SOG12832A1-P091-14P/0.62
    PIN No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14
    Symbol C2P C2N C1P C1N  VBAT VBREF VSS VDD RES# SCL SDA IREF VCOMH VCC
    Please download the datasheet to get the detailed Pin description.
    • Documents
    No. Item File Name File Type ICON Date Description Mark
    1 Datasheet SOG12832B_M091 PDF 2013-03-17 Standard 128*32 Graphic OLED Module
    SOG12832B1_P091
    		 PDF 2013-03-17 Standard 128*32 Graphic OLED Panel
    2 Controller SSD1306 PDF 2008-09-24 SSD1306 is a COG Graphic 128*64 OLED Controller
