Surenoo COG OLED Module SOC2004B Outline=98.00X60.00MM Compatible Standard 2004 20*04 20X04 Character LCD Module Display Screen Panel 6800 4/8-Bit Parallel Serial SPI IIC I2C SSD1311 US2066 Controller

WISHLIST
Model No.: SOC2004B OLED
Display Format: 20X04 Characters
Outline: 98.00X60.00MM
Controller: SSD1311/US2066 or Equal
19 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Testing on Arduino DUE R3

    • Overview

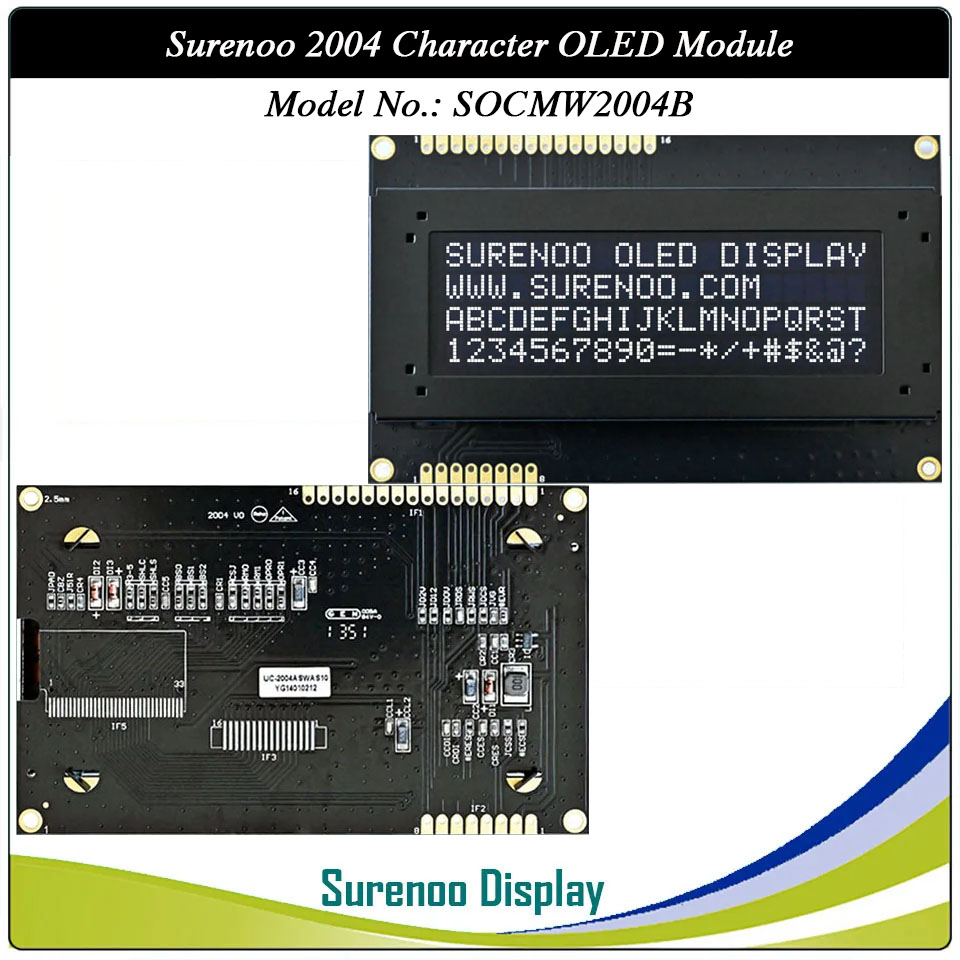

    SOC2004B is 20 Characters wide, 4 row Character OLED Module, SSD1311/US2066 controlle, 6800 8080 4/8-Bit Parallel & Serial SPI & Serial IIC MPU interface, wide operating temperature range, RoHS Compliant, It's 5.0V power supply.

    SSD1311/US2066 Buil-in character set supports English/Japanese, West European, Scandinavian European, and Cyrillic (Russian), see the US2066 datasheet for the full character set.

    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.080Kg
    Manufacturer Surenoo
    Display Type Character OLED Module
    Continuity Supply More than 10 years
    Part No. SOC2004B
    Display Format 20x4 Characters
    Interface 6800 8080 4/8-Bit Parallel, Serial SPI, Serial IIC
    IC or Equivalent SSD1311/US2066 or Equal
    Fonts English/Japanese, West European, Scandinavian European, and Cyrillic (Russian)
    Voltage(Type) 3.3-5.0V
    Connection 1*16P/2.54 Pin Header
    Outline Dimension 98.00(W)x60.00(H)x13.60(T)mm
    Visual Area 76.00x24.20mm
    Active Area
    		 70.42x20.82mm
    Display Type PM-OLED Panel

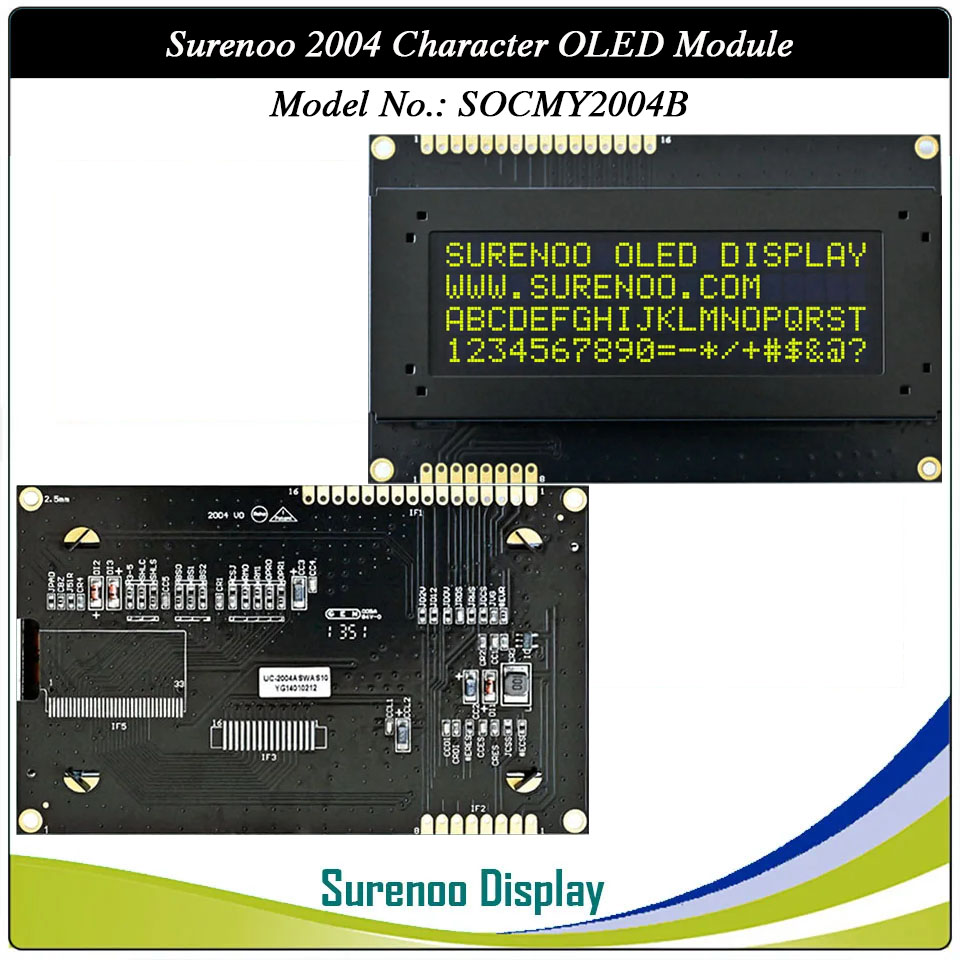

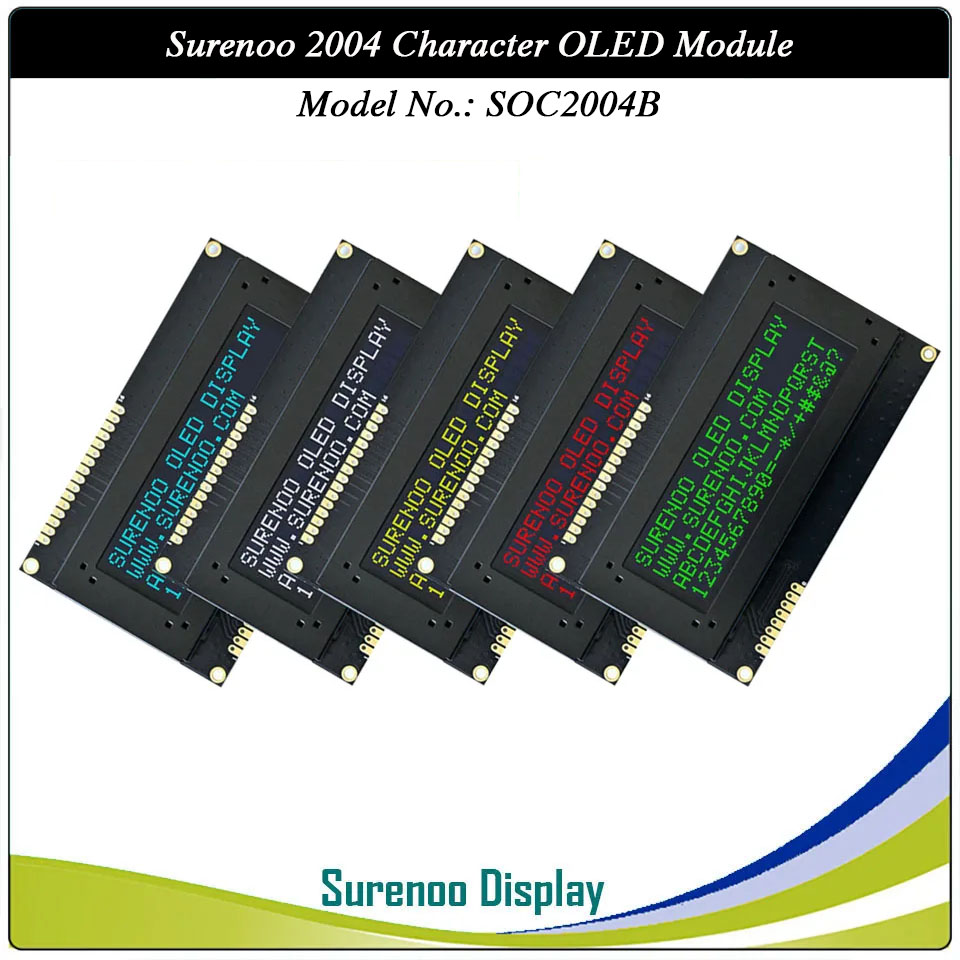

    Colors Code White(SOCW) / Yellow(SOCY) / Green(SOCG) / Blue(SOCB) / Red(SOCR)
    IC Package COG
    Viewing Direction Full Viewing Angle
    Operating Temperature
    -40℃~80℃
    Storage Temperature
    -40℃~80℃
    • Outline Drawing

    • Interface
    1. Parallel Interface (default)
    Pin No. Pin Name Description
    1 VSS Ground 0V
    2 VDD Power Supply for LCD (5.0V)
    3 NC No Connection
    4 RS Data / Instruction Register Select (H: Data Signal, L: Instruction Signal)
    5 R/W Read / Write (H: Read Mode, L: Write Mode)
    6 E Enable Signal
    7-14 DB0-DB7 Data Bus
    15 NC No Connection
    16 NC No Connection

    2. How to use Serial SPI Interface on Arduino UNO/MEGA2560/DUE?

    3. How to use Serial IIC Interface on Arduino UNO/MEGA2560/DUE?

    4. How to use Serial IIC Interface on Raspberry Pi?

    • Documents
    No. Item File Name File Type ICON Date Description Mark
    1 Datasheet SOC2004B PDF 2013-03-17 Standard 2004 Character OLED Module, Compatible 2004 LCD Module
    2 Controller SSD1311
    US2066    		 PDF 2008-09-24 US2066 Character OLED Controller, Compatible with SPC780, ST7066, HD44780, ......, Support Serial SPI
