Surenoo OLED Module SOC2004A Outline=98.00X60.00MM Compatible Standard 2004 20*04 20X04 Character LCD Module Display Screen Panel 6800 4/8-bit Parallel Serial SPI WS0010 Controller

WISHLIST
Model No.: SOC2004A OLED
Display Format: 20X04 Characters
Outline: 98.00X60.00MM
Controller: WS0010 or Equal
85 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview

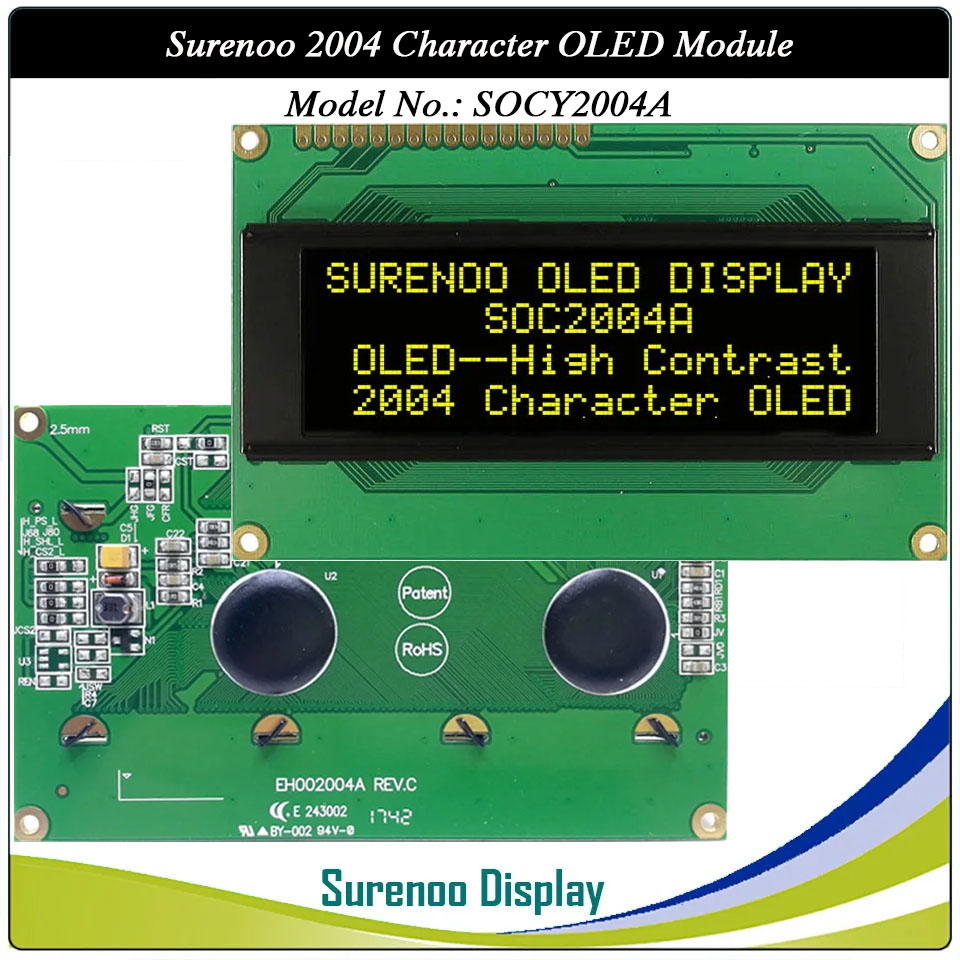

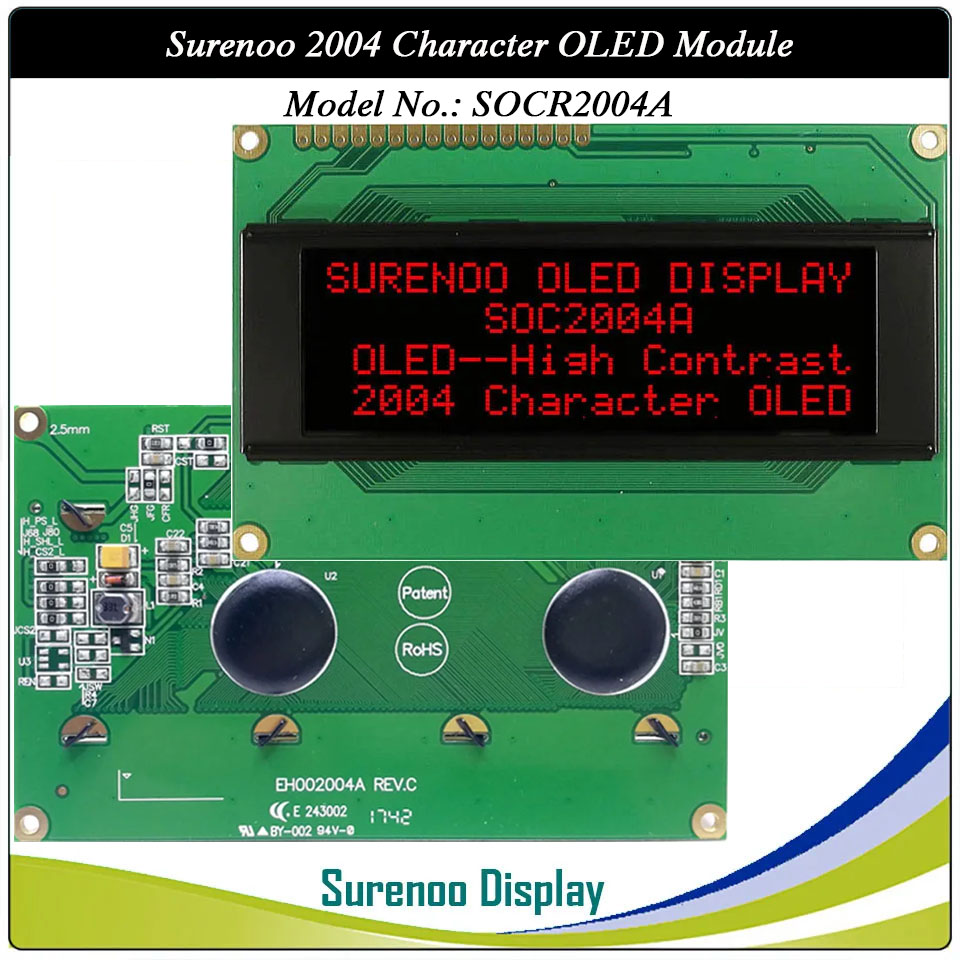

    SOC2004A is 20 Characters wide, 4 row Character OLED Module, WS0010 controller (Industry-standard HD44780 compatible controller), 6800 4/8-Bit Parallel & Serial SPI MPU interface, wide operating temperature range, RoHS Compliant, It's 3.3-5.0V power supply.

    WS0010 Buil-in character set supports English/Japanese, West European, Scandinavian European, and Cyrillic (Russian), see the WS0010 datasheet for the full character set.

    It's easily controlled by MCU such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.080Kg
    Manufacturer Surenoo
    Display Type Character OLED Module
    Continuity Supply More than 10 years
    Part No. SOC2004A
    Display Format 20x2 Characters
    Interface 6800 4/8-bit Parallel, Serial SPI, Serial IIC
    IC or Equivalent WS0010 or Equal
    Fonts English/Japanese, West European, Scandinavian European, and Cyrillic (Russian)
    Voltage(Type) 3.3-5.0V
    Connection 1*16P/2.54 Pin Header
    Outline Dimension 98.00(W)x60.00(H)x10.00(T)mm
    Visual Area 77.00x25.20mm
    Active Area
    		 70.16x20.95mm
    Display Type PM-OLED Panel

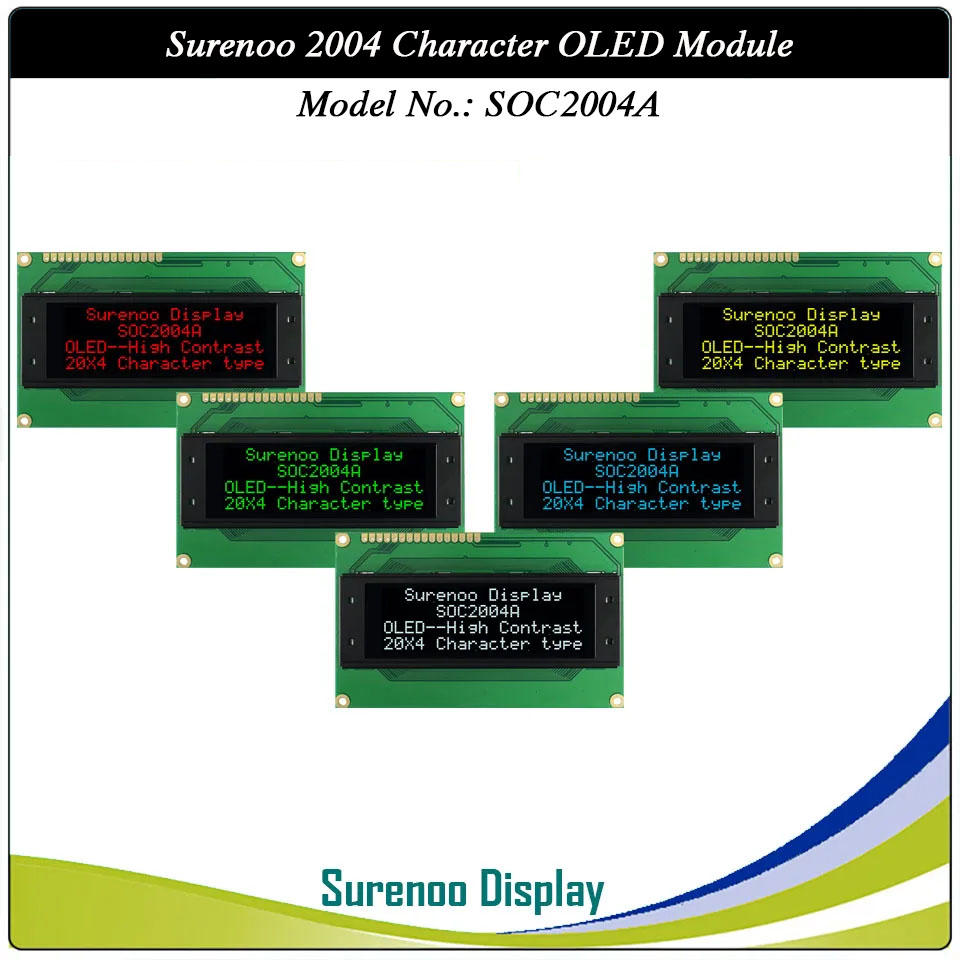

    Colors Code White(SOCW) / Yellow(SOCY) / Green(SOCG) / Blue(SOCB) / Red(SOCR)
    IC Package COB
    Viewing Direction Full Viewing Angle
    Operating Temperature
    -40℃~80℃
    Storage Temperature
    -40℃~80℃
    • Outline Drawing

    • Interface
    1. Parallel Interface (default)
    Pin No. Pin Name Description
    1 VSS Ground 0V
    2 VDD Power Supply for LCD
    3 NC No Connection
    4 RS Data / Instruction Register Select (H: Data Signal, L: Instruction Signal)
    5 R/W Read / Write (H: Read Mode, L: Write Mode)
    6 E Enable Signal
    7-14 DB0-DB7 Data Bus
    15 NC No Connection
    16 NC No Connection

    2. Serial Interface
    Pin No. Pin Name Description
    1 VSS Ground 0V
    2 VDD Power Supply for LCD
    3-11 NC No Connection
    12 SCL Serial Clock Signal
    13 SDO Serial Data Output Signal
    14 SDI Serial Data Input Signal
    15 NC No Connection
    16 CS Chip Select signal, Low Active

    3. Jumper Selection
    MPU Interface L_PS_H J80_J68 L_CS_H JCS L_SHL_H
    6800-MPU Parallel (default) H J68 L X H
    8080-MPU Parallel H J80 L X H
    Serial MPU L X OPEN SHORT H
    X = Don’t care
    • Documents
    No. Item File Name File Type ICON Date Description Mark
    1 Datasheet SOC2004A PDF 2013-03-17 Standard 2004 Character OLED Module, Compatible 2004 LCD Module
    2 Controller WS0010 PDF 2008-09-24 WS0010 Character OLED Controller, Compatible with SPC780, ST7066, HD44780, ......, Support Serial SPI
    3 Accessory

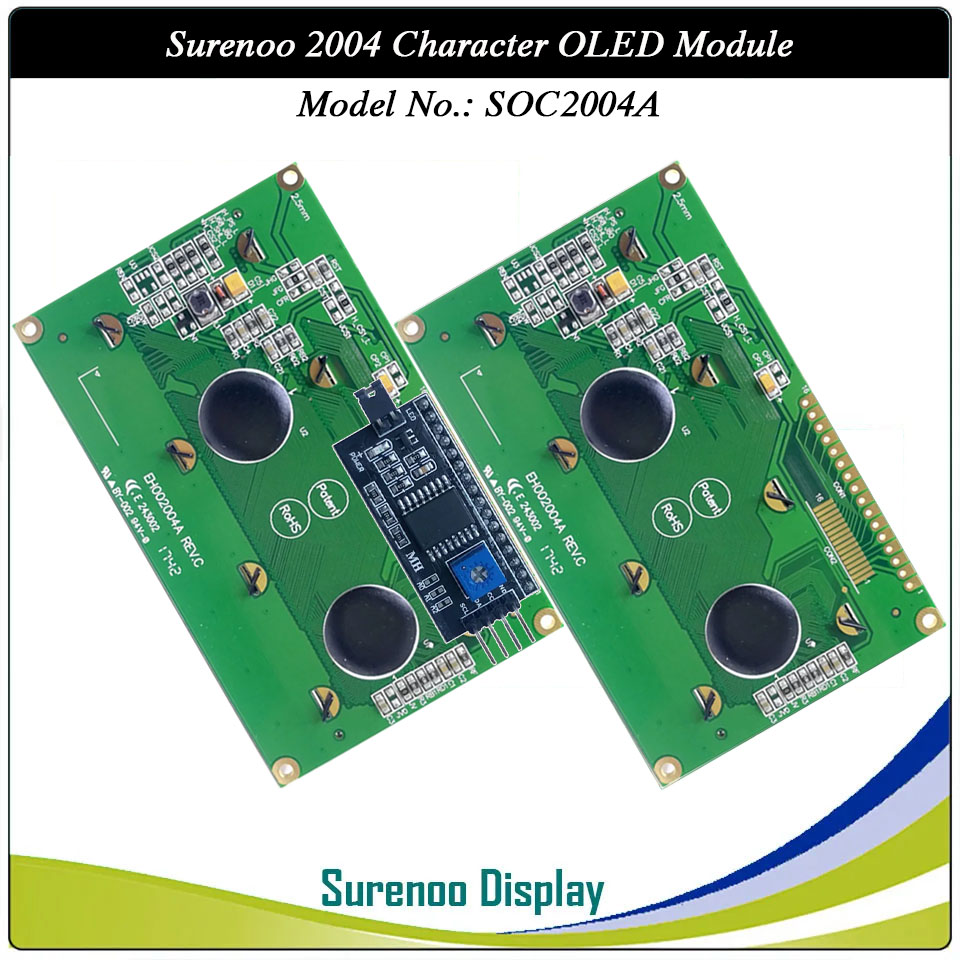

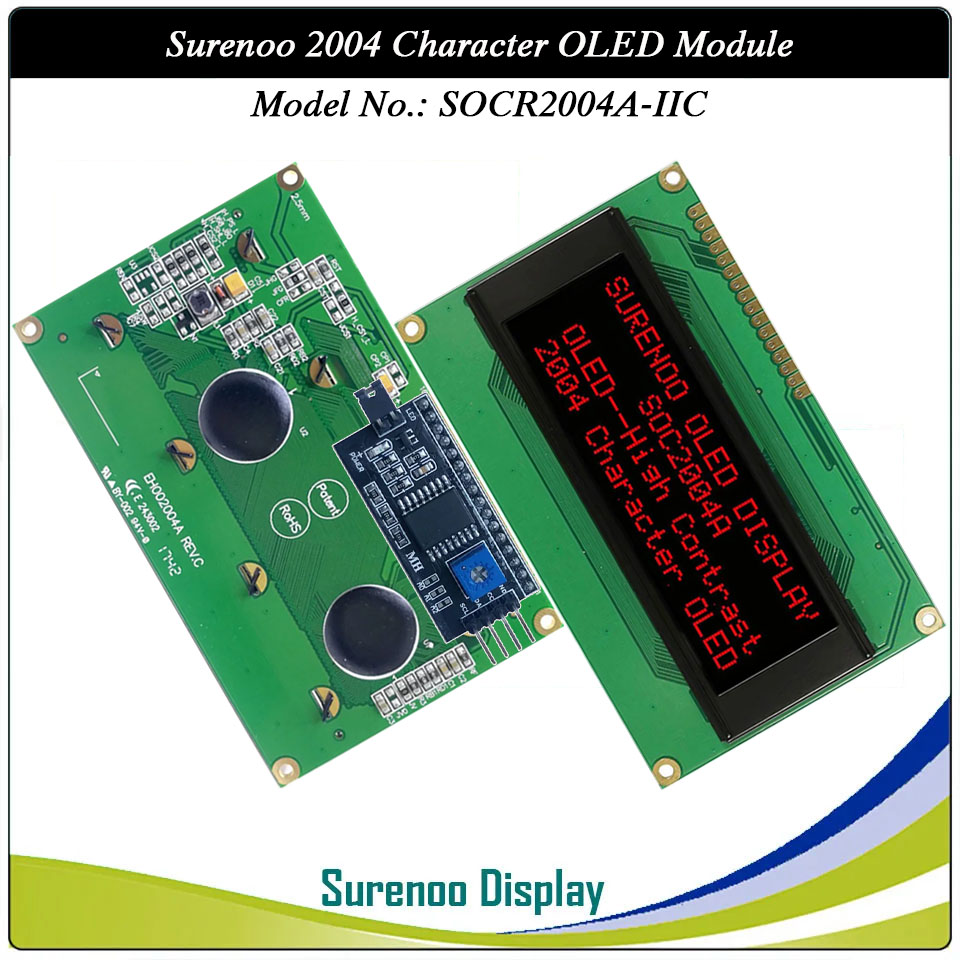

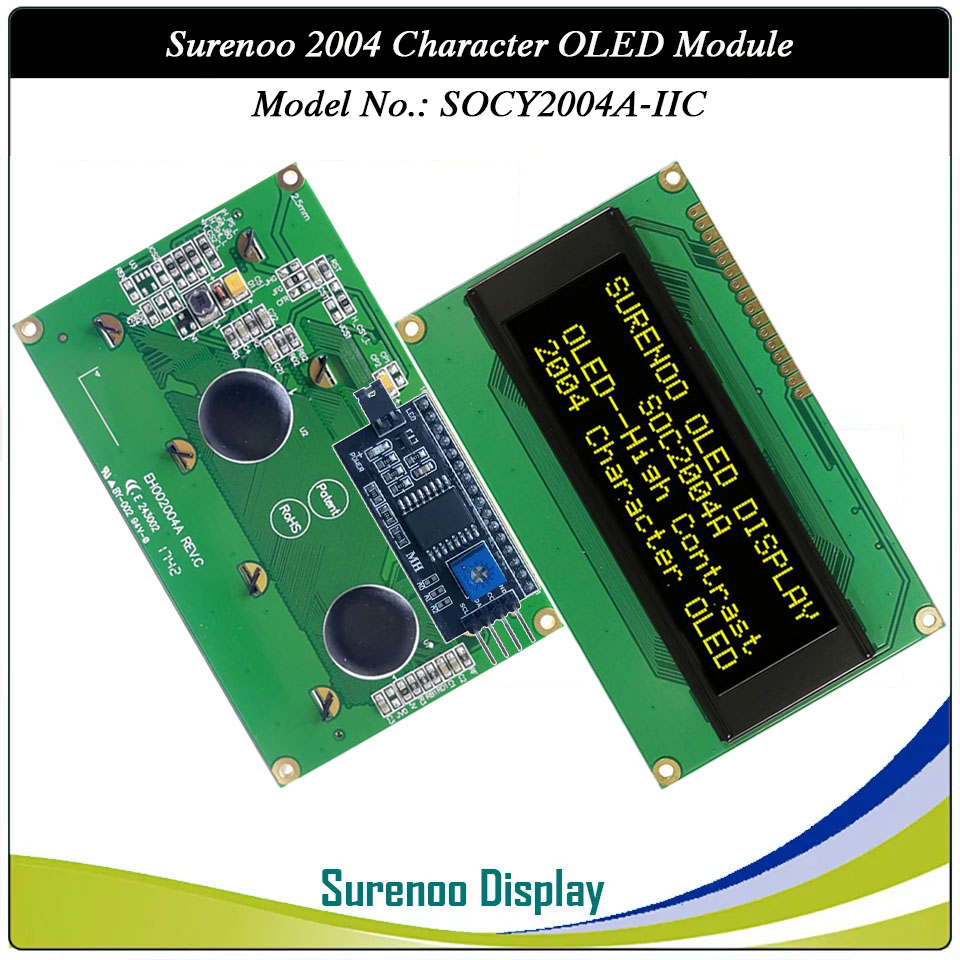

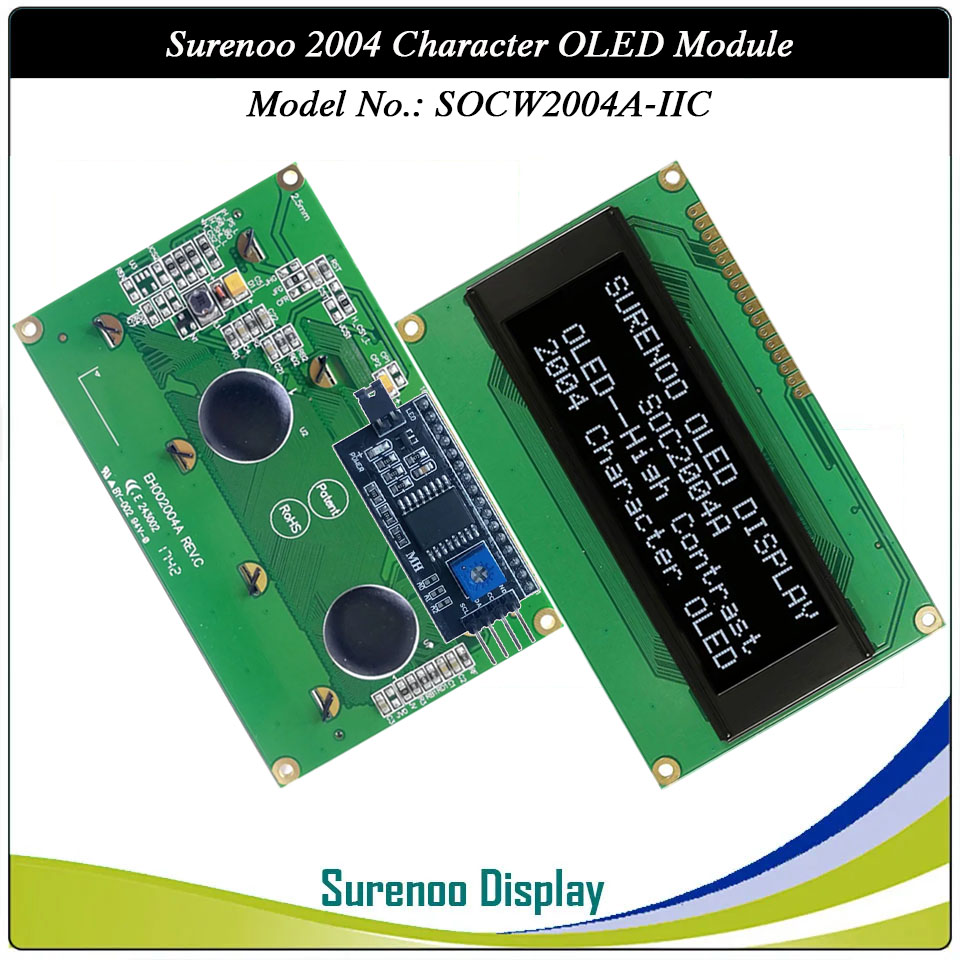

    (PCF8574T IIC Module)    		 PCF8574T IIC Module PDF 2011-02-09 1*16 and 2*8 Pin valid for Standard 0801, 0802, 1601, 1602, 1604, 2002, 2004, 2402, 4002 Character LCD Module
    4 51 Library 51 Library TXT 2006-09-11 STC86S52 6800 4/8-Bit Parallel Library
    5 IIC Library IIC Library ZIP 2009-07-19 Surenoo IIC Library for PCT8574T, AIP31068, RW1063, ST7032i to work on Arduino test Board
