SLG12864I Outline=53.50X46.50MM 2.2" 12864 128X64 Surenoo COG Graphic LCD Module Display Screen Panel ST7567 Controller Serial SPI STN Yellow Green STN Blue Negative D-FSTN Negative White LED Backlight for MCU 8051 PIC AVR ARM Arduino

WISHLIST
Model No.: SLG12864I (2.2" COG)
Display Format: 128*64 Dots
Outline Size: 53.50X46.50MM
Controller: ST7567 or Equal
16 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview

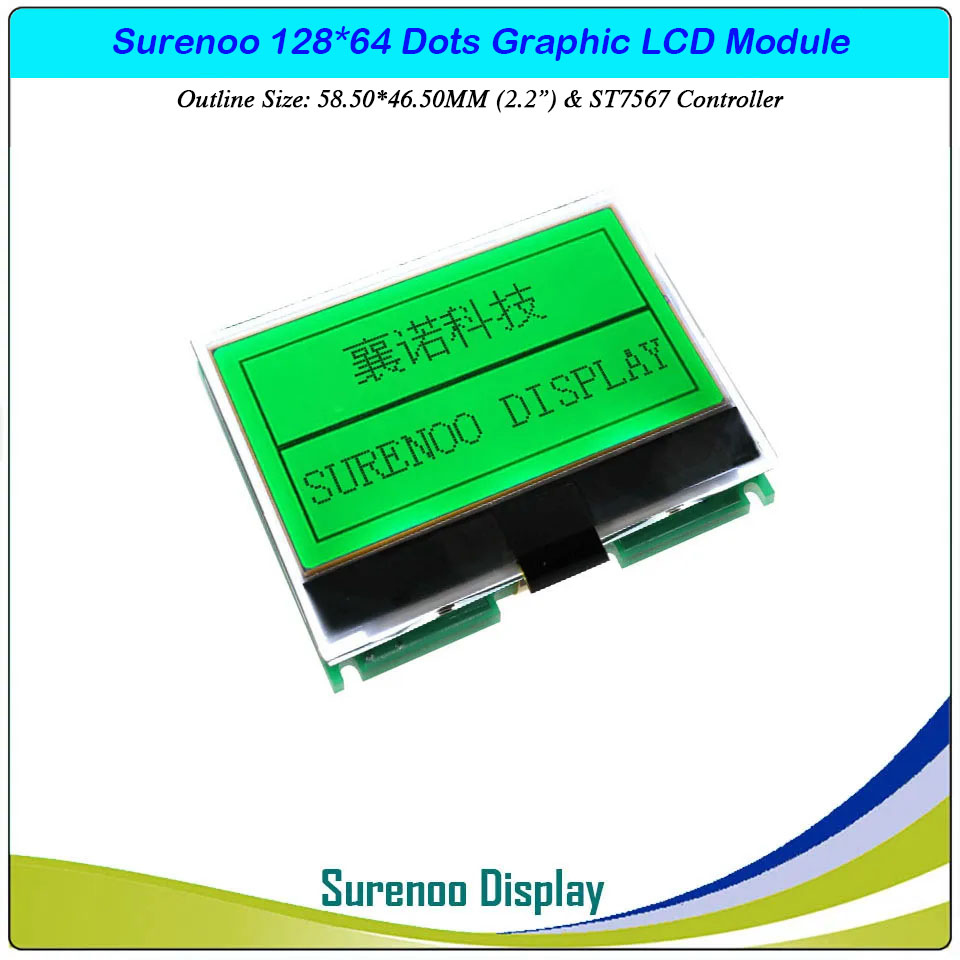

    SLG12864I is a 2.2" 128*64 COG Monochrome Graphic LCD Module, ST7567 Controller standard 13P/2.54 12864 COG Graphic LCD Module.

    SLG12864I supprot Serial SPI interface, wide operating temperature range, rohs compliant. 3.3V power supply in default.

    It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.060Kg
    Manufacturer Surenoo
    Display Type Graphic LCD Module
    Continuity Supply More than 10 years
    Part No. SLG12864I (2.2")
    Display Format 128*64 Dots
    Interface Serial SPI
    IC or Equivalent ST7567 or Equal
    Voltage 3.3V in default
    Connection 1X13P/2.54 Pin Header
    Outline Dimension 58.50(W)x46.50(H)x5.00(T)mm
    Visual Area 53.60x28.60mm
    Active Area 48.61x24.93mm

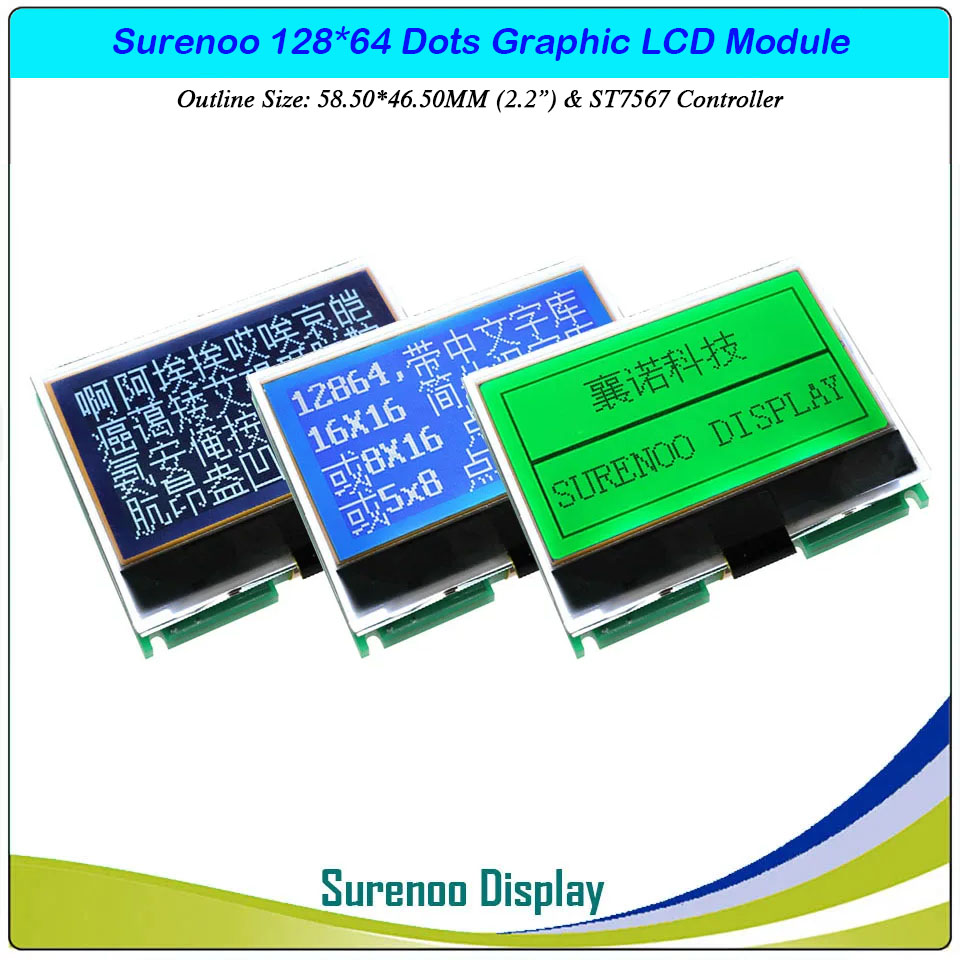

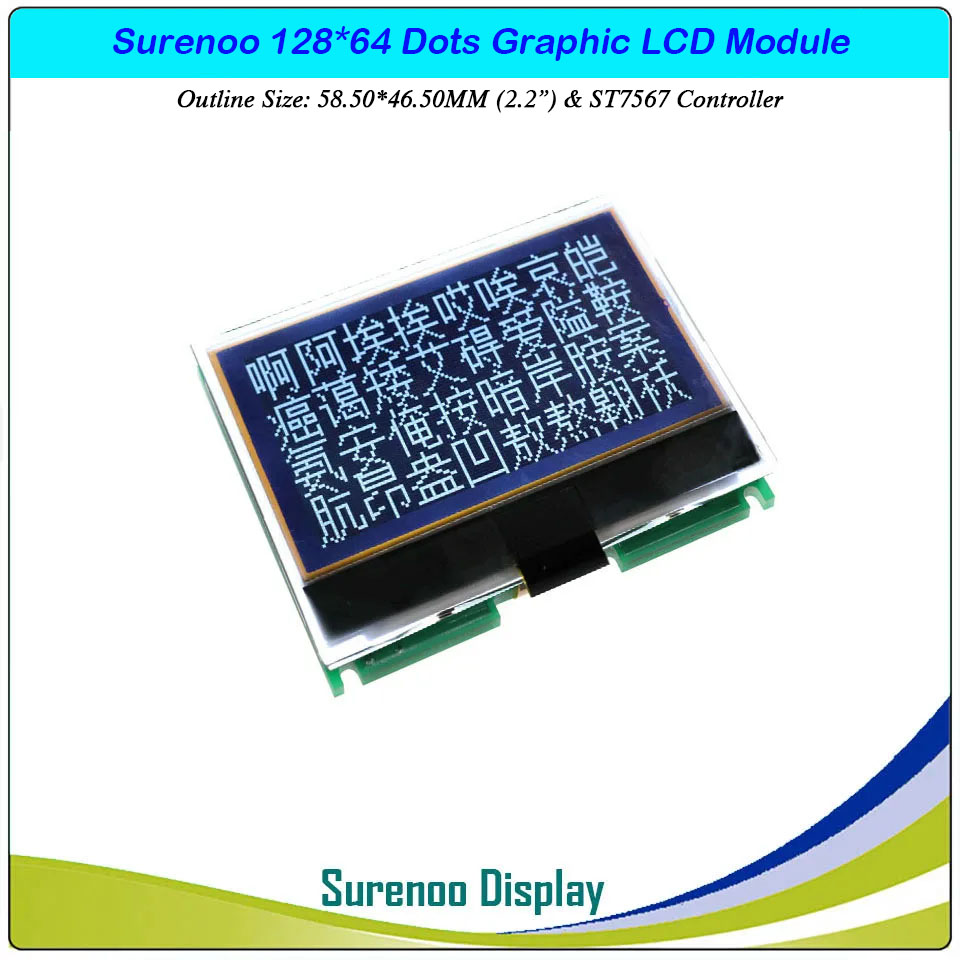

    Display Type STN Yellow Green, STN Blue Negative, D-FSTN Negative
    Backlight Type (LED) Green, White
    IC Package COG
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃
    • Outline Drawing

    • Interface

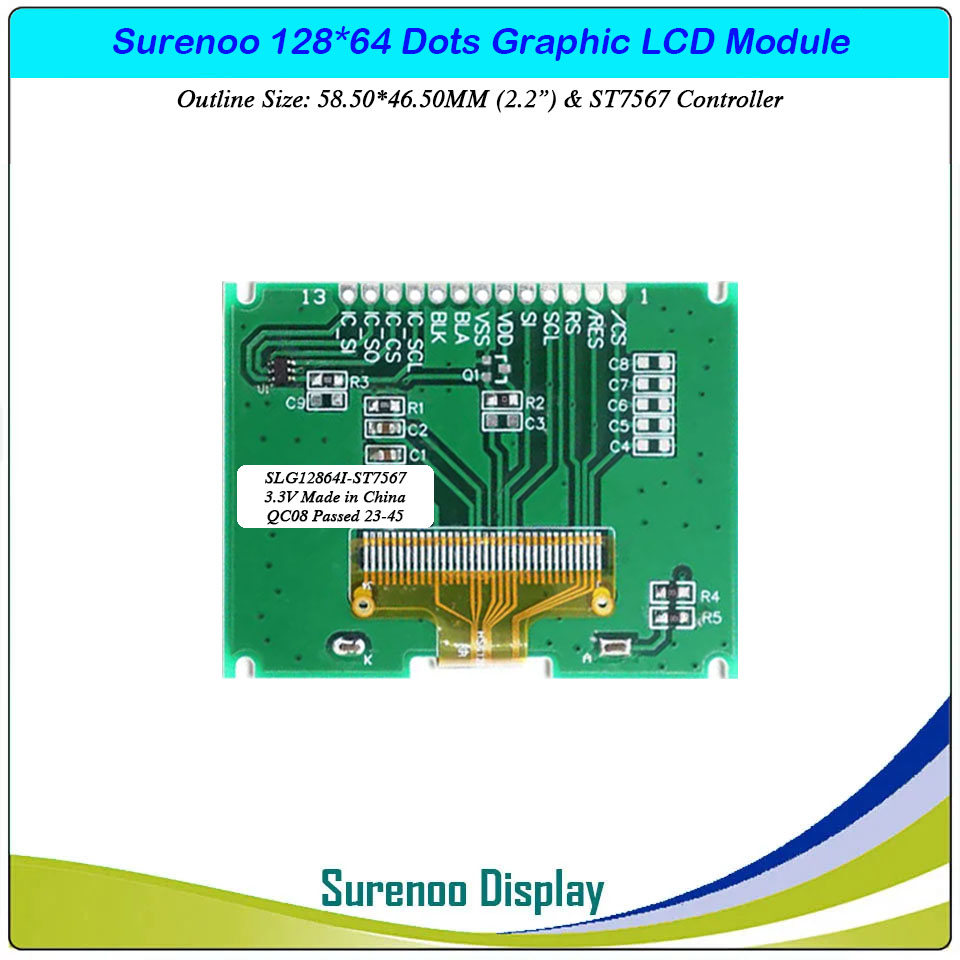

    Pin No. Symbol Description
    1 CS
    		 Chip select input pin. Interface access is enabled when CSB is “L”.
    2 RST Hardware reset input pin. When RSTB is “L”, internal initialization is executed and the internal registers will be initialized.
    3 CD
    		 Select Control data or Display data for read/write operation. CD=“H”: Display Data. CD=“L”: Control Data.
    4 SCK
    		 Serial Clock Input
    5 SDA Serial Data Input
    6 VDD Power Supply  (3.3V)
    7 GND Ground
    8 BLA Backlight Anode
    9 BLK Backlight Cathode
    10 ROM_SCK
    		 GT20L16S1Y: Serial Clock Input
    11 ROM_CS GT20L16S1Y: Chip Enable Input
    12 ROM_SDO
    		 GT20L16S1Y: Serial Data Output
    13 ROM_SDI
    		 GT20L16S1Y: Serial Data Input
    • Documents
    No. Item Document Name File Type ICON Date Description Mark
    1 Datasheet 128X64 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 12864 Graphic LCD Module
    2 Controller Controller IC ST7567 Datasheet PDF 2008-09-24 Graphic LCD Controller: ST7567
