SLG12864L Outline=87.00X57.00MM 2.9" 12864 128X64 Surenoo COG Graphic LCD Module Display Screen Panel 8080 MPU Parallel Serial SPI ST7565P Controller STN Yellow Green Blue Negative FSTN Positive White LED Backlight for MCU 8051 PIC AVR ARM Arduino
SLG12864L Outline=87.00X57.00MM 2.9" 12864 128X64 Surenoo COG Graphic LCD Module Display Screen Panel 8080 MPU Parallel Serial SPI ST7565P Controller STN Yellow Green Blue Negative FSTN Positive White LED Backlight for MCU 8051 PIC AVR ARM Arduino
WISHLIST
Model No.: SLG12864L (2.9" COG)
Display Format: 128*64 Dots
Outline Size: 87.00X57.00MM
Controller: ST7565P or Equal
Display Format: 128*64 Dots
Outline Size: 87.00X57.00MM
Controller: ST7565P or Equal
17 sold
Quantity
-
Detail
- Overview

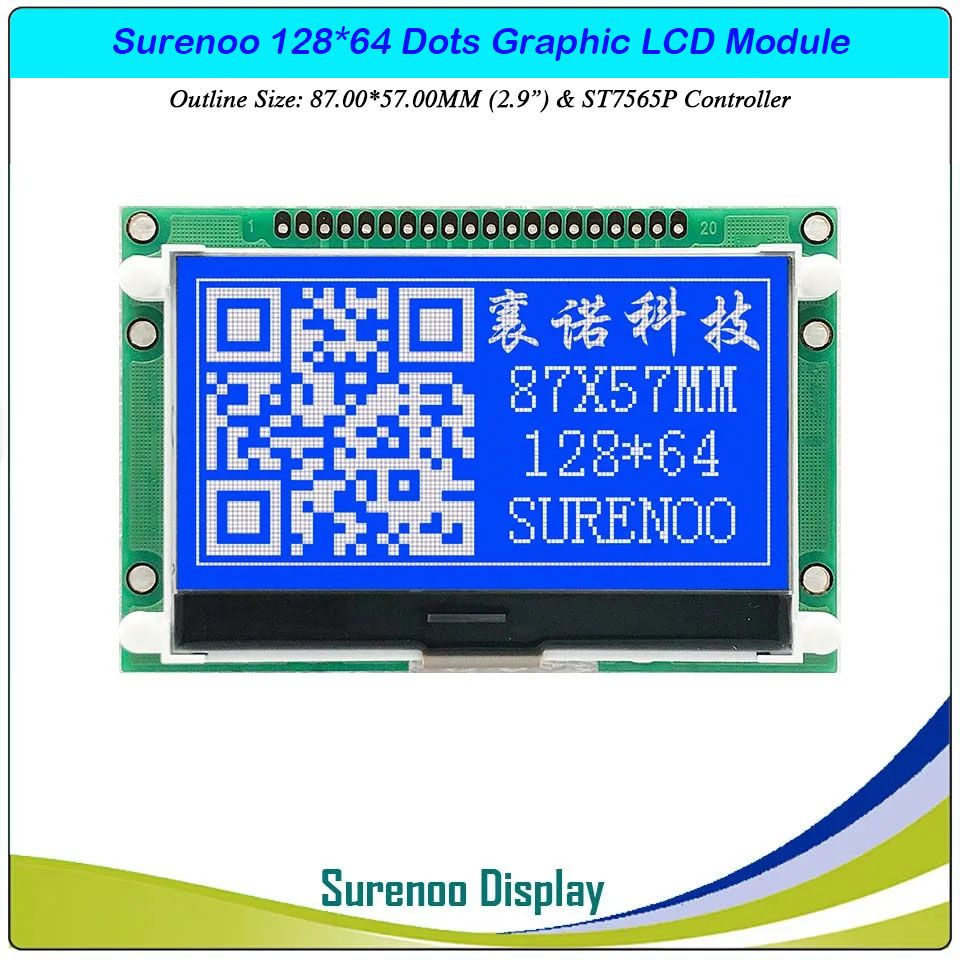

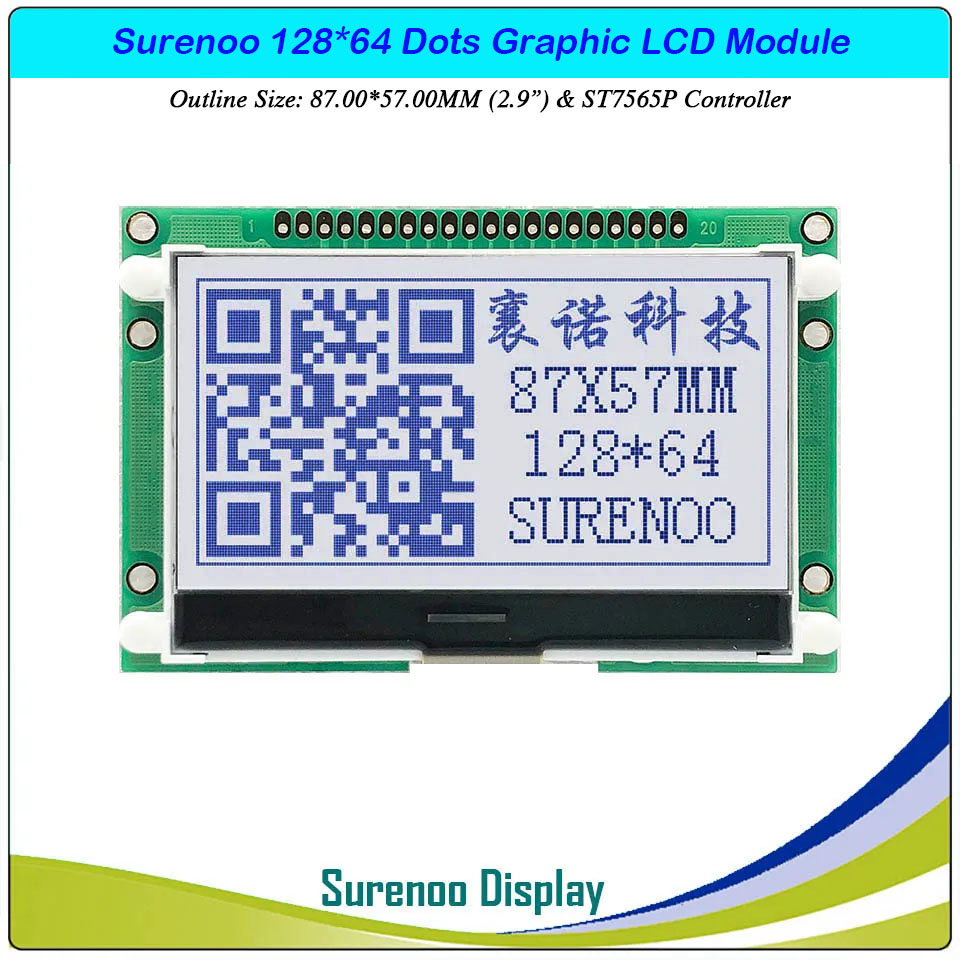

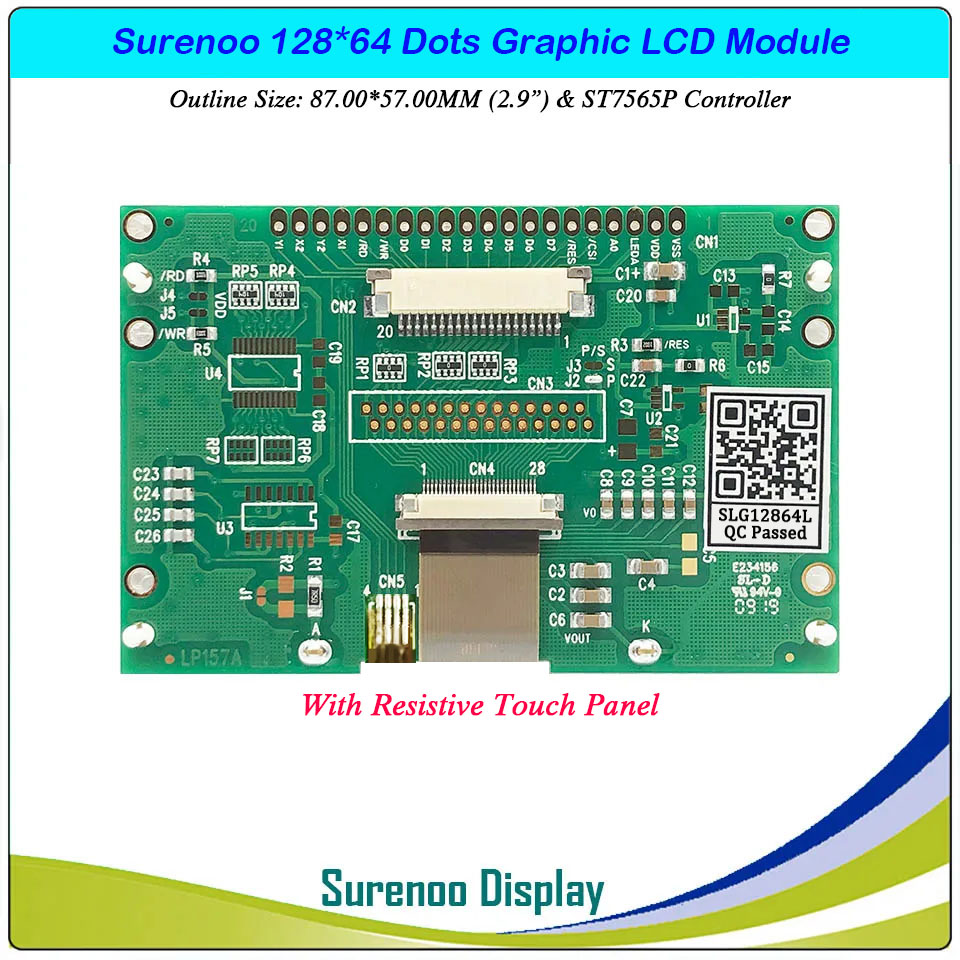

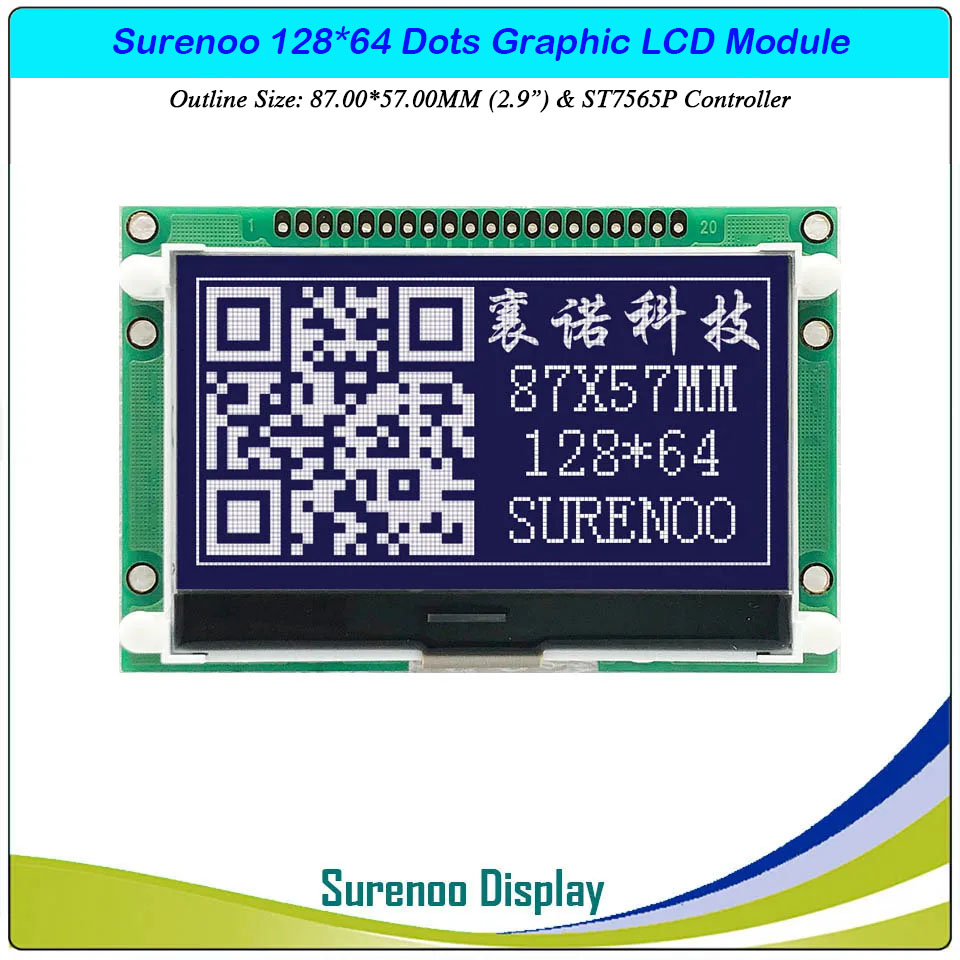

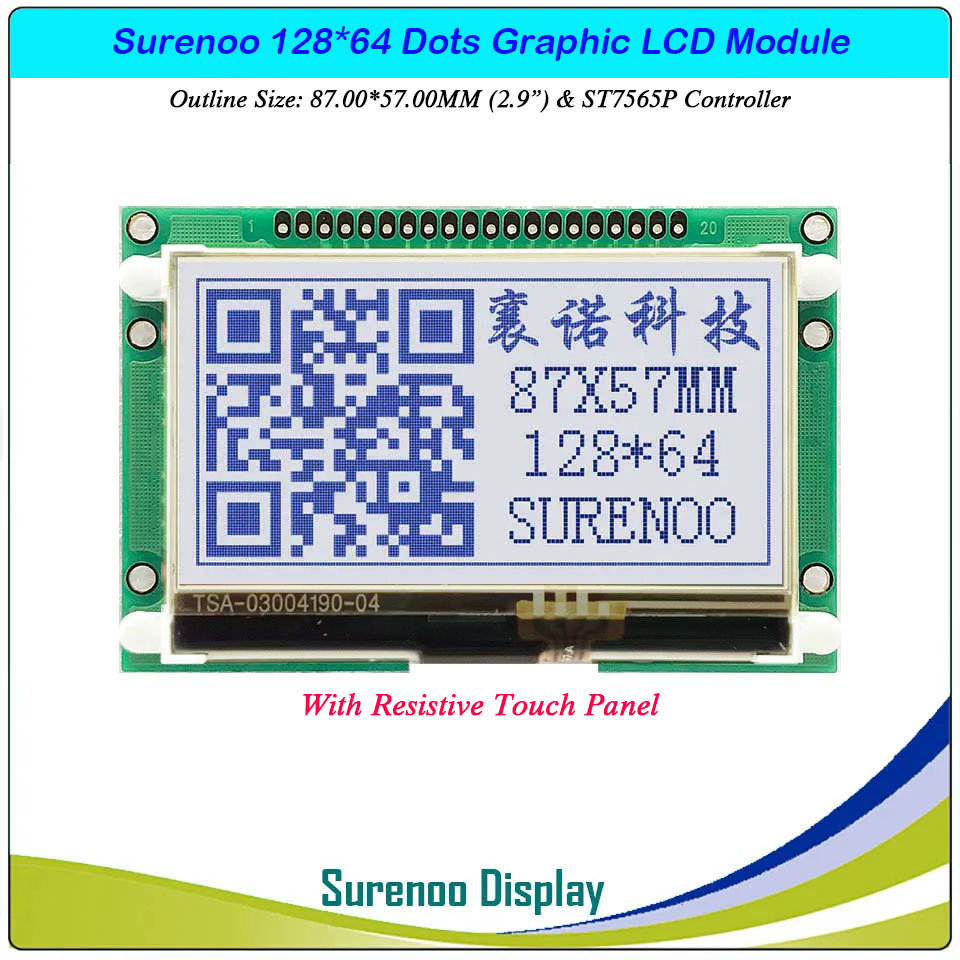

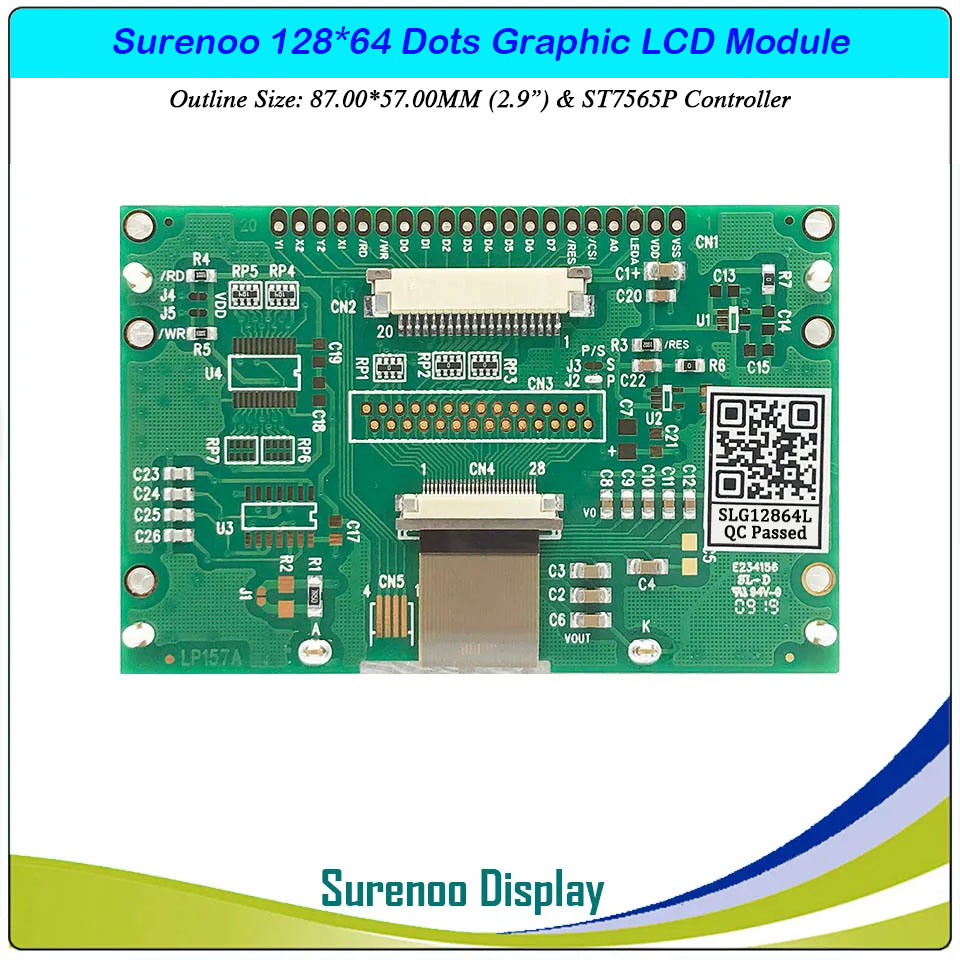

SLG12864L is a 2.9" 128*64 COG Monochrome Graphic LCD Module, ST7565P Controller standard 20P/2.54 Pin Header 12864 COG Graphic LCD Module.
SLG12864L supprot 8080 8-Bit Parallel or Serial SPI interface, wide operating temperature range, rohs compliant. 3.3V power supply in default.It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.- Specification

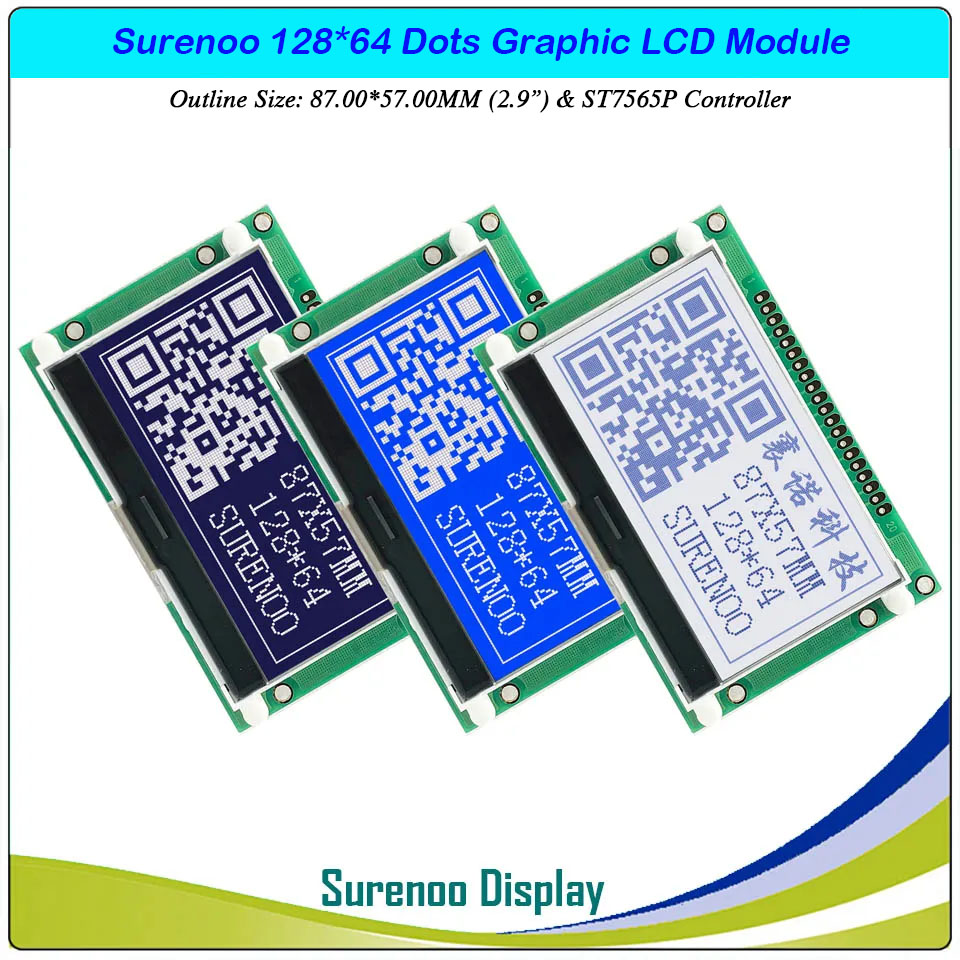

Gross Weight 0.080Kg Manufacturer Surenoo Display Type Graphic LCD Module Continuity Supply More than 10 years Part No. SLG12864L (2.9") Display Format 128*64 Dots Interface 8080 8-Bit Parallell, Serial SPI IC or Equivalent ST7565P or Equal Voltage 3.3V in default Connection 1X20P/2.54 Pin Header Outline Dimension 87.00(W)x57.00(H)x9.50(T)mm Visual Area 70.00x37.00mm Active Area 65.265x32.625mm Display Type STN Blue Negative, FSTN Positive, D-FSTN Negative Backlight Type (LED) White IC Package COG Viewing Direction 6:00 O'Clock Operating Temperature-20℃~70℃Storage Temperature-30℃~80℃- Outline Drawing
- Interface
Pin No. Symbol Level Description 1 VSS 0V Ground 2 VDD 3.3V Power Supply for Logic (3.3V) 3 LEDA 3.3V Power Supply for LED Backlight (3.3V) 4 A0 H/L A0=“H”: Display data, A0=“L”: Instruction Code. 5 CS1 L Chip Select Signal, Active "L". 6 RST L Reset Singal, Active "L". 7 D7(SI) H/L When P/S=“H” (Parallel interface mode):
D0 to D7 are 8-bit bi-directional data bus.
When P/S=“L” (Serial interface mode):
D7 is serial data input (SI).
D6 is serial clock input (SCL).
Serial interface mode does not support read operation8 D6(SCL) H/L 9 D5 H/L 10 D4 H/L 11 D3 H/L 12 D2 H/L 13 D1 H/L 14 D0 H/L 15 /WR L /WR signal for 8080 series MPU. Write data at rising edge of /WR. 16 /RD L /RD signal for 8080 series MPU. Read data when /RD is “L”. 17 X1/NC - RTP: Touch Position / NTP: No Connection 18 Y2/NC - RTP: Touch Position / NTP: No Connection 19 X2/NC - RTP: Touch Position / NTP: No Connection 20 Y1/NC - RTP: Touch Position / NTP: No Connection Note: D0 to D5, /RD and /WR signals are pulled to VDD by on-board 100KΩ resistors. These terminals can be kept open in serial interface mode.
Select Parallel or Serial Interface by Jumpers
J2 J3 P/S Level MPU Interface Mode Close Open H 8080 8-bit parallel interface <Default> Open Close L Serial interface (4-wire SPI) Open Open Float Not allowed Close Close - Not allowed - Documents
No. Item Document Name File Type ICON Date Description Mark 1 Datasheet 128X64 Graphic LCD Module Datasheet PDF
2013-03-17 Standard 12864 Graphic LCD Module 2 Controller Controller IC ST7565P Datasheet PDF 2008-09-24 Graphic LCD Controller: ST7565P -
