Model No.: SLG320240E (3.8")
Display Format: 320*240 Dots
Outline Size: 99.50X71.75MM
Controller: S1D13700 or Equal / Without Controller
26 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview

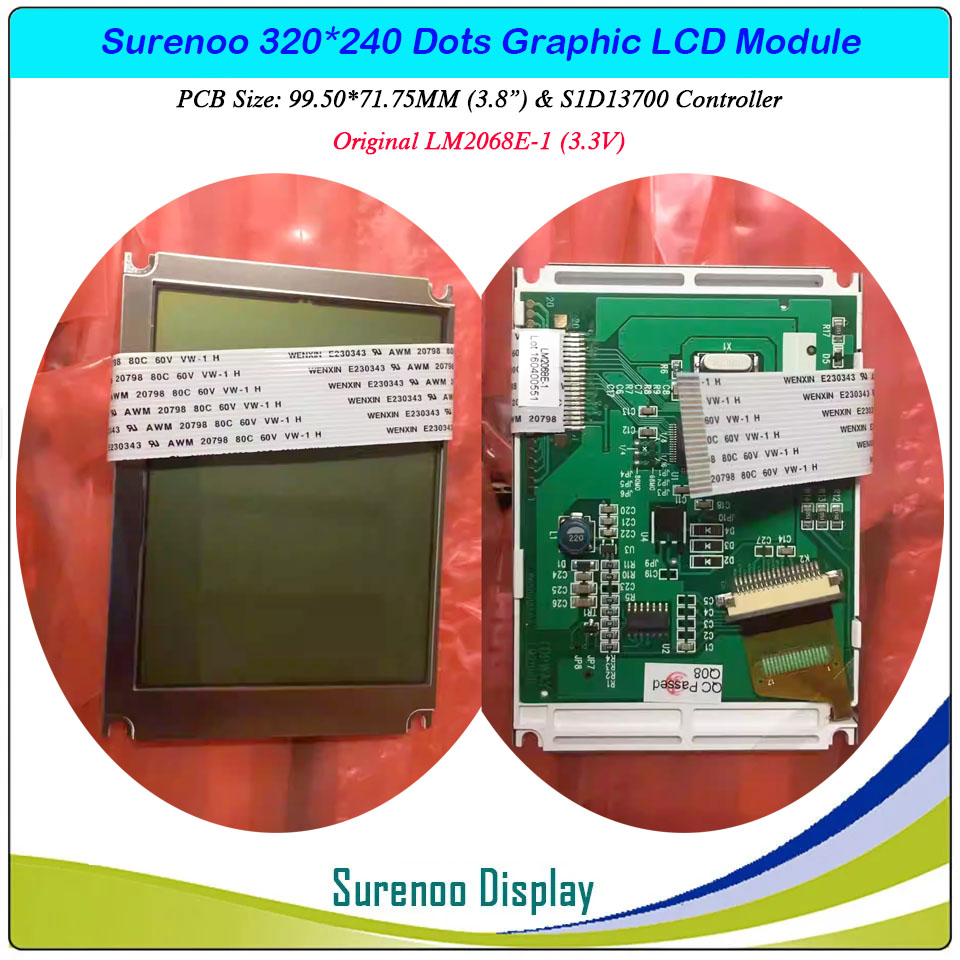

    SLG320240E is a 320*240 dots Monochrome Graphic LCD Module, S1D13700 standard 1X20P/1.0 320*240 Parallel Graphic LCD Module, supprot 8080 6800 8-Bit parallel interface, wide operating temperature range, rohs compliant. 3.3V power supply in default and 5.0V is optional for bulk order.

    It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.160Kg
    Manufacturer Surenoo
    Display Type Graphic LCD Module
    Continuity Supply More than 10 years
    Part No. SLG320240E
    Display Format 320*240 Dots
    Interface E1: 8080 8-Bit Parallel / E2: 4-Bit Parallel
    IC or Equivalent S1D13700 or Equal / Without Controller
    Voltage 3.3V in default
    Connection 1X20P/1.0 Connector (S1D13700 Controller) / 1X16P/1.0 Connector (Without Controller)
    Outline Dimension 99.50(W)x71.75(H)x5.90(T)mm
    Visual Area 79.80x60.60mm
    Active Area 76.79x57.59mm
    Display Type FSTN Postive
    Backlight Type (LED/CCFL) White
    IC Package COG
    Viewing Direction 9:00 O'Clock
    Operating Temperature -20℃~70℃
    Storage Temperature -30℃~80℃
    • Outline Drawing

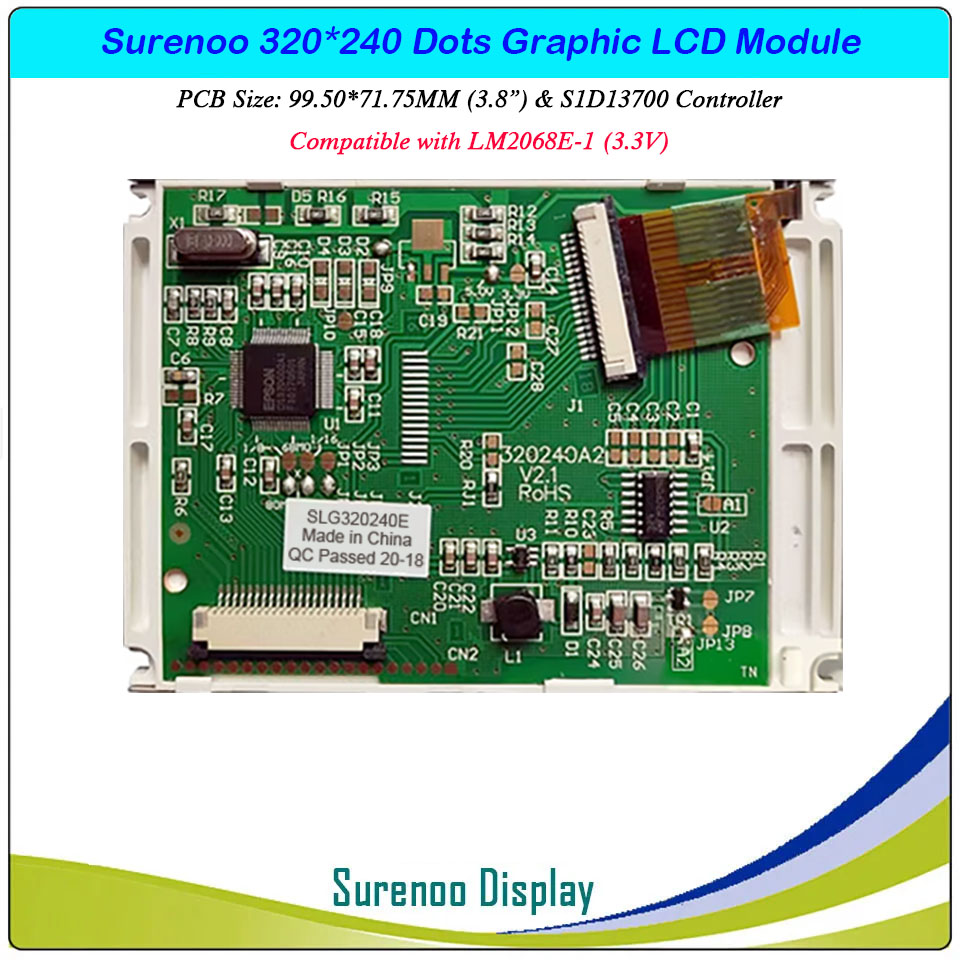

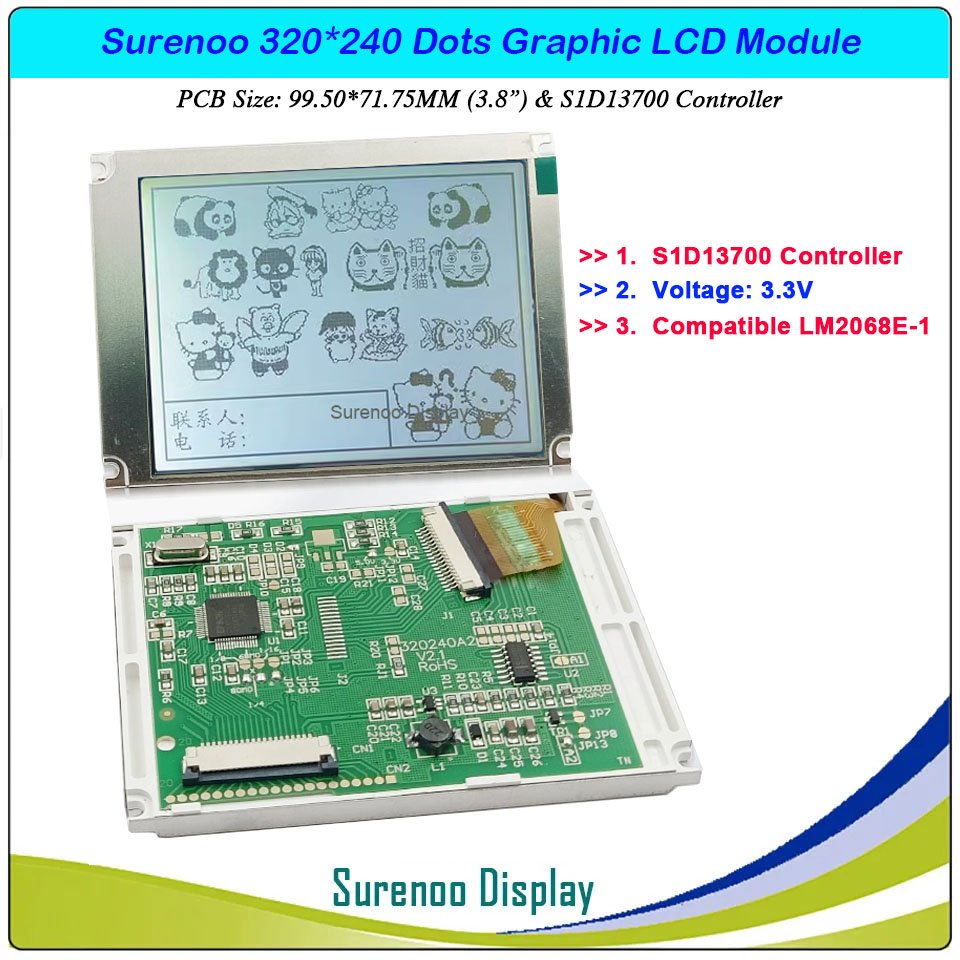

    1. SLG320240E1 (With S1D13700 Controller)

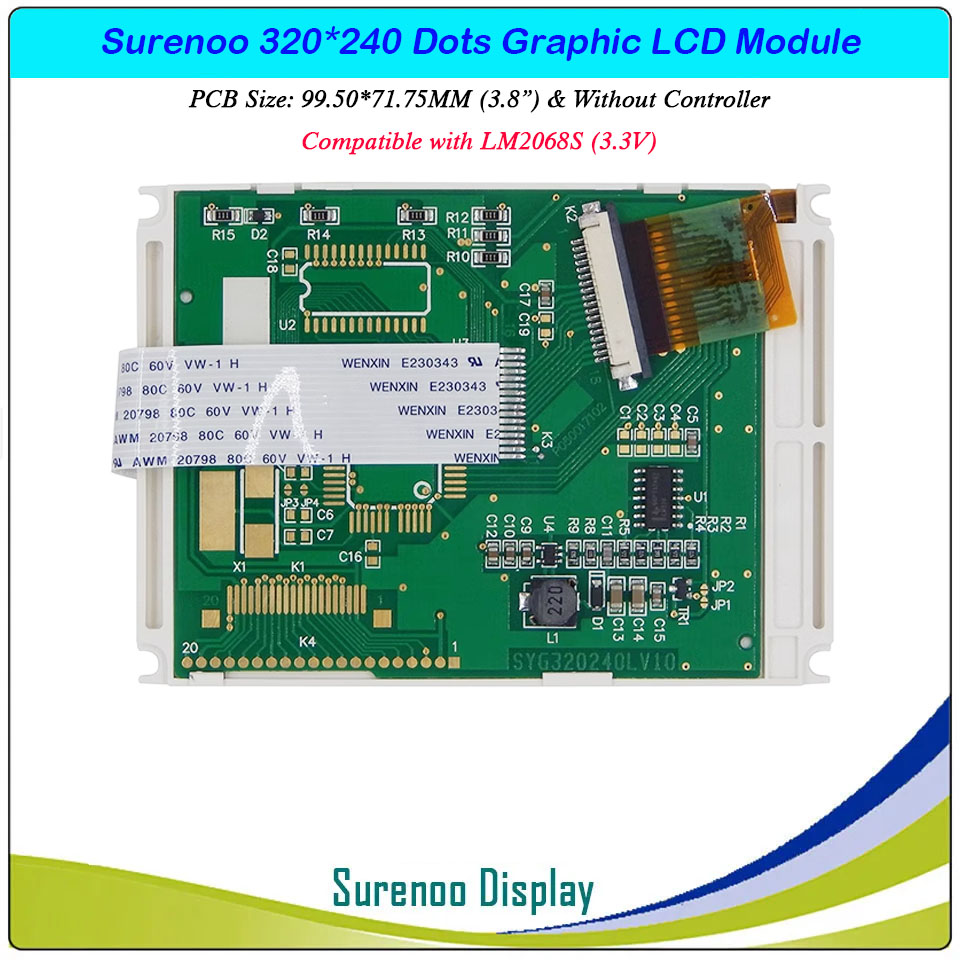

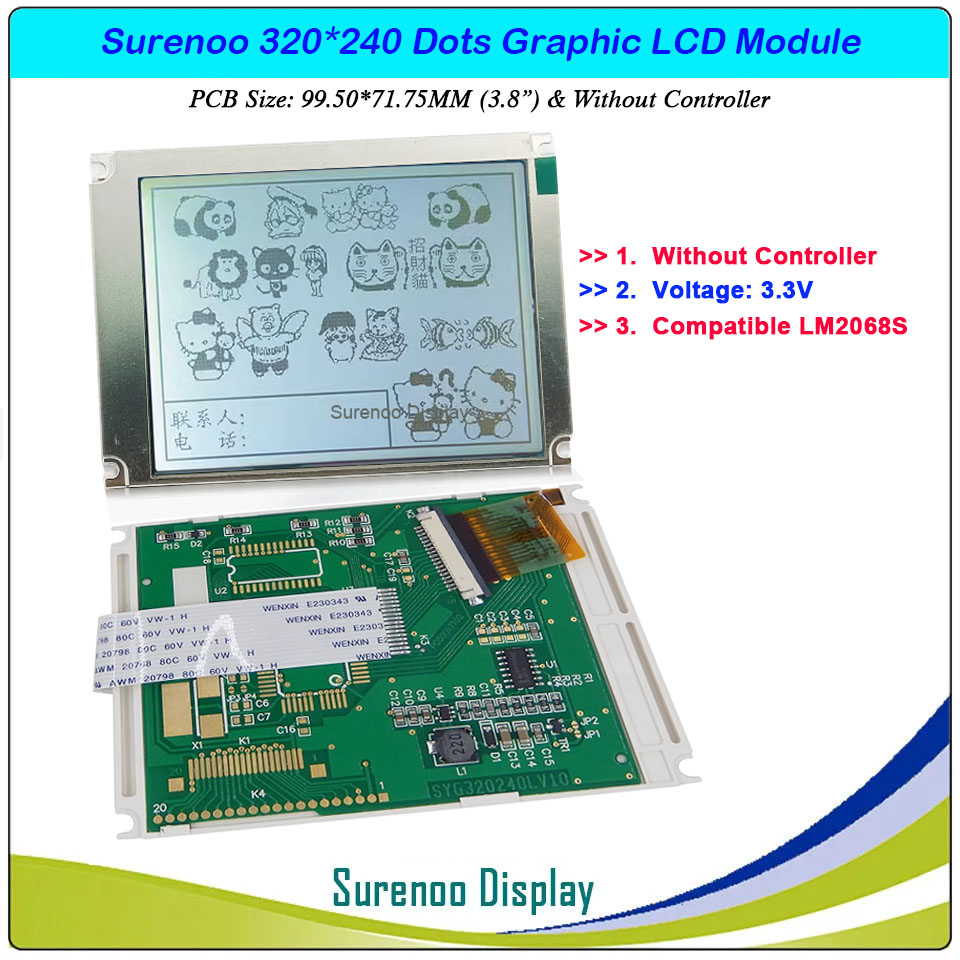

    2. SLG320240E2 (Without Controller)

    • Interface
    SLG320240E1:  8080 8-Bit MPU Parallel
    Pin No. Symbol Level Description
    1 VSS 0V Ground
    2 VDD 5.0V Power Supply for Logic
    3 V0 - Contrast Adjust
    4 WR L Write Signal
    5 RD L Read Signal
    6 CS L Chip Selection Signal
    7 A0 H/L Instruction / Data Selection
    8 RST L Reset Signal, Low Active
    9-16 DB0-DB7 H/L Data Bus Line
    17 /WAIT Output Wait signal (*1)
    18 VEE - Negative Voltage Output
    19 BLA 5.0V Backlight Anode (+3.3V)
    20 BLK 0V Backlight Cathode (0V)
    • Documents
    No. Item Document Name File Type ICON Date Description Mark
    1 Datasheet 320X240 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 320240 Graphic LCD Module
    2 Controller Controller IC S1D13700 Datasheet PDF 2008-09-24 Graphic LCD Controller: S1D13700
