SLG320240D Outline=139.00X100.00MM 5.1" inch 320240 320X240 320*240 Surenoo Graphic LCD Module Display Screen Panel 8080 6800 8-bit MPU Parallel RA8835 Controller STN Blue Negative FSTN Positive LED White Backlight

WISHLIST
Model No.: SLG320240D (5.1")
Display Format: 320*240 Dots
Outline: 139.00X100.00MM
Driver: RA8835 or Equal
3 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SLG320240D is a 5.1" 320*240 dots Monochrome Graphic LCD Module, RA8835 standard 1X20P/2.54 320*240 Parallel Graphic LCD Module, supprot 8080 6800 8-Bit parallel interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.

    It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.225Kg
    Manufacturer Surenoo
    Display Type Graphic LCD Module
    Continuity Supply More than 10 years
    Part No. SLG320240D (5.1")
    Display Format 320*240 Dots
    Interface 8080 8-bit Parallel / 6800 8-Bit Parallel
    IC or Equivalent RA8835 or Equal
    Voltage 5.0V in default
    Connection 1X20P/2.54 Pin Header
    Outline Dimension 139.00(W)x100.00(H)x12.10(T)mm
    Visual Area 103.00x79.00mm
    Active Area 95.97x71.97mm

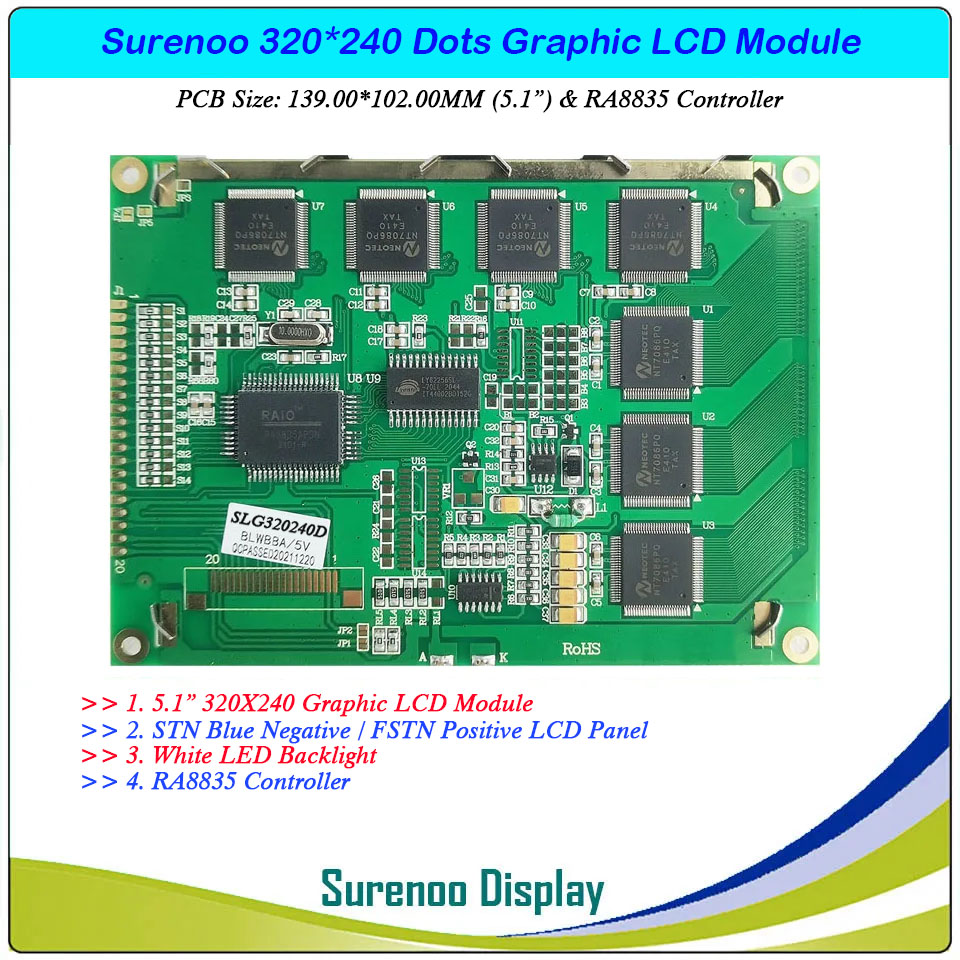

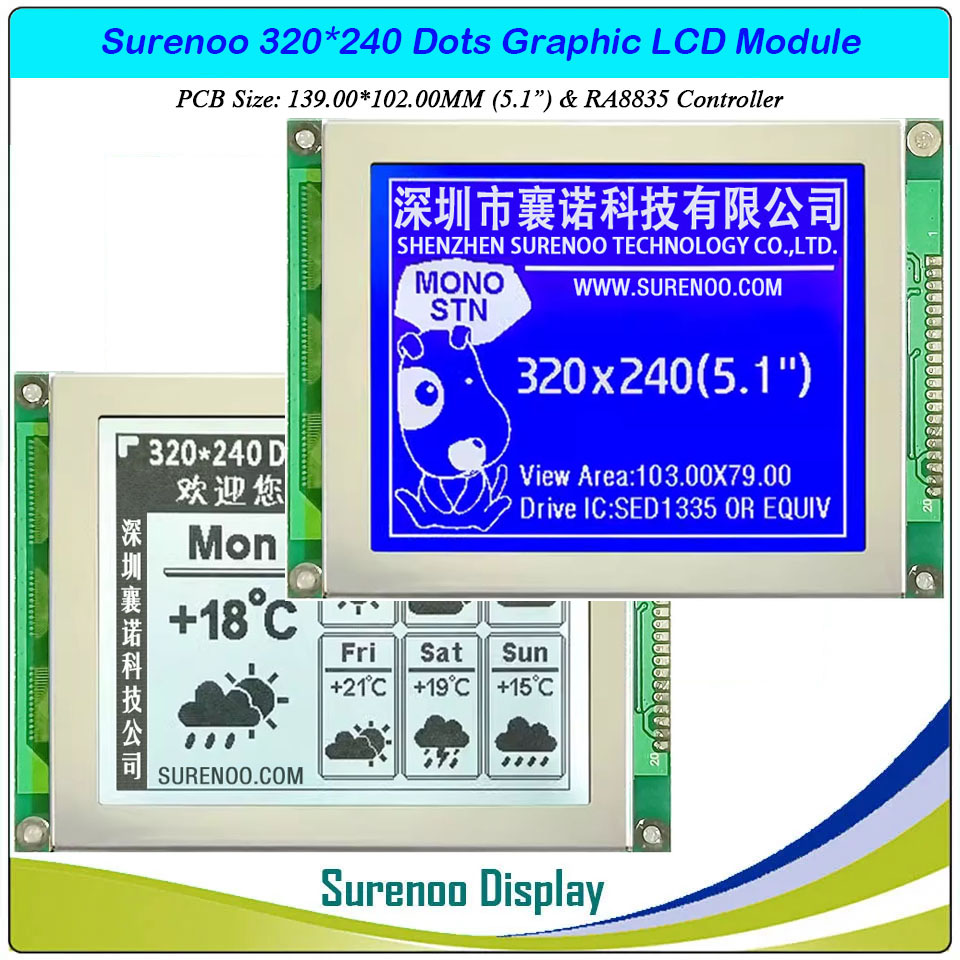

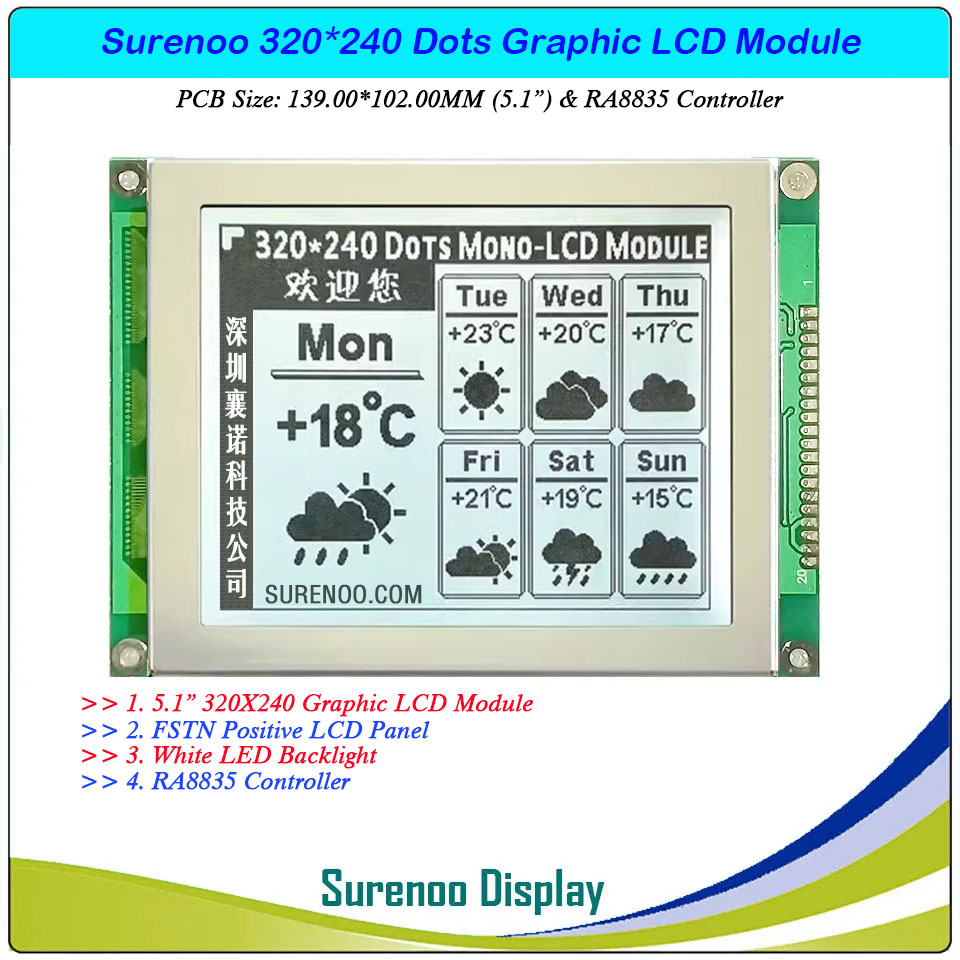

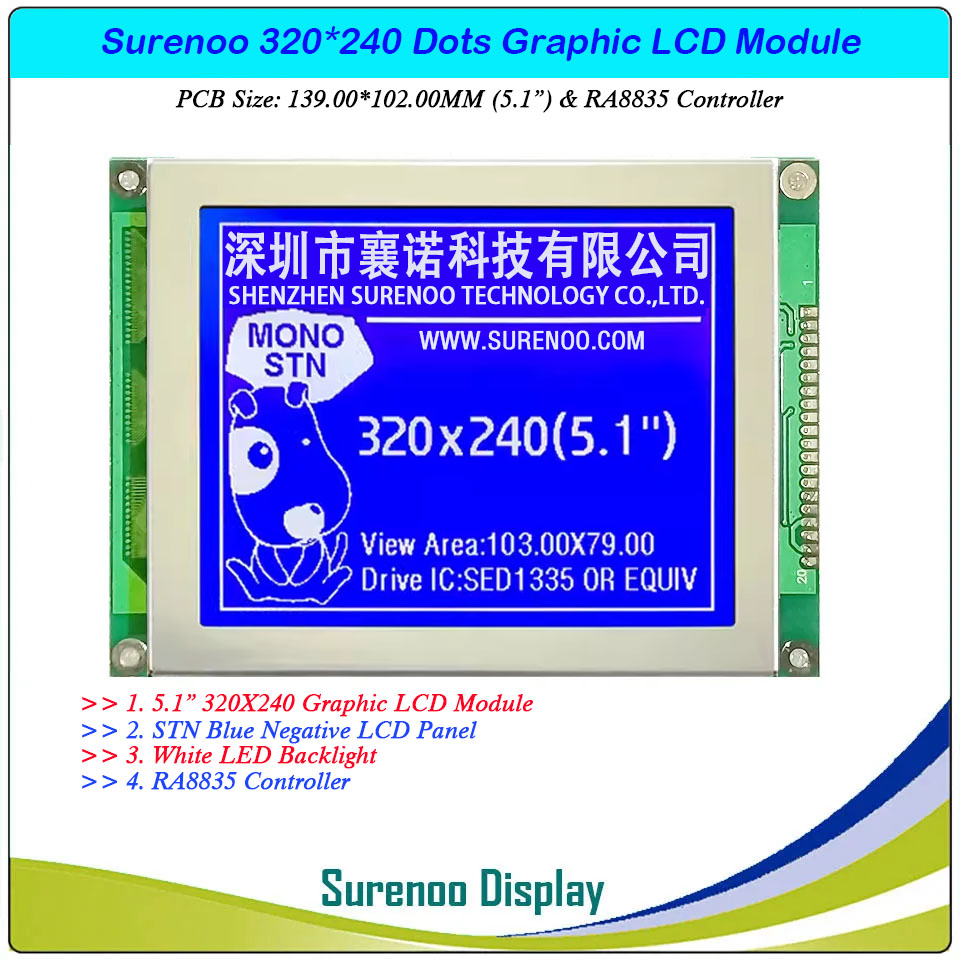

    Display Type STN Blue Negative, FSTN Postive
    Backlight Type (LED/CCFL) White
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature -20℃~70℃
    Storage Temperature -30℃~80℃
    • Outline Drawing

    • Interface
     8080 8-Bit MPU Parallel 6800 8-Bit MPU Parallel
    Pin No. Symbol Level Description  Pin No. Symbol  Level  Description
    1 VSS 0V Ground 1 VSS 0V Ground
    2 VDD 5.0V Power Supply for Logic 2 VDD 5.0V Power Supply for Logic
    3 V0 - Contrast Adjust 3 V0 - Contrast Adjust
    4 WR L Write Signal 4 RS H/L H Command / L Data Selection
    5 RD L Read Signal 5 R/W H/L Read Signal & Write Signal
    6 CS L Chip Selection Signal 6 E H Enable Signal, High Active
    7 A0 H/L Instruction / Data Selection 7-14 DB0-DB7 H/L Data Bus Line
    8 RST L Reset Signal, Low Active 15 CS L Chip Selection Signal
    9-16 DB0-DB7 H/L Data Bus Line 16 RST L Reset Signal, Low Active
    17 BLA 5.0V Backlight Anode (+5V) 17 VEE - Negative Voltage Output
    18 VEE - Negative Voltage Output 18 SEL1 H/L H:6800 family interfaceL:8080 family interface
    19 BLA 5.0V Backlight Anode (+5V) 19 BLA 5.0V Backlight Anode (+5V)
    20 BLK 0V Backlight Cathode (0V) 20 BLK 0V Backlight Cathode (0V)
    • Documents
    No. Item Document Name File Type ICON Date Description Mark
    1 Datasheet 320X240 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 320240 Graphic LCD Module
    2 Controller Controller IC RA8835 Datasheet PDF 2008-09-24 Graphic LCD Controller: RA8835
