SLG320240C Outline=160.00X109.00MM 5.7" inch 320240 320X240 320*240 Surenoo Graphic LCD Module Display Screen Panel 8080 8-bit MPC Parallel RA8806 Controller STN Blue Negative FSTN Positive LED White Backlight Resistive Touch Panel RTP

WISHLIST
Model No.: SLG320240C (5.7")
Display Format: 320*240 Dots
Outline 160.00X109.00MM
Driver: RA8806 or Equal
5 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview

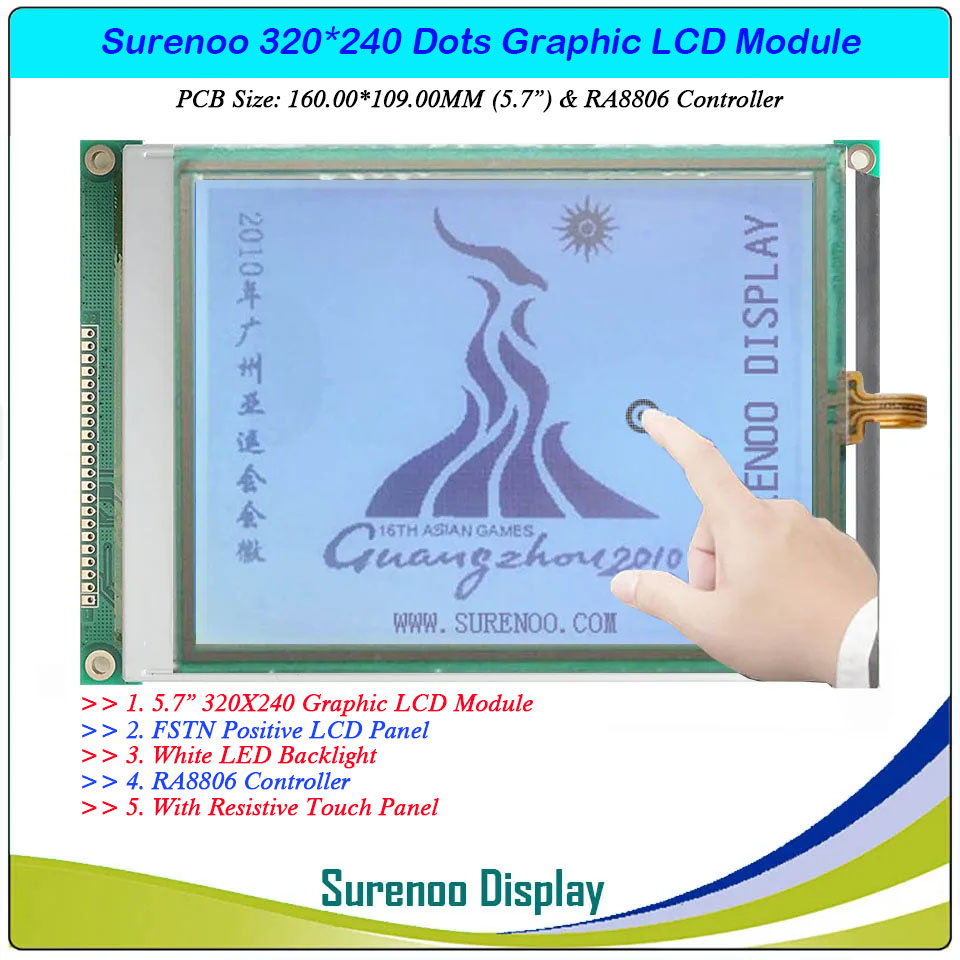

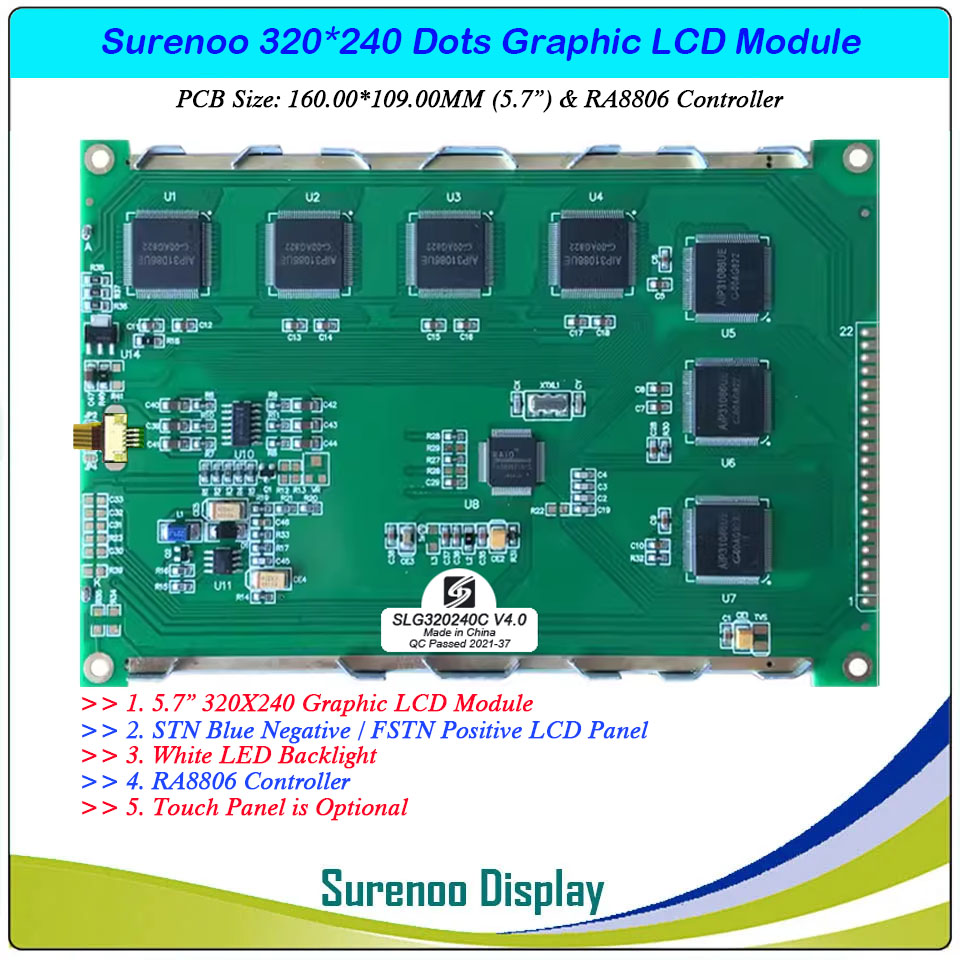

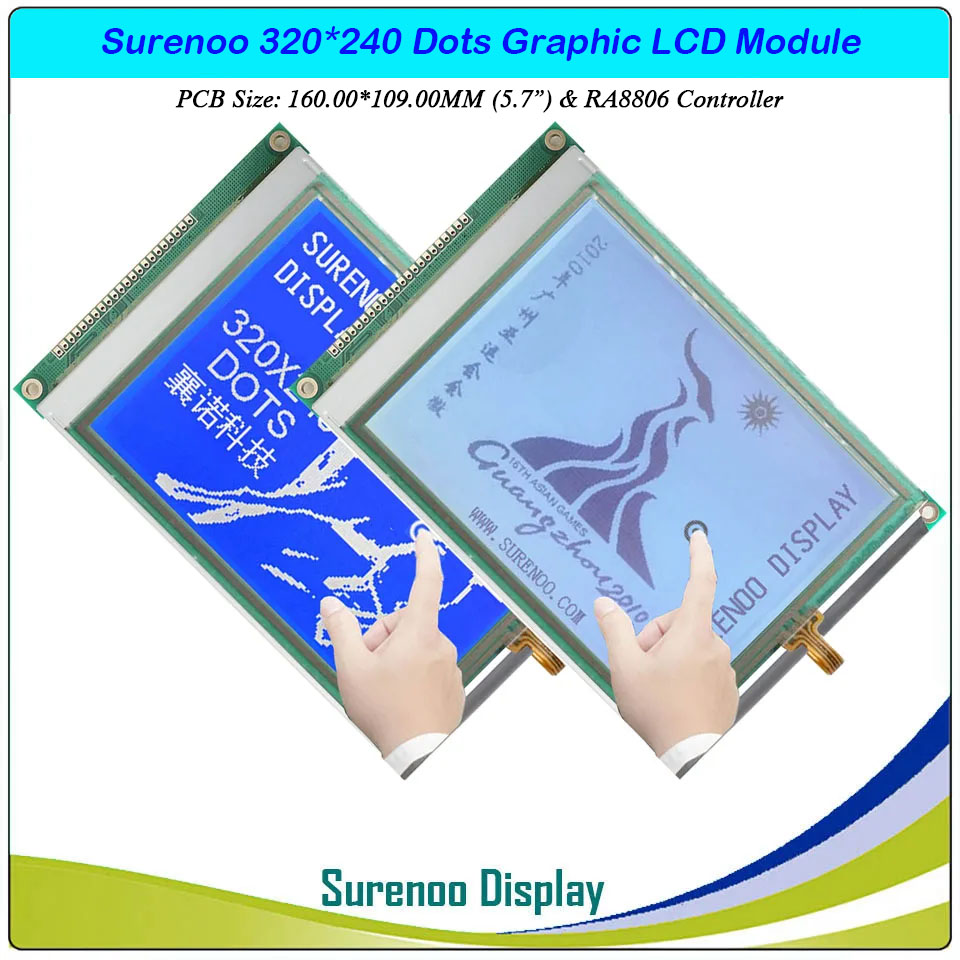

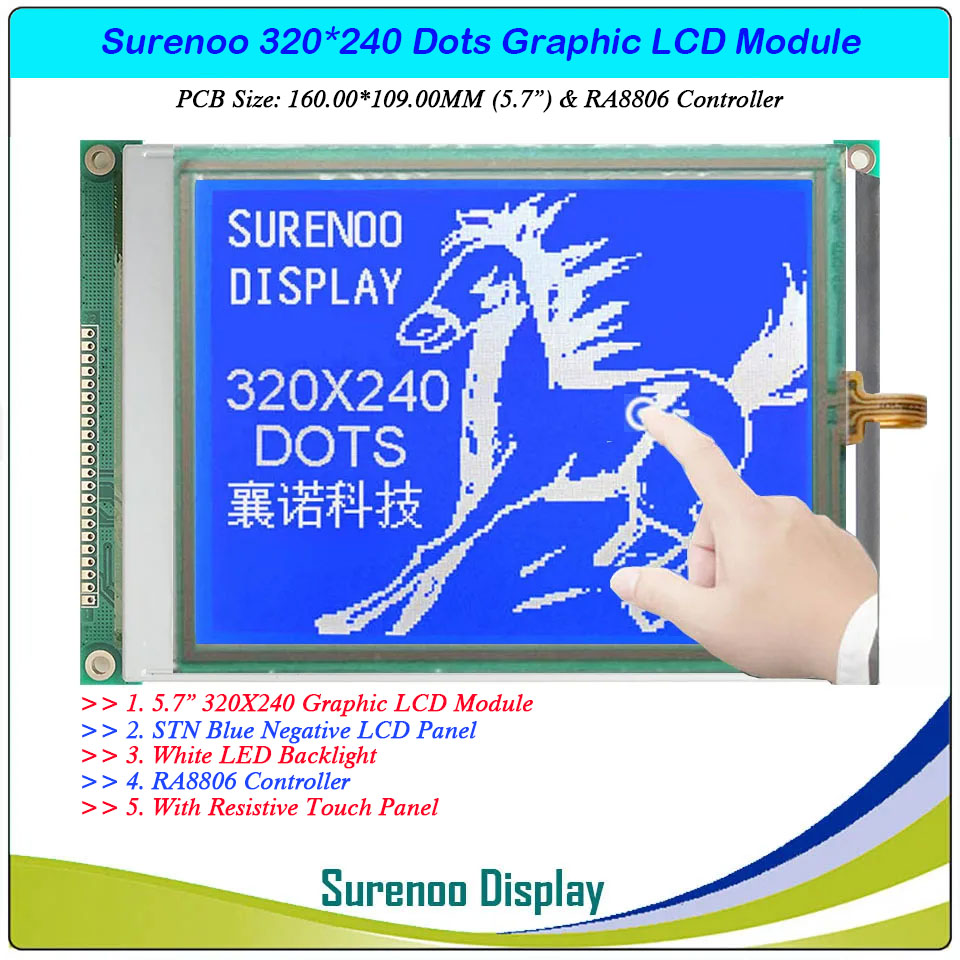

    SLG320240C is a 5.7" 320*240 dots Monochrome Graphic LCD Module, RA8806 standard 1X22P/2.54 320*240 Parallel Graphic LCD Module, supprot 8080 8-Bit parallel interface, Resistive Touch Panel is optional, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.

    It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.240Kg
    Manufacturer Surenoo
    Display Type Graphic LCD Module
    Continuity Supply More than 10 years
    Part No. SLG320240C (5.7")
    Display Format 320*240 Dots
    Interface 8080 8-Bit Parallel
    IC or Equivalent RA8806 or Equal (RTP Optional)
    Voltage 5.0V in default
    Connection 1X22P/2.54 Pin Header
    Outline Dimension 160.00(W)x109.00(H)x11.00/12.40(T)mm
    Visual Area 122.00x92.00mm
    Active Area 115.17x86.37mm

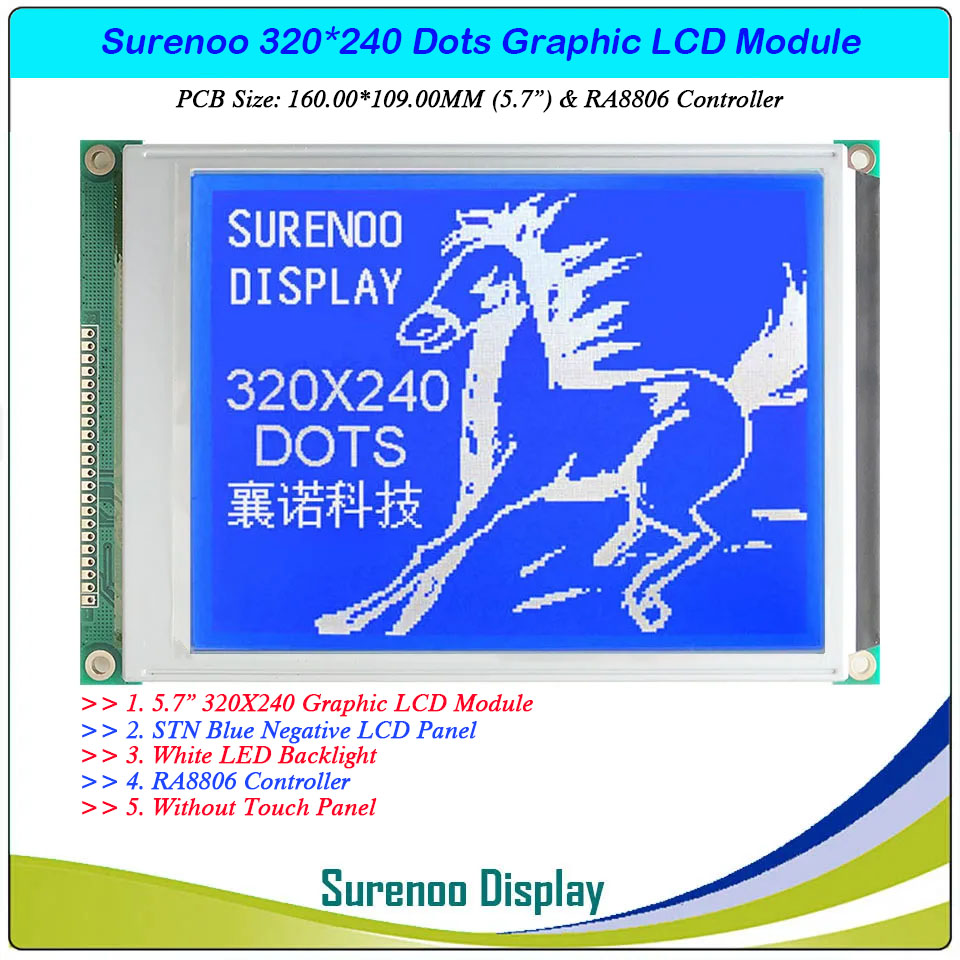

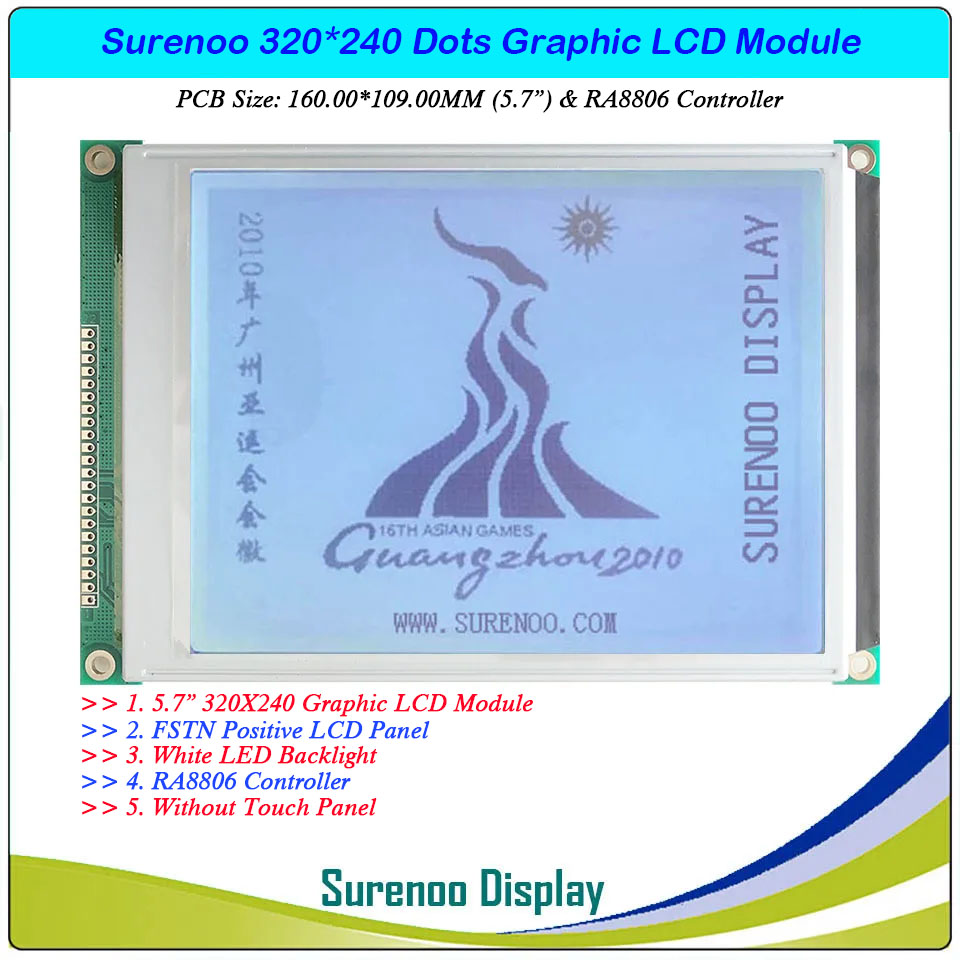

    Display Type STN Blue Negative, FSTN Postive
    Backlight Type (LED/CCFL) White
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature -20℃~70℃
    Storage Temperature -30℃~80℃
    • Outline Drawing

    • Interface (8080 8-Bit LCD Interface)
    Pin No. Symbol Level Description
    1 VSS 0V Ground
    2 VDD 5.0V Power Supply for Logic
    3 VR - Dperation Volatge for LCD
    4 RS H/L Command / Data Selection
    5 WR L Write Signal
    6 RD L Read Signal
    7 CS1 L Chip Enable Signal (Low Active)
    8 CS2 H Chip Enable Signal (High Active)
    9 BUSY H/L RA8806 Busy Singal
    10 INT H/L
    		 RA8806 Interrupt Singal
    11 RST L Reset Signal, Low Active
    12-19 DB0-DB7 H/L Data Bus Line
    20 VEE - Negative Voltage Input / Output
    21 BLA 5.0V Backlight Anode (+5V)
    22 BLK 0V Backlight Cathode (0V)
    • Documents
    No. Item Document Name File Type ICON Date Description Mark
    1 Datasheet 320X240 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 320240 Graphic LCD Module
    2 Controller Controller IC RA8806 Datasheet PDF 2008-09-24 Graphic LCD Controller: RA8806
