Model No.: SLG240128D
Display Format: 240*128 Dots
Outline: 100.00X85.00MM
Controller: UC1608X COG or Equal
2 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview

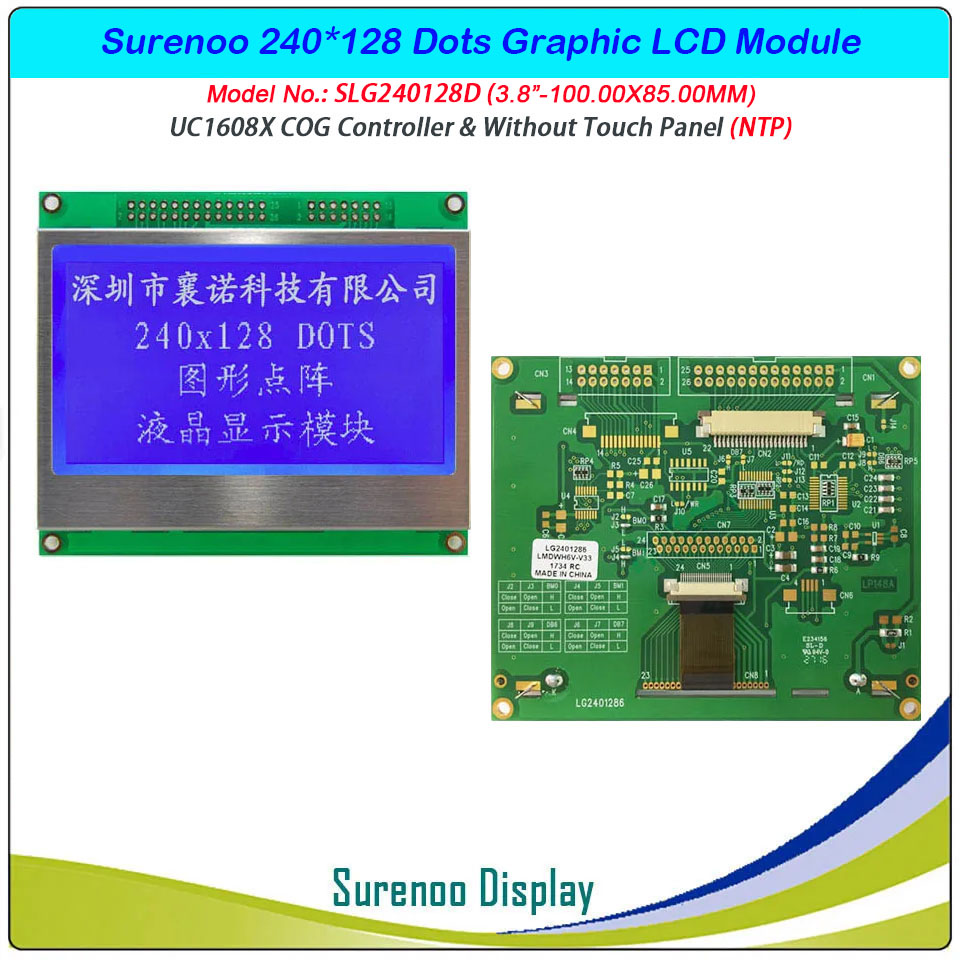

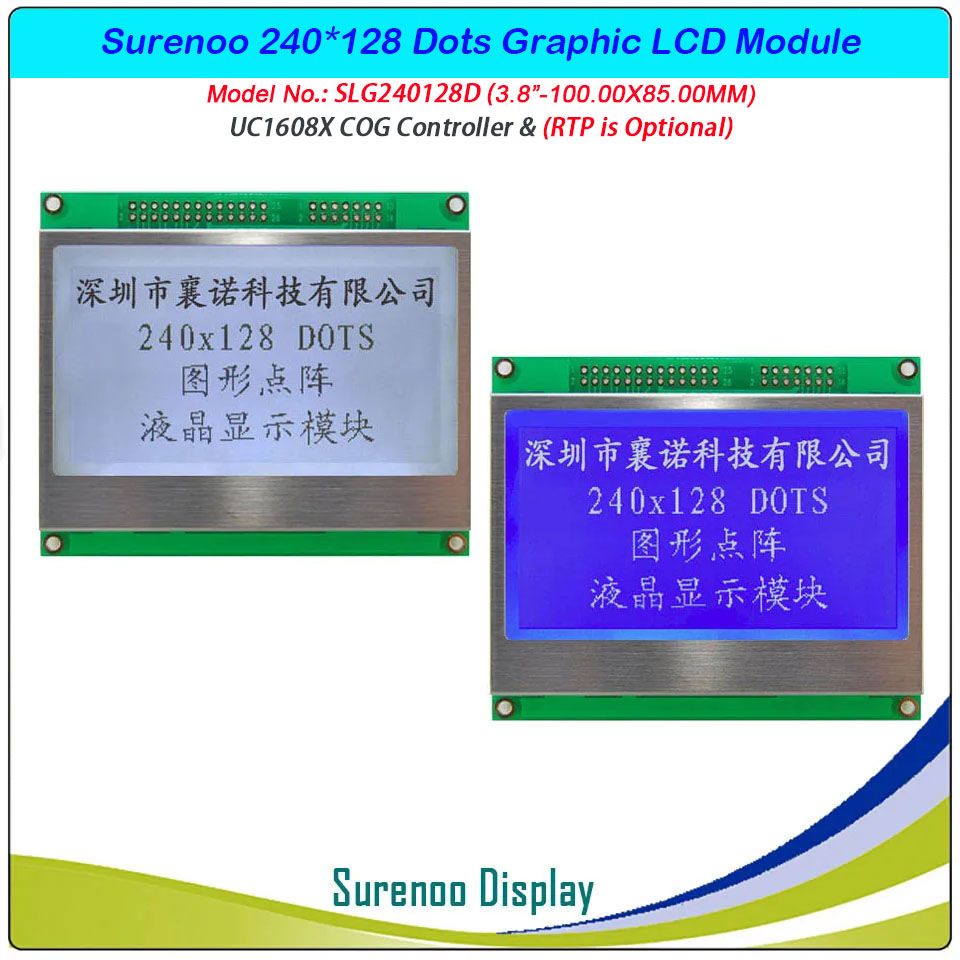

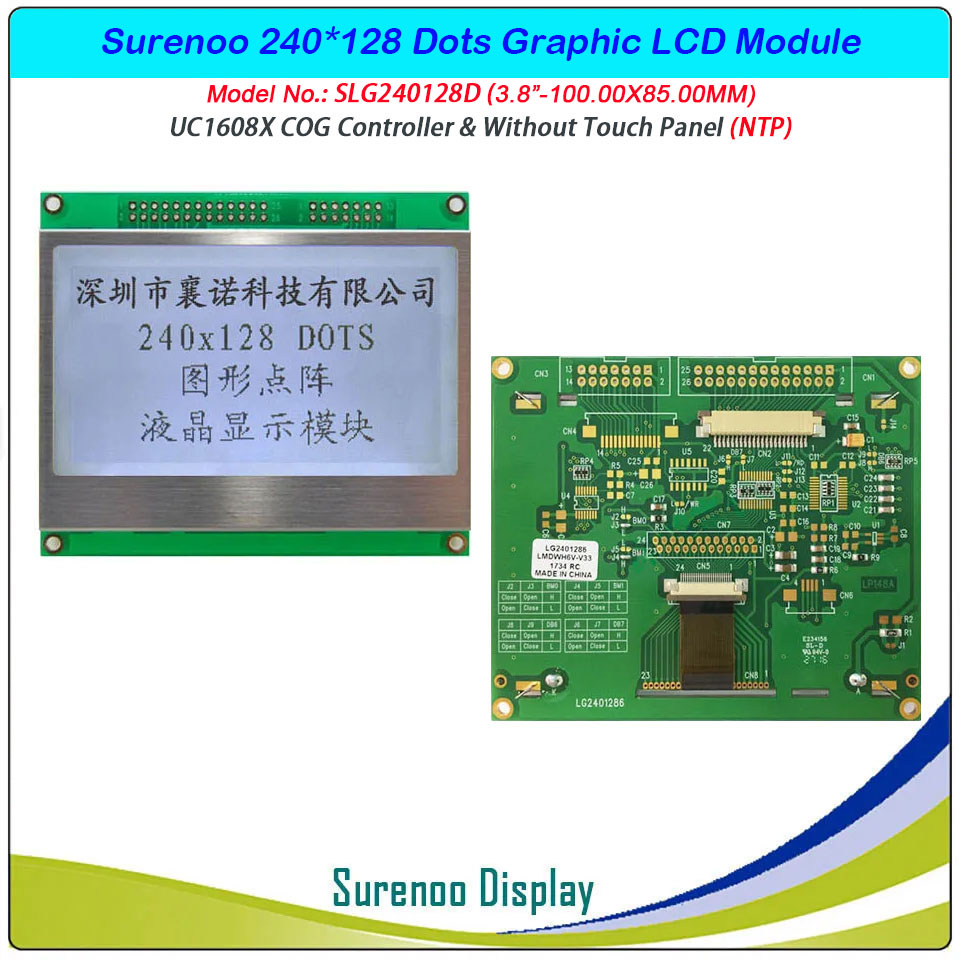

    SLG240128D is a 3.8" 240*128 dots Monochrome Graphic LCD Module, UC1608X COG Controller standard 2X13P/2.54 & 2X7P/2.54 240*128 Parallel/Seriall SPI Graphic LCD Module, supprot 8080 8-Bit parallel, 6800 8-Bit parallel and Serial SPI interface, wide operating temperature range, rohs compliant. 3.3V power supply in default and 5.0V is optional for bulk order.
    It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.120Kg
    Manufacturer Surenoo
    Display Type Graphic LCD Module
    Continuity Supply More than 10 years
    Part No. SLG240128D
    Display Format 240*128 Dots
    Interface 6800 8-Bit Parallel / 8080 8-Bit Parallel / Serial SPI
    IC or Equivalent UC1608X or Equal
    Voltage 3.3V in default

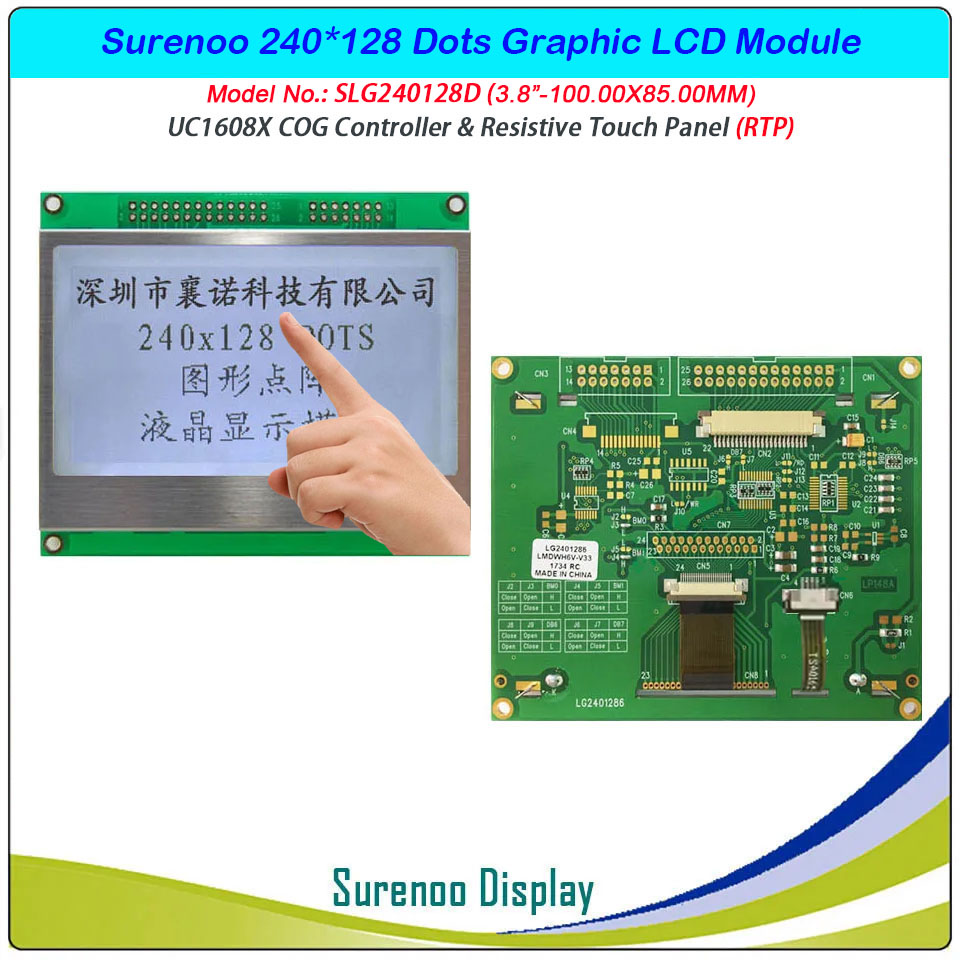

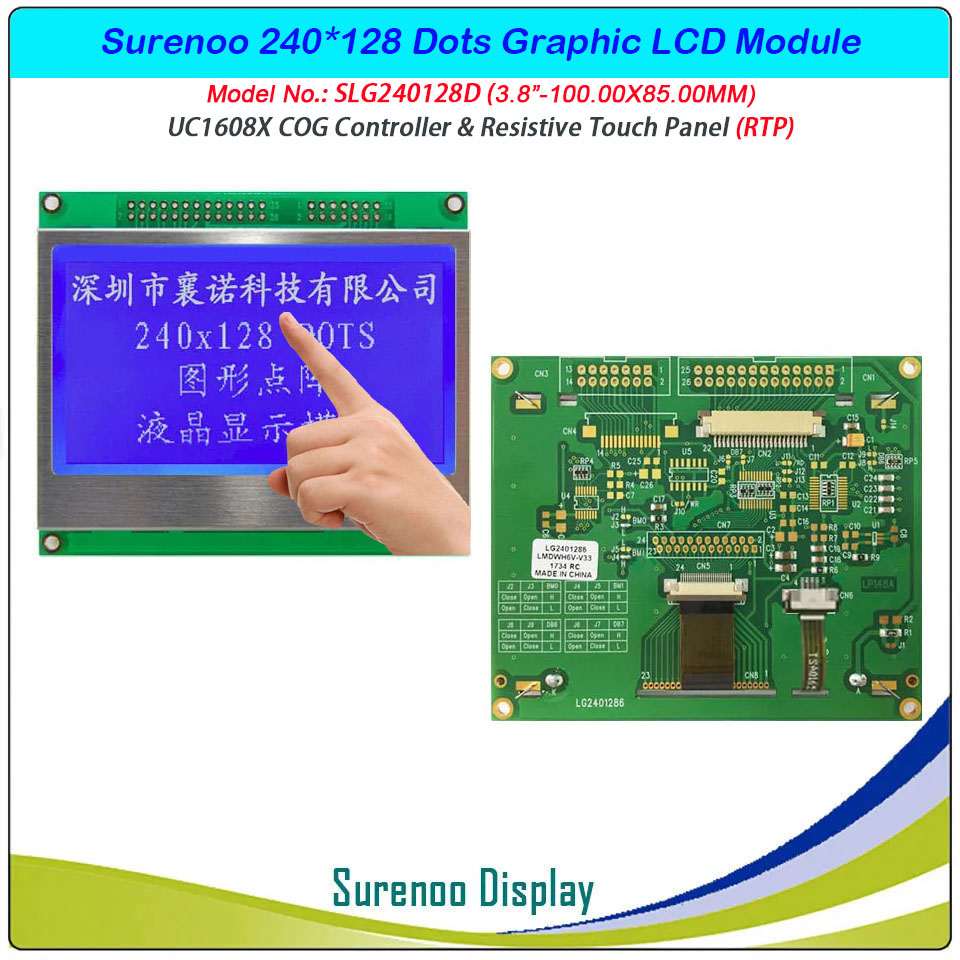

    Touch Panel Yes (RTP)
    Touch Controller Not including
    Connection 2X13P/2.54 & 2X7/2.54 Pin Header
    Outline Dimension 100.00(W)x85.00(H)x12.50(T)mm
    Visual Area 92.00x52.00mm
    Active Area 83.98x44.78mm
    Display Type STN Blue Negative, FSTN Positive
    Backlight Type (LED) White
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    		 BLW: -10℃~60℃ / FPW: -20℃~70℃
    Storage Temperature
    		 BLW: -20℃~70℃ / FPW: -30℃~80℃
    • Outline Drawing

    • Interface (CN1/CN2)
    Pin No. Symbol
    		 Level
    		 Description
    80 MPU 68 MPU
    1 VSS
    		 0V Power Ground
    2 VDD
    		 3.3V Logic Power Supply
    3 CD H/L H: Data Code L: Instruction Code
    4 WR R/W H/L Write Signal / Write & Read Signal
    5 RD E H/L Read Signal / Enable Signal
    6-13 DB0-DB7
    		 H/L
    		 Data Bus Line
    14 CS
    		 H Chip selection signal. Active "H".
    15 BLA
    		 3.3V Backlight Anode
    16 BLK
    		 0V Backlight Cathode
    17  X1/NC
    		 - Touch Panel left side terminal / No Connection
    18  Y2/NC - Touch Panel Bottom side terminal / No Connection
    19 X2/NC
    		 - Touch Panel Right side terminal / No Connection
    20 Y1/NC
    		  - Touch Panel Top side terminal / No Connection
    21-26 NC
    		 - No Connection
    • Interface (CN3/CN4)
    Pin No. Symbol
    		 Level
    		 Description
    1 VSS
    		 0V Power Ground
    2 VDD
    		 3.3V Logic Power Supply
    3 SCK - Serial Clock Input
    4 SDA - Serial Data Input
    5 CS
    		 H Chip selection signal. Active "H".
    6 CD H/L
    		 H: Data Code L: Instruction Code
    7 BLA
    		 3.3V Backlight Anode
    8 BLK
    		 0V Backlight Cathode
    9  X1/NC
    		 - Touch Panel left side terminal / No Connection
    10  Y2/NC - Touch Panel Bottom side terminal / No Connection
    11 X2/NC
    		 - Touch Panel Right side terminal / No Connection
    12 Y1/NC
    		  - Touch Panel Top side terminal / No Connection
    13-14 NC - No Connection
    • Documents
    No. Item Document Name File Type ICON Date Description Mark
    1 Datasheet 240X128 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 240128 Graphic LCD Module
    2 Controller Controller IC UC1608X Datasheet PDF 2008-09-24 Graphic LCD Controller: UC1608X
