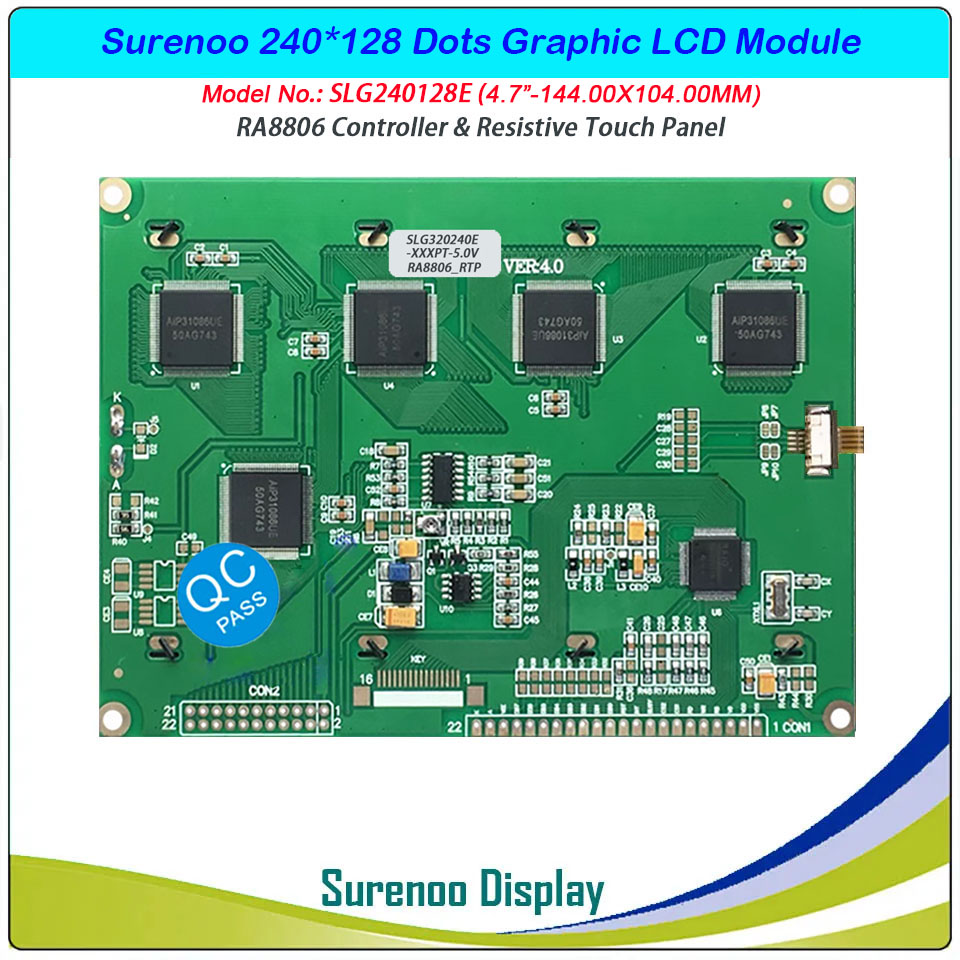

SLG240128E Outline=144.00X104.00MM 4.7" inch 240128 240X128 240*128 Surenoo Graphic LCD Module Display Screen Panel 8080 8-Bit Parallel RA8806 STN Yellow Green Blue Negative FSTN Positive LED Backlight with Resistive Touch Panel for 8051 PIC AVR ARM

WISHLIST
Model No.: SLG240128E (4.7")
Display Format: 240*128 Dots
Outline: 144.00X104.00MM
Controller: RA8806 or Equal
2 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SLG240128D is a 4.7" 240*128 dots Monochrome Graphic LCD Module, RA8806 Controller standard 1X22P/2.54 & 2X11P/2.54 240*128 Parallel Graphic LCD Module, supprot 8080 8-Bit parallel interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.

    It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.200Kg
    Manufacturer Surenoo
    Display Type Graphic LCD Module
    Continuity Supply More than 10 years
    Part No. SLG240128E (4.7")
    Display Format 240*128 Dots
    Interface 8080 8-Bit Parallel
    IC or Equivalent RA8806 or Equal
    Voltage 5.0V in default
    Touch Panel Yes (RTP)
    Touch Controller RA8806 Build-in Touch Controller
    Connection 1X22P/2.54 & 2X11/2.54 Pin Header
    Outline Dimension 144.00(W)x104.00(H)x12.70(T)mm
    Visual Area 114.00x64.00mm
    Active Area 107.96x57.56mm

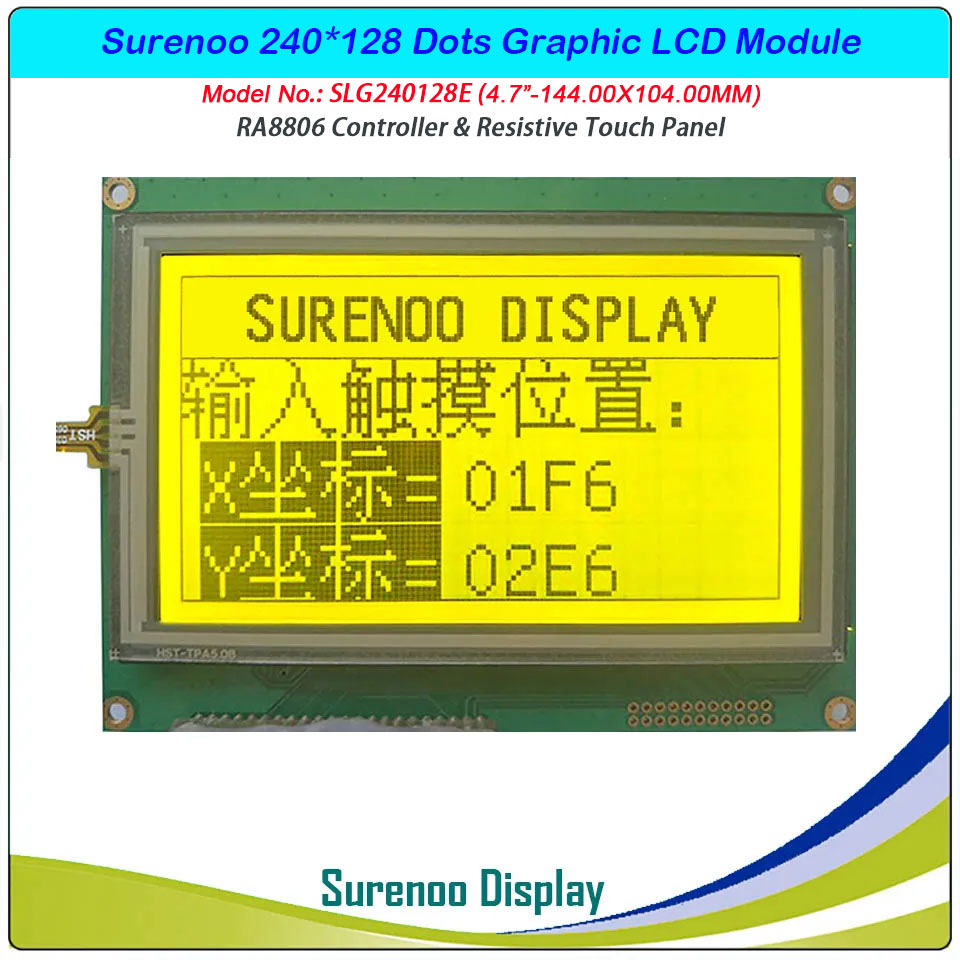

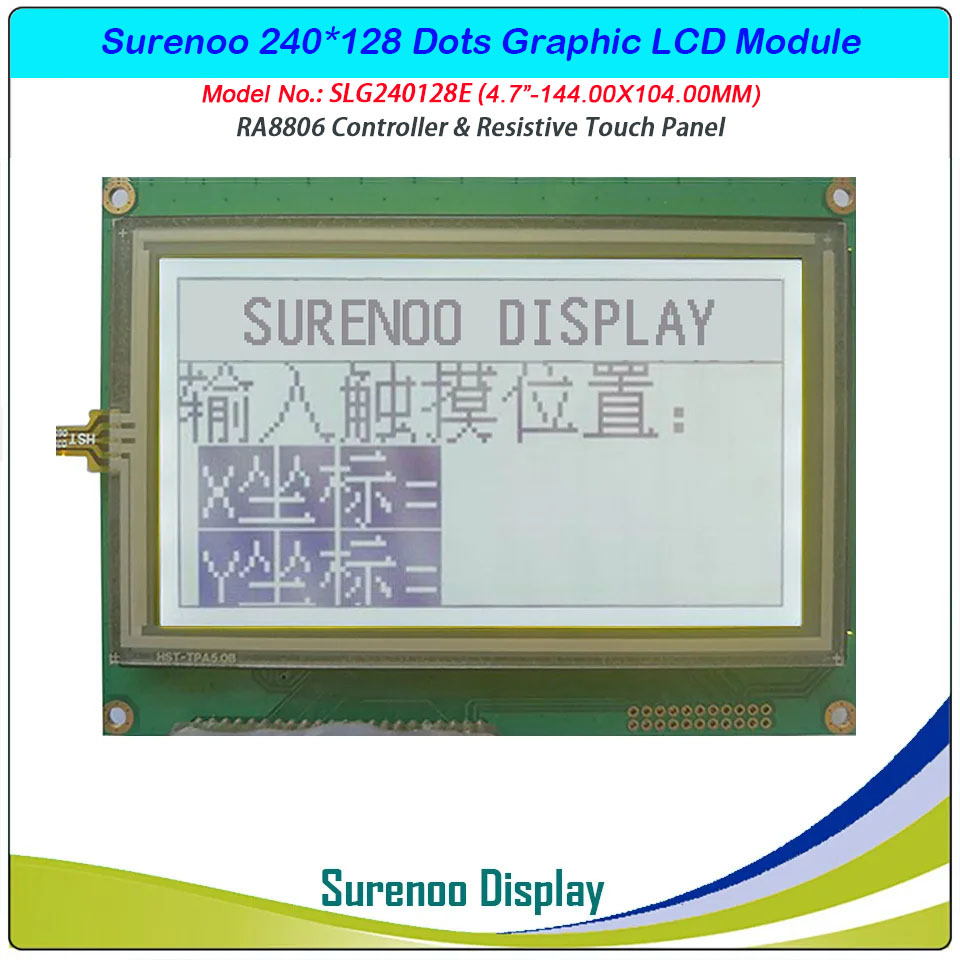

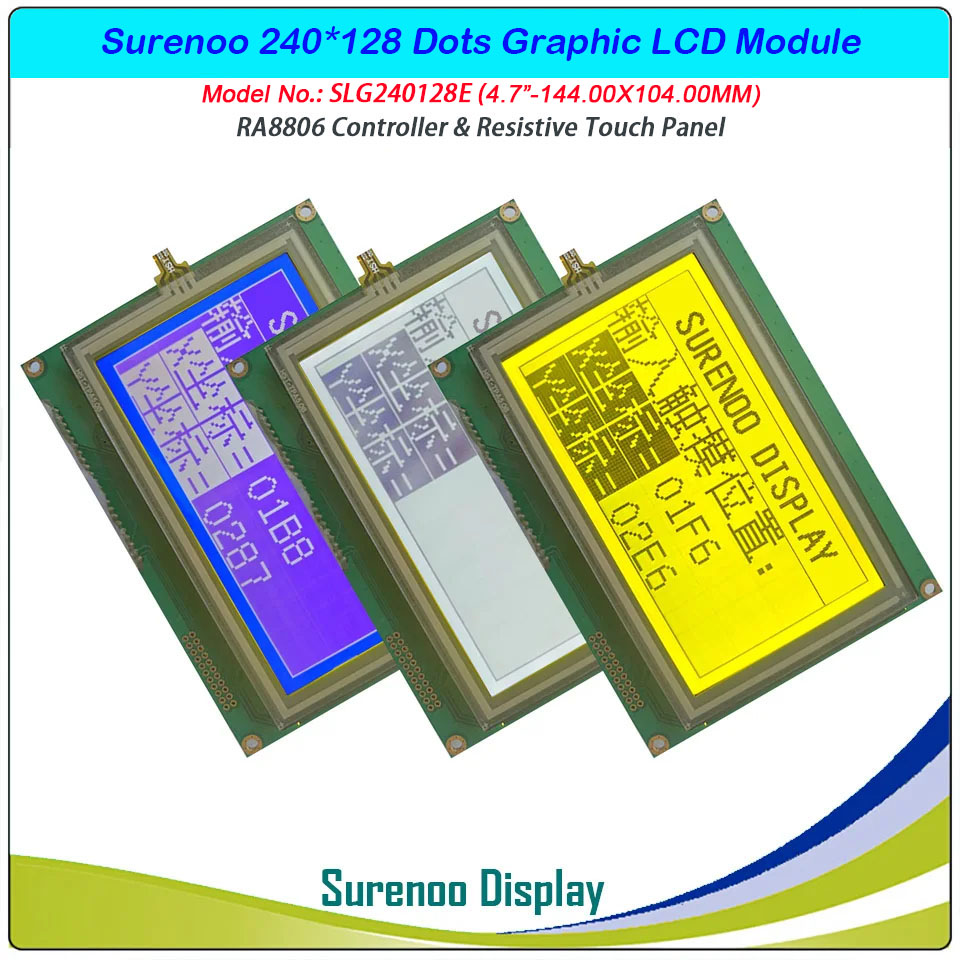

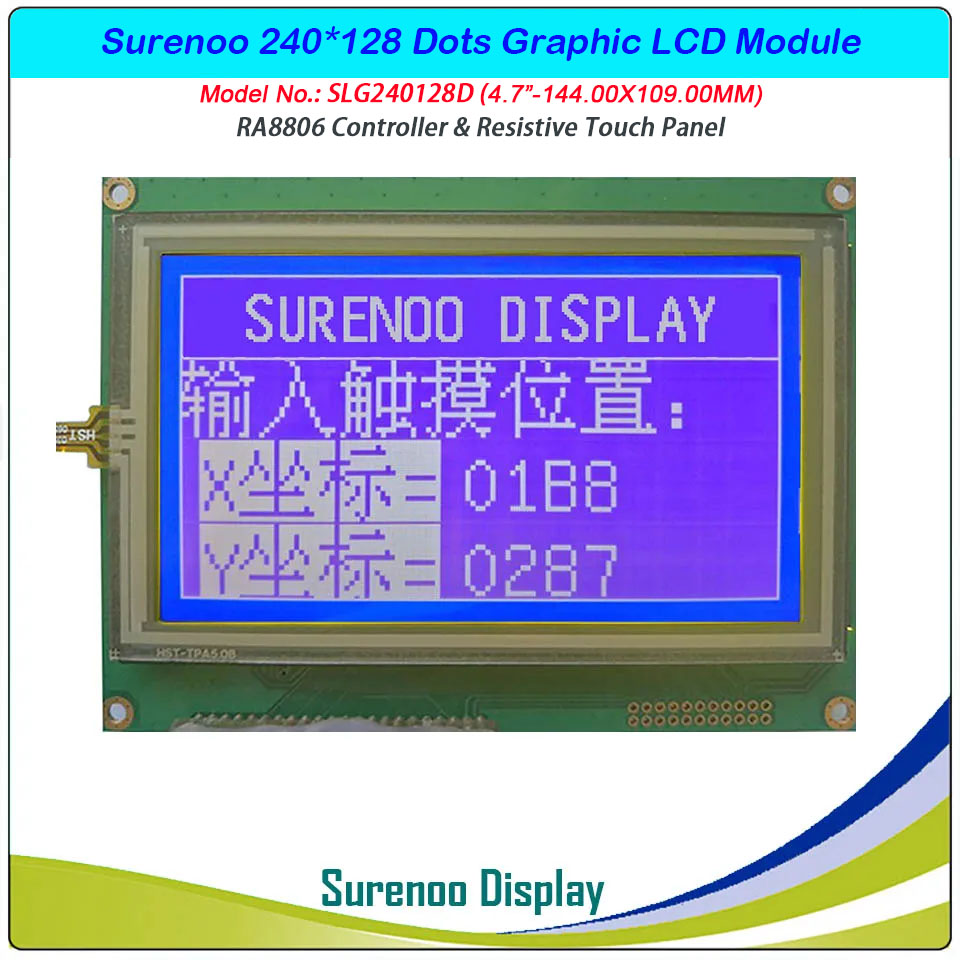

    Display Type STN Yellow Green, STN Blue Negative, FSTN Positive
    Backlight Type (LED) Yellow Green, White
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃
    • Outline Drawing

    • Interface (CN1/CN2)
    Pin No. Symbol Level
    		 Description
    1 VSS 0V Power Ground
    2 VDD 5.0V Logic Power Supply
    3 V0 - Operating voltage for LCD
    4 RS H/L L : Data Code H : Instruction Code
    5 WR L Write Signal
    6 RD L Read Signal
    7 CS1
    		 L Chip enable singal. Active "L". CS1=L, CS2=H, Active IC.
    8 CS2 H Chip enable singal. Active "H". CS1=L, CS2=H, Active IC.
    9 BUSY H/L
    		 Busy Status Output Port
    10 INT H/L RA8806 Interrupt Signal
    11 RST
    		 L Reset Signal,  Active-Low
    12-19 DB0-DB7 H/L Data Bus Line
    20 VEE - Negative Voltage for LCD Driving
    21 BLA 5.0V Backlight Anode
    22 BLK 0V Backlight Cathode
    • Documents
    No. Item Document Name File Type ICON Date Description Mark
    1 Datasheet 240X128 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 240128 Graphic LCD Module
    2 Controller Controller IC RA8806 Datasheet PDF 2008-09-24 Graphic LCD Controller: RA8806
