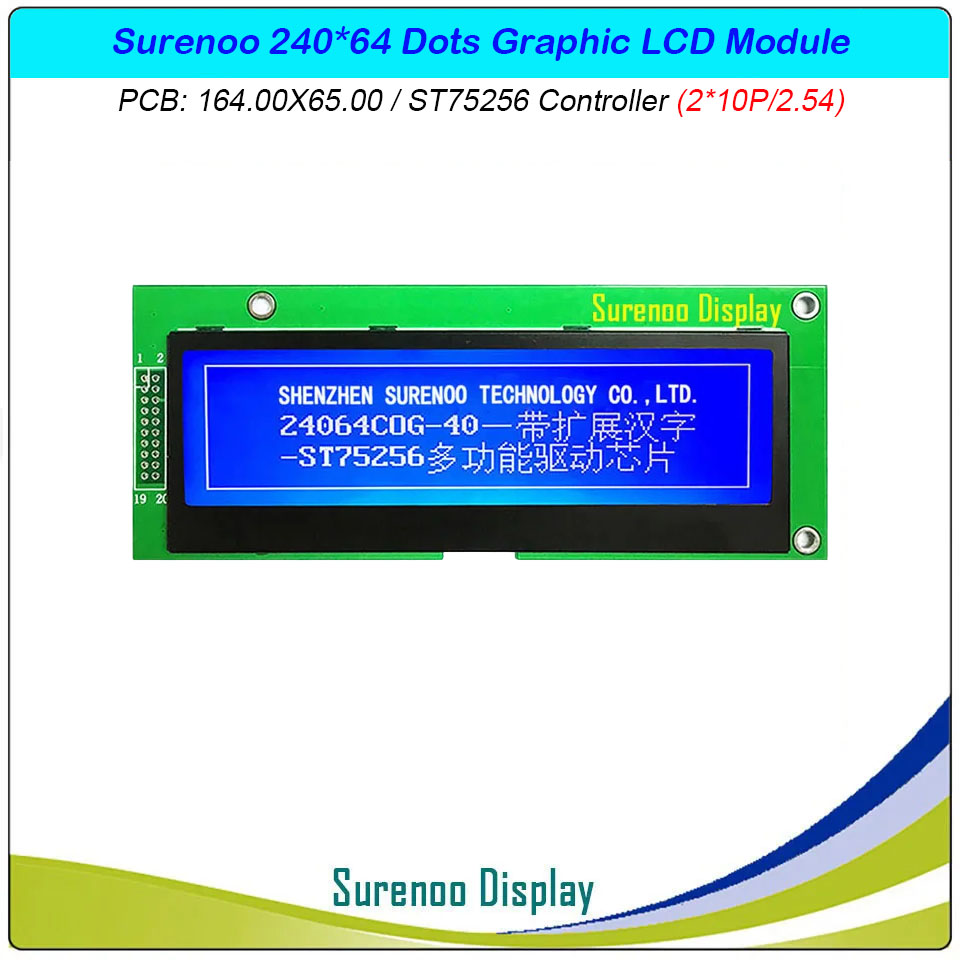

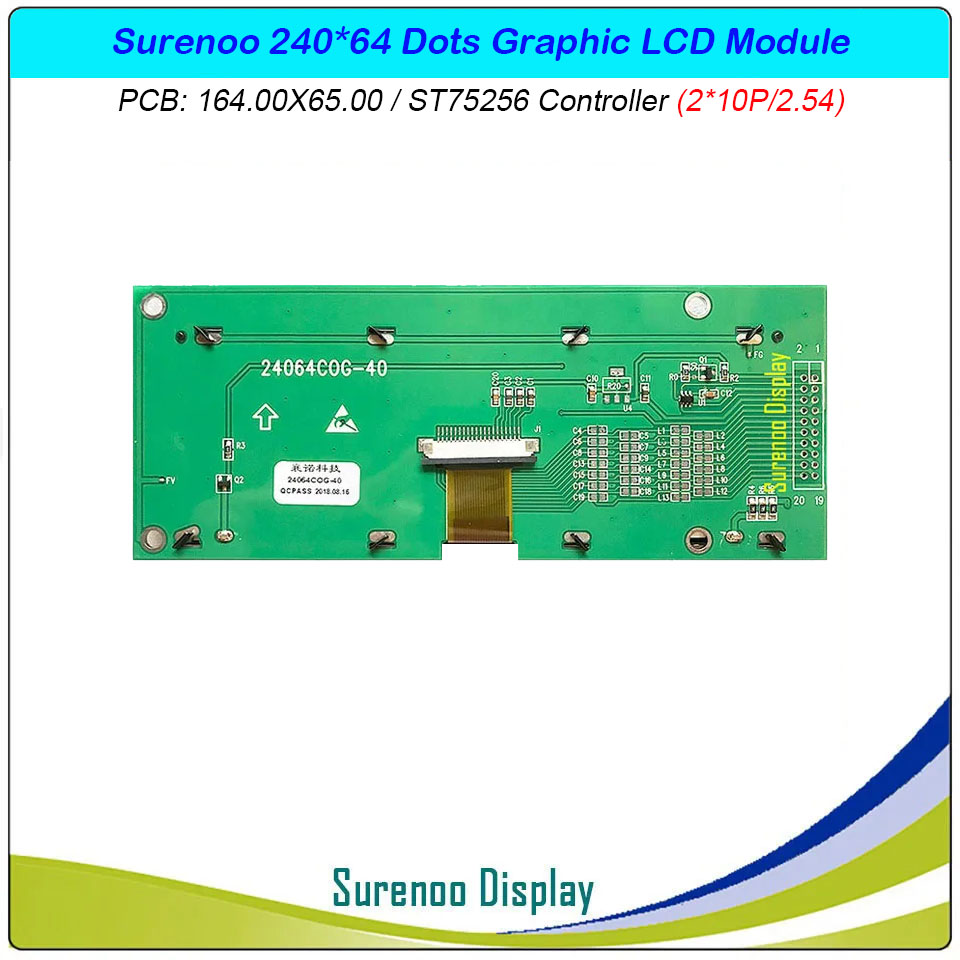

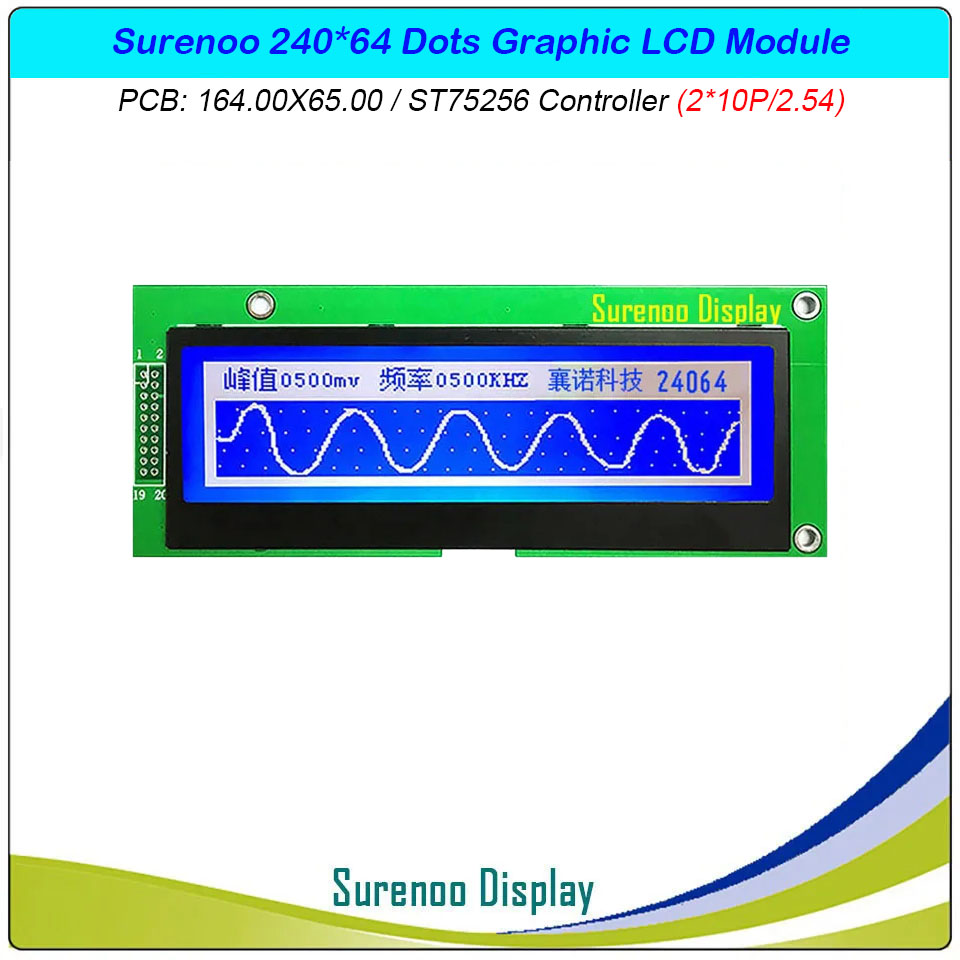

SLG24064B Outline=164.00X65.00MM 5.0" 24064 240X64 240*64 Surenoo Graphic LCD Module Display Screen Panel 8080 8-Bit Parallel ST75256 COG Controller STN Blue Negative with White LED Backlight for 8051 PIC AVR ARM

WISHLIST
Model No.: SLG24064B (5.0")
Display Format: 240*64 Dots
Outline: 164.00X65.00MM
Controller: ST75256 or Equal
16 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SLG24064B is a 240*64 Monochrome Graphic LCD Module, ST75256 COG Controller standard 20P/2.54 24064 parallel Graphic LCD Module, supprot 8080 8-Bit Parallel interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.

    It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.160Kg
    Manufacturer Surenoo
    Display Type Graphic LCD Module
    Continuity Supply More than 10 years
    Part No. SLG24064B (5.0")
    Display Format 240*64 Dots
    Interface 8080 8-Bit Parallel
    IC or Equivalent ST75256 or Equal
    Voltage 3.3V in default
    Connection 2X10P/2.54 Pin Header
    Outline Dimension 164.00(W)x65.00(H)x10.10(T)mm
    Visual Area 135.00x35.00mm
    Active Area 125.98x28.46mm
    Display Type STN Blue Negative
    Backlight Type (LED) White
    IC Package COG
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃
    • Outline Drawing

    • Interface
    Pin No. Symbol Description
    1 SI# ROM Input / NC
    2 SO# ROM Output / NC
    3 SCLK# ROM Clock Input / NC
    4 CS# ROM Chip Selection / NC
    5 LEDA Backlight Control Pin, H is valid, MCU-10 control
    6 VDD
    		 Power Supply for Logic
    7 VSS Ground
    8 CS0 L: Chip Enable Signal
    9 RS
    		 H: Data; L: Instruction
    10 RD Read Signal
    11 WR
    		 Write Signal
    12 RST L: Reset Signal
    13-20 DB0-DB7 Data Bus
    • Documents
    No. Item Document Name File Type ICON Date Description Mark
    1 Datasheet 240X64 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 24064 Graphic LCD Module
    2 Controller Controller IC ST75256 Datasheet PDF 2008-09-24 Graphic LCD Controller: ST75256
