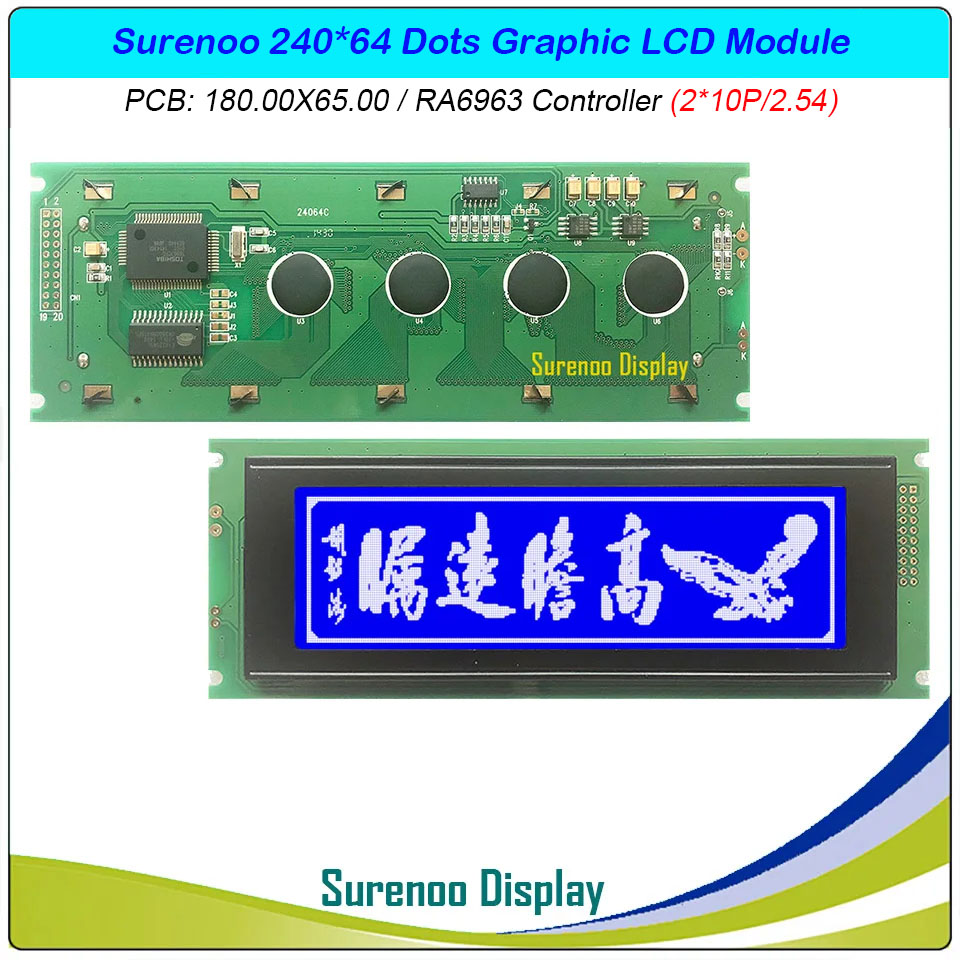

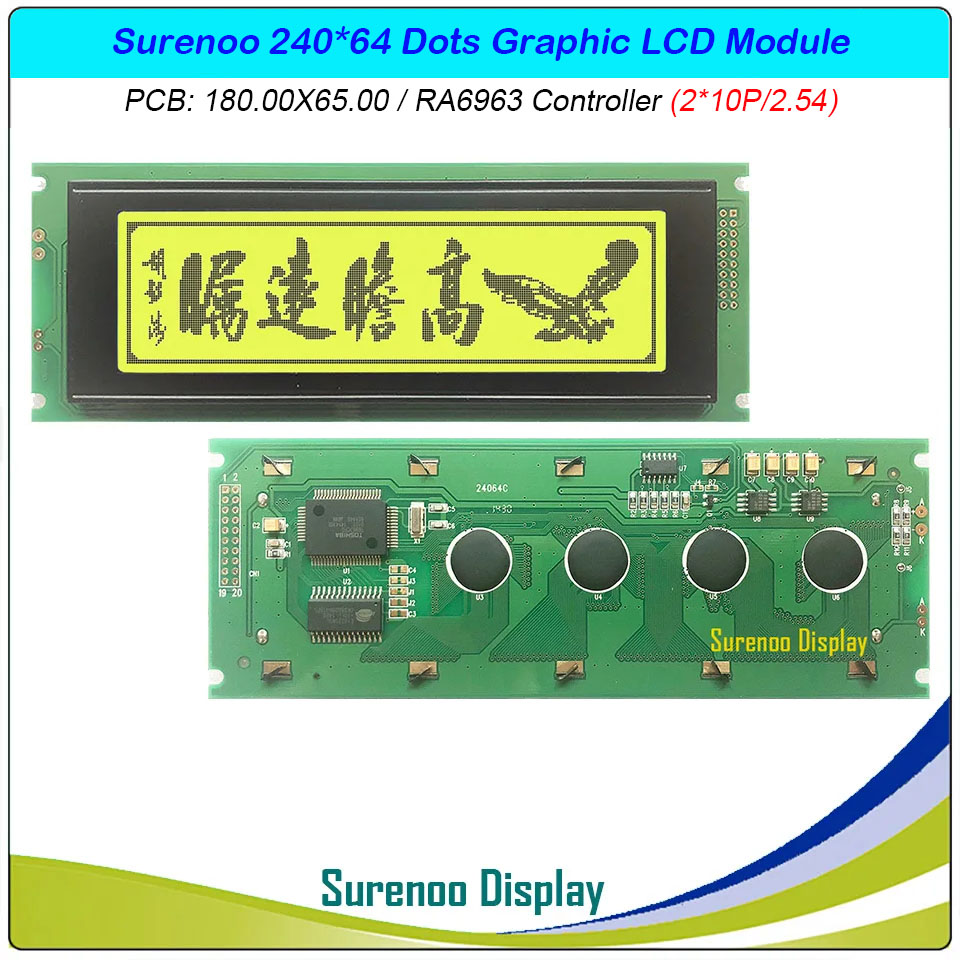

SLG24064C Outline=180.00X65.00MM 5.2" 24064 240X64 240*64 Surenoo Graphic LCD Module Display Screen Panel 8080 8-Bit Parallel T6963C RA6963 UCi6963 Controller STN Yellow Green STN Blue Negative FSTN Positiven LED Backlight for 8051 PIC AVR ARM

WISHLIST
Model No.: SLG24064C (5.2")
Display Format: 240*64 Dots
Outline: 180.00X65.00MM
Controller: UCi6963, RA6963, T6963C or Equal
5 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SLG24064C is a 240*64 dots Monochrome Graphic LCD Module, T6963C/RA6963/UCi6963 Controller standard 22P/2.54 24064 parallel Graphic LCD Module, supprot 8080 8-Bit parallel interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.

    It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.240Kg
    Manufacturer Surenoo
    Display Type Graphic LCD Module
    Continuity Supply More than 10 years
    Part No. SLG24064C (5.2")
    Display Format 240*64 Dots
    Interface 8080 8-Bit Parallel
    IC or Equivalent RA6963 / UCi6963 / T6963C or Equal
    Voltage 5.0V in default
    Connection (2X10P+2P)/2.54 Pin Header
    Outline Dimension 180.00(W)x65.00(H)x12.00(T)mm
    Visual Area 132.60x39.00mm
    Active Area 127.16x33.88mm

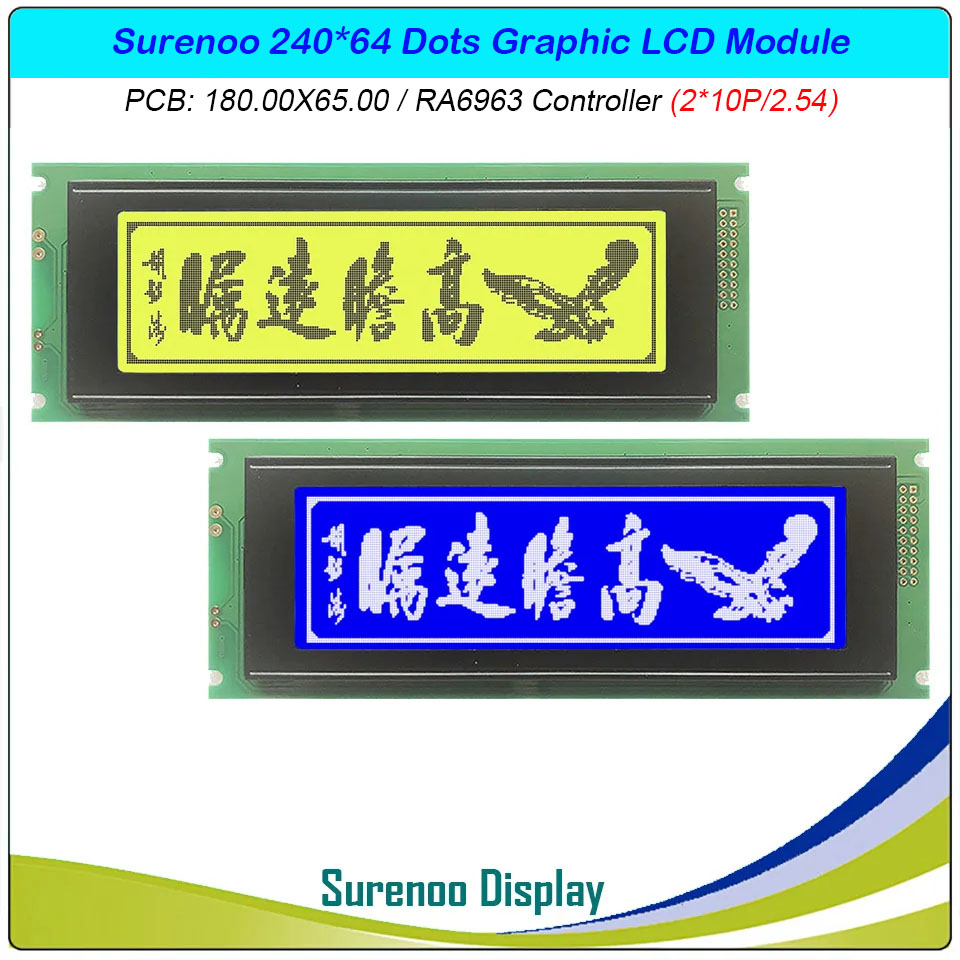

    Display Type STN Yellow Green, STN Blue Negative
    Backlight Type (LED) Yellow Green, White
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃
    • Outline Drawing

    • Interface
    Pin No. Symbol Description
    1-2 GND
    		 Power Ground
    3 VCC
    		 Logic Power Supply
    4 V0
    		 Negative Voltage Adjust (LCD Contrast Adjust)
    5 /WR
    		 Write Signal
    6 /RD
    		 Read Signal
    7 /CE Chip Enable Signal
    8 C/D H:Instruction; L: Data
    9 NC No Connection, Leave Open
    10 /RST
    		 Reset Signal
    11-18 DB0-DB7 Data Bus Line
    19 FS Font Selection Input ( H: 6x8 L: 8x8)
    20 VOUT Negative Voltage Output
    A LED_A Backlight Anode
    K LED_K Backlight Cathode
    • Documents
    No. Item Document Name File Type ICON Date Description Mark
    1 Datasheet 240X64 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 24064 Graphic LCD Module
    2 Controller Controller IC T6963C Datasheet PDF 2008-09-24 Graphic LCD Controller: T6963C/RA6963/UCi6963
