SLG32064A Outline=190.00X54.00 5.5" 32064 320X64 Surenoo Graphic LCD Module Display Screen Panel 6800 4/8-Bit Parallel KS0108 AIP31108 Controller STN Yellow Green with Yellow Green LED Backlight replacement for TM32064AD P-1 for Atlas Air Compressor

WISHLIST
Model No.: SLG32064A (5.5")
Display Format: 320*64 Dots
Outline: 190.00X54.00MM
Controller: KS0108, AIP31108 or Equal
9 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview

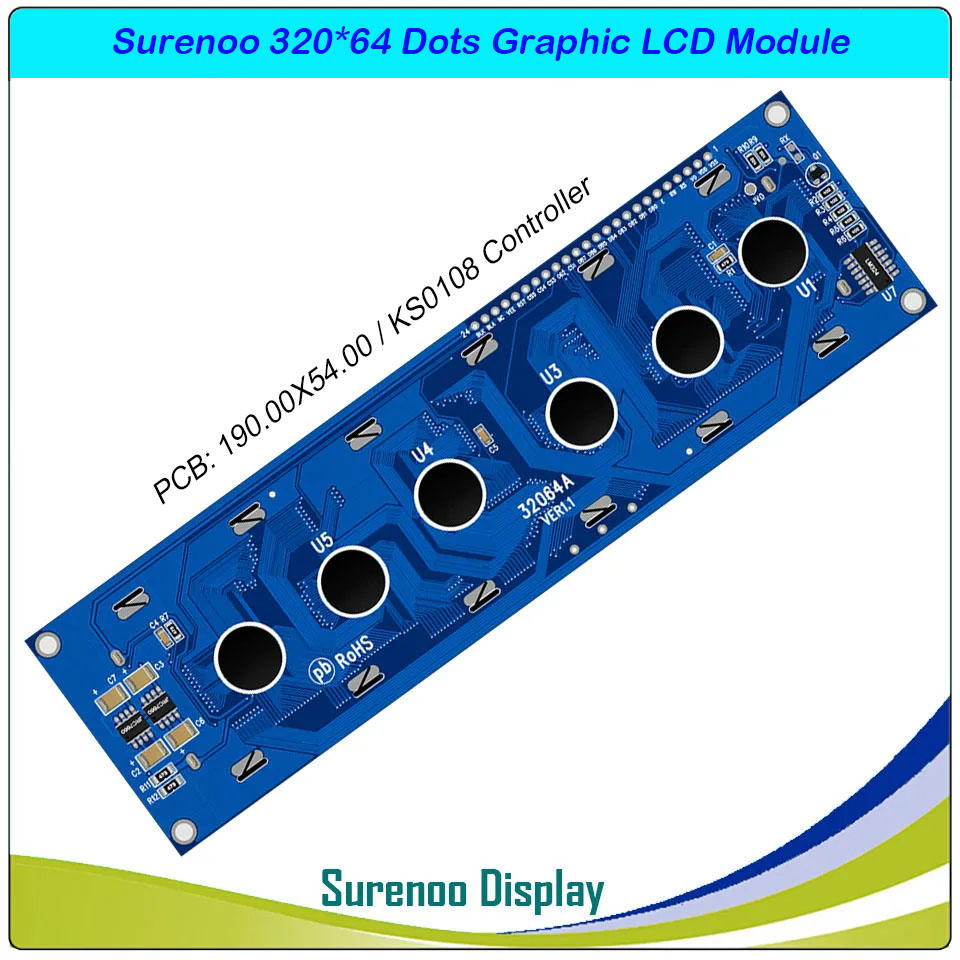

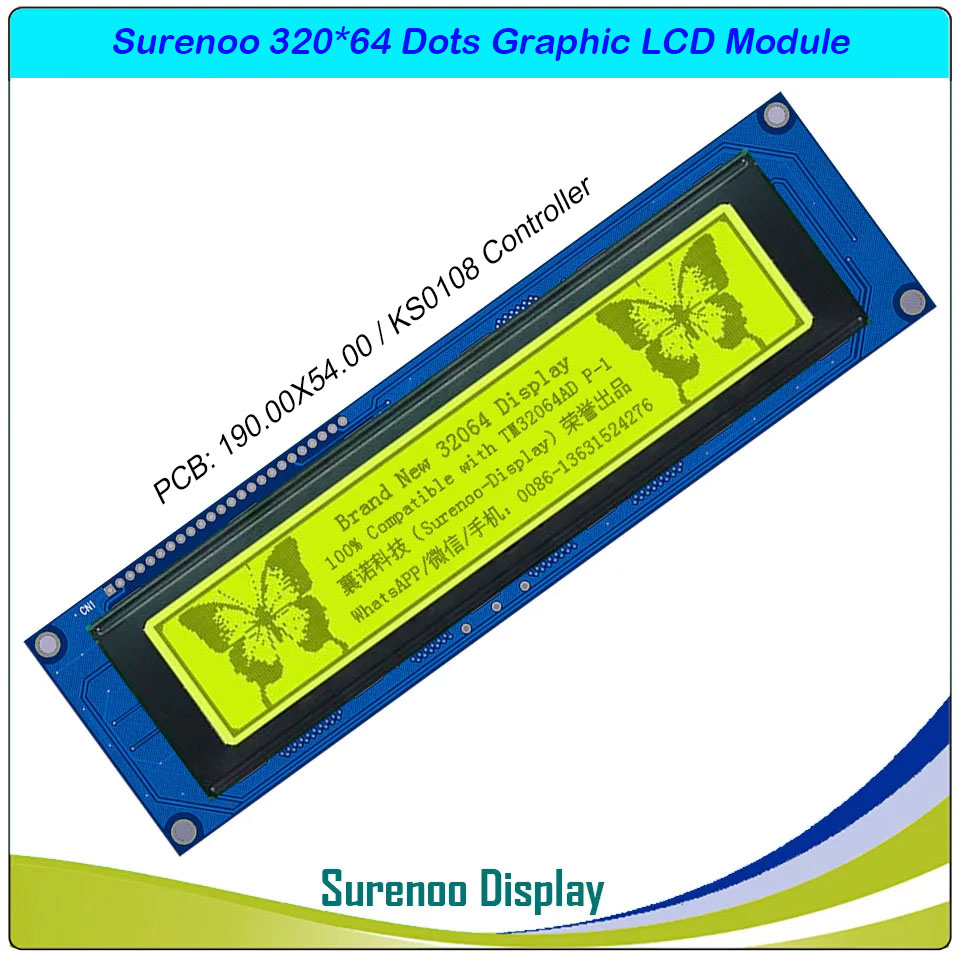

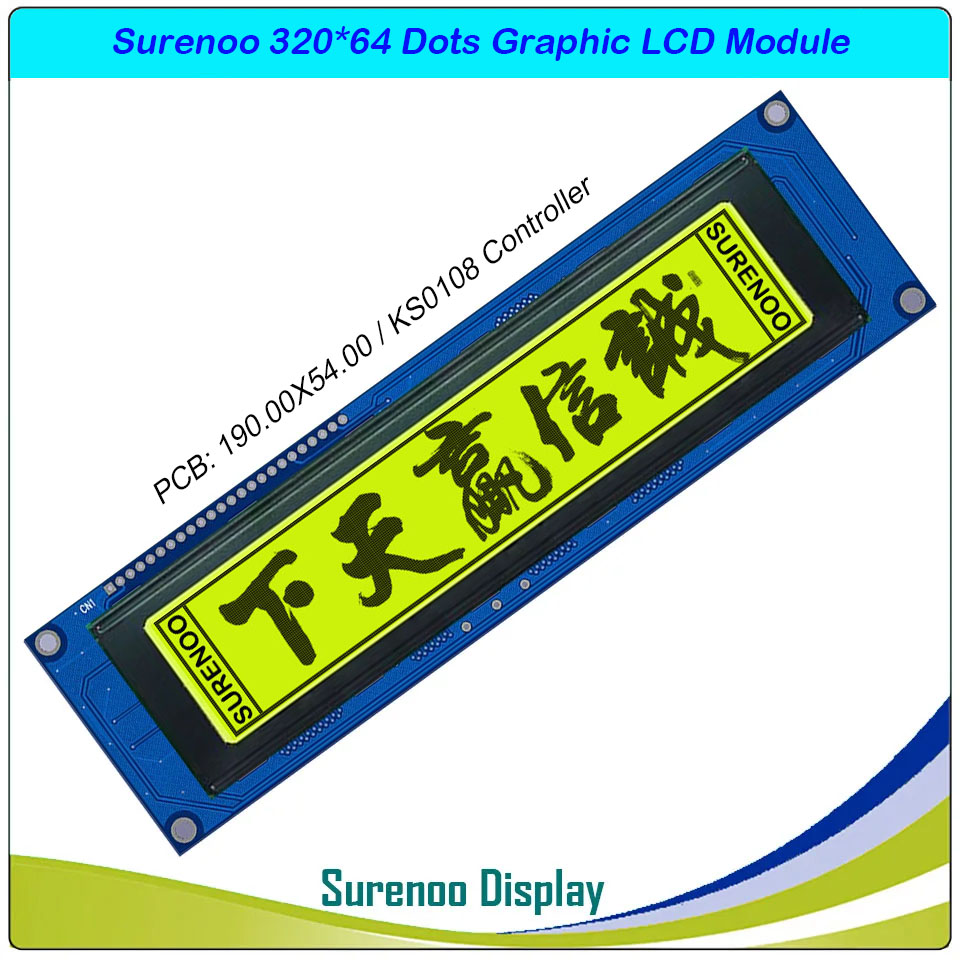

    SLG32064A is a 320*64 Monochrome Graphic LCD Module, KS0108/AIP31108 Controller standard 24P/2.54 32064 parallel Graphic LCD Module, It's easy to drive it as KS0108 12864 LCD Module, 1PCS 32064 Display = 2.5PCS 12864 Display, supprot 6800 4/8-Bit parallel interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.

    It's easily controlled by MPU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.200Kg
    Manufacturer Surenoo
    Display Type Graphic LCD Module
    Continuity Supply More than 10 years
    Part No. SLG32064A (5.5")
    Display Format 320*64 Dots
    Interface 6800 4/8-Bit Parallel
    IC or Equivalent KS0108, AIP31108 or Equal
    Voltage 5.0V in default
    Connection 1X24P/2.54 Pin Header
    Outline Dimension 190.00(W)x54.00(H)x13.60(T)mm
    Visual Area 149.00x29.50mm
    Active Area 137.55x26.19mm
    Display Type STN Yellow Green
    Backlight Type (LED) Yellow Green
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃
    • Outline Drawing

    • Interface
    Pin No. Symbol I/O Description
    1 VSS
    		 0V Ground
    2 VDD
    		 5.0V Logic Power Supply
    3 V0
    		 - Operating Voltage for LCD
    4 RS
    		 H/L H: Data; L: Instruction Code
    5 R/W
    		 H/L H: Read; L: Write
    6 E H, H/L Enable Signal
    7-14 DB0-DB7 H/L Data Bus Line
    15 CS1 H/L Chip selection, enable access to 1/5(64*64) section of the LCD module
    16 CS2 H/L Chip selection, enable access to 2/5(64*64)  section of the LCD module
    17 CS3 H/L Chip selection, enable access to 3/5(64*64) section of the LCD module
    18 CS4 H/L Chip selection, enable access to 4/5(64*64)  section of the LCD module
    19 CS5 H/L Chip selection, enable access to 5/5(64*64) section of the LCD module
    20 RST - L: Reset Signal
    21 VEE - Negative Voltage
    22 NC - No Connect
    23 LED_A 5.0V Backlight Anode
    24 LED_K 0V Backlight Cathode

    Documents

    No. Item Document Name File Type ICON Date Description Mark
    1 Datasheet 320X64 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 32064 Graphic LCD Module
    2 Controller Controller IC KS0108 Datasheet PDF 2008-09-24 Graphic LCD Controller: KS0108 or AIP31108
