SLG19264F Outline=66.00X26.00MM 1.9" 19264 192X64 Surenoo Graphic LCD Module Display Screen Panel Serial SPI UC1604 UC1609c COG Controller STN Blue Negative FSTN Positive DSTN Negative LED Backlight for MCU 8051 PIC AVR ARM

WISHLIST
Model No.: SLG19264F (1.9")
Display Format: 192*64 Dots
Outline: 66.00X26.00MM
Controller: UC1609c or Equal
27 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SLG19264F is a 192*64 Monochrome Graphic LCD Module, build-in UC1609c COG Controller, Serial SPI interface, wide operating temperature range, rohs compliant. 3.3V power supply in default and 5.0V is optional for bulk order.

    It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.032Kg
    Manufacturer Surenoo
    Display Type Graphic LCD Module
    Continuity Supply More than 10 years
    Part No. SLG19264F (1.9")
    Display Format 192*64 Dots
    Interface Serial SPI
    IC or Equivalent UC1609C or Equal
    Voltage 3.3V in default
    Connection 1X9P/2.54 Pin Header
    Outline Dimension 66.00(W)x26.00(H)x6.90(T)mm
    Visual Area 51.00x17.20mm
    Active Area 47.98x15.98mm

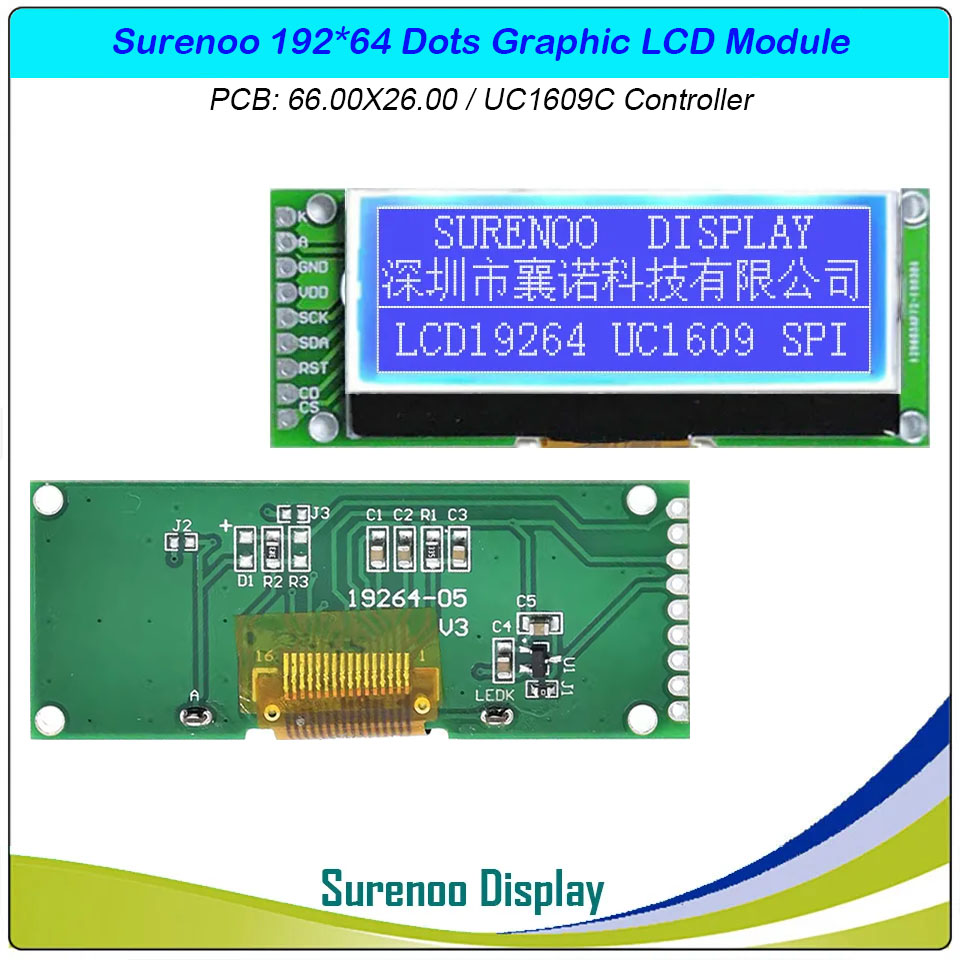

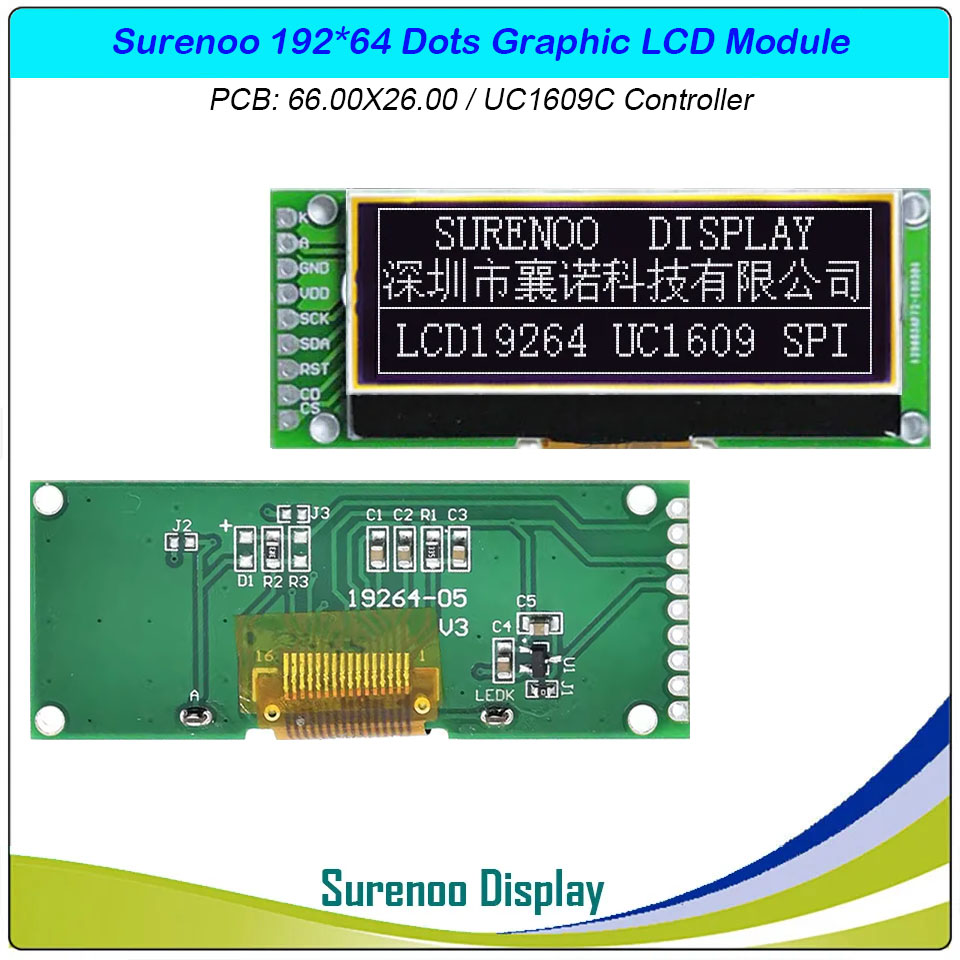

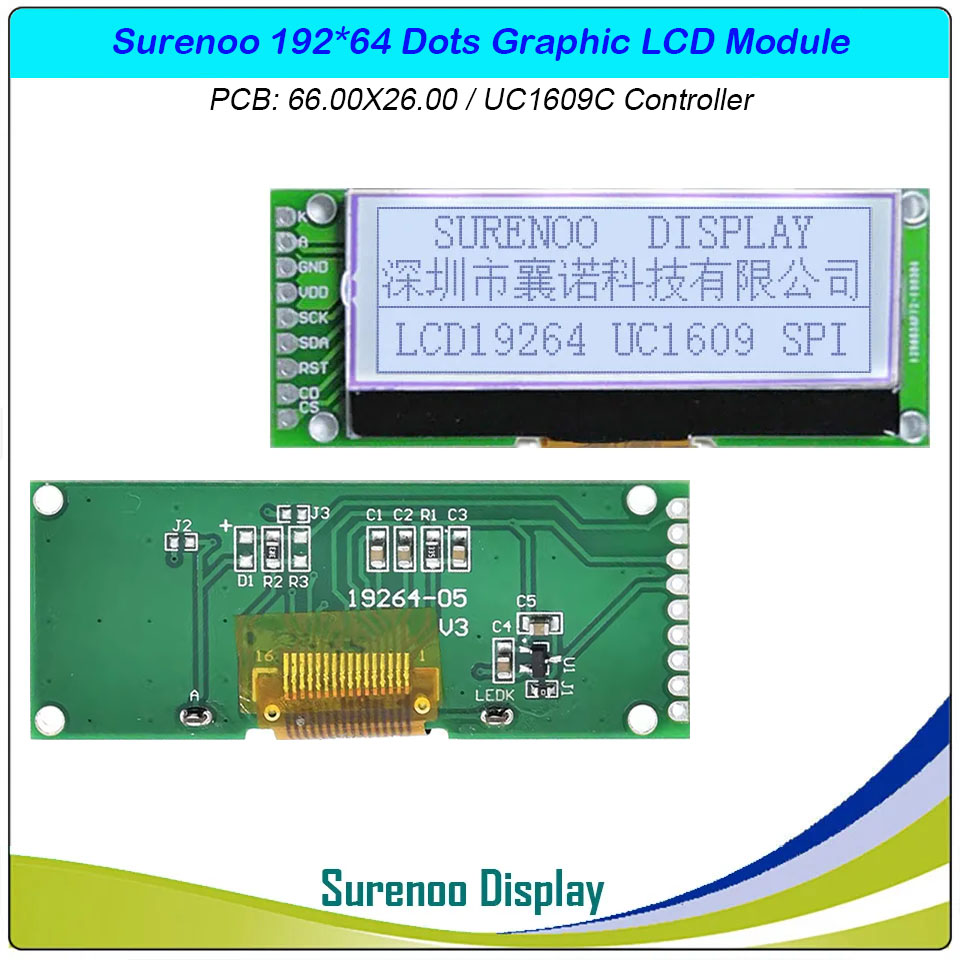

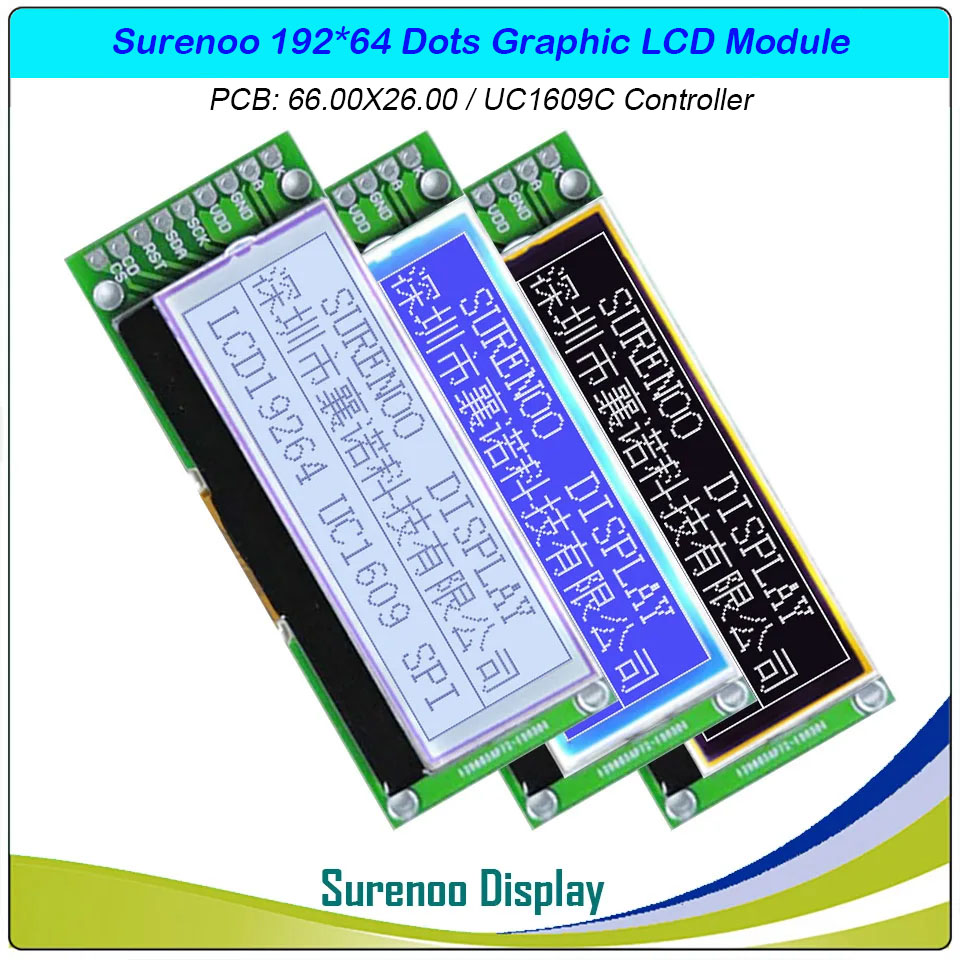

    Display Type STN Blue Negative, FSTN Positive, D-FSTN Negative
    Backlight Type (LED) White
    IC Package COG
    Viewing Direction 12:00 O'Clock
    Operating Temperature
    -10℃~60℃
    Storage Temperature
    -20℃~70℃
    • Outline Drawing

    • Interface
    Pin No. Symbol Description
    1 K
    		 Backlight Cathode (0V)
    2 A
    		 Backlight Anode (3.3V)
    3 VSS
    		 Ground (0V)
    4 VDD Logic Power Supply (3.3V)
    5 SCK Serial Clock Input
    6 SDA Serial Data Input
    7 RST L: Reset Signal
    8 CD H: Data; L: Command
    9 CS L: Chip Selection Pin
    • Documents
    No. Item Document Name File Type ICON Date Description Mark
    1 Datasheet 192X64 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 19264 Graphic LCD Module
    2 Controller Controller IC UC1609C Datasheet PDF 2008-09-24 Graphic LCD Controller: UC1609c
