SLG19264E Outline=130.00X65.00MM 4.0" 19264 192X64 Surenoo Graphic LCD Module Display Screen Panel 6800 4-bit 8-bit Parallel Serial SPI ST7525 COG Controller STN Yellow Green STN Blue Negative FSTN Positive LED Backlight for MCU 8051 PIC AVR ARM

WISHLIST
Model No.: SLG19264E (4.0")
Display Format: 192*64 Dots
Outline: 130.00X65.00MM
Controller: ST7525 or Equal
19 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SLG19264E is a 192*64 Monochrome Graphic LCD Module, build-in ST7525 Controller, supprot 6800 4/8-Bit parallel and 3-wire SPI interface, wide operating temperature range, rohs compliant. 3.3V power supply in default and 5.0V is optional for bulk order.

    It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.100Kg
    Manufacturer Surenoo
    Display Type Graphic LCD Module
    Continuity Supply More than 10 years
    Part No. SLG19264E (4.0")
    Display Format 192*64 Dots
    Interface 6800 4-bit Parallel, 6800 8-bit Parallel, Serial SPI
    IC or Equivalent ST7525 or Equal
    Voltage 3.3V in default
    Connection 1X20P/2.54 Pin Header
    Outline Dimension 130.00(W)x65.00(H)x9.50(T)mm
    Visual Area 104.00x39.00mm
    Active Area 97.49x32.46mm

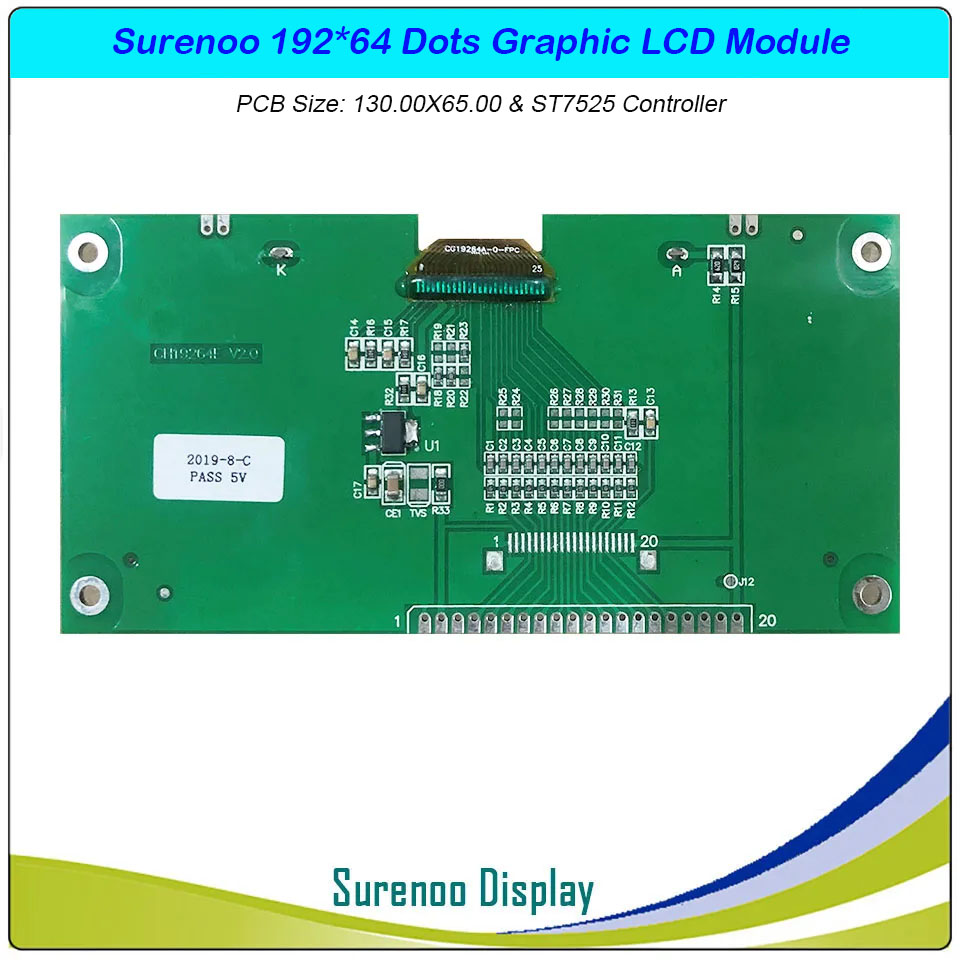

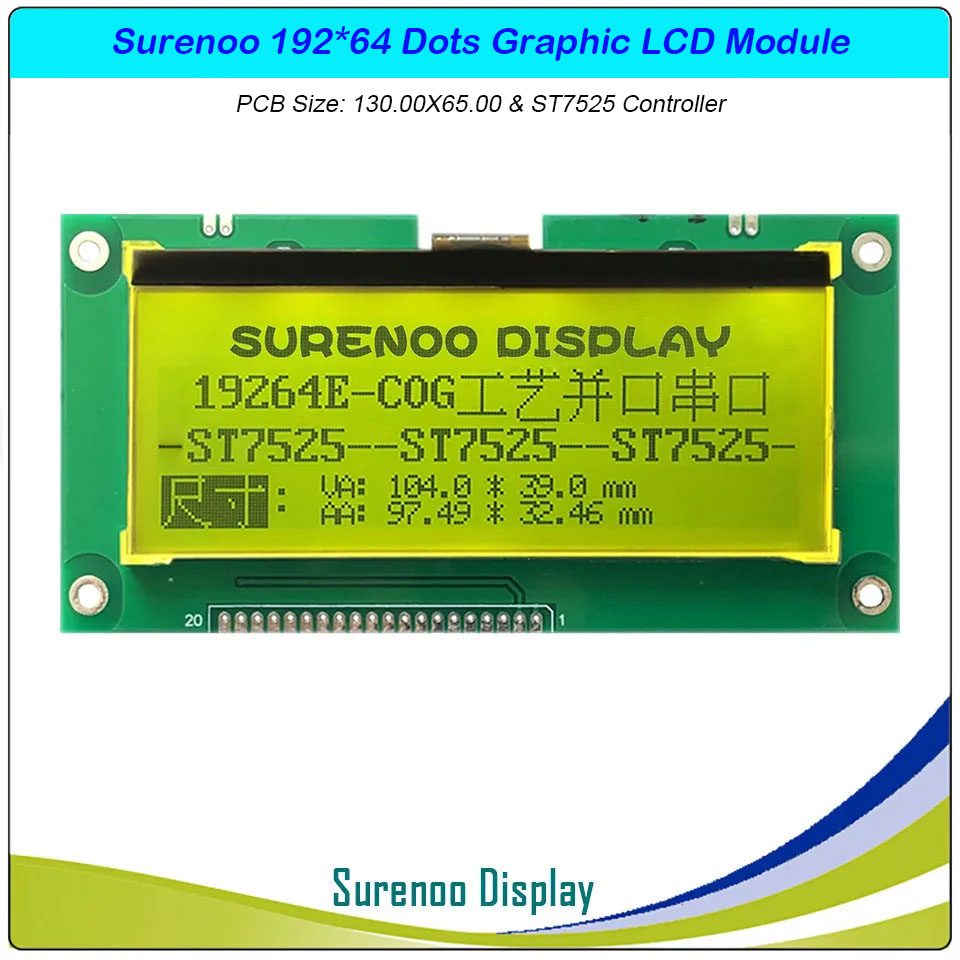

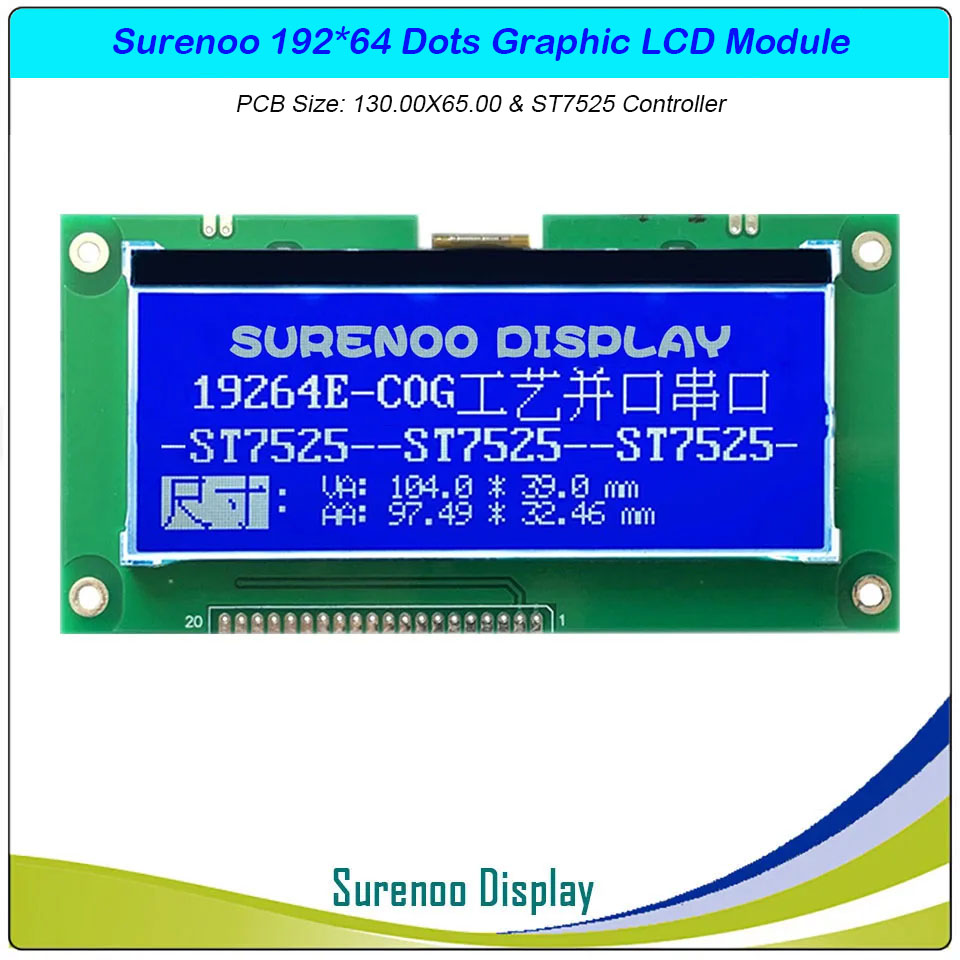

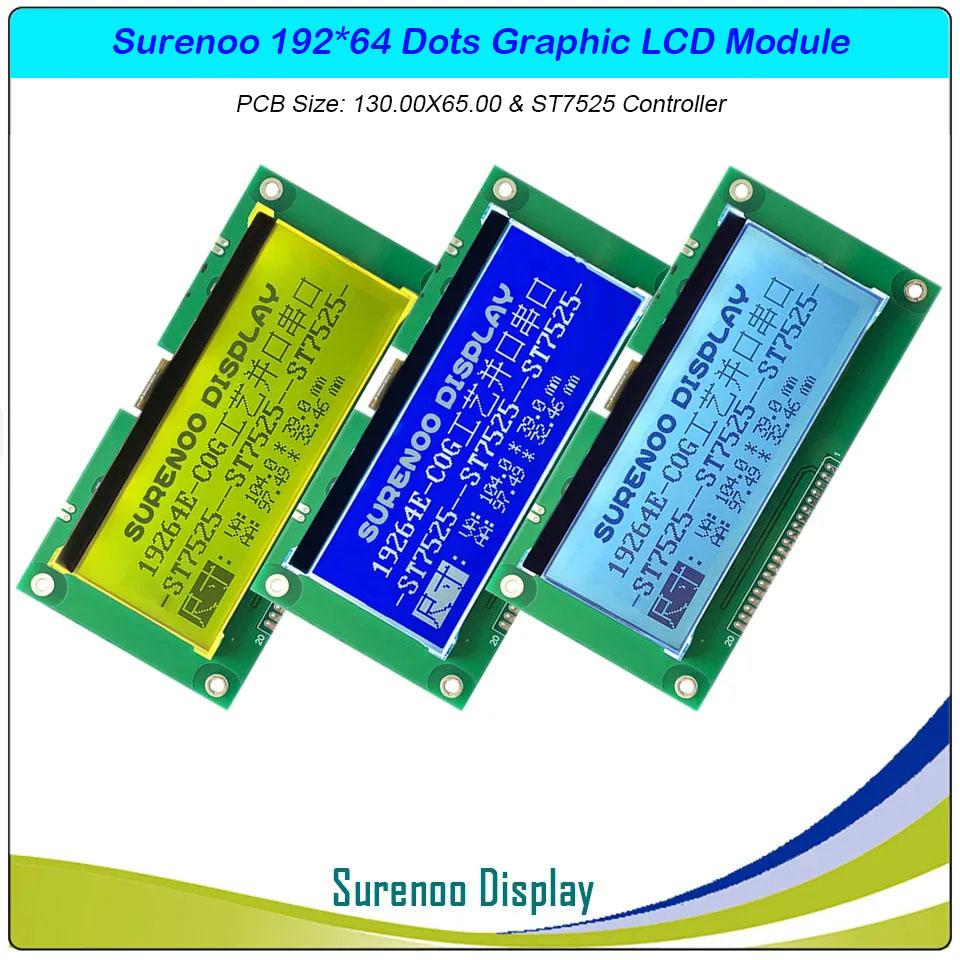

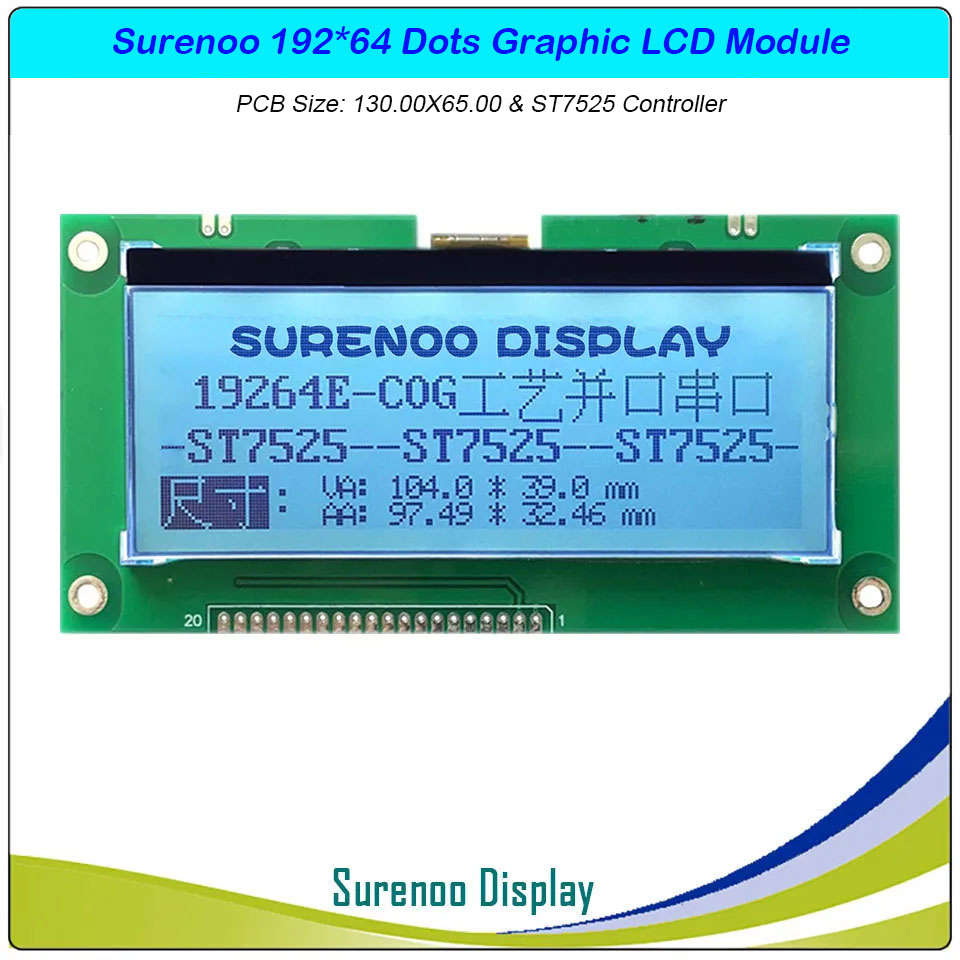

    Display Type STN Yellow Green, STN Blue Negative, FSTN Positive
    Backlight Type (LED) Yellow Green, White
    IC Package COG
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃
    • Outline Drawing

    • Interface
     6800 4/8-Bit Parallel (Default) 3-Wire Serial SPI (Need Revise it by yourself)
    Pin No. Symbol Description Pin No.  Symbol  Description
    1 VSS
    		 Ground 1 VSS Ground
    2 VDD
    		 Logic Power Supply 2 VDD Logic Power Supply
    3 NC
    		 No Connect 3 NC No Connect
    4 RS H: Data; L: Instruction Code 4  RS Instruction Code
    5 R/W H: Read; L: Write 5 NC No Connect
    6 E H: Enable Signal  6 NC No Connect
    7 DB0 Data Bus Line 7 SCL Serial Clock Input
    8 DB1
    		 Data Bus Line 8 SDA Serial Data Input
    9-14 DB2-DB7 Data Bus Line 9-14 NC No Connect
    15 CS L: Chip Select Signal 15 CS L: Reset Signal
    16 RST L: Reset Signal 16 RST L: Reset Signal
    17-19 NC No Connect 17-19 NC No Connect
    20 BLA Positive Power for LED backlight 20 VOUT (NC) Power Booster Output for V0
    We suppply sample in Parallel Mode only, if you need Serial SPI 5V Mode, please revise it by yourself.

    • Documents
    No. Item Document Name File Type ICON Date Description Mark
    1 Datasheet 192X64 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 19264 Graphic LCD Module
    2 Controller Controller IC ST7525 Datasheet PDF 2008-09-24 Graphic LCD Controller: ST7525
