SLG19264C Outline=130.00X65.00MM 4.0" 19264 192X64 Surenoo Graphic LCD Module Display Screen Panel 6800 4-bit 8-bit Parallel Serial SPI ST7920 AIP31020 Controller STN Yellow Green STN Blue Negative FSTN Positive LED Backlight for MCU 8051 PIC AVR ARM

WISHLIST
Model No.: SLG19264C (4.0")
Display Format: 192*64 Dots
Outline: 130.00X65.00MM
Controller: ST7920, AIP31020 or Equal
19 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview

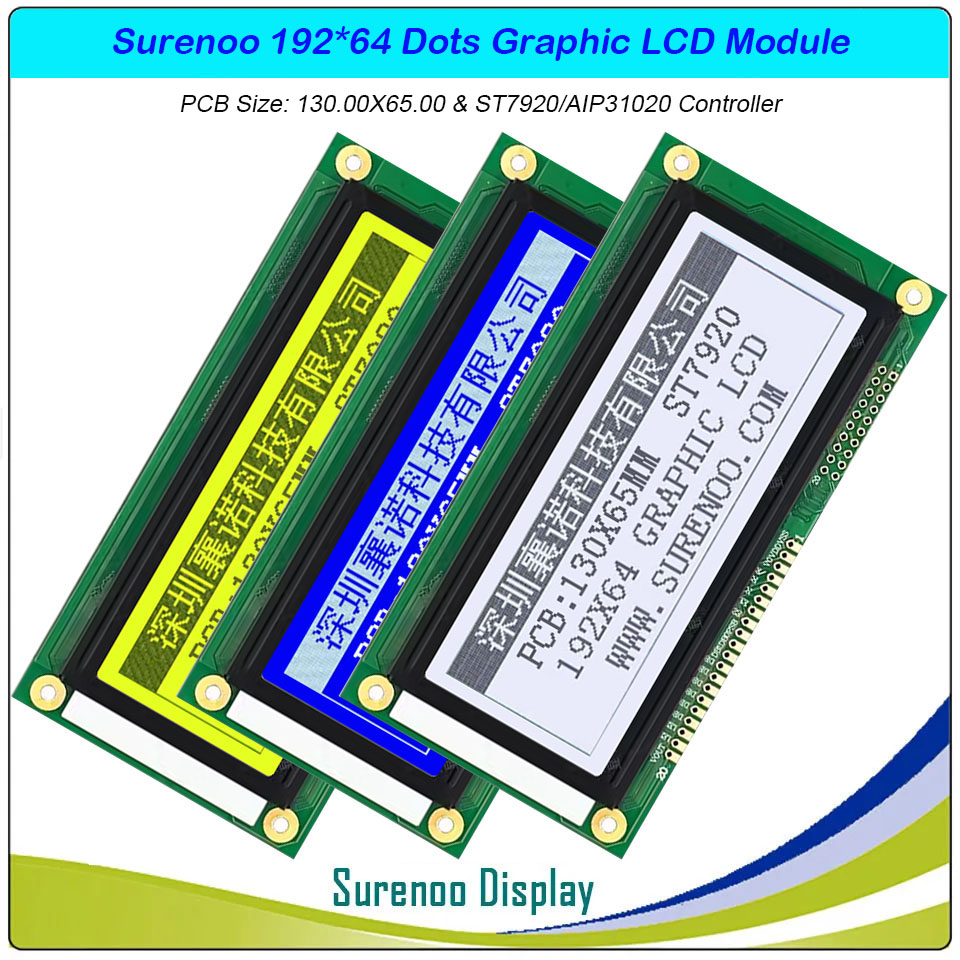

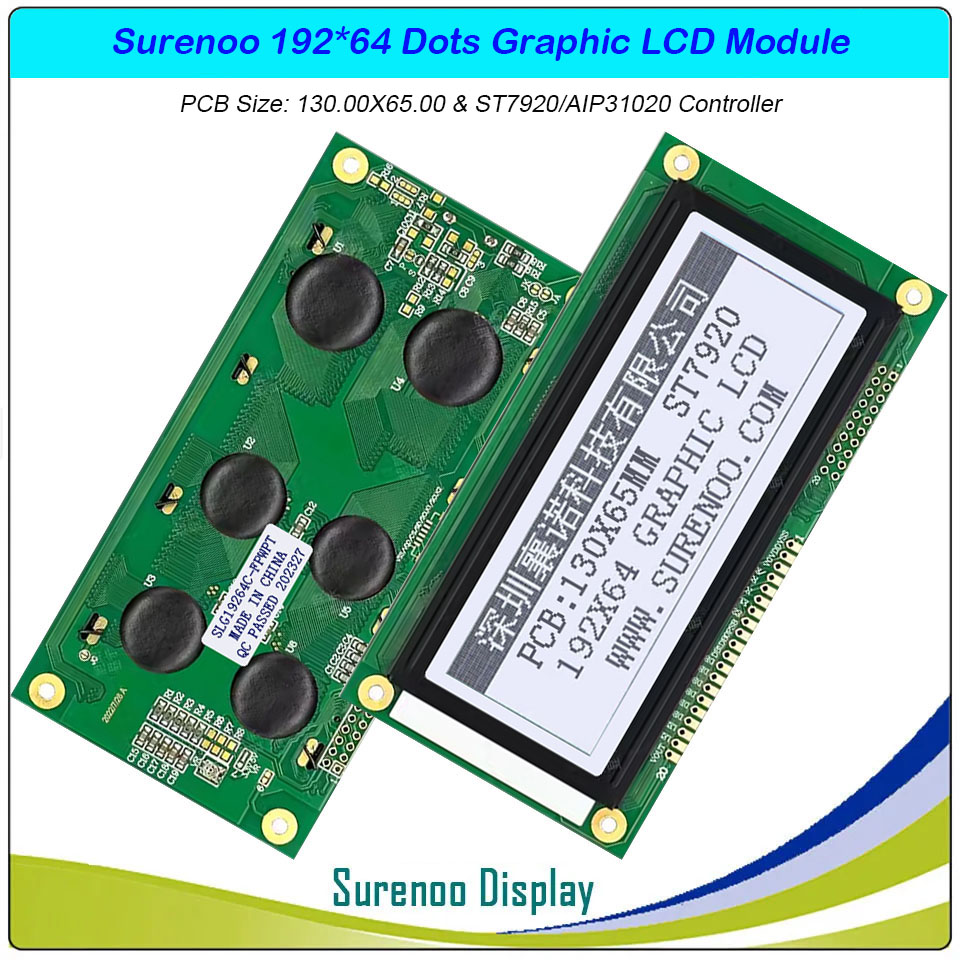

    SLG19264C is a 192*64 Monochrome Graphic LCD Module, ST7920/AIP31020 Controller standard 20P/2.54 19264 parallel Graphic LCD Module.

    SLG19264C supprot 6800 4/8-Bit parallel and 3-wire SPI interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.

    It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.100Kg
    Manufacturer Surenoo
    Display Type Graphic LCD Module
    Continuity Supply More than 10 years
    Part No. SLG19264C (4.0")
    Display Format 192*64 Dots
    Interface 6800 4-bit Parallel, 6800 8-bit Parallel
    IC or Equivalent ST7920, AIP31020 or Equal
    Voltage 5.0V in default
    Connection 1X20P/2.54 Pin Header
    Outline Dimension 130.00(W)x65.00(H)x11.50(T)mm
    Visual Area 104.00x39.00mm
    Active Area 97.49x32.46mm

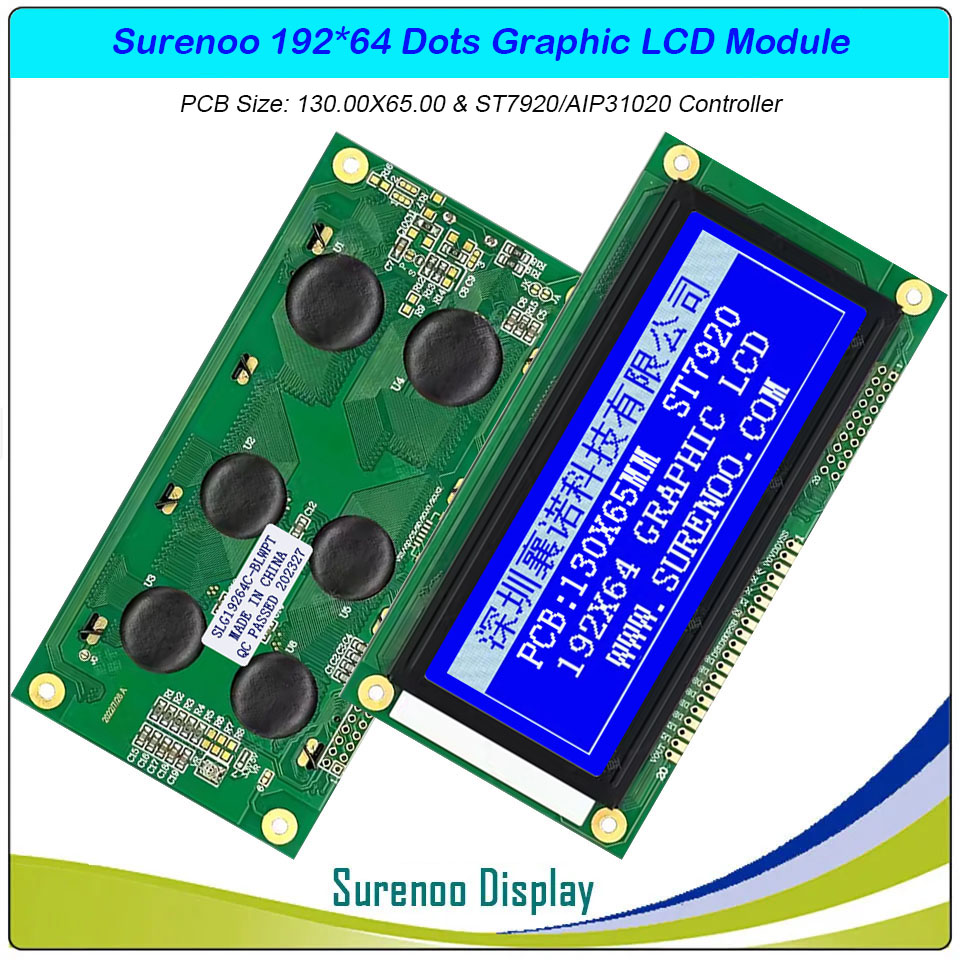

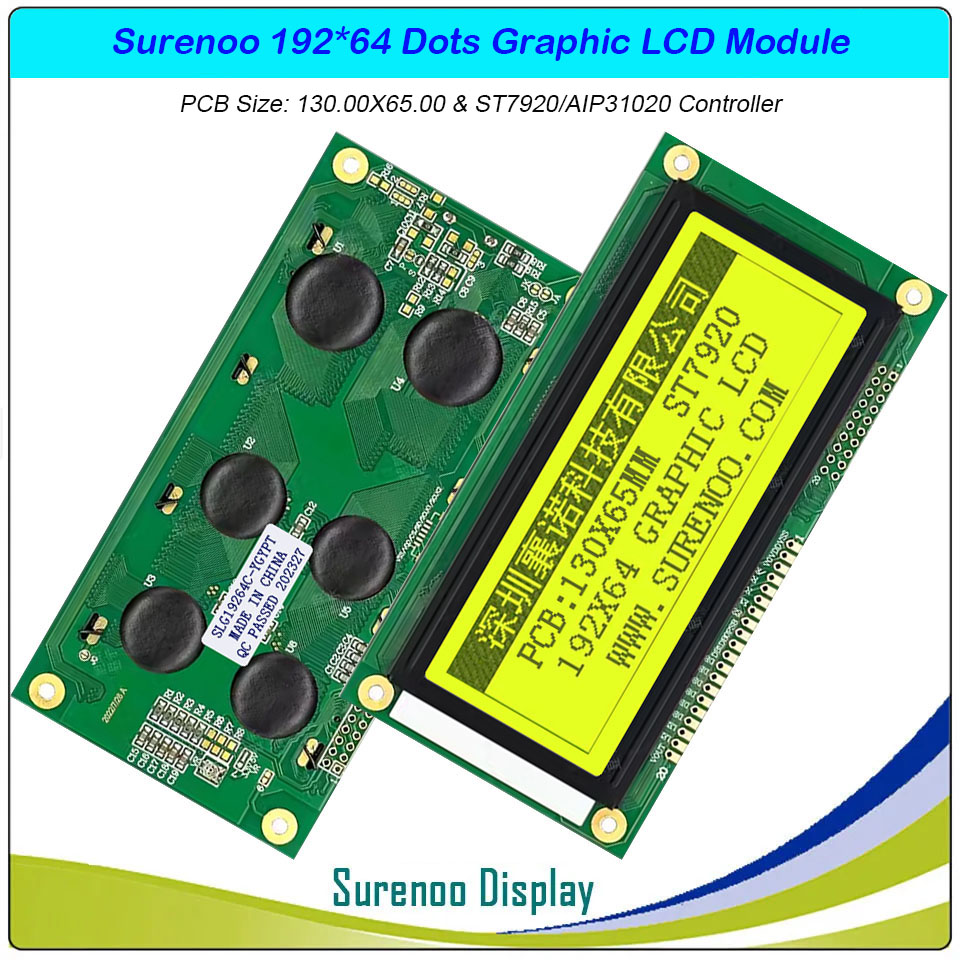

    Display Type STN Yellow Green, STN Blue Negative, FSTN Positive
    Backlight Type (LED) Yellow Green, White
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃
    • Outline Drawing

    • Interface
     6800 4/8-Bit Parallel  3-Wire Serial SPI
    Pin No. Symbol Description Pin No.  Symbol  Description
    1 VSS
    		 Ground 1 VSS Ground
    2 VDD
    		 Logic Power Supply 2 VDD Logic Power Supply
    3 V0
    		 Operating Voltage for LCD 3 V0 Operating Voltage for LCD
    4 RST Reset Signal 4  RST Reset Signal
    5 RS H: Data; L: Instruction Code 5 CS Chip Selection
    6 R/W H: Read; L: Write 6 SID Serial Data Input
    7 E1 Enable Signal  7 SCK1 Serial Clock Input 1
    8 E2 Enable Signal  8 SCK2 Serial Clock Input 2
    9 PSB H: Parallel Model; L: Serial Mode 9 PSB H: Parallel Model; L: Serial Mode
    10-17 DB0-DB7 Data Bus Line 10-17 NC No Connect
    18 BLA Positive Power for LED backlight 18 BLA Positive Power for LED backlight
    19 BLK Positive Power for LED backlight 19 BLK Positive Power for LED backlight
    20 VOUT (NC) Power Booster Output for V0 20 VOUT (NC) Power Booster Output for V0
    • Documents
    No. Item Document Name File Type ICON Date Description Mark
    1 Datasheet 192X64 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 19264 Graphic LCD Module
    2 Controller Controller IC ST7920 Datasheet PDF 2008-09-24 Graphic LCD Controller: ST7920 or AIP31020
