SLG19264D Outline=130.00X65.00MM 4.0" 19264 192X64 Surenoo Graphic LCD Module Display Screen Panel UART CMOS (TTL )RS232 STN Blue Negative with White LED Backlight for MCU 8051 PIC AVR ARM

WISHLIST
Model No.: SLG19264D (4.0")
Display Format: 192*64 Dots
Outline: 130.00X65.00MM
Interface: UART (TTL/RS232)
12 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview

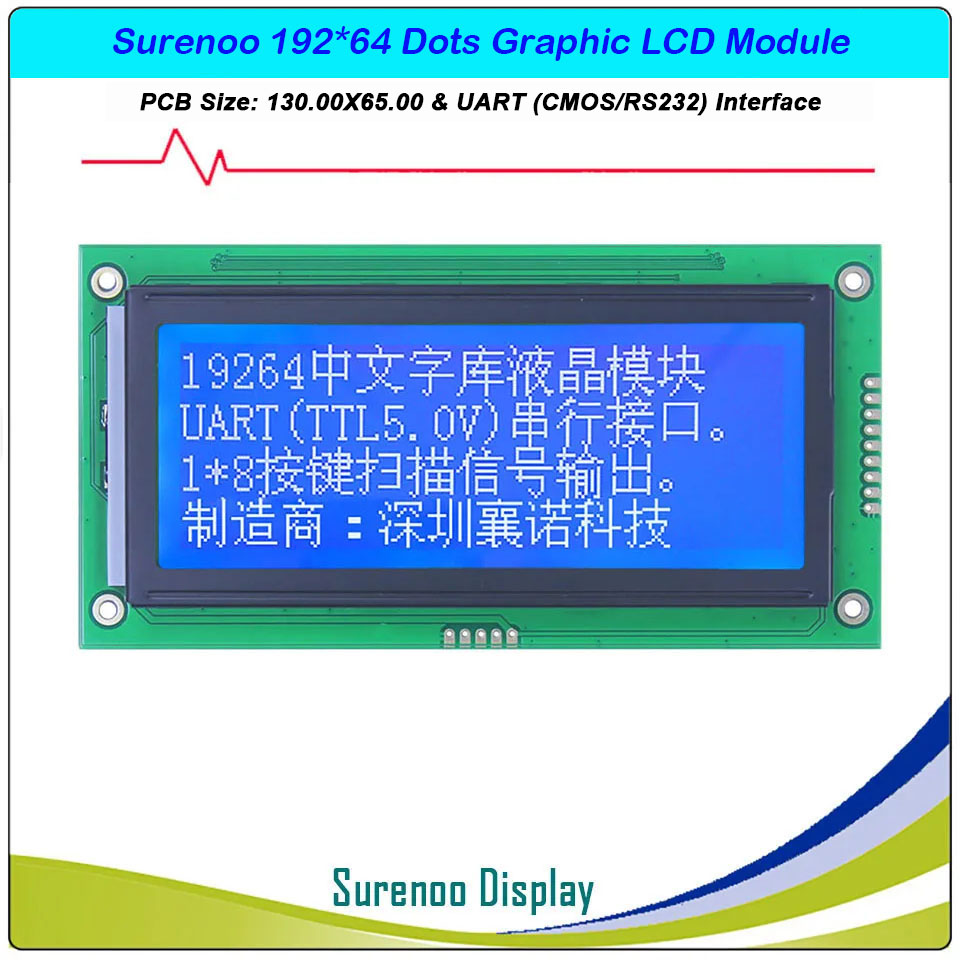

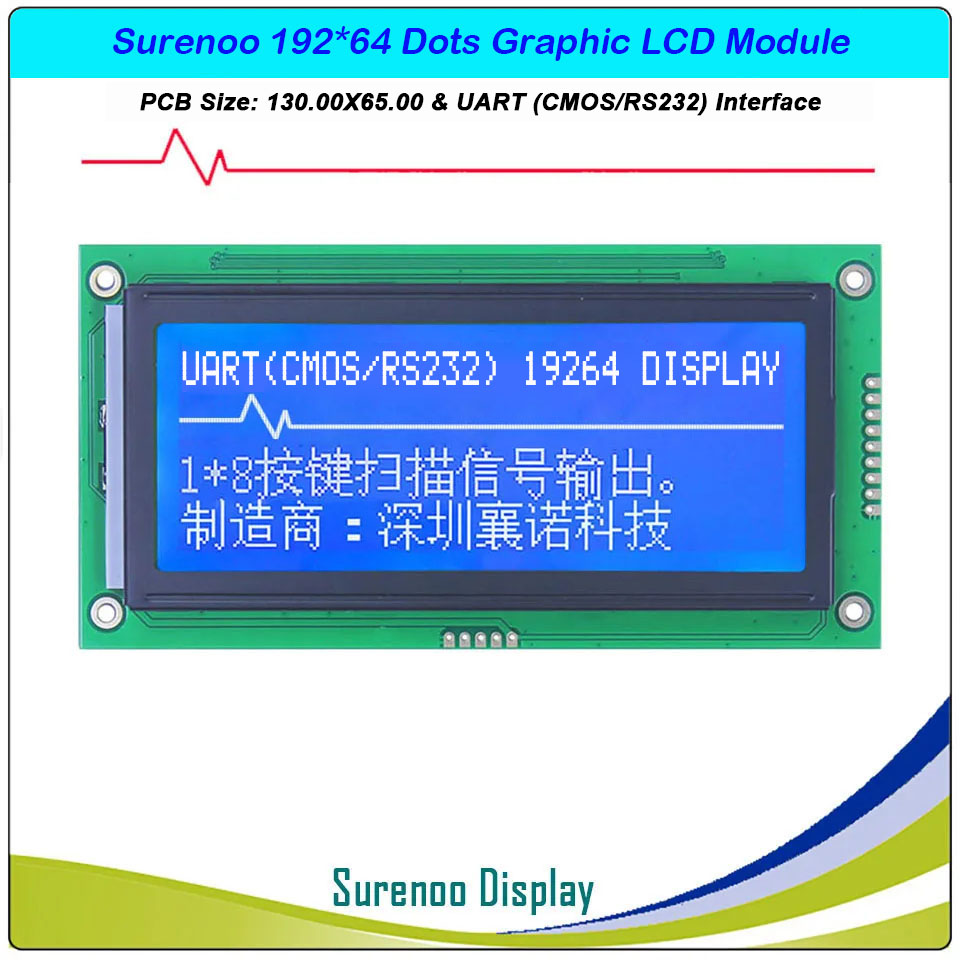

    SLG19264D is a 192*64 Monochrome Graphic LCD Module, UART(CMOS/RS232) interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.

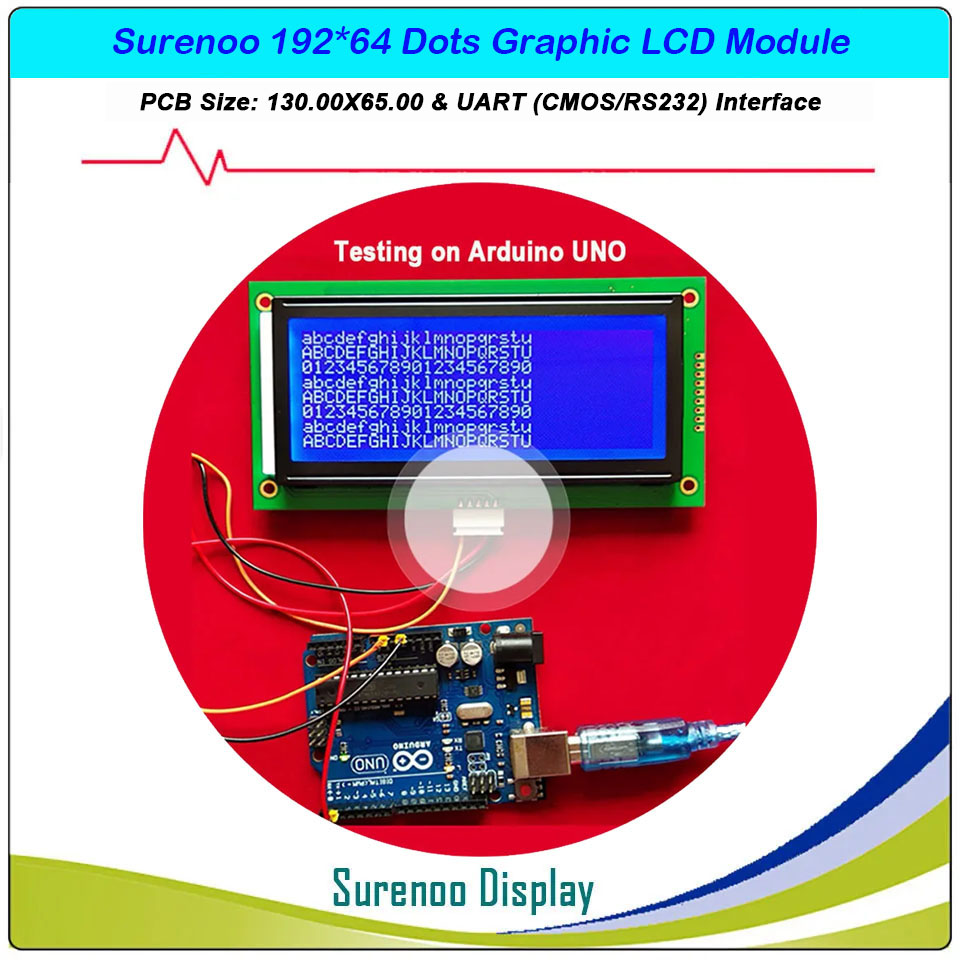

    It's easily controlled by Arduino. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Selection Recommendations
    >> Interface
    CMOS: Signal transmission distance control in less than 20CM;
    RS232: Signal transmission distance of up to 10M.
    >> Display Mode
    The best use of the sun to choose the positive mode products. In the indoor environment, both the negative mode and the positive mode can be used.
    • RS232 vs CMOS(TTL): What's the Difference?
    >> Susceptibility to external conditions
    RS232 more extreme voltages help make it less susceptible to noise, interference, and degradation.
    >> Minimum and Maximum voltages
    The minimum and maximum voltages of RS-232 signals are +/-13V, while TTL signals are 0 to 3.3V/5V.
    >> Ease of pairing with a microcontroller
    TTL serial would be an easier option for microcontroller pairing since it operates nicely between a microcontroller voltage supply range.
    >> Logic levels
    Logic levels between the RS232 and TTL are inverted, with the “1”s and “0”s inverted from each other.
    >> Summary
    Overall, TTL is much easier to implement into embedded circuits. However, lower voltage levels limit long transmission usages. This makes the RS232 a more versatile all-around option.
    • Specification
    Gross Weight  0.100Kg
    Manufacturer Surenoo
    Display Type Graphic LCD Module
    Continuity Supply More than 10 years
    Part No. SLG19264D (4.0")
    Display Format 192*64 Dots
    Interface UART (CMOS / RS232)
    IC or Equivalent -
    Voltage 5.0V in default
    Connection 1X5P/2.54 Pin Header
    Outline Dimension 130.00(W)x65.00(H)x15.50(T)mm
    Visual Area 104.00x39.00mm
    Active Area 97.50x32.47mm
    Display Type STN Blue Negative,
    Backlight Type (LED) White
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃
    • Outline Drawing

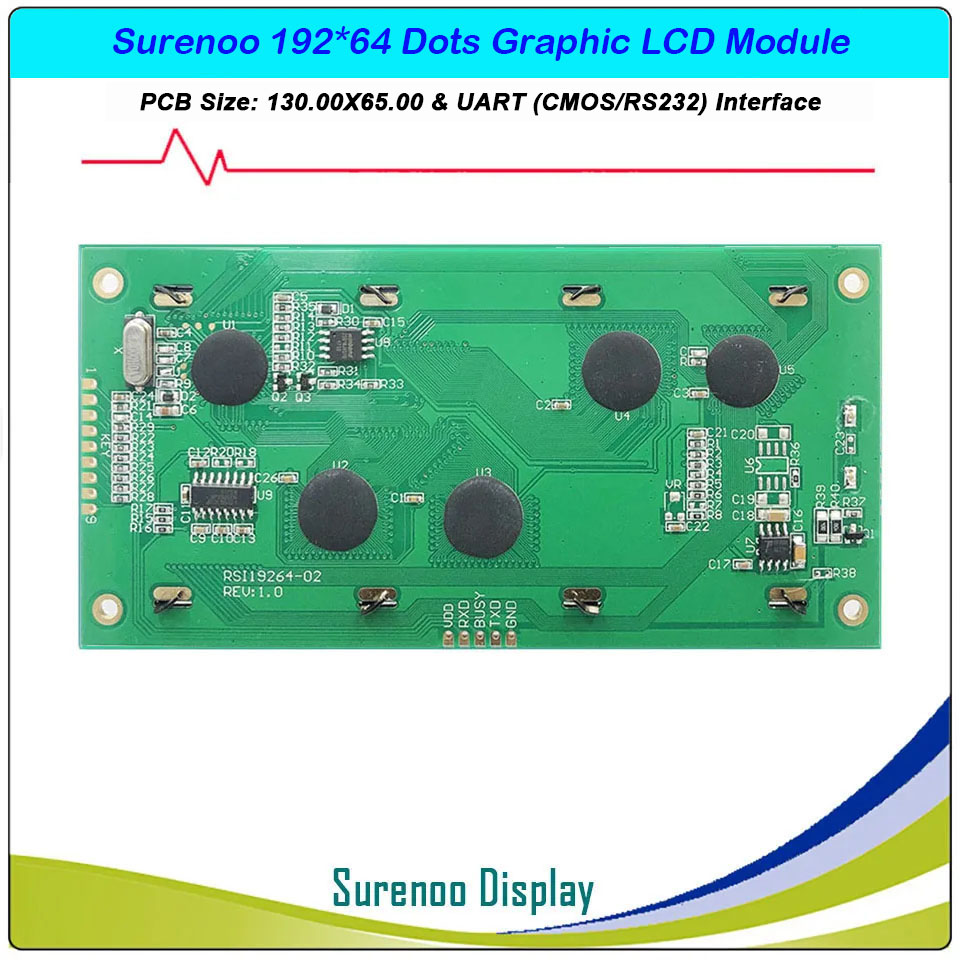

    • Interface
    Pin No. Symbol I/O Description
    Interface for Display (CON)
    1 VDD
    		 P Power (5.0V)
    2 RXD
    		 I UART receives signal, connecting to the master's TXD
    3 BUSY
    		 O 1:Busy, 0:Idle Generally can be suspended treatment
    4 TXD
    		 O UART transmit signal, connecting to the master's RXD
    5 GND
    		 P Power ground
    Interface for KEY
    1-8 Key0-Key7 - Key scan signal, using a key connection between the signal and ground
    9 GND P Power ground
    • Application

    • Documents
    No. Item Document Name File Type ICON Date Description Mark
    1 Datasheet 192X64 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 19264 Graphic LCD Module
