SLG19264B Outline=130.00X65.00MM 4.0" 19264 192X64 Surenoo Graphic LCD Module Display Screen Panel 6800 4-bit 8-bit Parallel KS0108 AIP31108 Controller STN Yellow Green STN Blue Negative FSTN Positive LED Backlight for MCU 8051 PIC AVR ARM

WISHLIST
Model No.: SLG19264B (4.0")
Display Format: 192*64 Dots
Outline: 130.00X65.00MM
Controller: KS0108, AIP31108 or Equal
28 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview

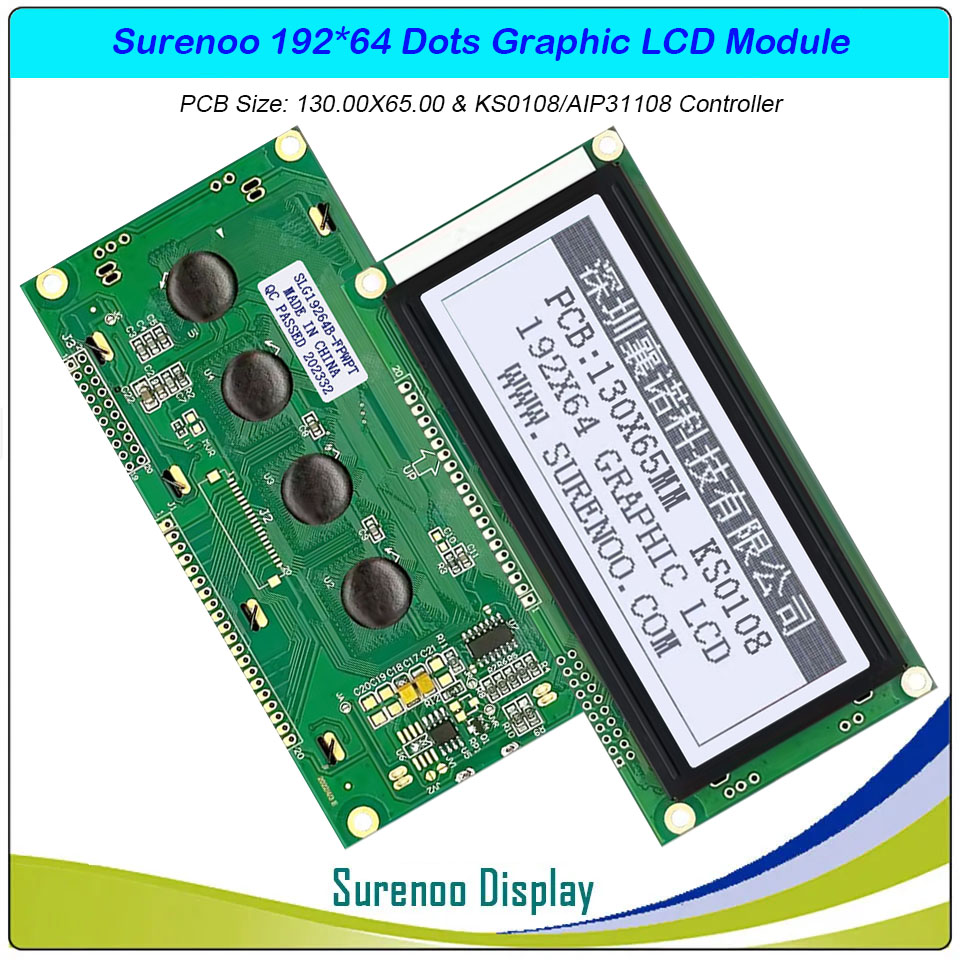

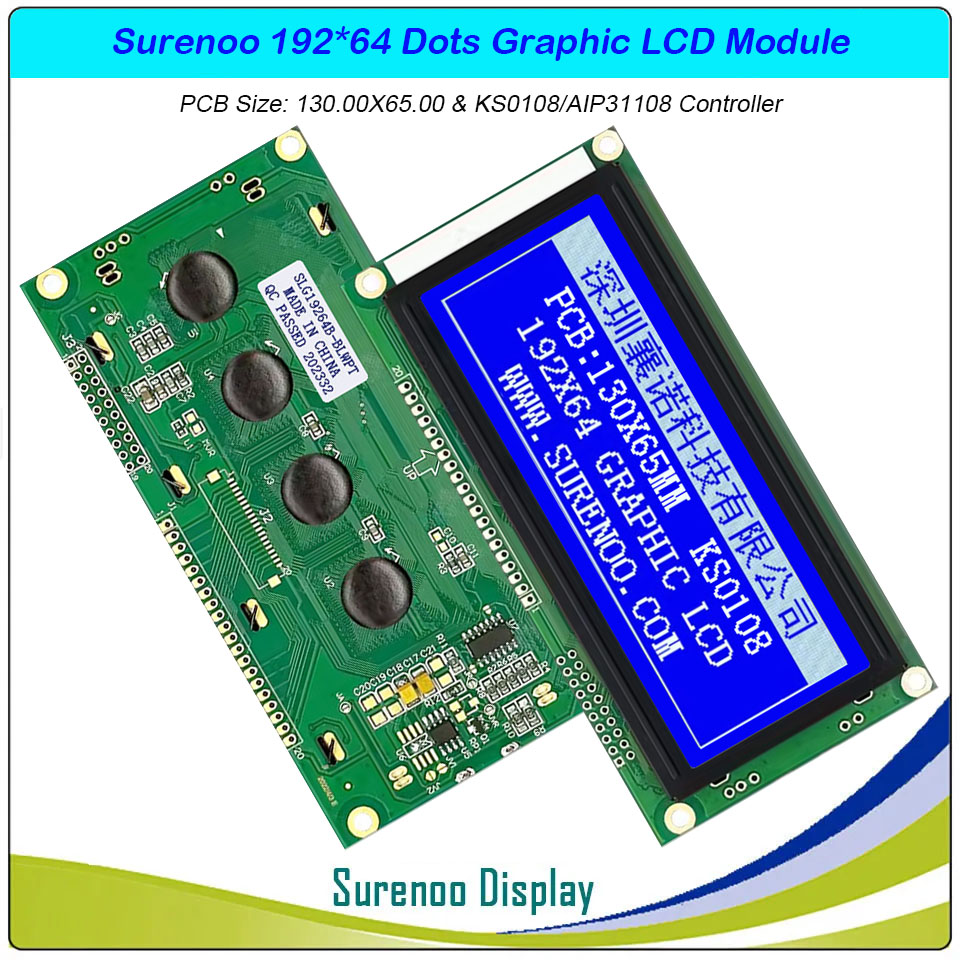

    SLG19264B is a 192*64 Monochrome Graphic LCD Module, KS0108/AIP31108 Controller standard 20P/2.54 19264 parallel Graphic LCD Module.

    SLG19264B supprot 6800 4/8-Bit parallel interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.

    It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.100Kg
    Manufacturer Surenoo
    Display Type Graphic LCD Module
    Continuity Supply More than 10 years
    Part No. SLG19264B (4.0")
    Display Format 192*64 Dots
    Interface 6800 4-bit Parallel, 6800 8-bit Parallel
    IC or Equivalent KS0108, AIP31108 or Equal
    Voltage 5.0V in default
    Connection 1X20P/2.54 Pin Header
    Outline Dimension 130.00(W)x65.00(H)x11.50(T)mm
    Visual Area 104.00x39.00mm
    Active Area 95.58x31.83mm

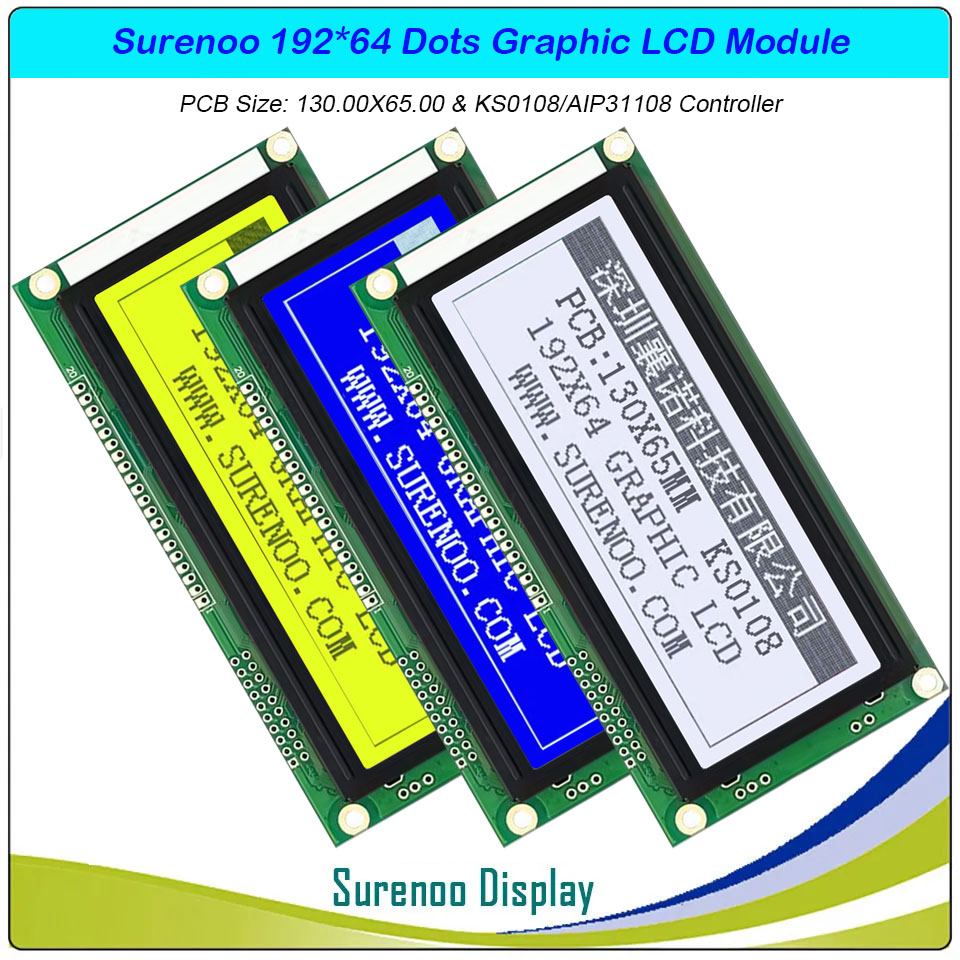

    Display Type STN Yellow Green, STN Blue Negative, FSTN Positive
    Backlight Type (LED) Yellow Green, White
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃
    • Outline Drawing

    • Interface
    Pin No. Symbol I/O Description
    1 VSS
    		 0V Ground
    2 VDD
    		 5.0V Logic Power Supply
    3 V0
    		 - Operating Voltage for LCD
    4 RS
    		 H/L H: Data; L: Instruction Code
    5 R/W
    		 H/L H: Read; L: Write
    6 E H, H/L Enable Signal
    7-14 DB0-DB7 H/L Data Bus Line
    15 CS1 H/L Chip selection, enable access to left section of the LCD module
    16 RST L Reset Signal
    17 CS2 H/L Chip selection, enable access to middle section of the LCD module
    18 CS3 H/L Chip selection, enable access to right section of the LCD module
    19 VOUT - Power Booster Output for V0
    20 LED_A 5.0V Backlight Anode
    • Documents
    No. Item Document Name File Type ICON Date Description Mark
    1 Datasheet 192X64 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 19264 Graphic LCD Module
    2 Controller Controller IC KS0108 Datasheet PDF 2008-09-24 Graphic LCD Controller: KS0108 or AIP31108
