SLG12832A Outline=56.80X33.00 2.0" 12832 128X32 Surenoo Graphic LCD Module Display Screen Panel 6800 4-bit 8-bit Parallel Serial SPI COG ST7567 Controller STN Blue Negative FSTN Positive LED Backlight for MCU 8051 PIC AVR ARM

WISHLIST
Model No.: SLG12832A (2.0")
Display Format: 128*32 Dots
Outline: 56.80X33.00MM
Controller: ST7567 or Equal
36 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SLG12832A is a 128*32 Monochrome Graphic LCD Module, ST7567 Controller, supprot 6800 4/8-Bit parallel and 3-wire serial spi interface, wide operating temperature range, rohs compliant. 3.3V power supply in default and 5V is optional for bulk order.

    It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.040Kg
    Manufacturer Surenoo
    Display Type Graphic LCD Module
    Continuity Supply More than 10 years
    Part No. SLG12832A (2.0")
    Display Format 128*32 Dots
    Interface 6800 4-bit Parallel, 6800 8-bit Parallel, Serial SPI
    IC or Equivalent ST7567 or Equal
    Fonts Not Inlduding, Bulk order is optional
    Voltage 3.3V in default
    Connection 1X20P/2.54 Pin Header
    Outline Dimension 56.80(W)x33.00(H)x5.10(T)mm
    Visual Area 52.00x16.00mm
    Active Area 49.00x14.00mm

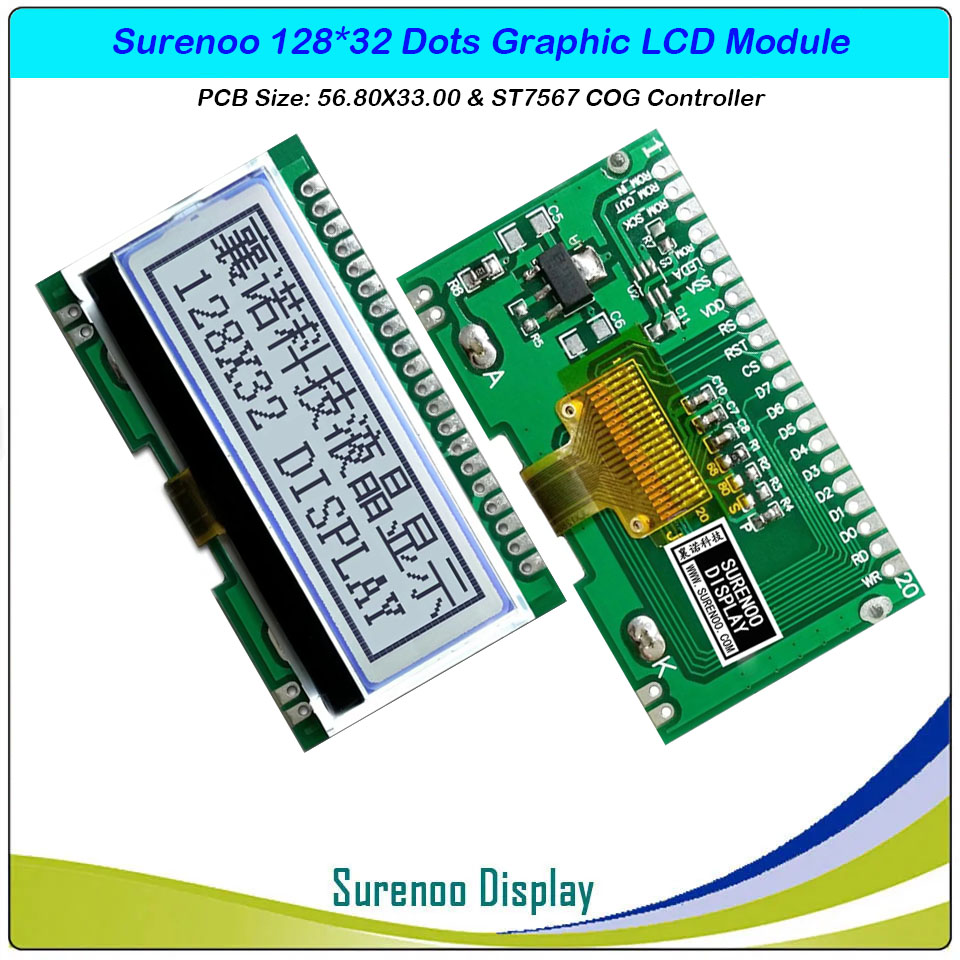

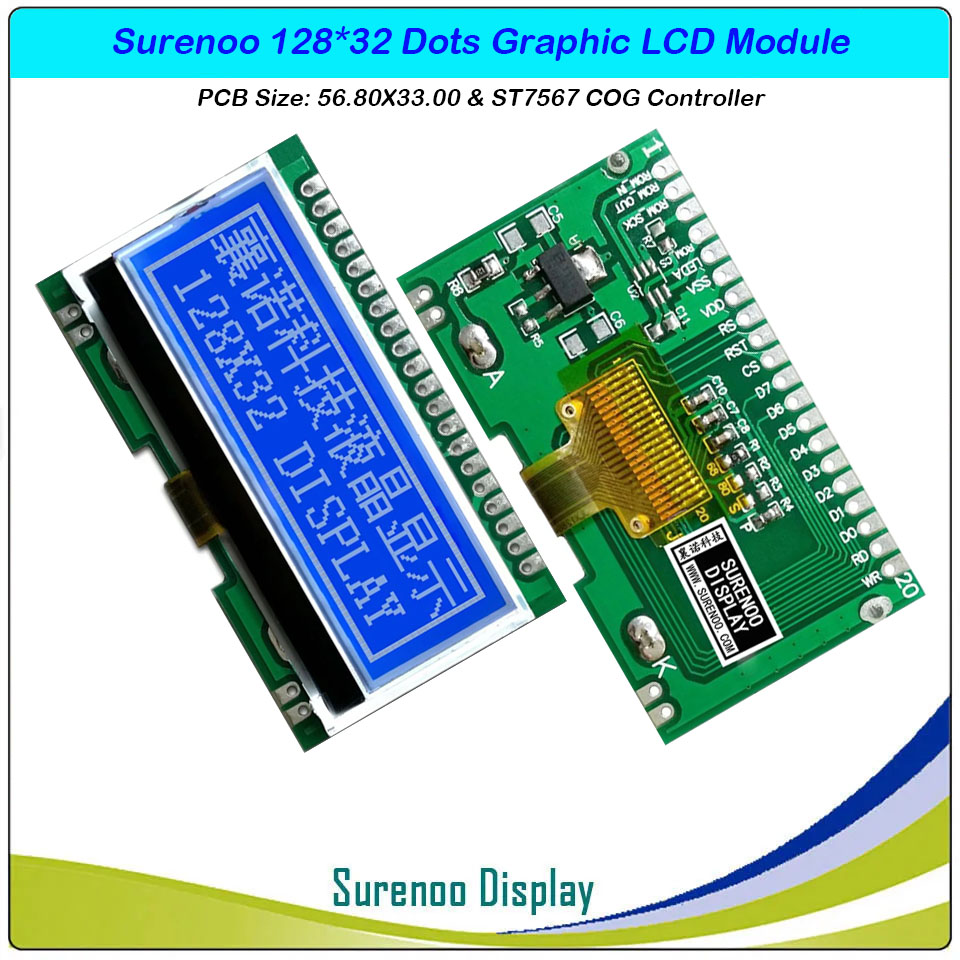

    Display Type STN Blue Negative, FSTN Positive
    Backlight Type (LED) White
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃
    • Outline Drawing

    • Interface
    6800 4/8-Bit Parallel
    		 3-Wire Serial SPI
    Pin No. Symbol Description
    		 Symbol
    		 Description
    1-4 NC Handspace Pin for Font Chip NC Handspace Pin for Font Chip
    5 LEDA Backlight Anode LEDA Backlight Anode
    6 VSS Ground VSS Ground
    7 VDD Logic Power Supply (3.3V) VDD Logic Power Supply (3.3V)
    8 A0(RS) Register Select (H: Data Signal, L: Instruction Signal) A0(RS) Register Select (H: Data Signal, L: Instruction Signal)
    9 RES Low for Reset, High for LCD Working RES Low for Reset, High for LCD Working
    10 CS Low Level Chip Selection CS Low Level Chip Selection
    11 DB7 Data Bus SDA Serial Data Signal
    12 DB6 Data Bus SCLK Serial Clock Signal
    13-18 DB5-DB0 Data Bus NC No Connect
    19 E Enable Signal NC No Connect
    20 LED_K Read / Write (H: Read Mode, L: Write Mode) NC No Connect
    • Documents
    No. Item Document Name File Type ICON Date Description Mark
    1 Datasheet 128X32 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 12832 COG Graphic LCD Module
    2 Controller Controller IC ST7567 Datasheet PDF 2008-09-24 Graphic LCD Controller ST7567, support Parallel & Serial SPI
