SLG12232D Outline=80.00X36.00MM 2.0" 12232 122X32 Surenoo Graphic LCD Module Display Screen Panel 6800 4-bit 8-bit Parallel SED1520 SBN1661 AIP31520 Controller STN Yellow Green STN Blue Negative FSTN Positive LED Backlight for MCU 8051 PIC AVR ARM

WISHLIST
Model No.: SLG12232D (2.0")
Display Format: 122*32 Dots
Outline: 80.00X36.00MM
Controller: SED1520, SBN1661, AIP31520 or Equal
78 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview

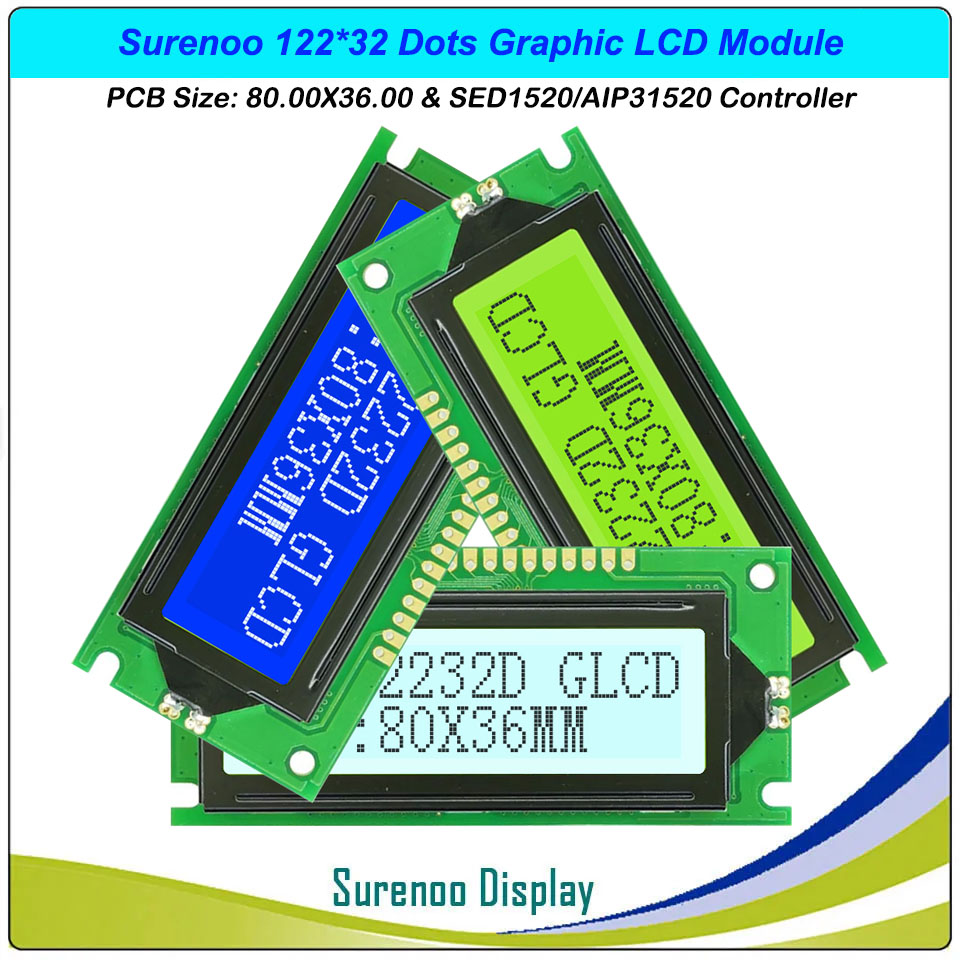

    SLG12232D is a 122*32 Monochrome Graphic LCD Module, SED1520/SBN1661 Controller standard 20P/2.54 12232 parallel Graphic LCD Module.

    SLG12232D supprot 6800 4/8-Bit parallel interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.

    It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.040Kg
    Manufacturer Surenoo
    Display Type Graphic LCD Module
    Continuity Supply More than 10 years
    Part No. SLG12232D (2.0")
    Display Format 122*32 Dots
    Interface 6800 4-bit Parallel, 6800 8-bit Parallel
    IC or Equivalent SED1520, SBN1661, AIP31520 or Equal
    Voltage 5.0V in default
    Connection 1X20P/2.54 Pin Header
    Outline Dimension 80.00(W)x36.00(H)x12.80(T)mm
    Visual Area 60.50x18.00mm
    Active Area mm

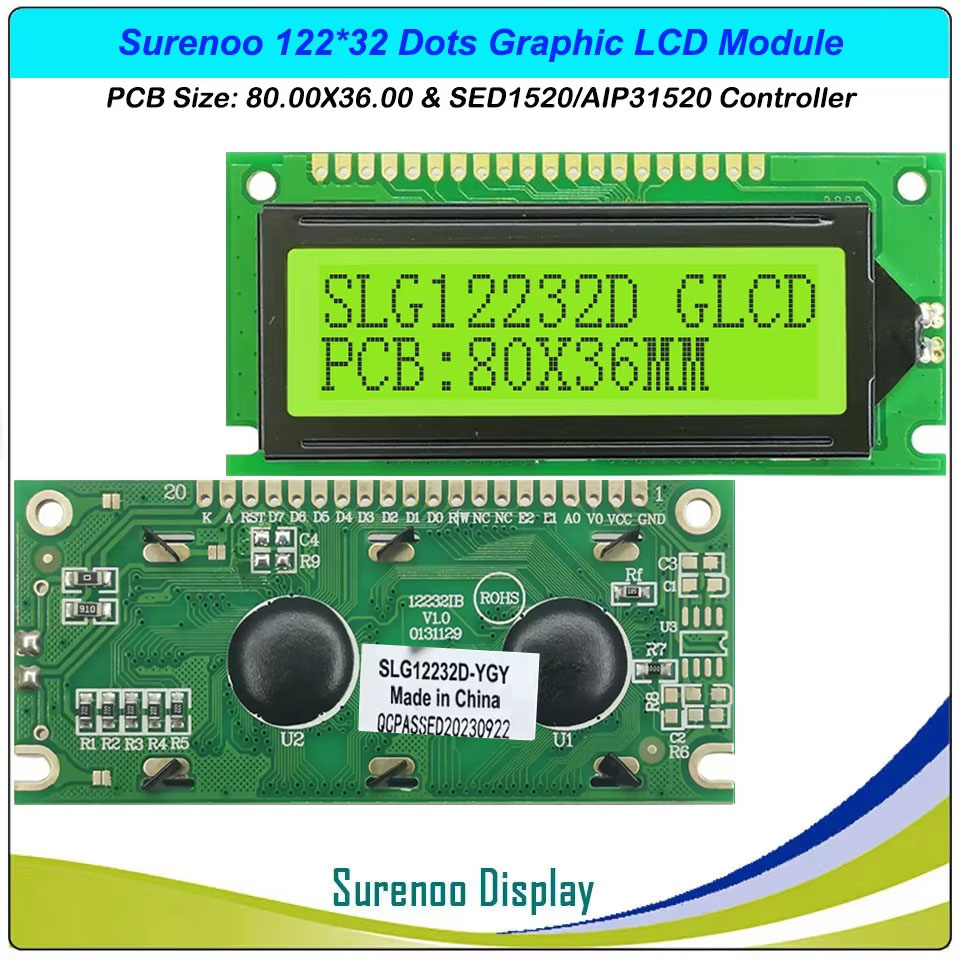

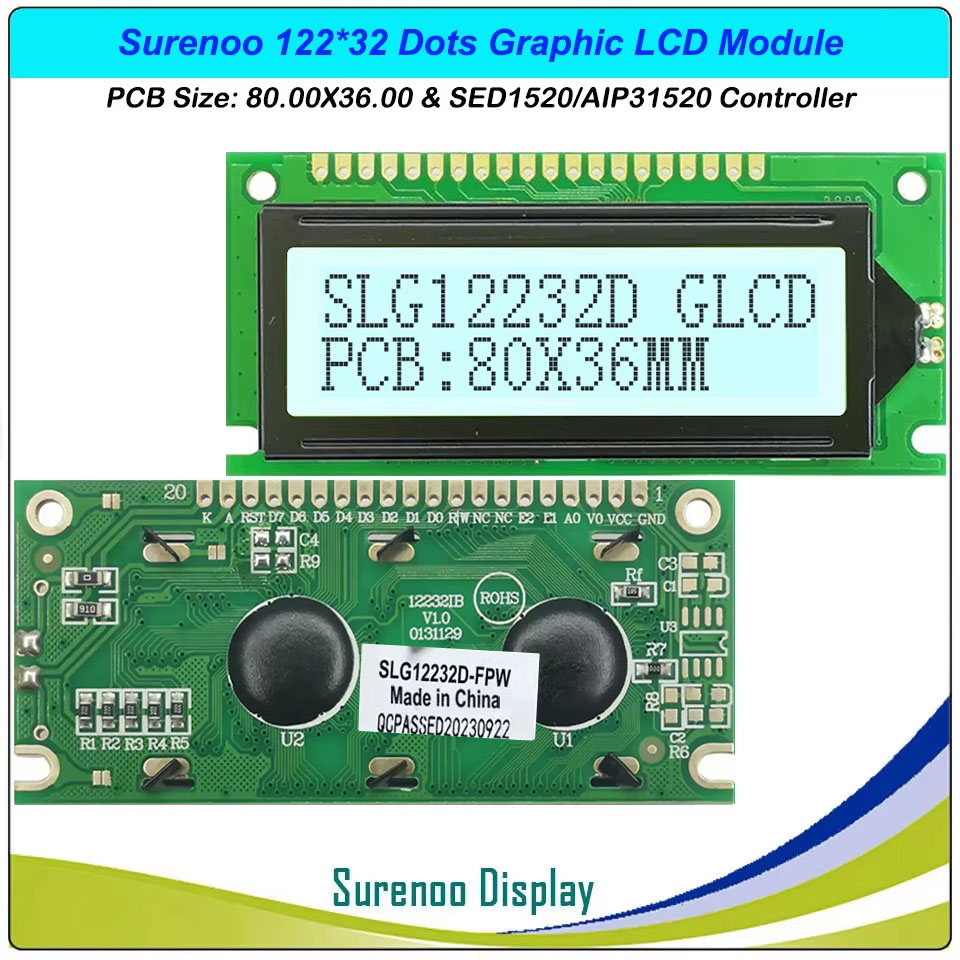

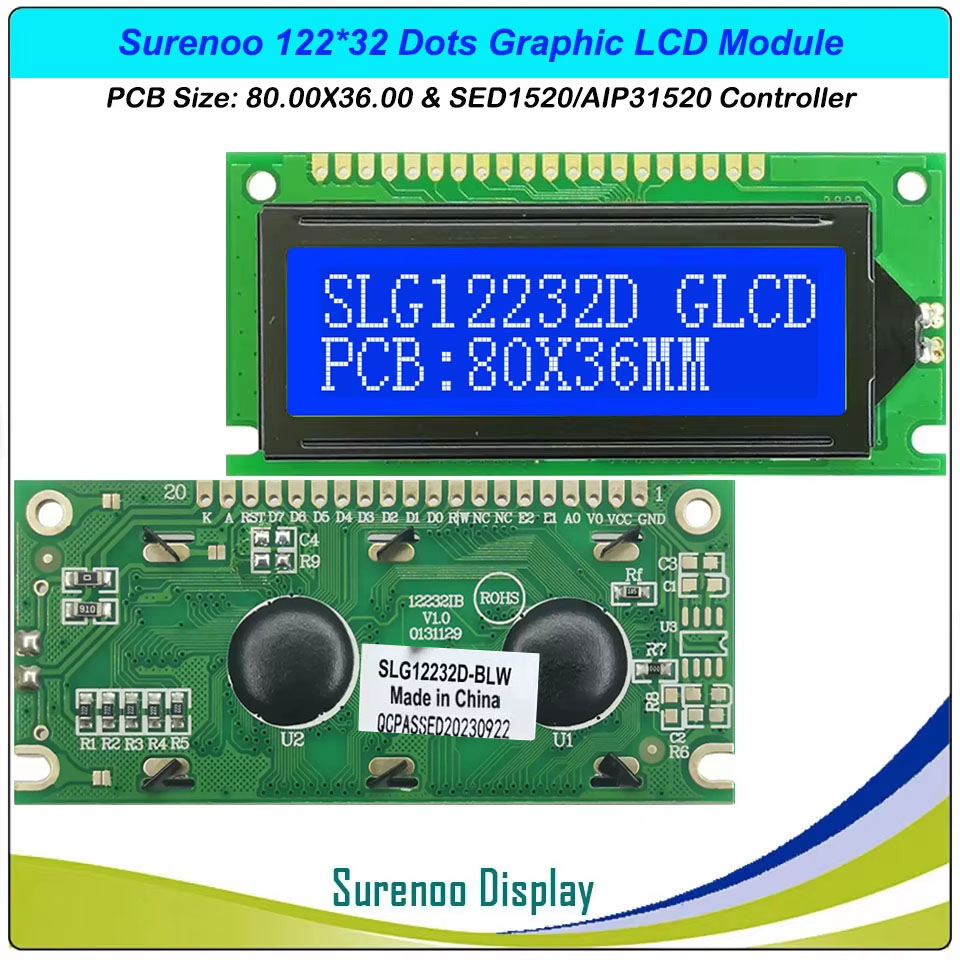

    Display Type STN Yellow Green, STN Blue Negative, FSTN Positive
    Backlight Type (LED) Yellow Green, White
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃
    • Outline Drawing

    • Interface
    Pin No. Symbol I/O Description
    1 VSS 0V Ground
    2 VDD 5.0V Logic Power Supply
    3 V0 - LCD Contrast
    4 RS/A0 H/L H: DB0-DB7=Data; L: DB0-DB7=Command
    5 E1 H Enable Signal for Left half-panel
    6 E2 H Enable Signal for Right half-panel
    7-8 NC - No Connect
    9 R/W H/L H: Read; L: Write
    10-17 DB0-DB7 I/O Data Bus
    18 RST H/L Reset Signal
    19 LED_A 5.0V Backlight Anode
    20 LED_K 0V Backlight Cathode
    • Documents
    No. Item Document Name File Type ICON Date Description Mark
    1 Datasheet 122X32 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 12232 Graphic LCD Module
    2 Controller Controller IC SED1520 Datasheet PDF 2008-09-24 Graphic LCD Controller, Compatible with SED1520/SBN1661
