SLG12232C Outline=76.60X28.00 2.0" 12232 122X32 Surenoo Graphic LCD Module Display Screen Panel Serial SPI 7PIN AIP31020 ST7920 Controller STN Yellow Green STN Blue Negative FSTN Positive LED Backlight for MCU 8051 PIC AVR ARM

WISHLIST
Model No.: SLG12232C (2.0")
Display Format: 122*32 Dots
Outline: 76.60X28.00MM
Controller: AIP31020, ST7920 or Equal
180 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SLG12232C is a 122*32 Monochrome Graphic LCD Module, AIP31020/ST7920 Controller that is built-in with 8192 16X16 dots Chinese fonts and 126 16X8 dots half height alphanumerical fonts.

    SLG12232C supprot 3-wire serial spi interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.

    It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.040Kg
    Manufacturer Surenoo
    Display Type Graphic LCD Module
    Continuity Supply More than 10 years
    Part No. SLG12232C (2.0")
    Display Format 122*32 Dots
    Interface Serial SPI
    IC or Equivalent AIP31020, ST7920 or Equal
    Fonts 2M-bits Chinese fonts ROM (CGROM), supporting 8192 Chinese fonts (16x16 dot matrix)
    16K-bits half height ROM (HCGROM), supporting 126 character set (16x8 dot matrix)
    64 x 16-bits character generation RAM (CGRAM)
    Voltage 5.0V in default
    Connection 1X7P/2.54 Pin Header

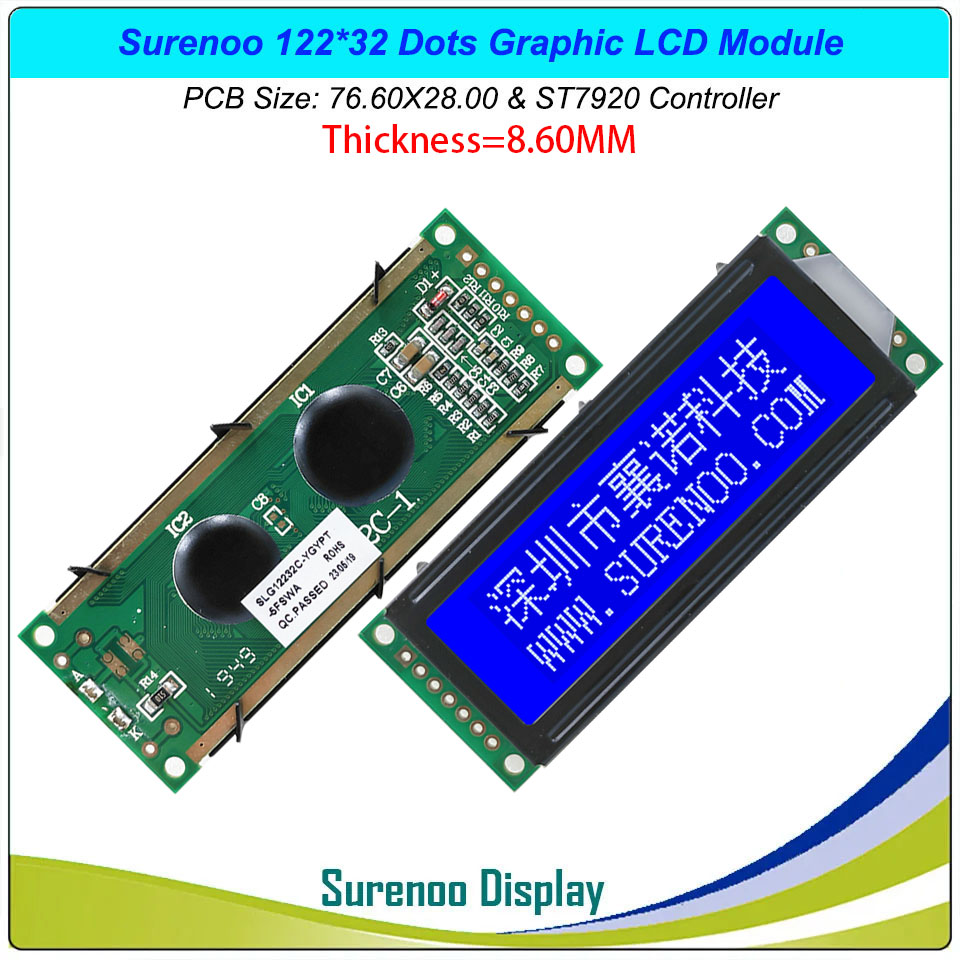

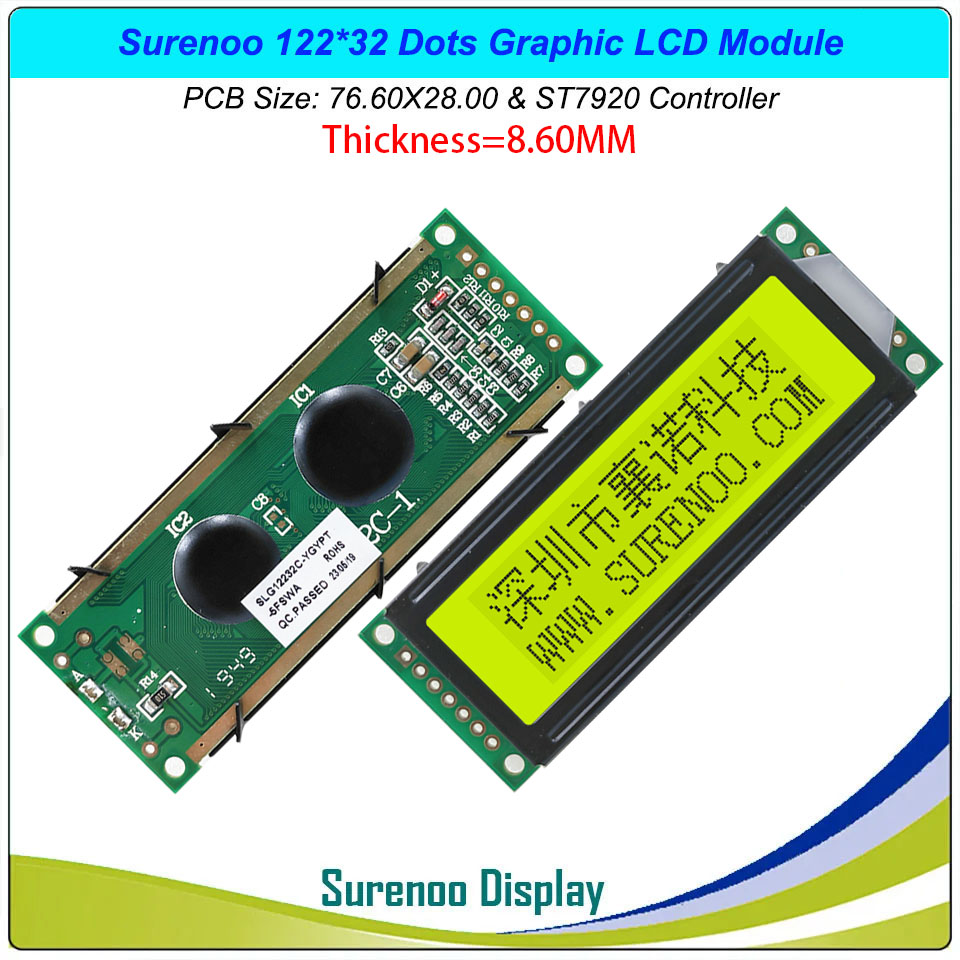

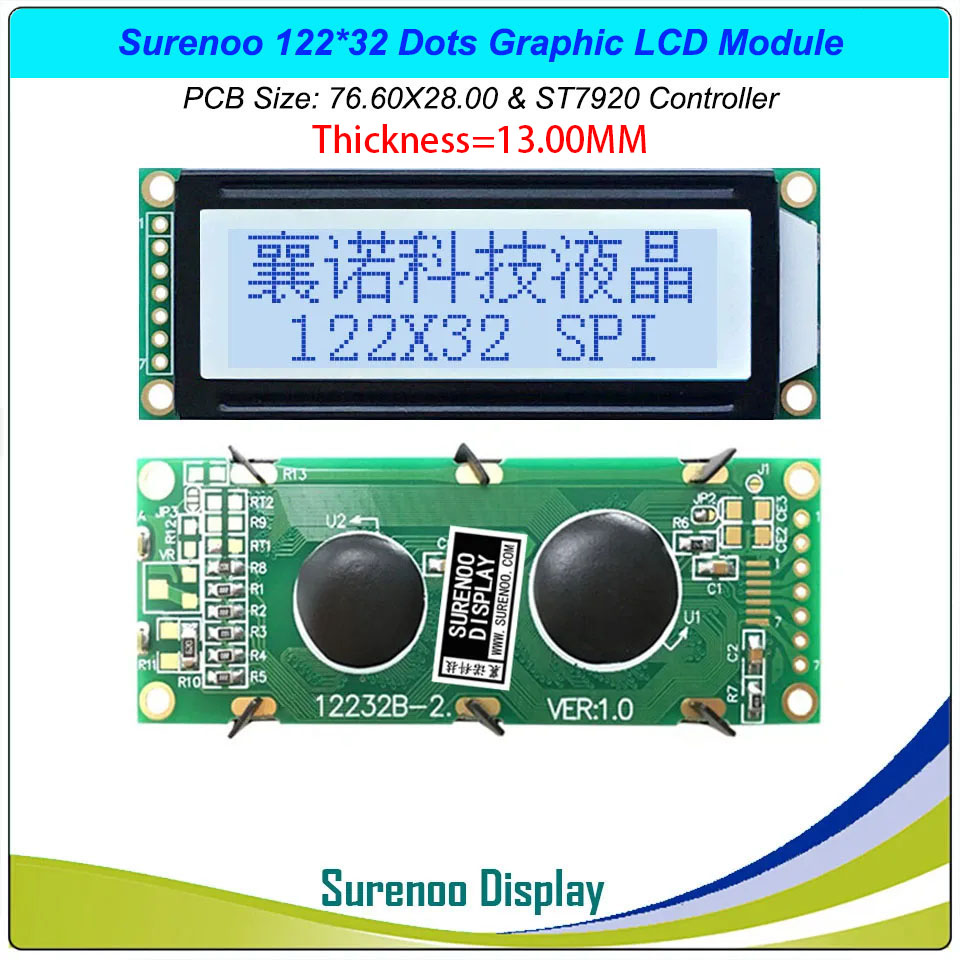

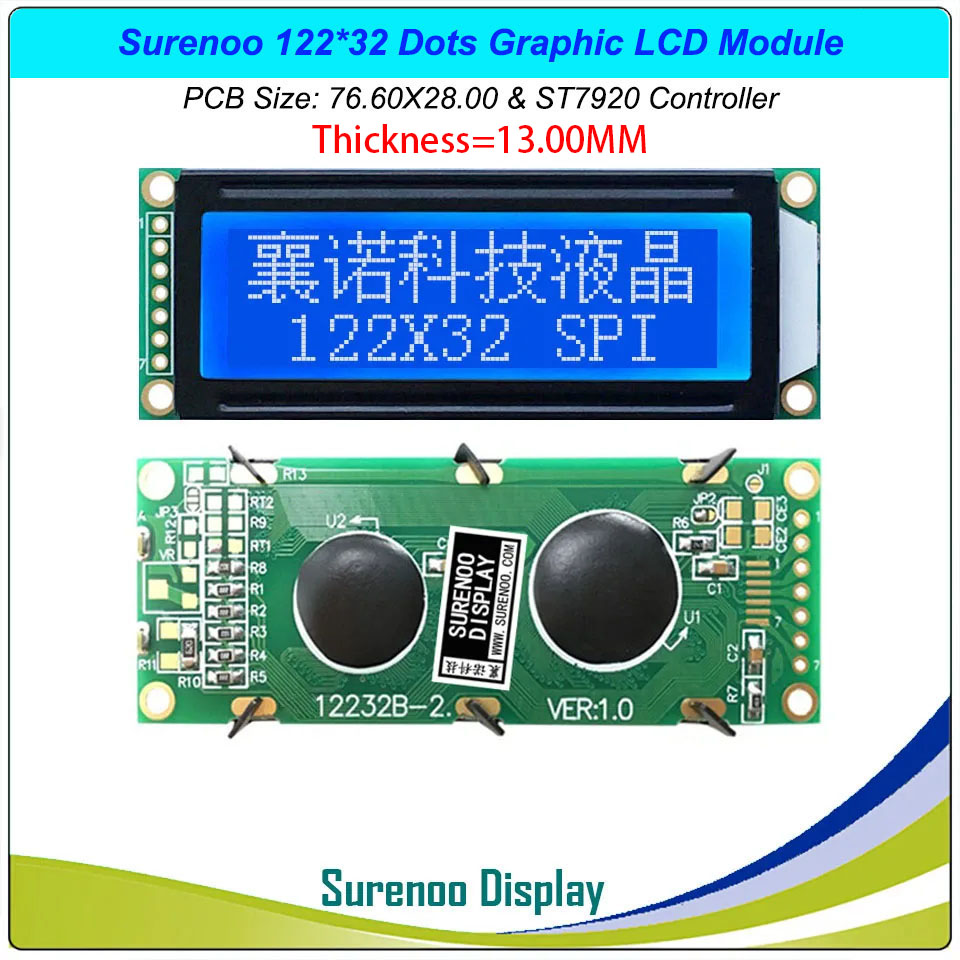

    Outline Dimension C1: 76.60(W)x28.00(H)x8.60(T)mm / C2: 76.60(W)x28.00(H)x13.00(T)mm
    Visual Area 60.50x18.00mm
    Active Area C1: 48.76x14.68mm / C2: 54.86x14.38mm

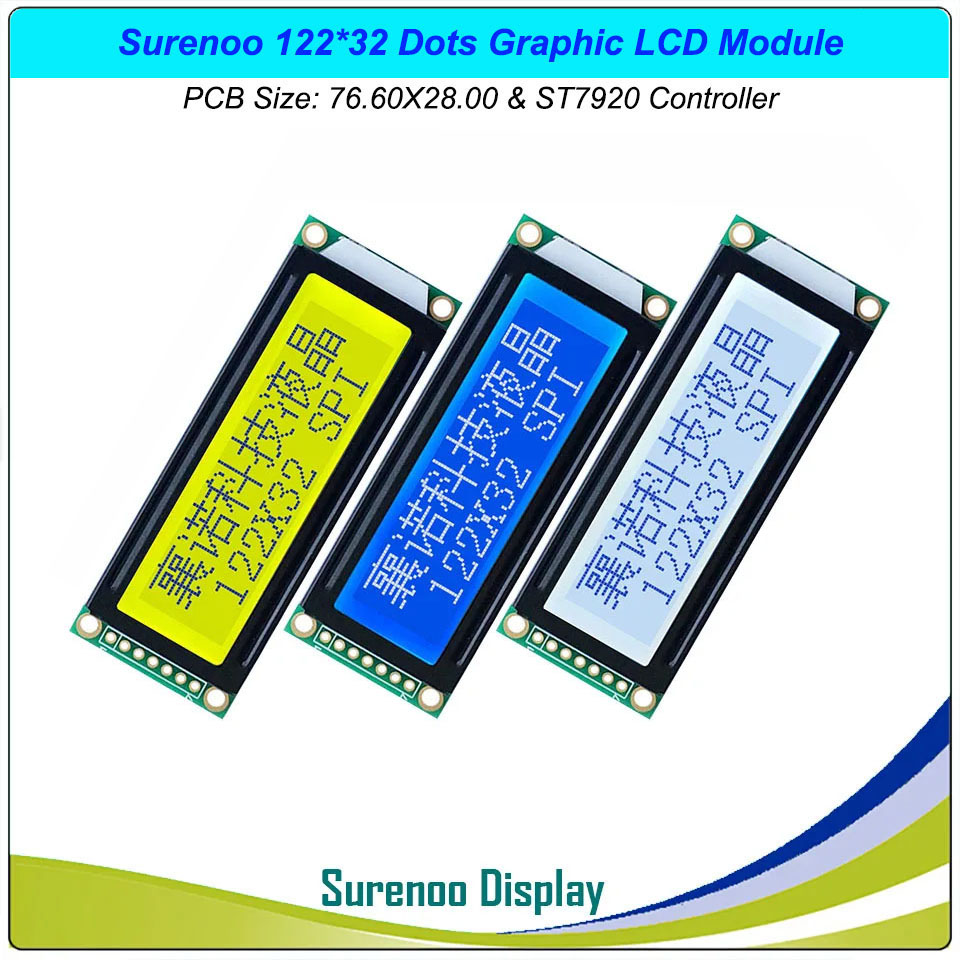

    Display Type STN Yellow Green, STN Blue Negative, FSTN Positive
    Backlight Type (LED) Yellow Green, White
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃
    • Outline Drawing

    • Interface
     CN1  Symbol Level  Description
    1 VSS 0V Ground 0V
    2 VDD 5.0V Logic Power Supply
    3 CS H Chip Enable Signal
    4 SID H/L Serial Data Input
    5 SCLK L Serial Clock Input
    6 RST H Reset Pin
    7 LED_A 5.0V Backlight Anode
    • Documents
    No. Item Document Name File Type ICON Date Description Mark
    1 Datasheet 122X32 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 12232 Graphic LCD Module
    2 Controller Controller IC ST7920 Datasheet PDF 2008-09-24 Graphic LCD Controller, Compatible with ST7920, build-in Chinese Font, support Serial SPI
    3
    		 Library
    		 Serial SPI Interface Demo Code TXT 2009-07-19 Surenoo Library for ST7920 Serial SPI Library
