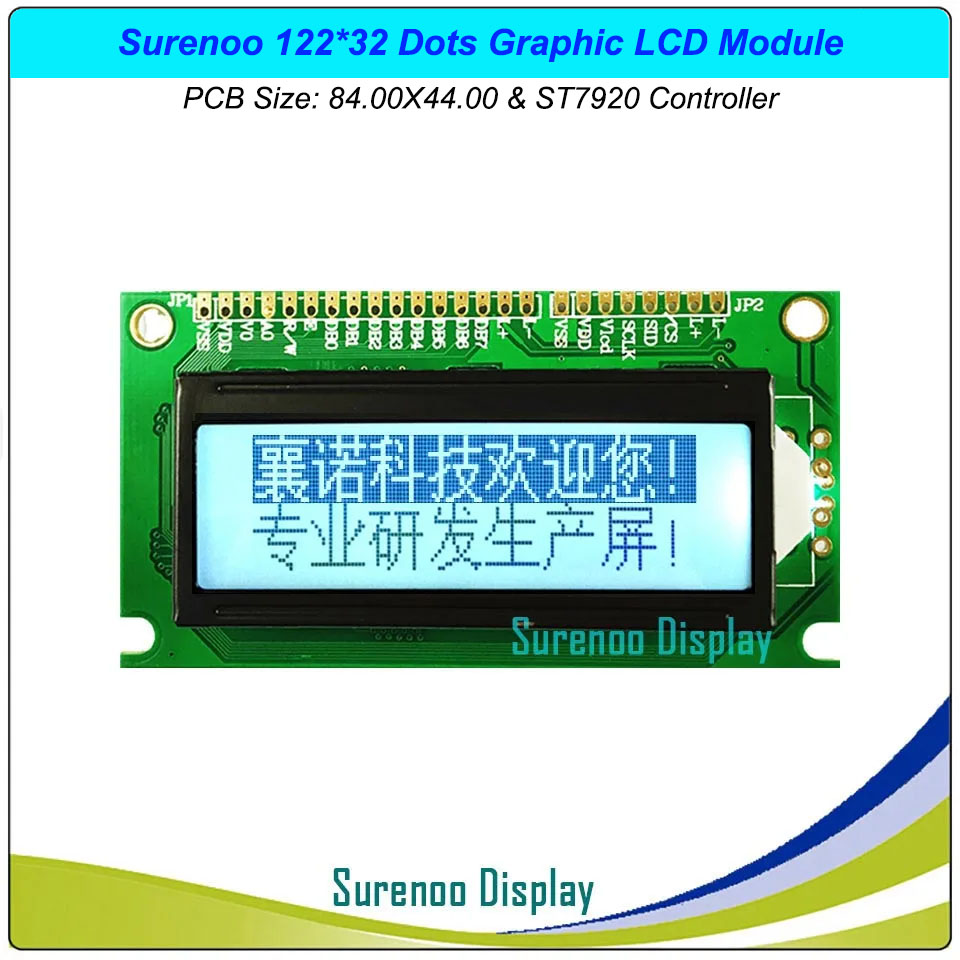

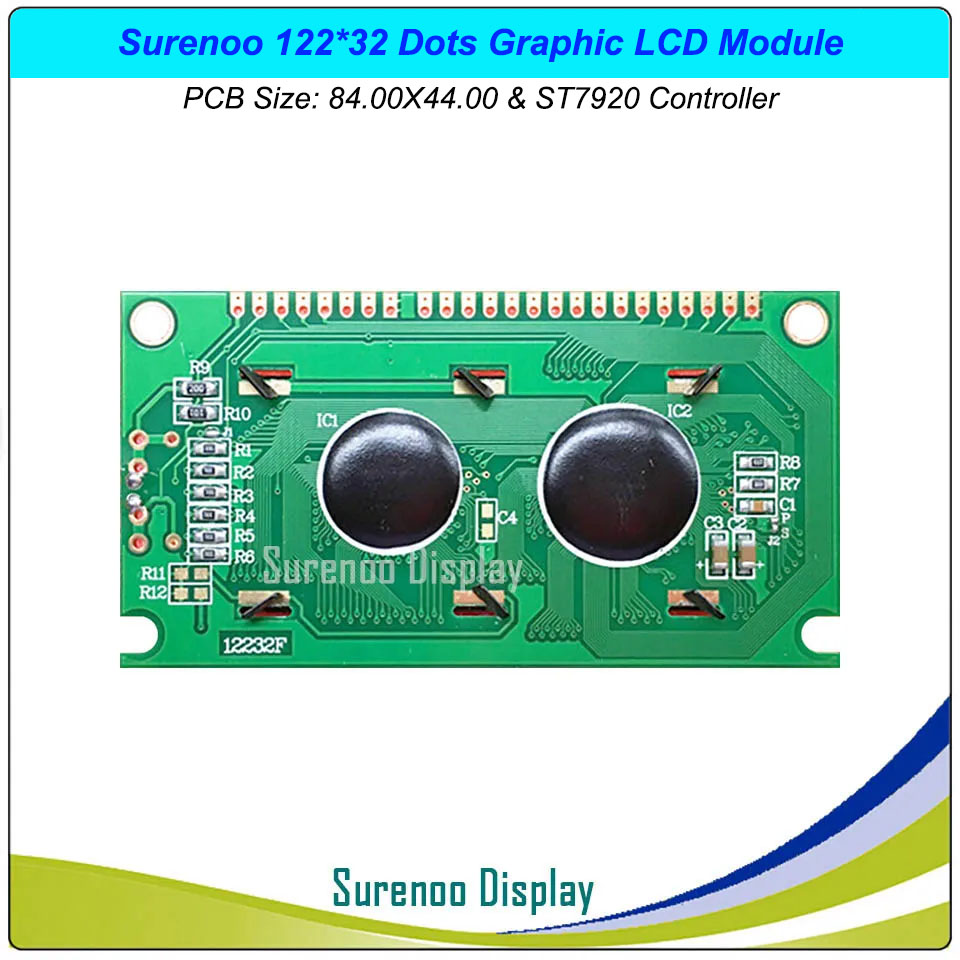

SLG12232A Outline=84.00X44.00MM 2.0" 12232 122X32 Surenoo Graphic LCD Module Display Screen Panel 6800 4-bit 8-bit Parallel Serial SPI AIP31020 ST7920 Controller STN Yellow Green STN Blue Negative FSTN Positive LED Backlight for MCU 8051 PIC AVR ARM

WISHLIST
Model No.: SLG12232A (2.0")
Display Format: 122*32 Dots
Outline: 84.00X44.00MM
Controller: AIP31020, ST7920 or Equal
249 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Overview
    SLG12232A is a 2.0" 122*32 Monochrome Graphic LCD Module, AIP31020/ST7920 Controller that is built-in with 8192 16X16 dots Chinese fonts and 126 16X8 dots half height alphanumerical fonts.

    SLG12232A supprot 6800 4/8-Bit parallel and 3-wire serial spi interface, wide operating temperature range, rohs compliant. 5V power supply in default and 3.3V is optional for bulk order.

    It's easily controlled by MCU such as 8051, PIC, AVR and ARM. It can be used in any embedded systems, industrial device, security, medical and hand-held equipment.
    • Specification
    Gross Weight  0.040Kg
    Manufacturer Surenoo
    Display Type Graphic LCD Module
    Continuity Supply More than 10 years
    Part No. SLG12232A (2.0")
    Display Format 122*32 Dots
    Interface 6800 4-bit Parallel, 6800 8-bit Parallel, Serial SPI
    IC or Equivalent AIP31020, ST7920 or Equal
    Fonts 2M-bits Chinese fonts ROM (CGROM), supporting 8192 Chinese fonts (16x16 dot matrix)
    16K-bits half height ROM (HCGROM), supporting 126 character set (16x8 dot matrix)
    64 x 16-bits character generation RAM (CGRAM)
    Voltage 5.0V in default
    Connection 1X16P/2.54 Pin Header; 1X8P/2.54 Pin Header
    Outline Dimension 84.00(W)x44.00(H)x12.70(T)mm
    Visual Area 60.50x18.00mm
    Active Area 48.76x14.68mm

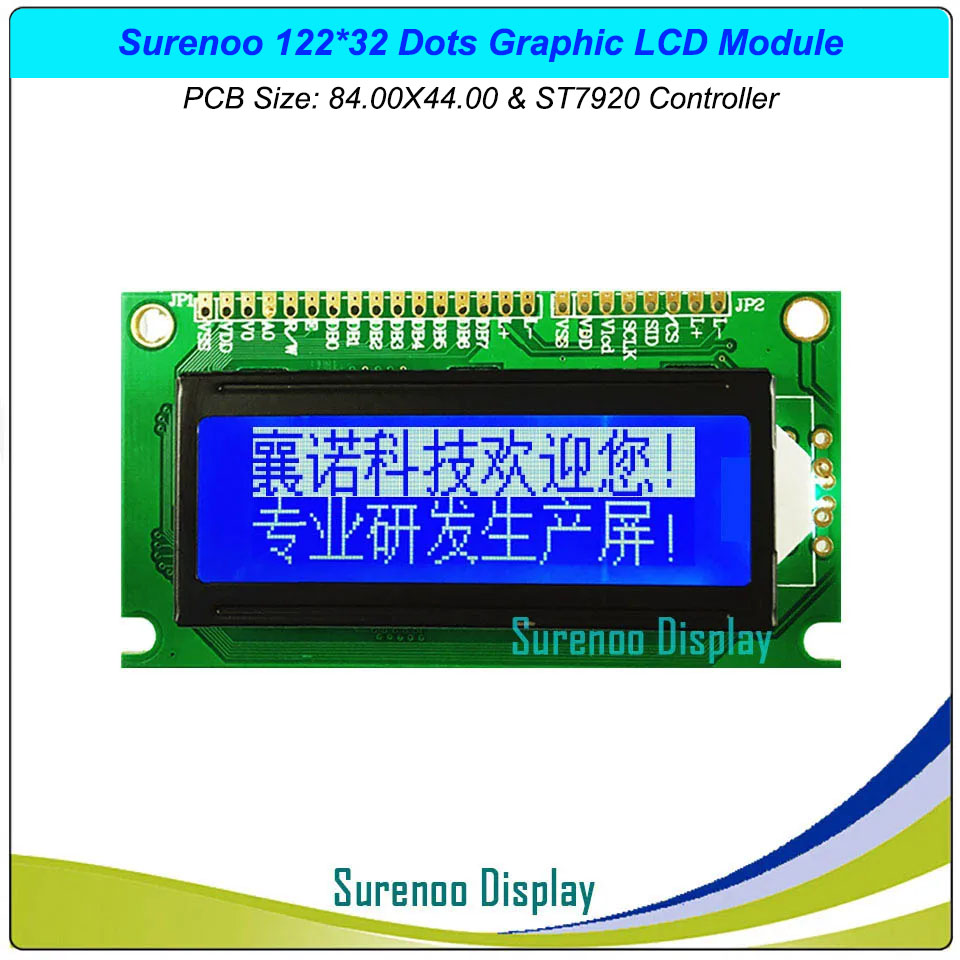

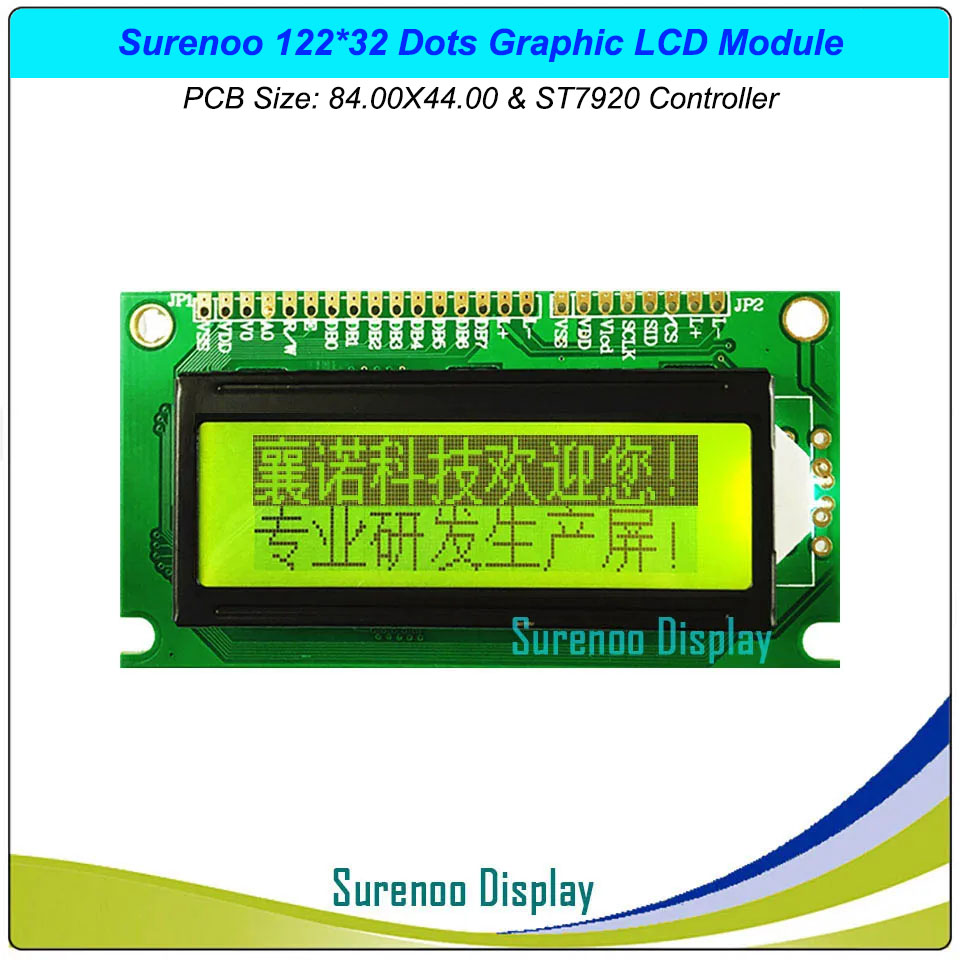

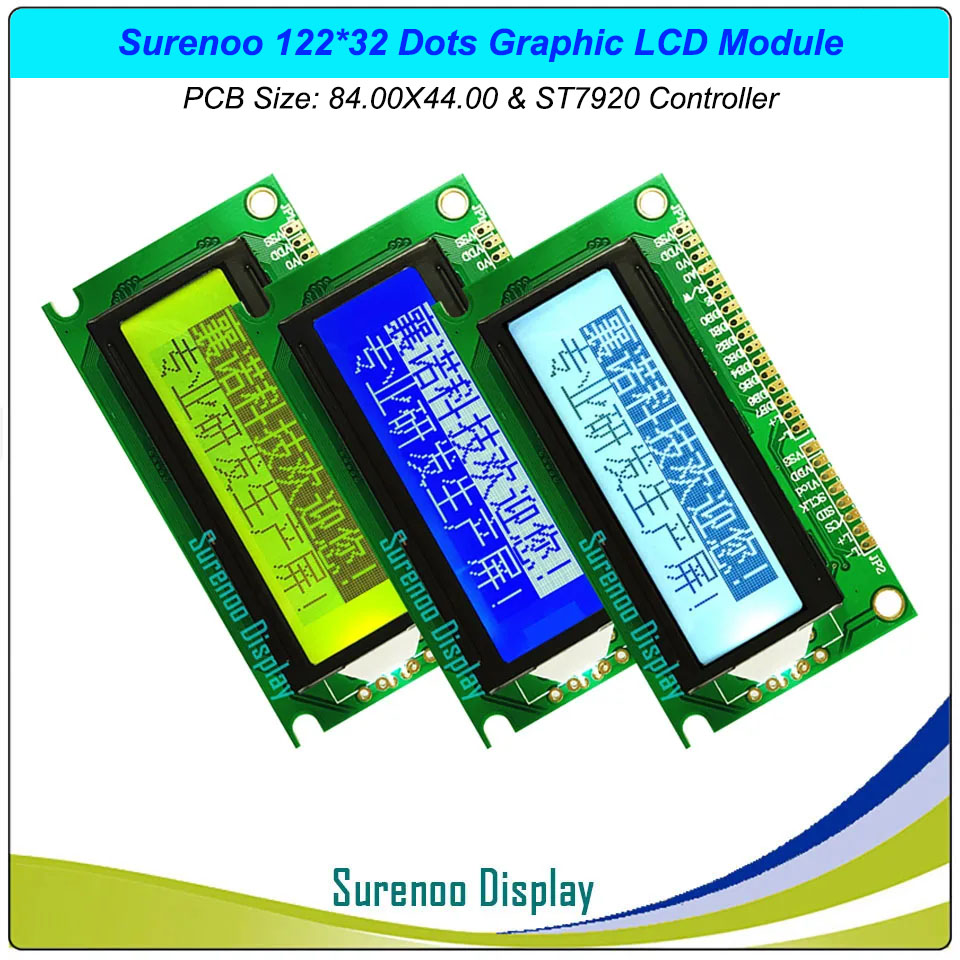

    Display Type STN Yellow Green, STN Blue Negative, FSTN Positive
    Backlight Type (LED) Yellow Green, White
    IC Package COB
    Viewing Direction 6:00 O'Clock
    Operating Temperature
    -20℃~70℃
    Storage Temperature
    -30℃~80℃
    • Outline Drawing

    • Interface
    JP1: Serial (Short P, Open S) / JP2: Serial (Short S, Open P)
    6800 4/8-Bit Parallel 3-Wire Serial SPI
    Pin No. Symbol Description
    		 Pin No.
    		 Symbol
    		 Description
     CN1  CN1 CN2
    1 VSS Ground 0V 1 1 VSS Ground 0V
    2 VDD Logic Power Supply 2 2 VDD Logic Power Supply
    3 V0 Operating voltage for LCD 3 3 V0 Operating voltage for LCD
    4 RS Register Select (H: Data Signal, L: Instruction Signal) 4 6 CS Chip Selelction (High valid)
    5 R/W Read / Write (H: Read Mode, L: Write Mode) 5 5 SID Serial Data Signal
    6 E Enable Signal (High valid) 6 4 SCLK Serial Clock Signal
    7-14 DB0-DB7 Data Bus 7-14 NC No Connect
    15 LED_A Backlight Anode 15 7 LED_A Backlight Anode
    16 LED_K Backlight Cathode 16 8 LED_K Backlight Cathode
    • Documents
    No. Item Document Name File Type ICON Date Description Mark
    1 Datasheet 122X32 Graphic LCD Module Datasheet PDF 2013-03-17 Standard 12232 Graphic LCD Module
    2 Controller Controller IC ST7920 Datasheet PDF 2008-09-24 Graphic LCD Controller, Compatible with ST7920, build-in Chinese Font, support Serial SPI
