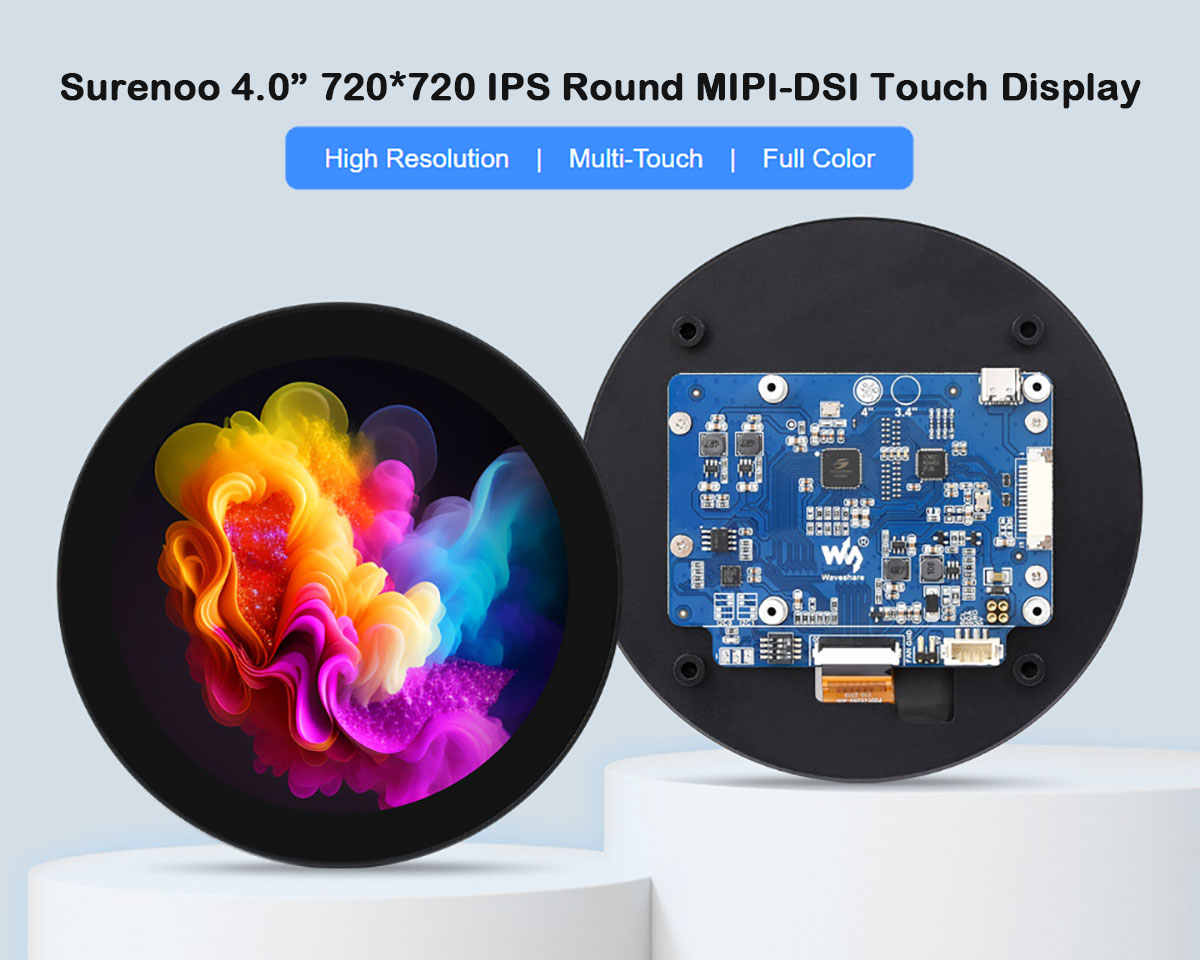

Surenoo DSI Display 4.0" inch 720*720 IPS Round Circle LCD Display Module Screen with Capacitive Touch Panel CTP DSI MIPI Interface for RaspBerry Pi 5/4B/3B+/3A+

WISHLIST
Model No.: SDSR040A_720720
Model Size: 4.0 Inch Round
Resolution: 720*720 IPS
Interface: Mipi DSI
Touch Type: Capacitive Touch Panel (CTP)
98 sold
Quantity
ADD TO CART
BUY IT NOW
  • Detail
    • Tips
    Surenoo DSI Display 4.0" inch 720*720 IPS Round Circle LCD Display Module Screen with Capacitive Touch Panel CTP DSI MIPI Interface for RaspBerry Pi 5/4B/3B+/3A+
    • Overview



    • Product Parameters
    Item of General Information Contents Unit
    LCD Display Size (Diagonal) 4.0" Inch
    LCD Display Type
    		 TFT/TRANSMISSIVE
    		 -
    Recommended Viewing Direction ALL VIEW (IPS) O'Clock
    Model No. SDSR040A_720720 -
    LCM Module Size (W×H×T) 126.00×126.00×17.00 MM
    Viewing Area (W×H) 101.52×101.52
    		 MM
    Number of Pixels (Resolution) 720(RGB)×720 Pixels
    Color Pixel Arrangement RGB Stripe -
    Interface Type MIPI 4 Lane -
    Color Numbers 16.7M -
    Backlight Type White LED -
    Touch Type Capacitive Touch Panel (CTP) --
    • External Dimensions & Interface

    • Device & System Support

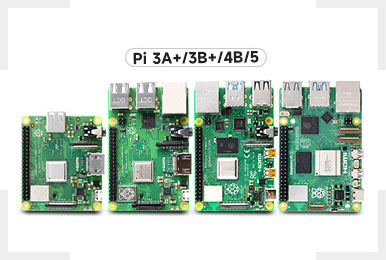

    Raspberry Pi
    Supports Raspberry Pi OS, 10-point touch, driver required

    Supports Pi 5/4B/3B+/3A+


    Connection Examples

    Working with Raspberry Pi 5





    Working with Raspberry Pi 4B





    Working with Raspberry Pi 3B+


    for reference only, the Raspberry Pi boards are NOT included.
    • Functions
    IPS Display Panel

    Excellent Display Performance With 170° Wide Viewing Angle

    10-Point Capacitive Touch
    1. up to 10-point touch, depending on the operating system
    2. up to 6H hardness toughened glass panel
    3. Optical Bonding, display well and dustproof
    Adjustable Brightness Via Software
    Interface Introduction
    Application Examples

    Smart Home



    In-vehicle Devices




    Consumer Electronics



    Industrial Equipments
